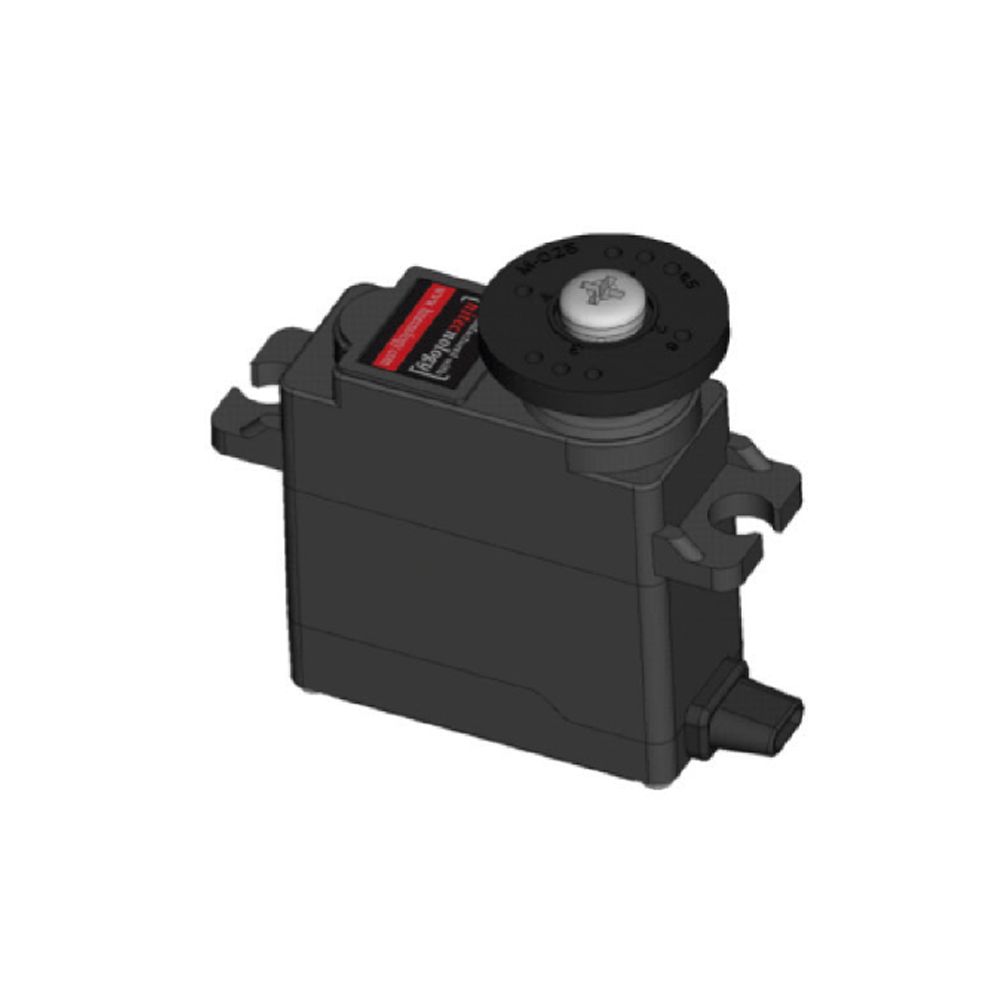

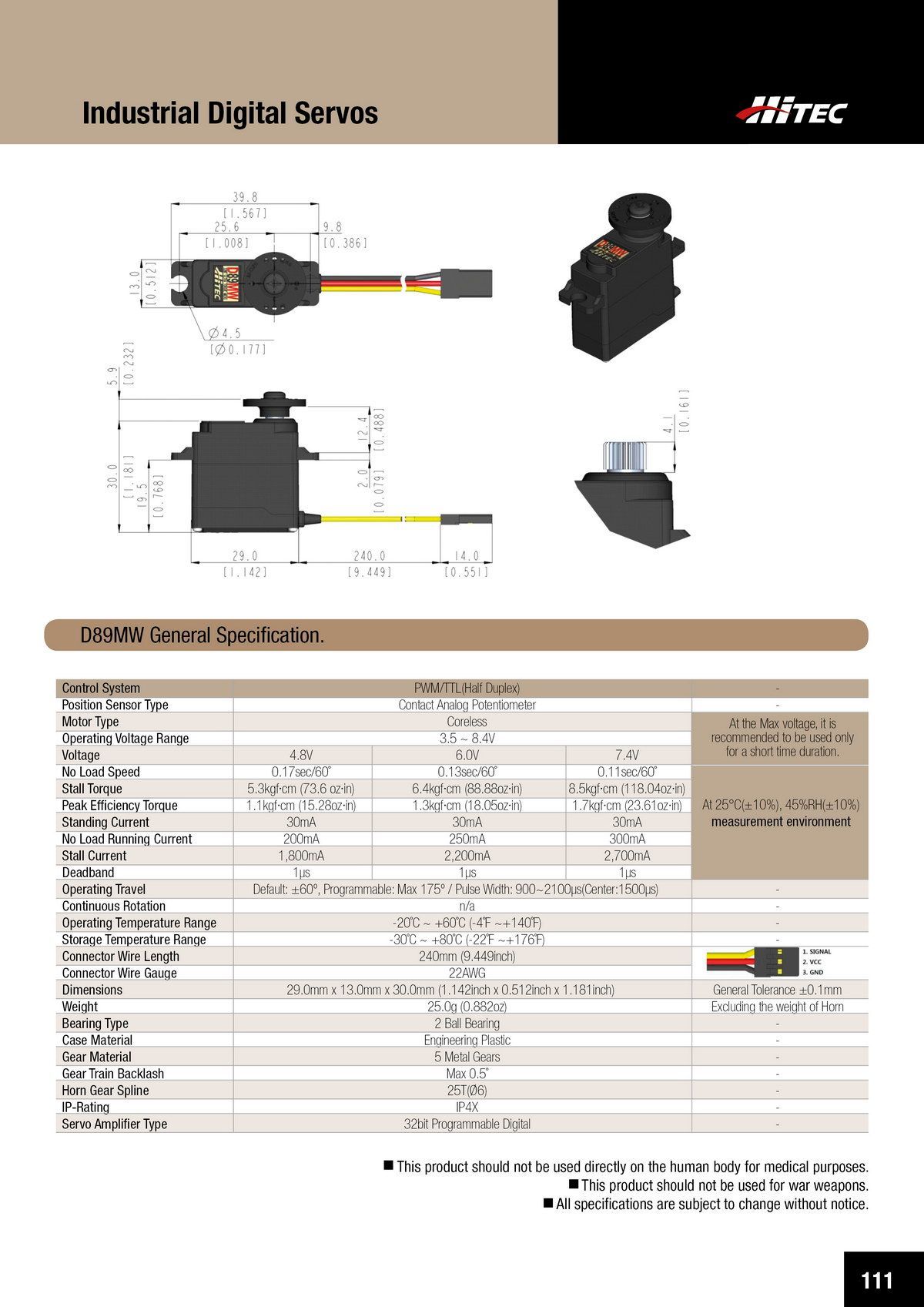

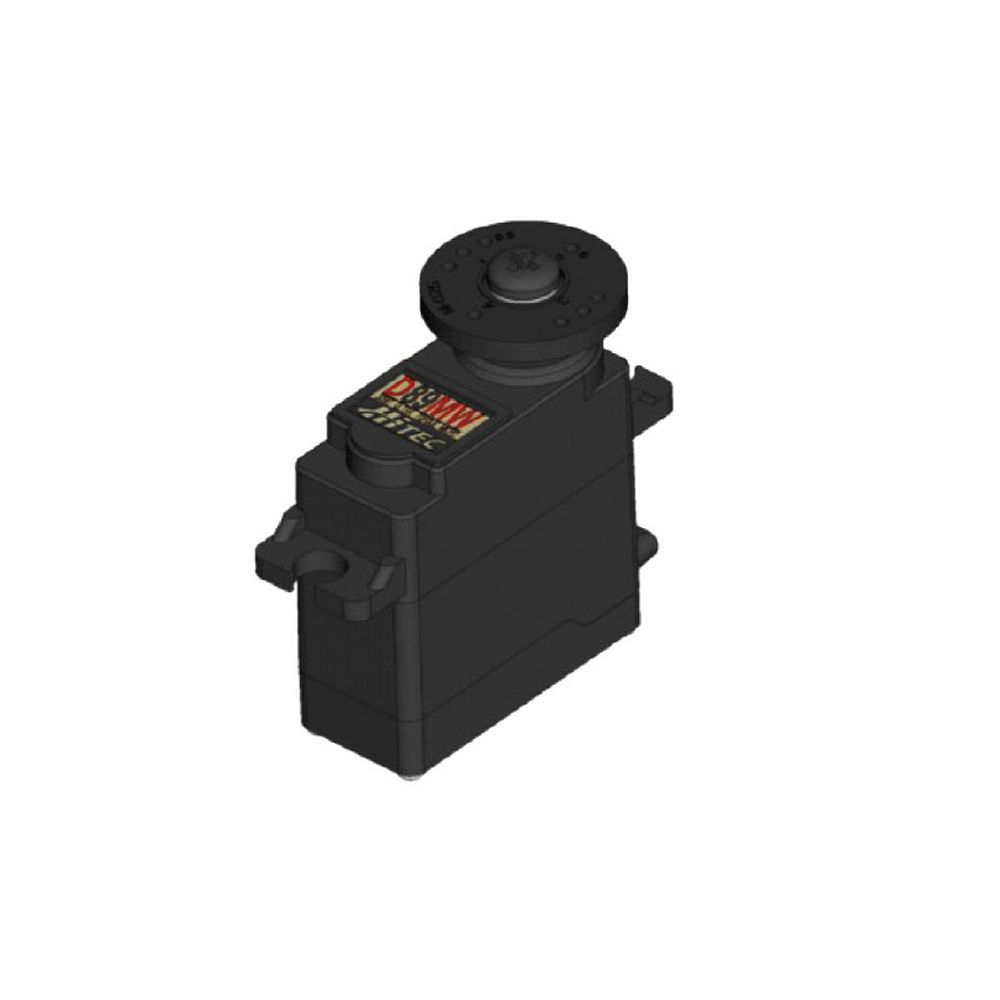

13mm, Coreless, Wide Voltage, Metal Gear Actuator (7.4V)

With high-resolution, ultra-response technology and wide voltage operation, the 13mm D89MW delivers solid power for industrial applications. Its micro-size, metal gears and efficient coreless motor make this mini actuator a standout in its class.

Cad File Download

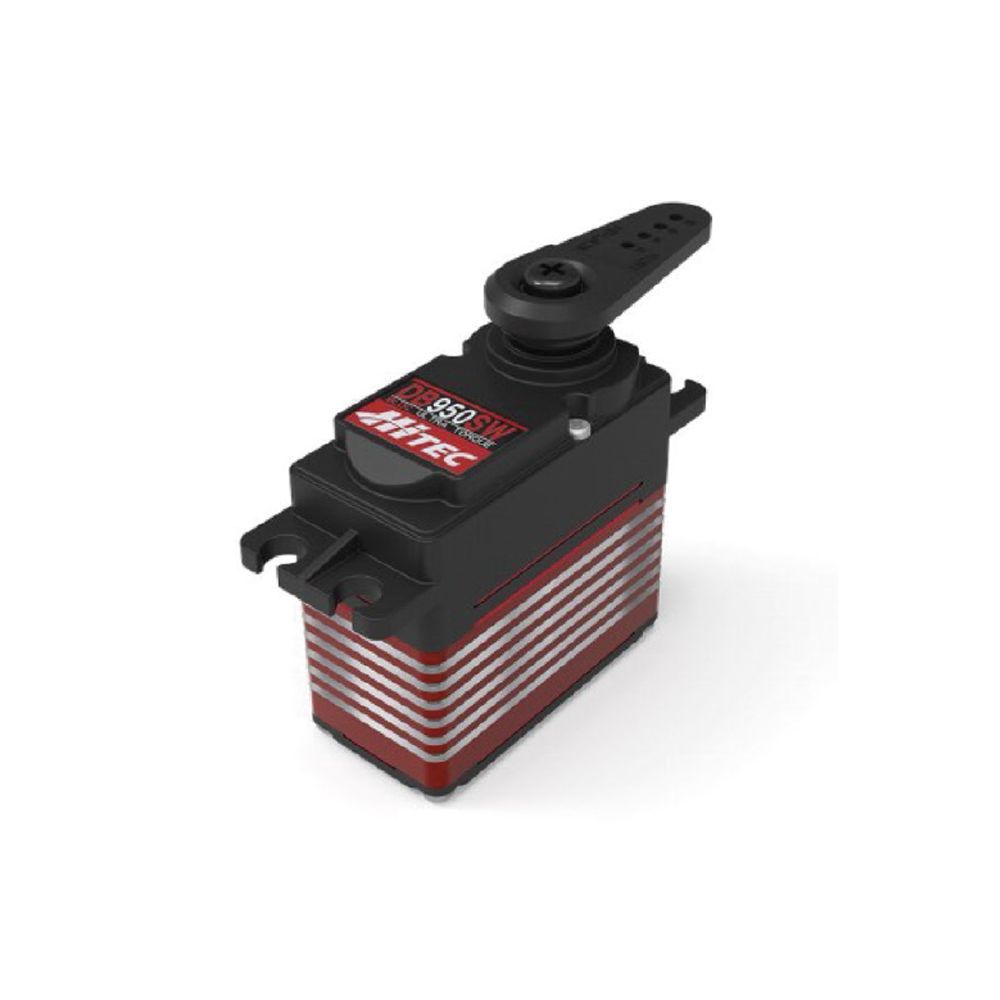

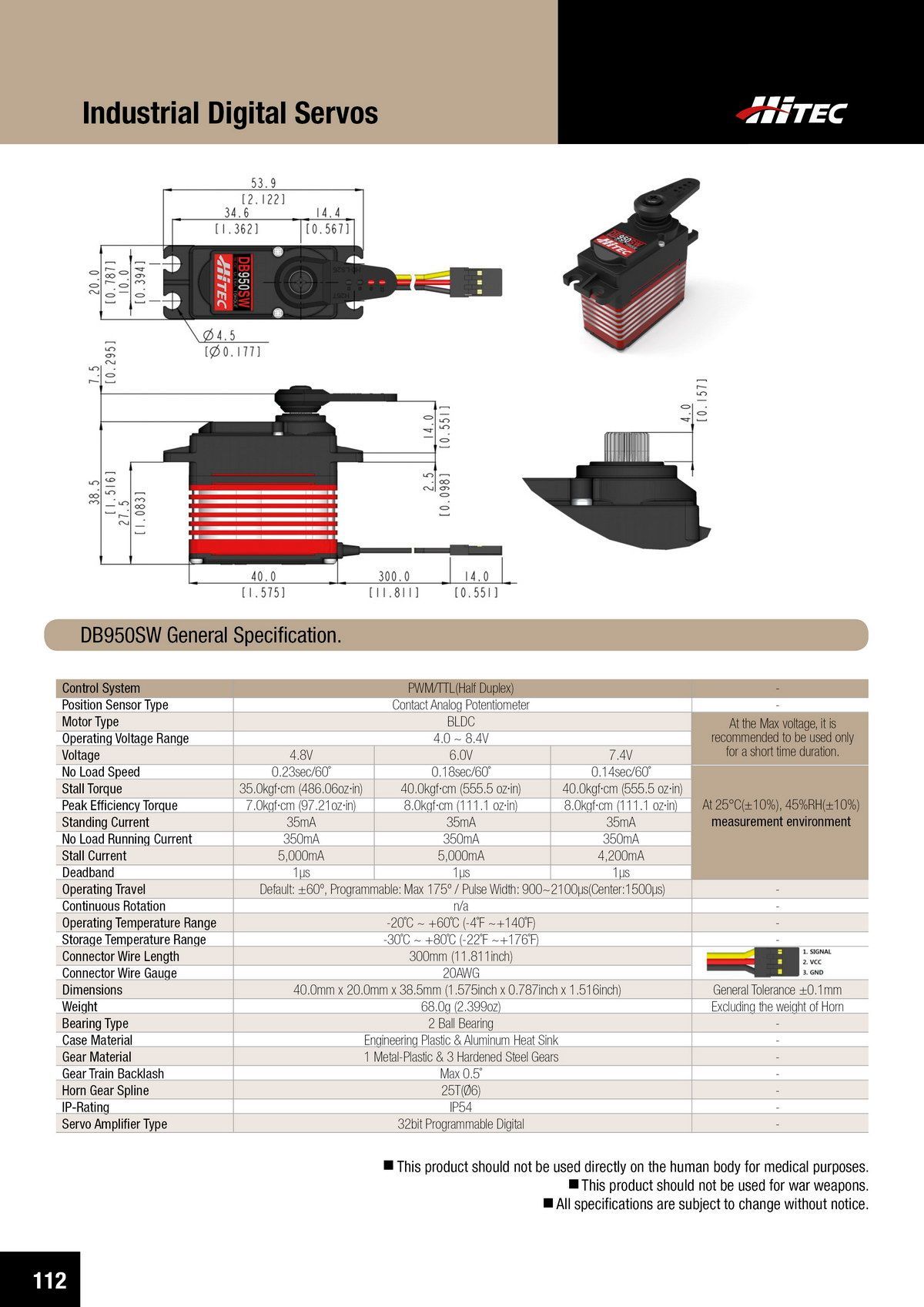

20mm, Brushless, Wide Voltage, Steel Gear Actuator (7.4V)

Our ultra-premium DB950SW answers the call for increased durability, providing the dependability and reliability industrial applications demand. Coupling 555 oz/in at 7.4V of torque and 0.14 sec/60° at 7.4V of speed, with its wide voltage range and brushless motor, this hardened steel gear, fully programmable actuator delivers the ultimate in high performance.

Cad File Download

22mm, Coreless, Wide Voltage, Titanium Gear Actuator (7.4V)

Cad File Download

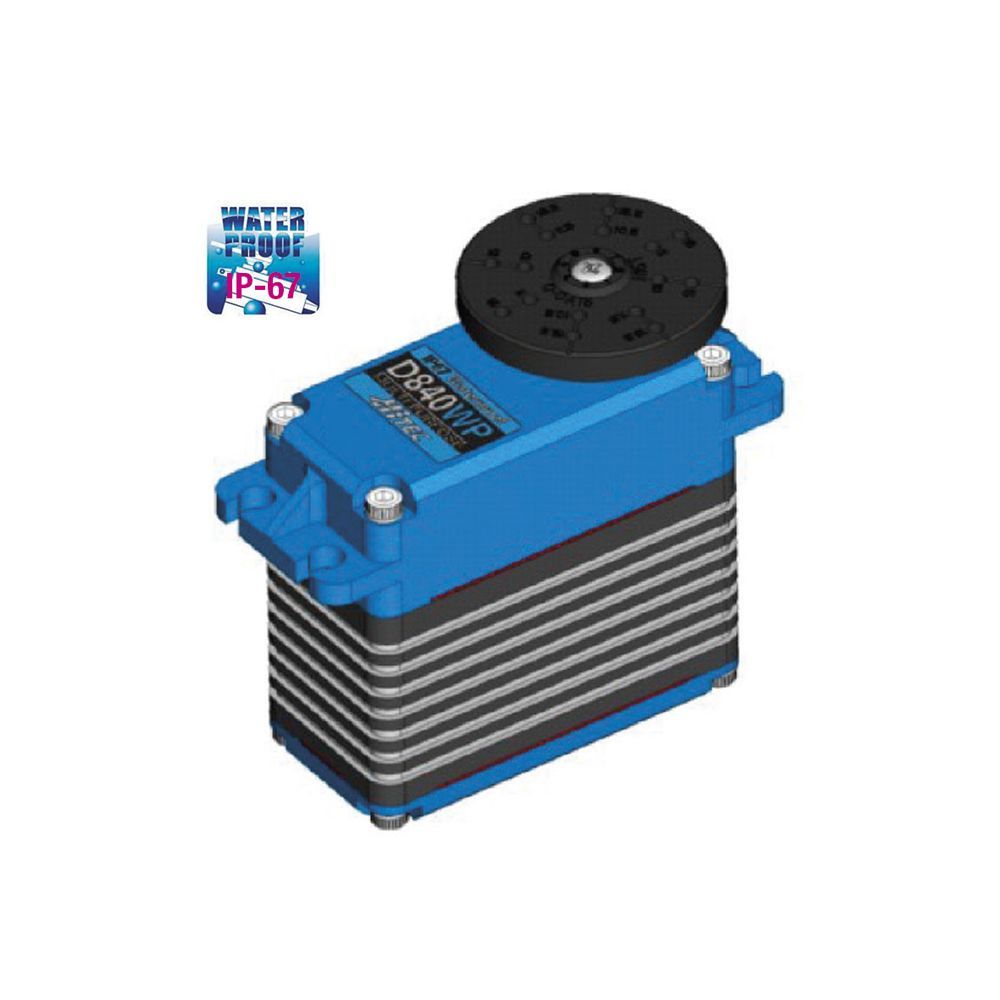

32mm, Waterproof, Cored, Wide Voltage, High Speed Actuator (7.4V)

Our D840WP industrial actuator offers a wide voltage range, as well as IP67-certified water & dust-proof protection, making it suitable for many industrial applications. Featuring a machined aluminum-composite case to dissipate heat, two ball bearings and four steel gears, a digital amp with MOSFET drive, and both PWM & PWM/TTL control protocols, this powerhouse delivers nearly 420 oz-inches of torque and high-speed operation. Program parameters such as End Point Adjustments, Direction, Speed and Fail-Safe position to optimize the installation and performance when your industrial applications demand that extra level of performance and capability.

Cad File Download

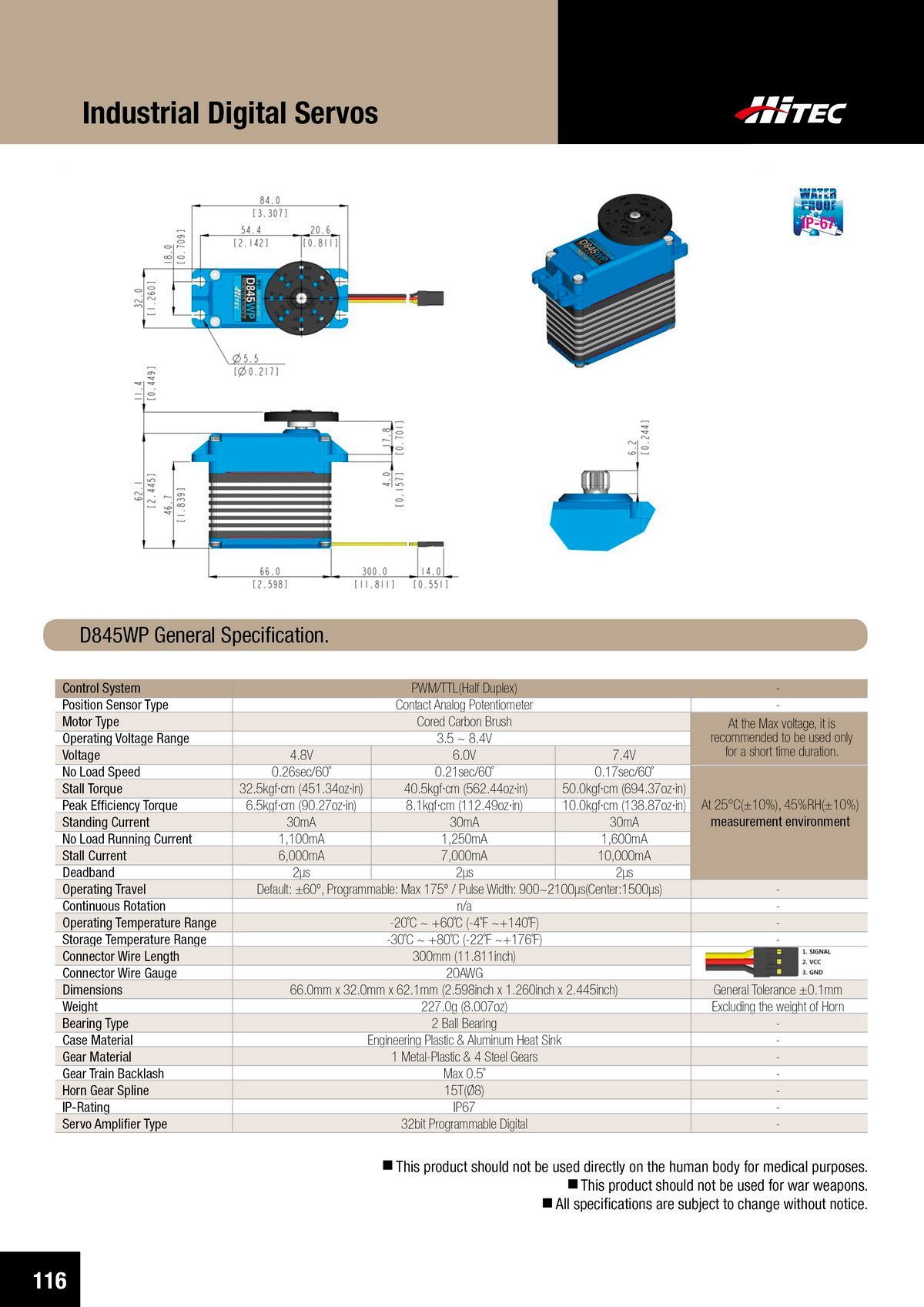

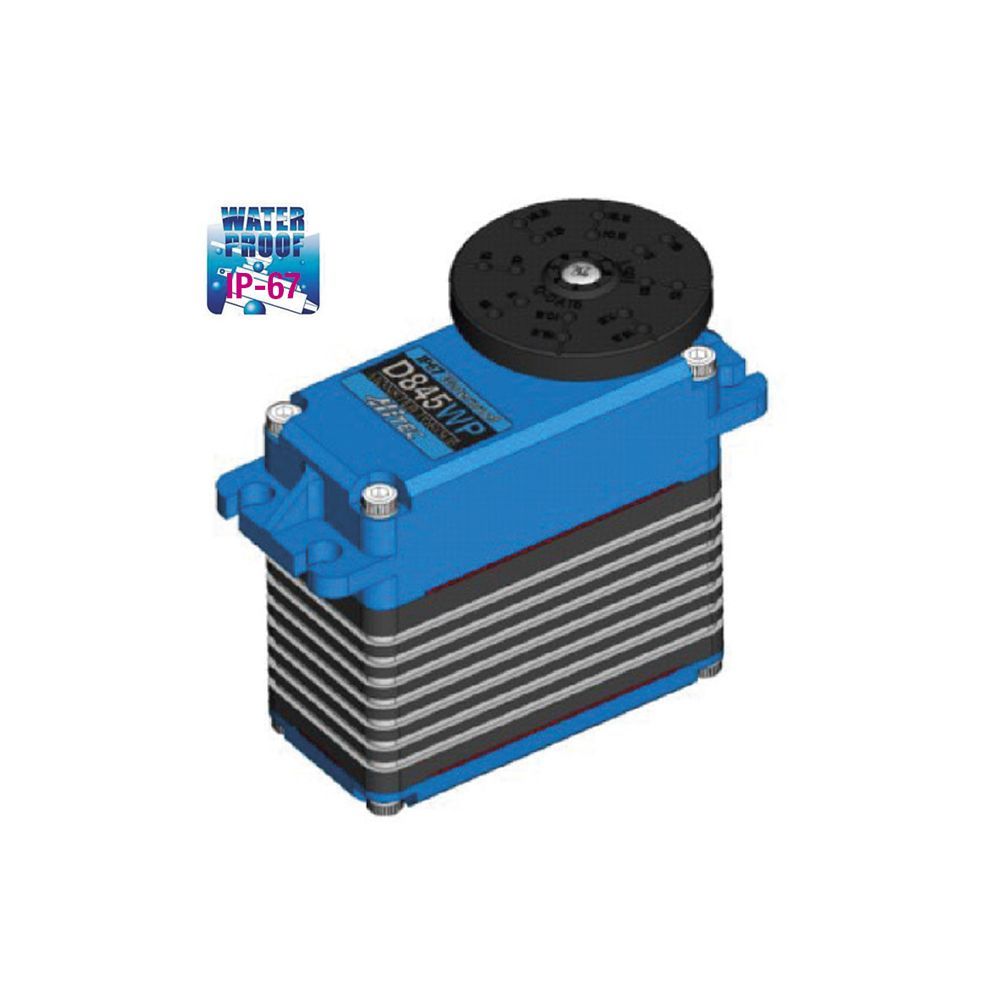

32mm, Waterproof, Cored, Wide Voltage, High Torque Actuator (7.4V)

Our D845WP industrial actuator offers a wide voltage range, as well as IP67-certified water & dust-proof protection, making it suitable for many industrial applications. Featuring a machined aluminum-composite case to dissipate heat, two ball bearings and four steel gears, digital amp with MOSFET drive, and both PWM & PWM/TTL control protocols, this powerhouse delivers nearly 700 oz-inches of torque. Program parameters such as End Point Adjustments, Direction, Speed and Fail-Safe position to optimize the installation and performance when your industrial applications demand that extra level of performance and capability.

Part #: 36845S

Cad File Download

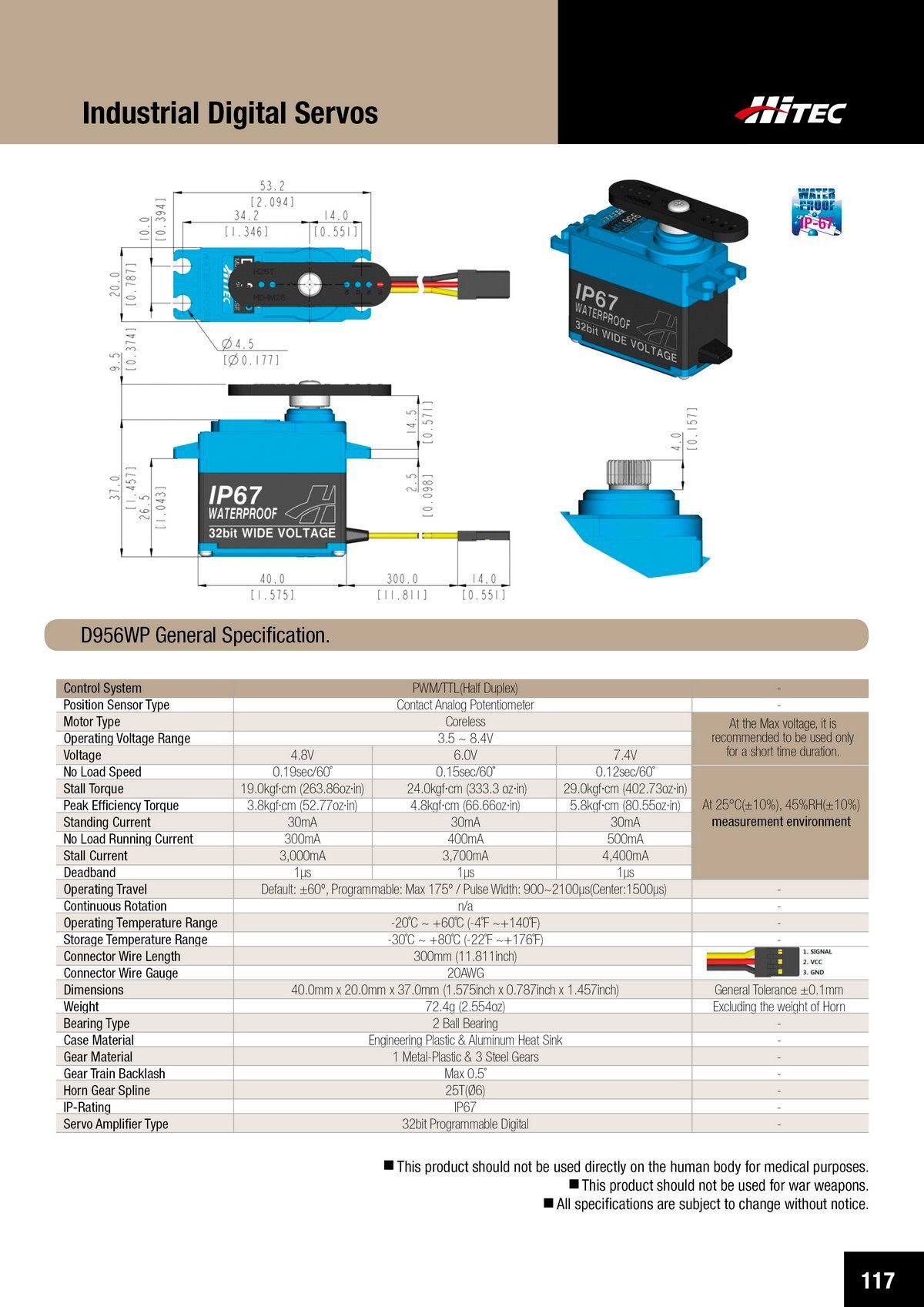

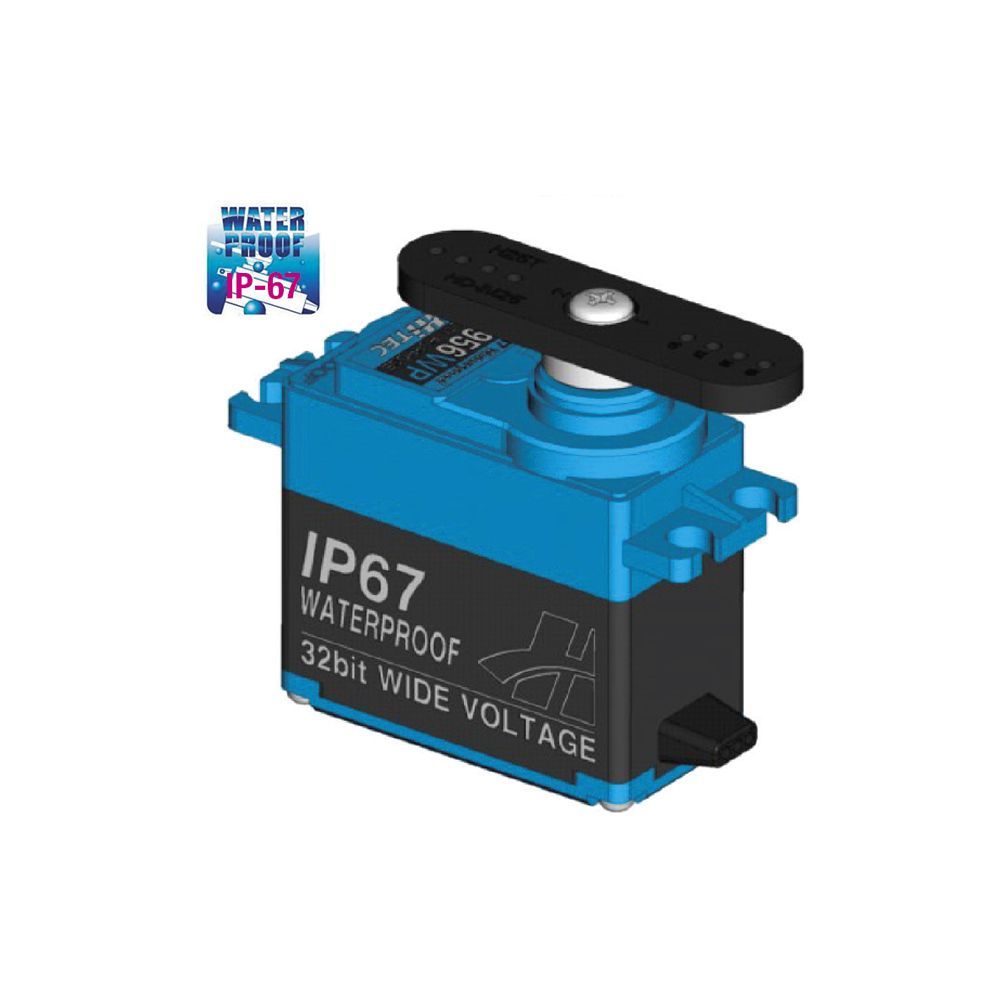

20mm, Waterproof, Coreless, Wide Voltage, High Torque Actuator (7.4V)

Our D956WP industrial actuator offers high torque and IP67-certified water & dust-proof protection, making it suitable for many demanding industrial applications.  This actuator features a machined aluminum-composite case to dissipate heat, dual ball bearings, three hardened steel gears, 4.8 - 8.4-volt operation, digital amp with MOSFET drive, and PWM control protocol. Program numerous parameters to optimize the installation and performance for your industrial applications.

Cad File Download

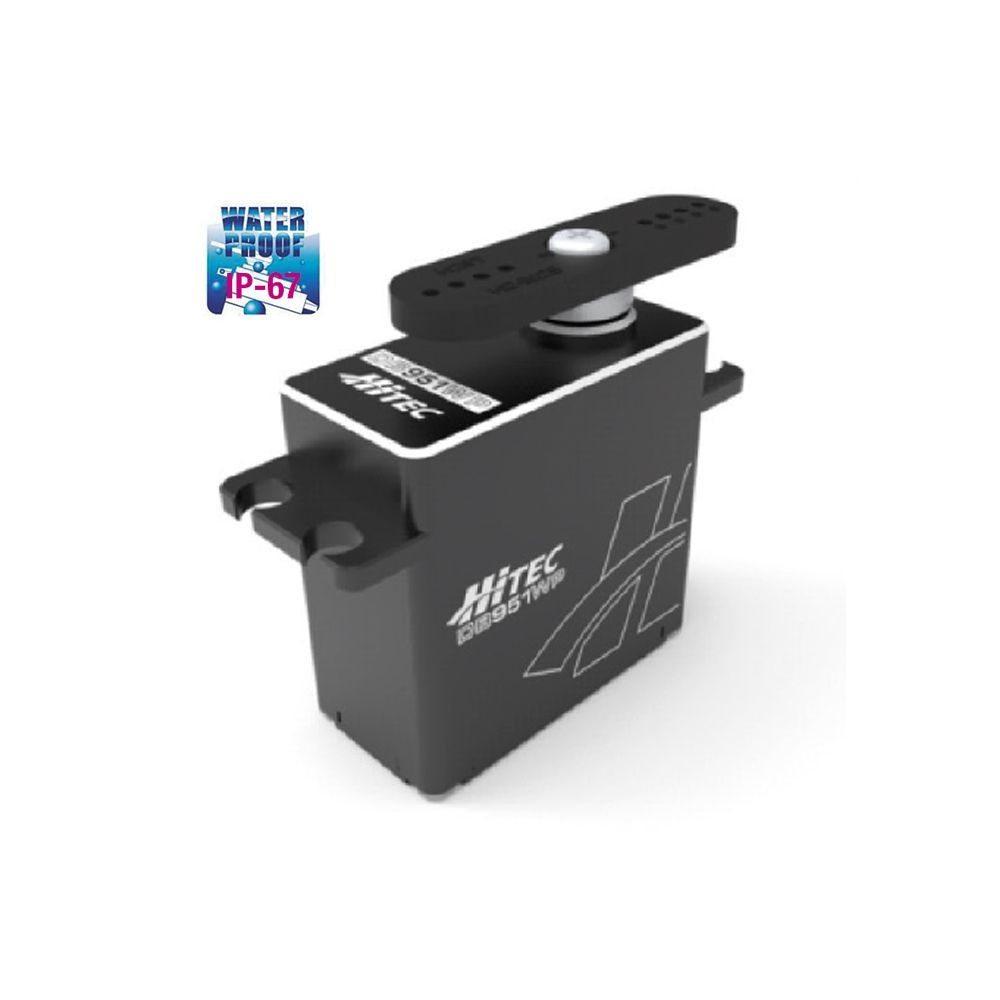

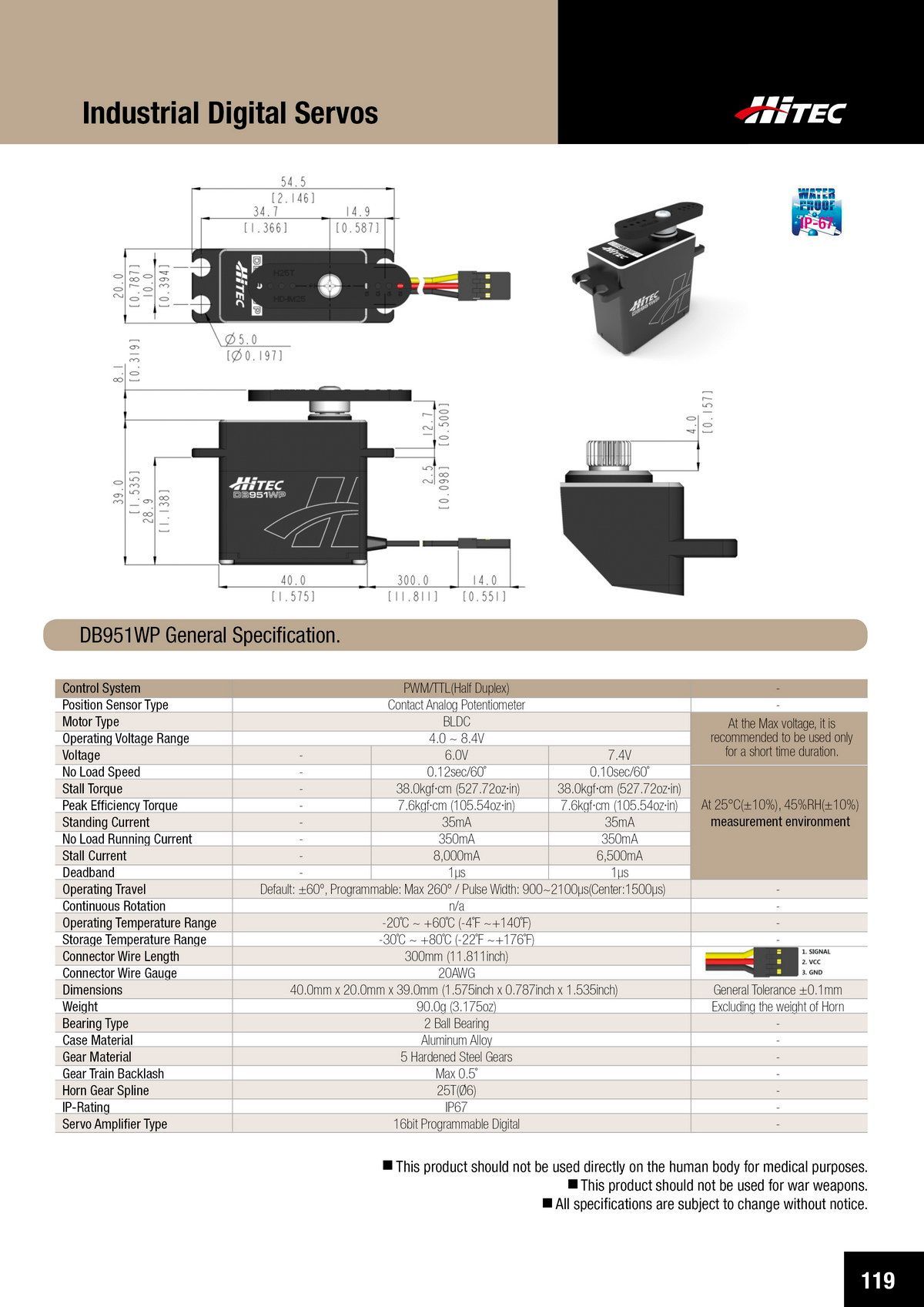

20mm, High Speed, Brushless, Hardened Steel Gear, Waterproof Actuator (7.4V)

Featuring a torsionally rigid design and construction, the DB951WP boasts hardened steel gears, an ultra-efficient brushless motor, and a waterproof aluminum case, CNC-machined from solid billet stock. This powerhouse delivers an impressive 528 oz-in of torque with blistering speeds of 0.10 sec/60° @ 7.4 volts. Its superior precision, durability and speedy gear ratio make it the perfect servo for commercial applications demanding maximum performance and pinpoint accuracy.

Cad File Download

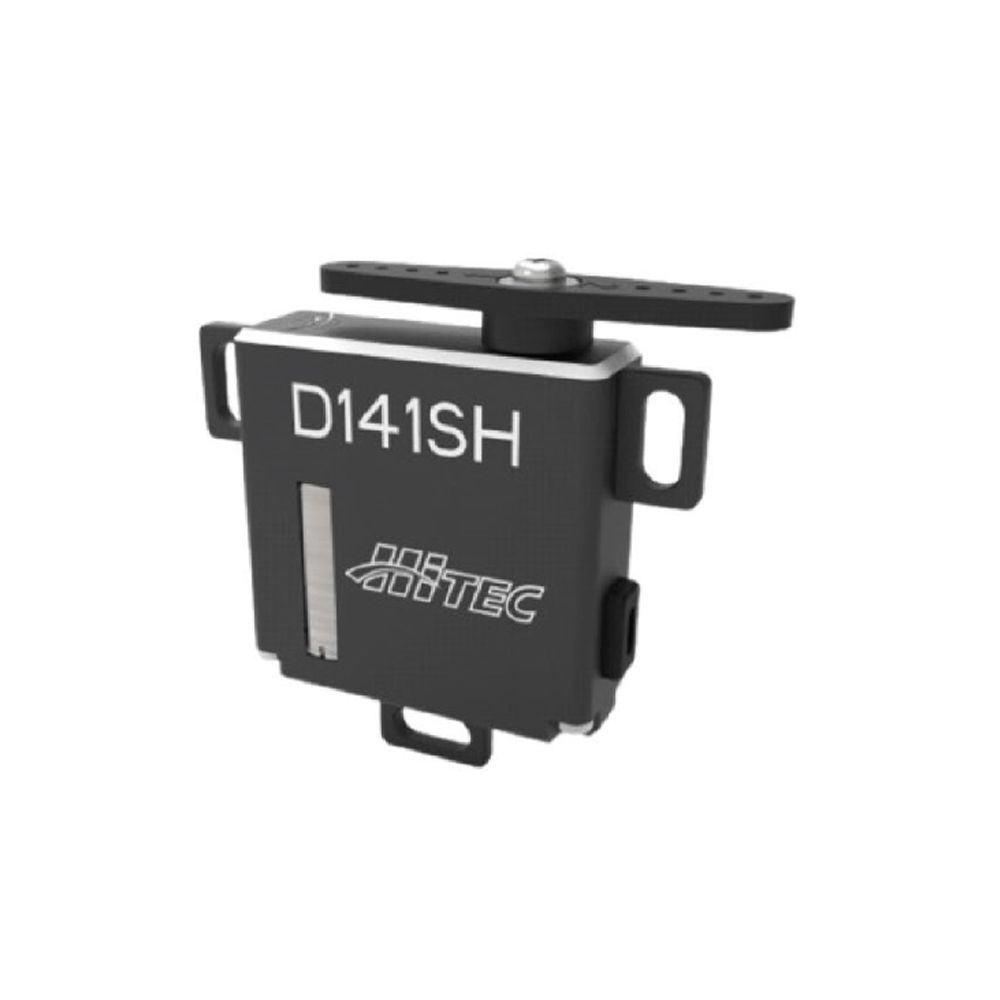

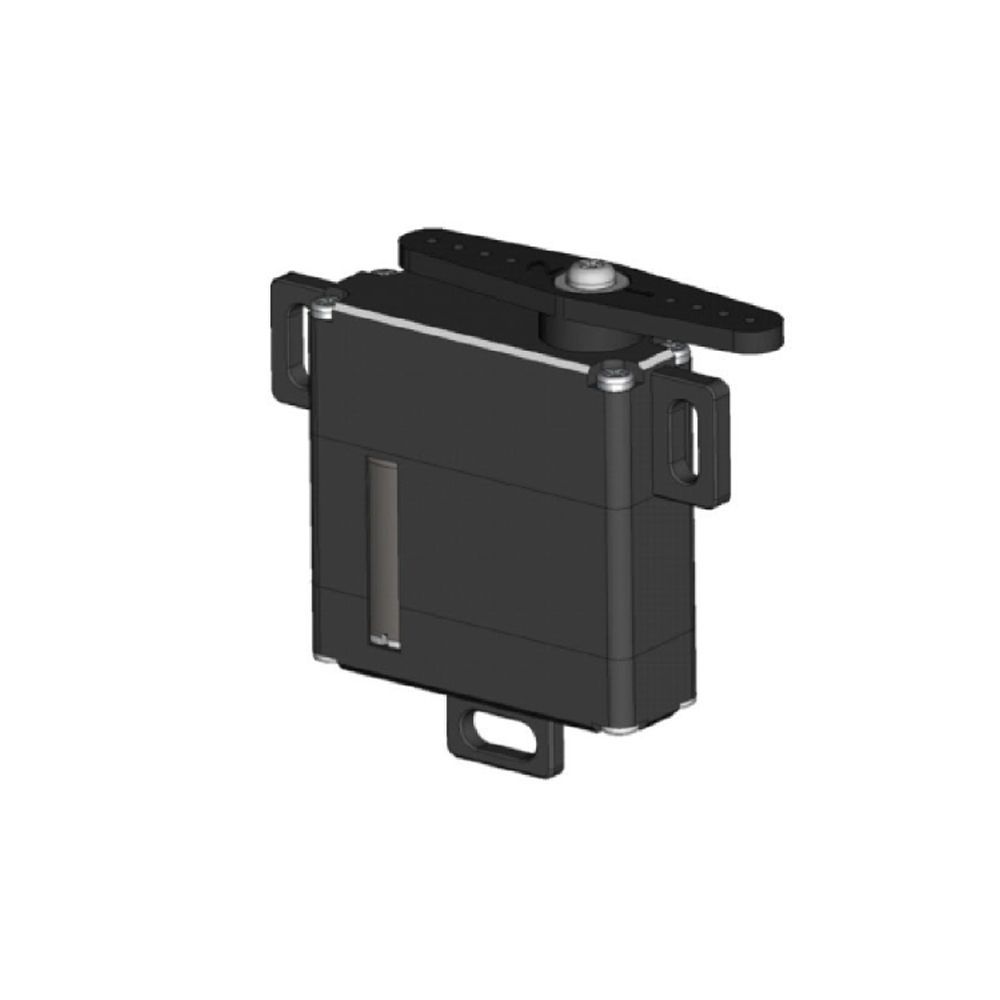

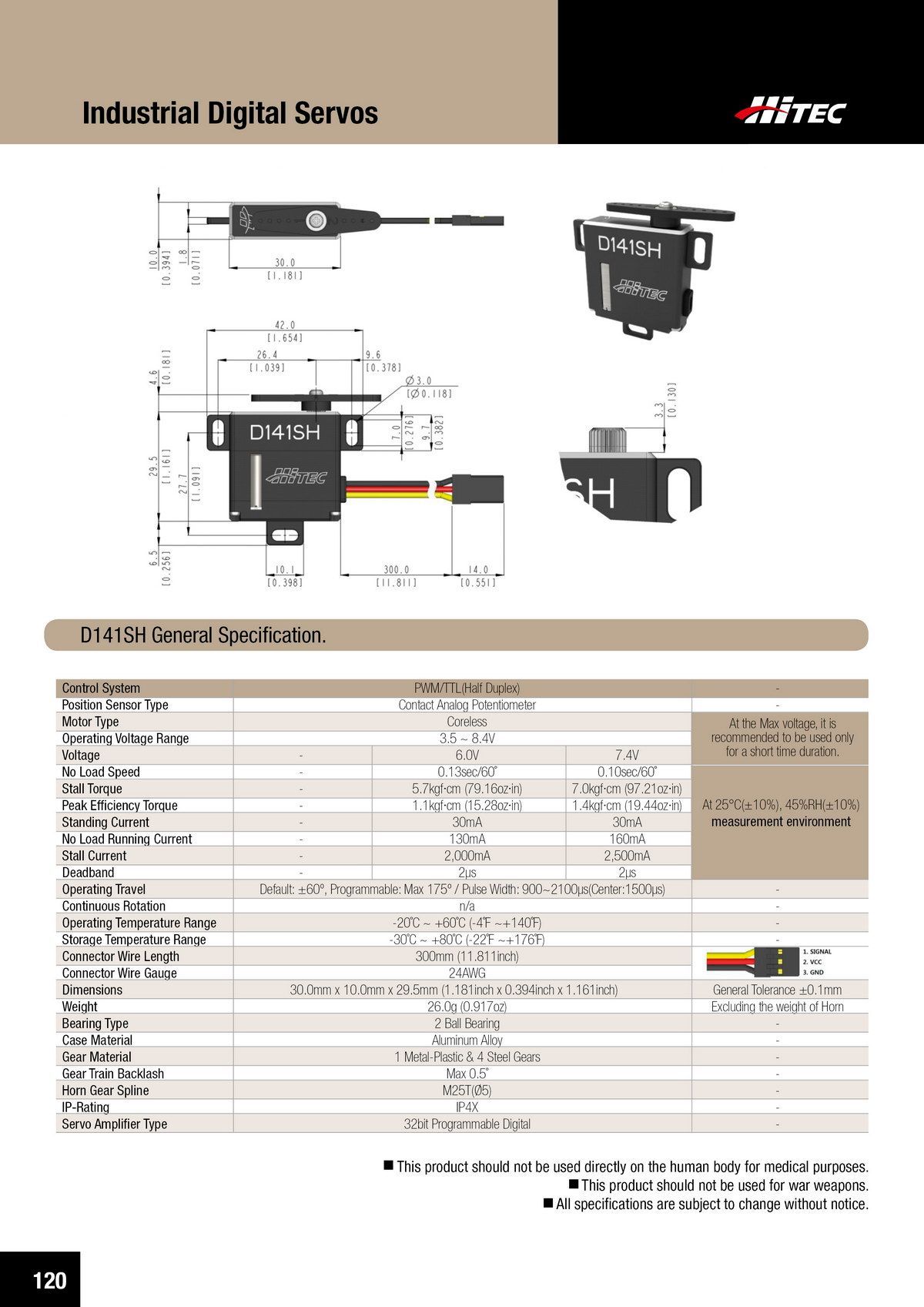

10mm, Coreless, Wide Voltage, Steel Gear Actuator (7.4V)

Our slim wing D141SH is a 10mm, heavy-duty steel gear industrial actuator engineered with an efficient coreless motor. Its high-resolution, ultra-response technology and wide voltage operation are perfect for commercial applications requiring premium quality in a thin size,

Cad File Download

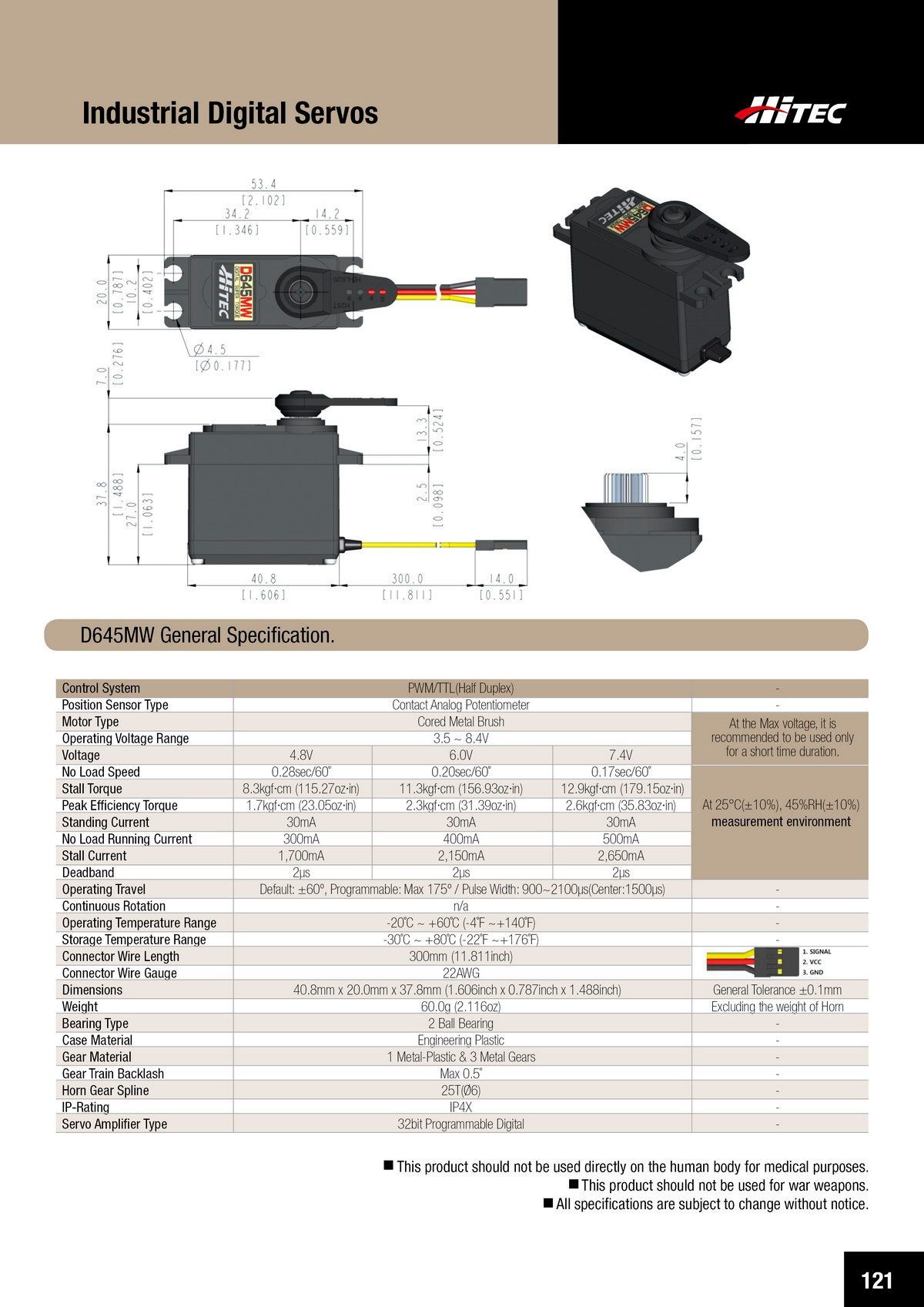

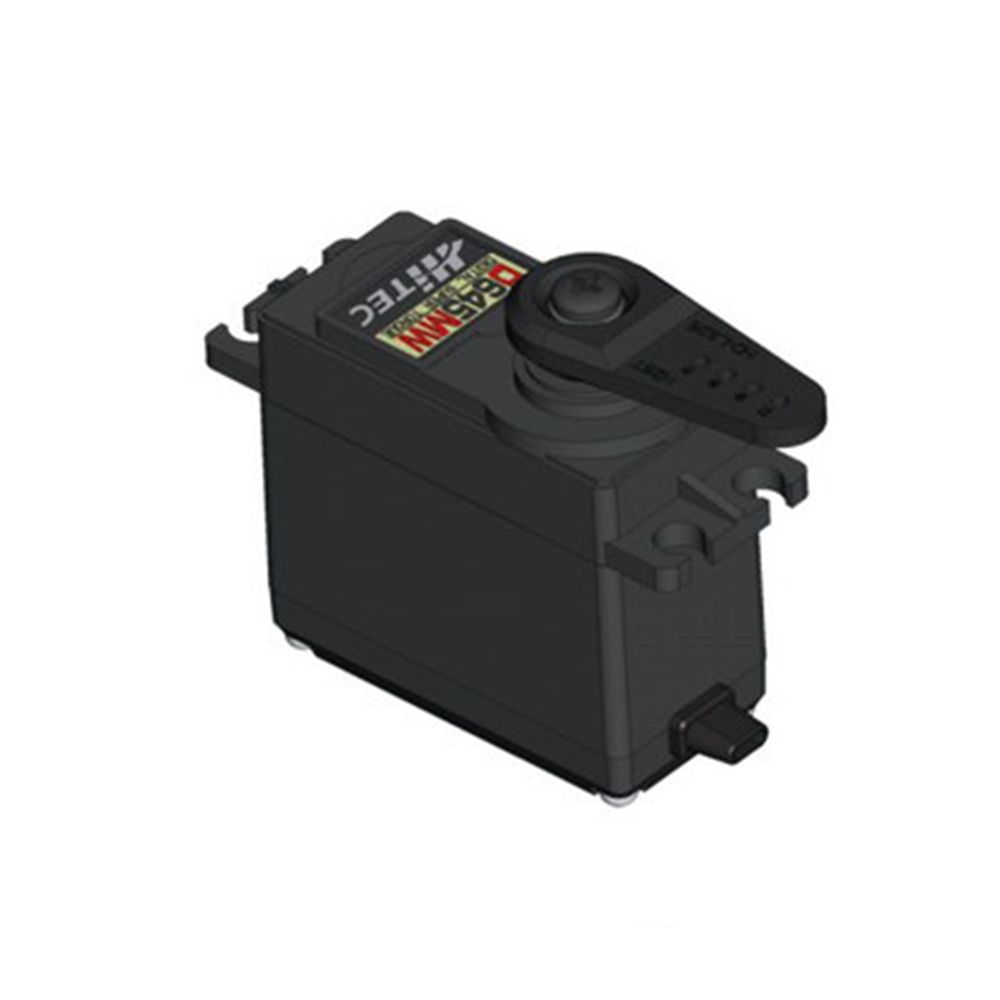

20mm, 3-Pole, Wide Voltage, High Torque, Metal Gear Actuator (7.4V)

Our metal-geared D645MW is designed using Hitec's cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology and unprecedented programmability, this servo operates on a wide 4.8~8.4 voltage range for industrial applications requiring powerful torque.

Cad File Download

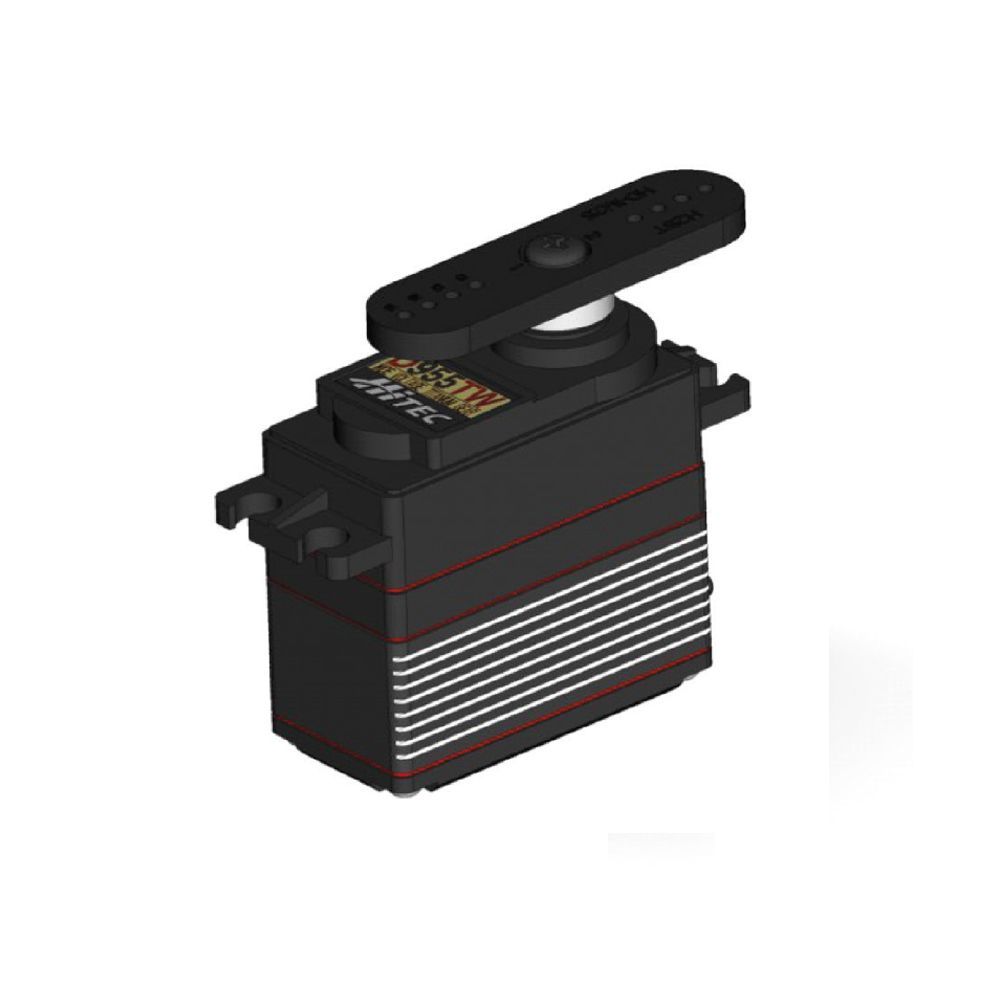

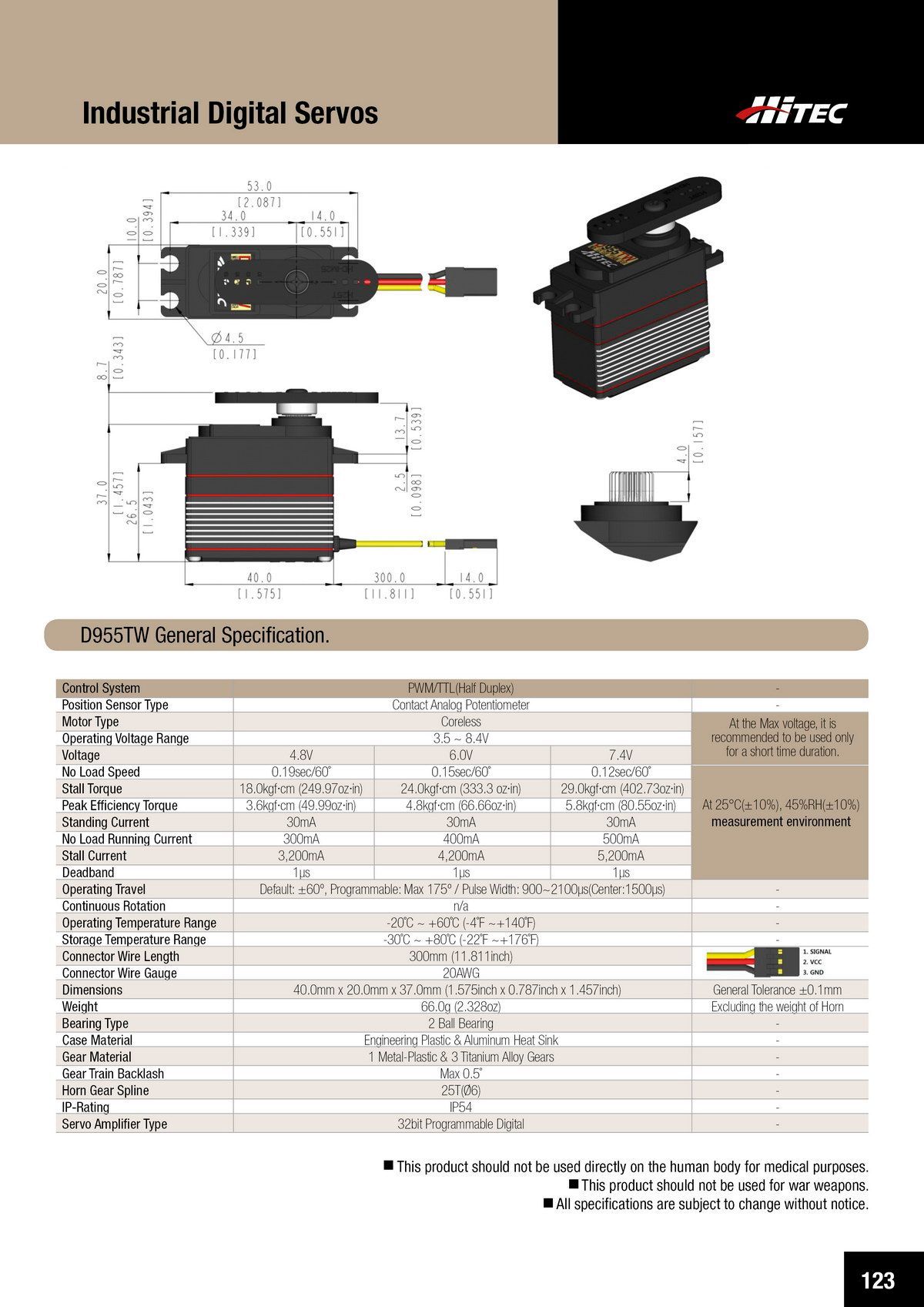

20mm, Coreless, Wide Voltage, High Torque, Titanium Gear Actuator (7.4V)

Our ultra-strong titanium-geared D955TW servo has a coreless, metal brush motor for leading-edge performance. With rapid, high resolution response, its unprecedented programmability and wide-voltage capabilities deliver the most progressive engineering for industrial applications, needing unwavering reliability.

Cad File Download

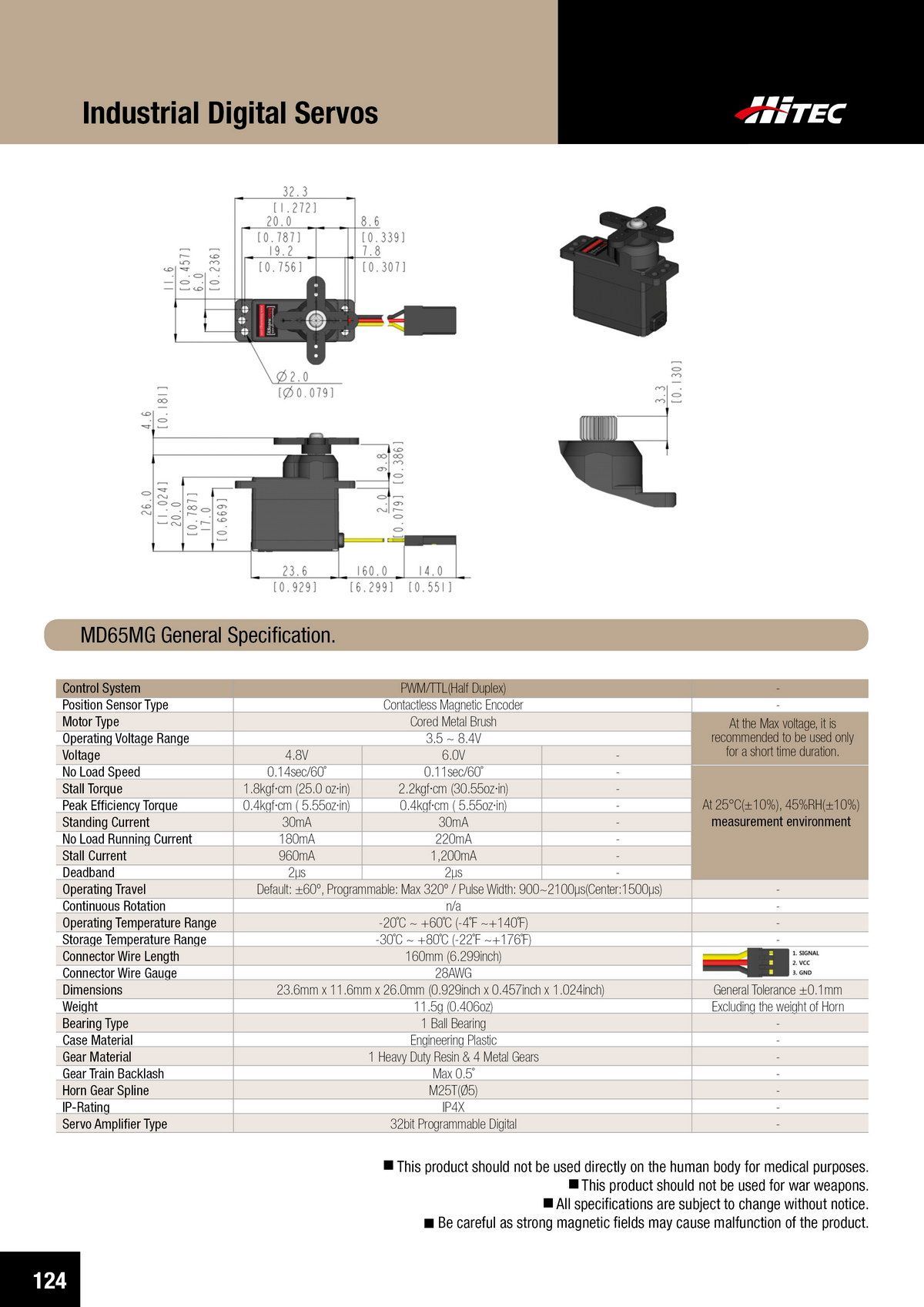

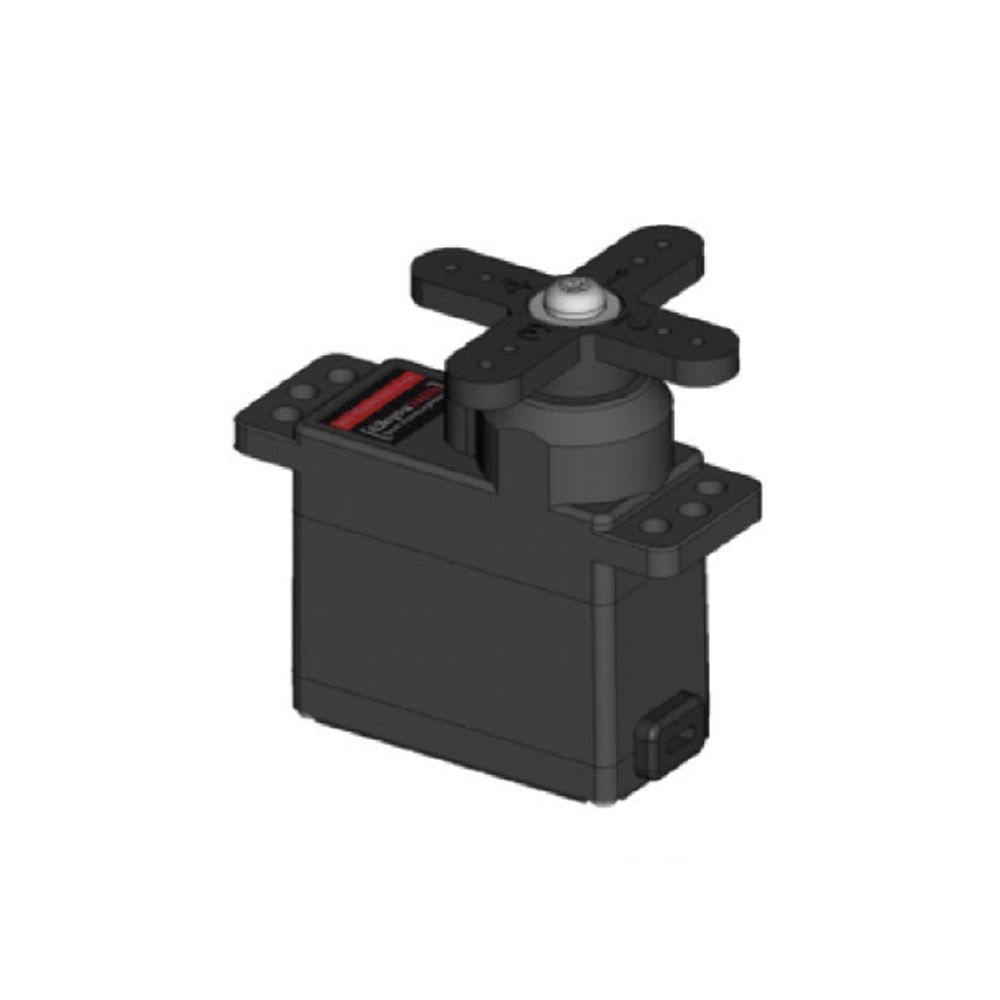

11.6mm, Cored, Standard Voltage, High Speed, Metal Gear Actuator (6V)

The MD65MG is an 11.6mm, metal gear, 12-gram micro actuator featuring single output ball bearing, cored brushed motor, and contactless encoder. The MD65MG is often used in micro-sized fixed wing UAV and drone applications where space and weight are of the utmost importance. The MD65MG utilizes PWM protocol control within a standard voltage range from 4.8V to 6 volts.

Cad File Download

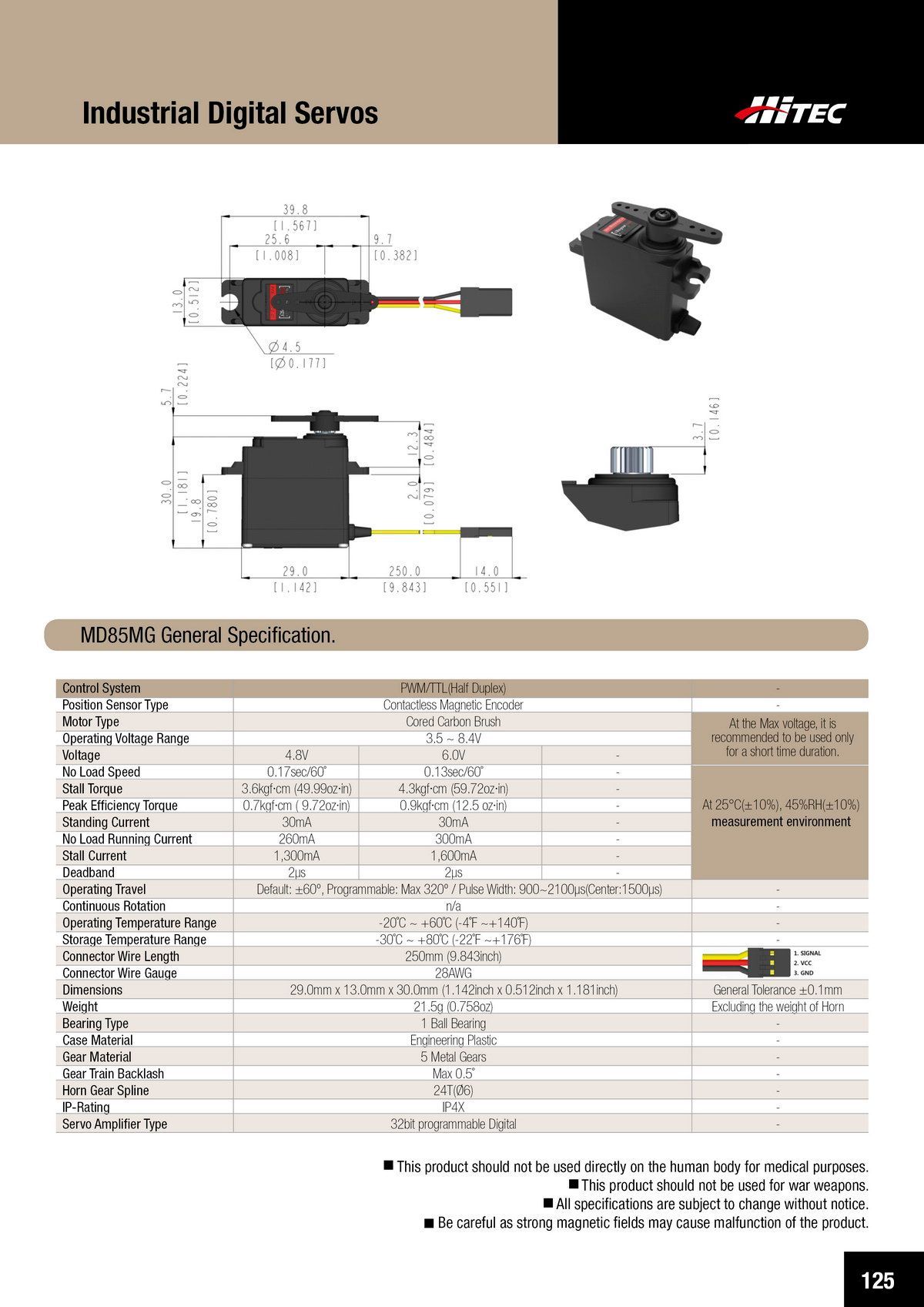

13mm, Cored, Standard Voltage, Metal Gear Actuator (6V)

The MD85MW is a 13mm, metal gear, sub 1 oz micro servo with a single output ball bearing, brushed motor, and magnetic rotary encoder. Generally used in compact unmanned aerial vehicles where space and weight are at a premium, the MD85MW is also right at home in smaller robotic applications. The MD85MW utilizes PWM control at a voltage range from 4.8~6 volts.

Cad File Download

10mm, Coreless, Wide Voltage, Steel Gear Actuator (7.4V)

Cad File Download

10mm, Cored, Wide Voltage, Steel Gear Actuator (7.4V)

Cad File Download

11.6mm, 3-Pole Coreless, Standard Voltage, Nylon Gear Actuator (6V)

Hitec’s popular HS-55 servo sets the standard for affordable performance, offering precision components that have been engineered to provide long-lasting, trouble-free operation. Featuring durable nylon gears, 3-pole ferrite motor, this is one of the top performing, most reliable micro actuators on the market.

Cad File Download

Cad File Download

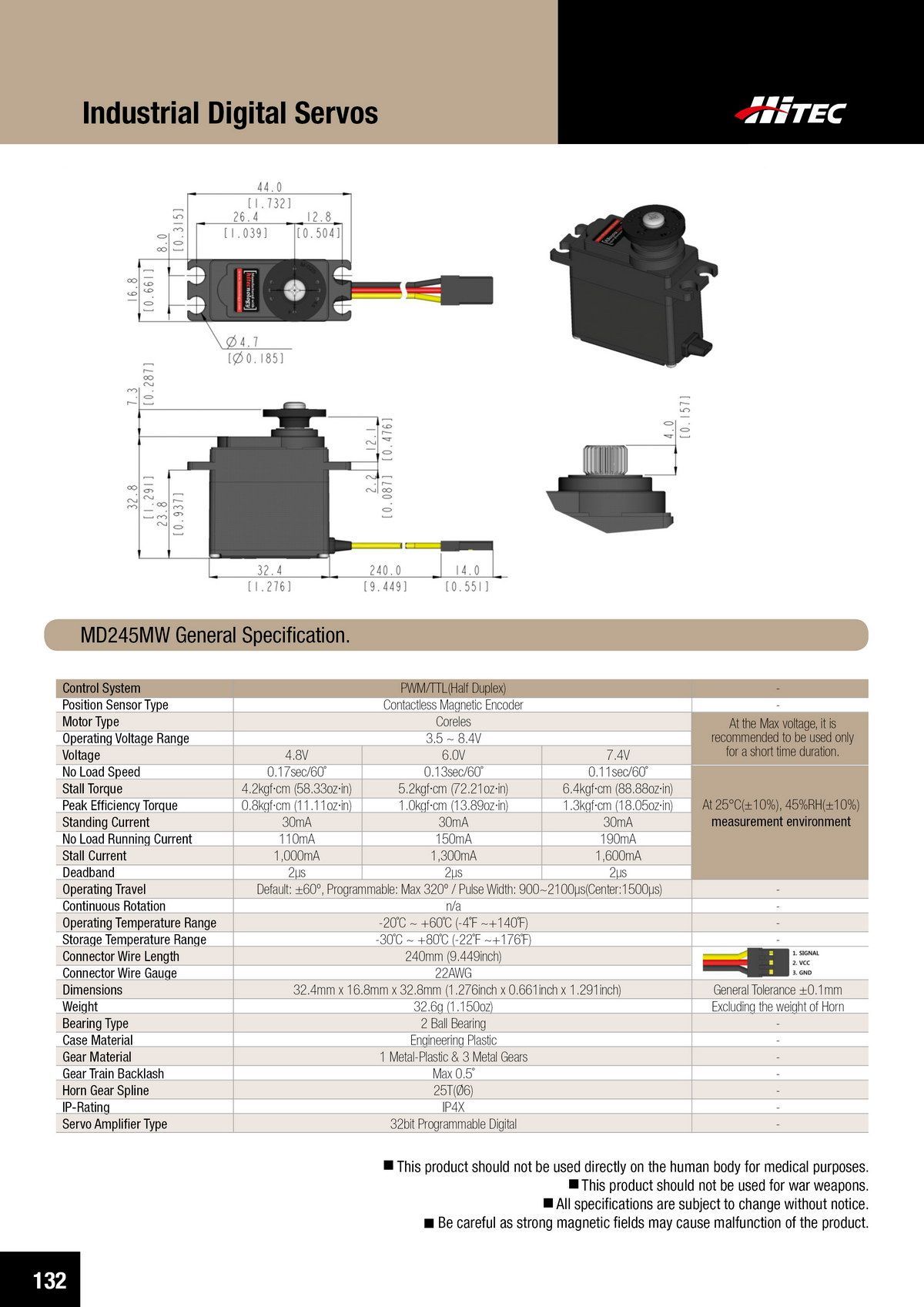

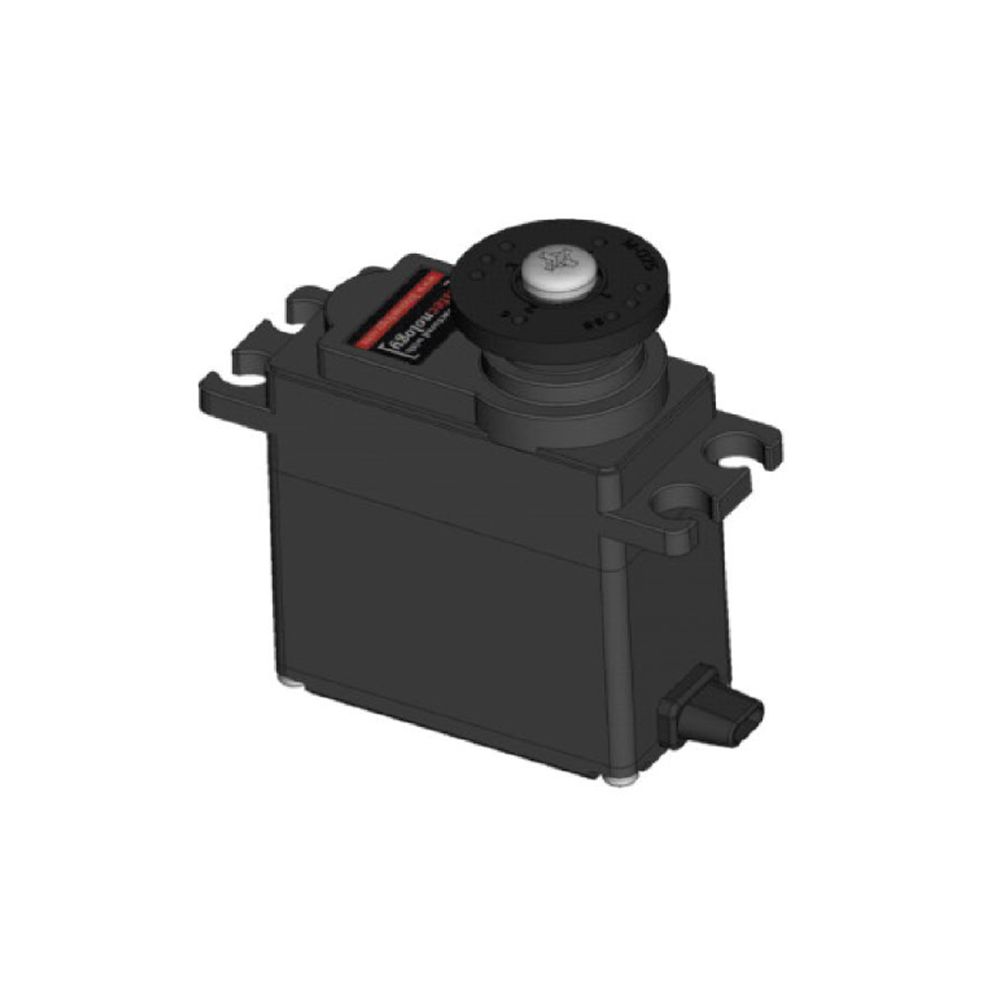

16.8mm, Coreless, Wide Voltage, Metal Gear, Mini Actuator (7.4V)

The MD245MW is a 16.8mm, metal gear, mini servo with dual ball bearings and efficient coreless motor. Engineered with a programmable digital amplifier and contactless magnetic encoder to deliver high performance and reliability in a wide variety of robotic and remote, unmanned aerial applications. Operating via PWM command protocol at a wide voltage range from 4.8~7.4 volts, this mighty mini actuator produces impressive torque and speeds in its class. The MD245MW servo is ideal for a variety of applications requiring an efficient balance of performance and cost.

Cad File Download

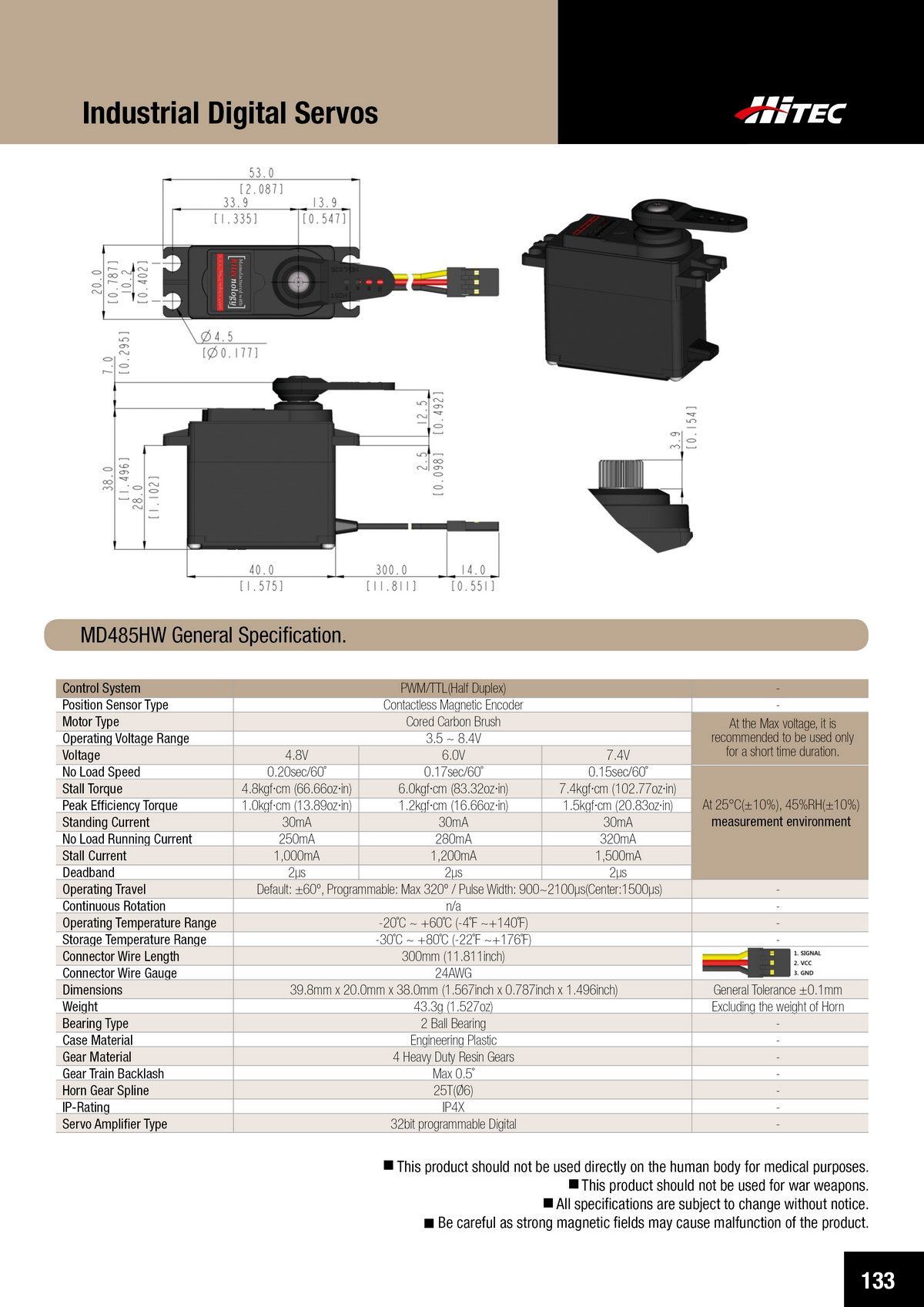

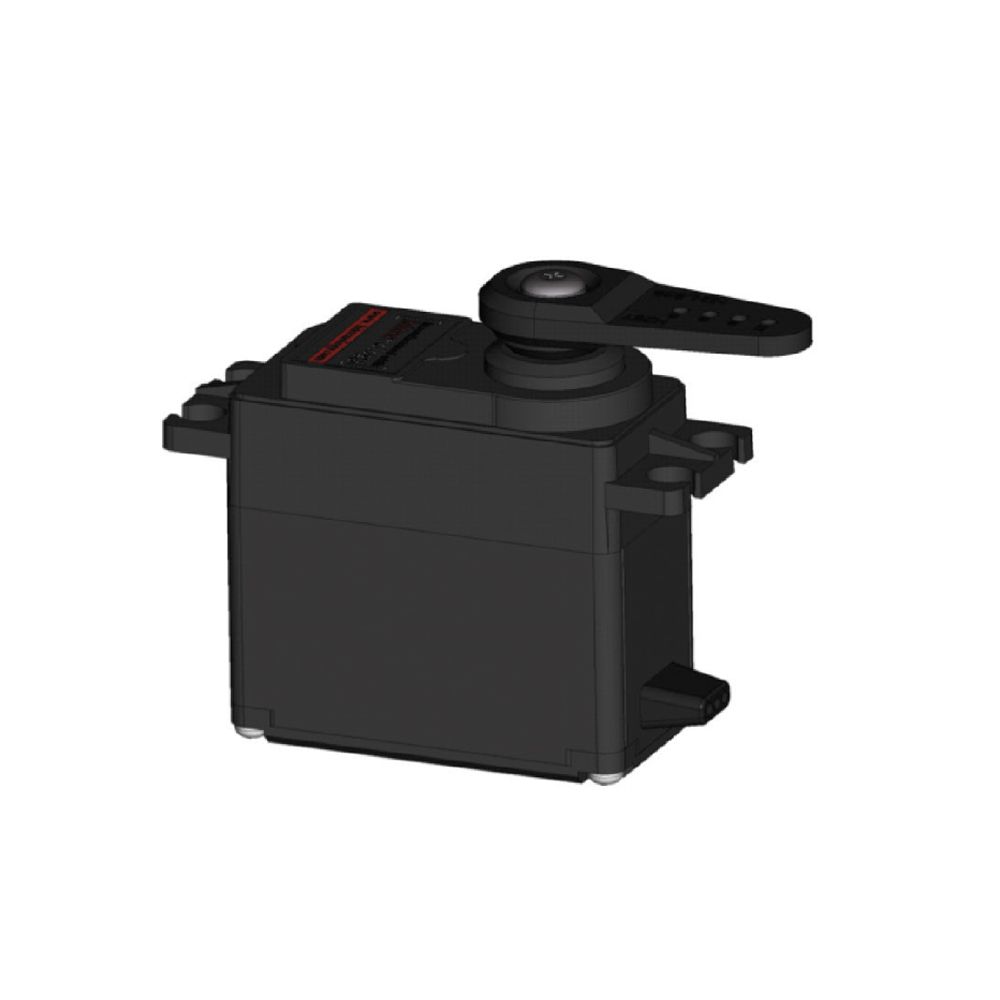

19.8mm, Cored, Wide Voltage, Karbonite Gear Actuator (7.4V)

Featuring a magnetic encoder position sensor for increased accuracy and durability, the MD485HW’s high resolution 32bit D-series circuit, 4096-step resolution and Karbonite gears provide the reliable performance required for general-use actuation applications. Its wide operating voltage range (3.5-8.4V), digital amp with MOSFET drive, and PWM control protocol add to its appeal.

Cad File Download

Cad File Download

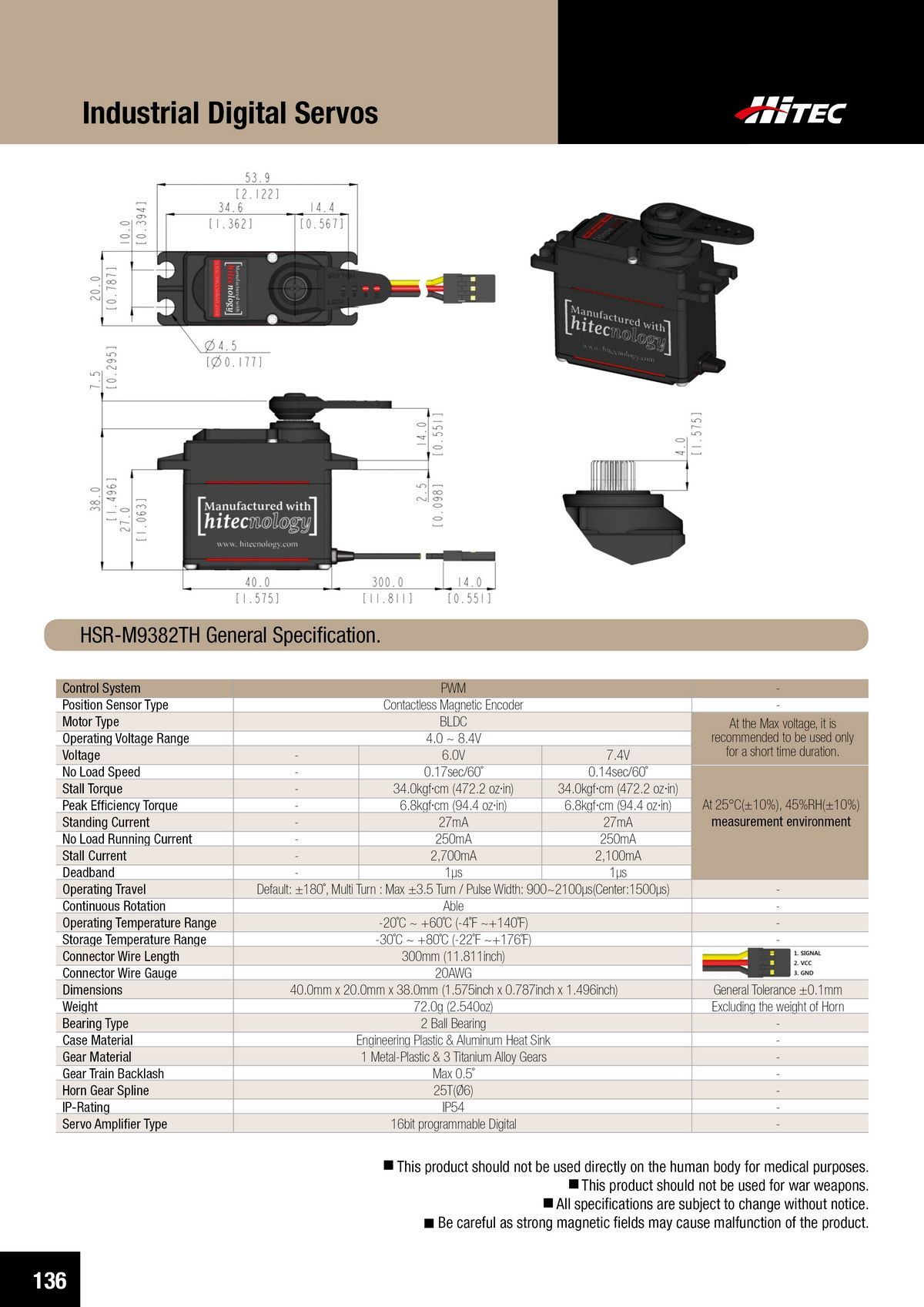

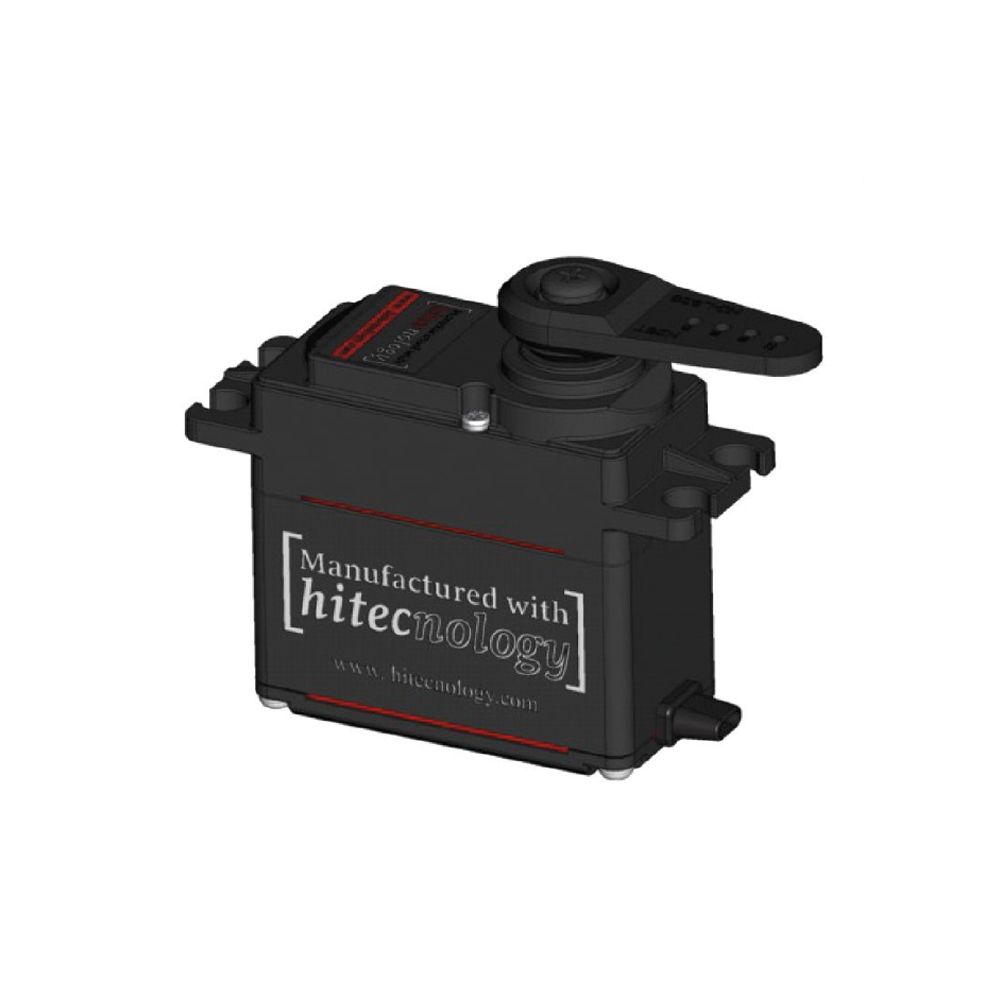

20mm, 360º, Brushless, High Voltage, Titanium Gear Actuator (7.4V)

Our durable titanium-geared HSR-M9382TH industrial actuator is engineered with an ultra-efficient brushless motor and programmable digital amplifier with MOSFET drive.  Its ultra-torque and premium-quality construction are the superior choice for commercial applications requiring solid strength in a standard size servo.

Cad File Download

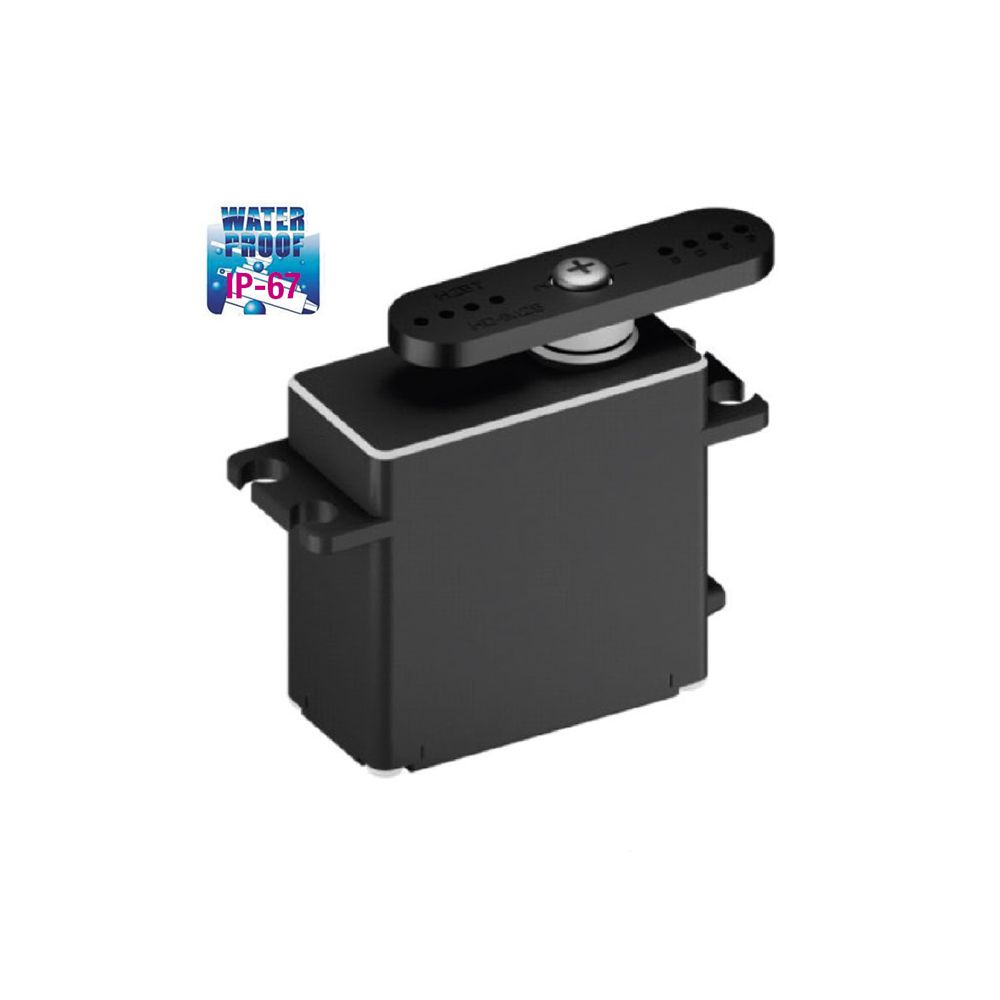

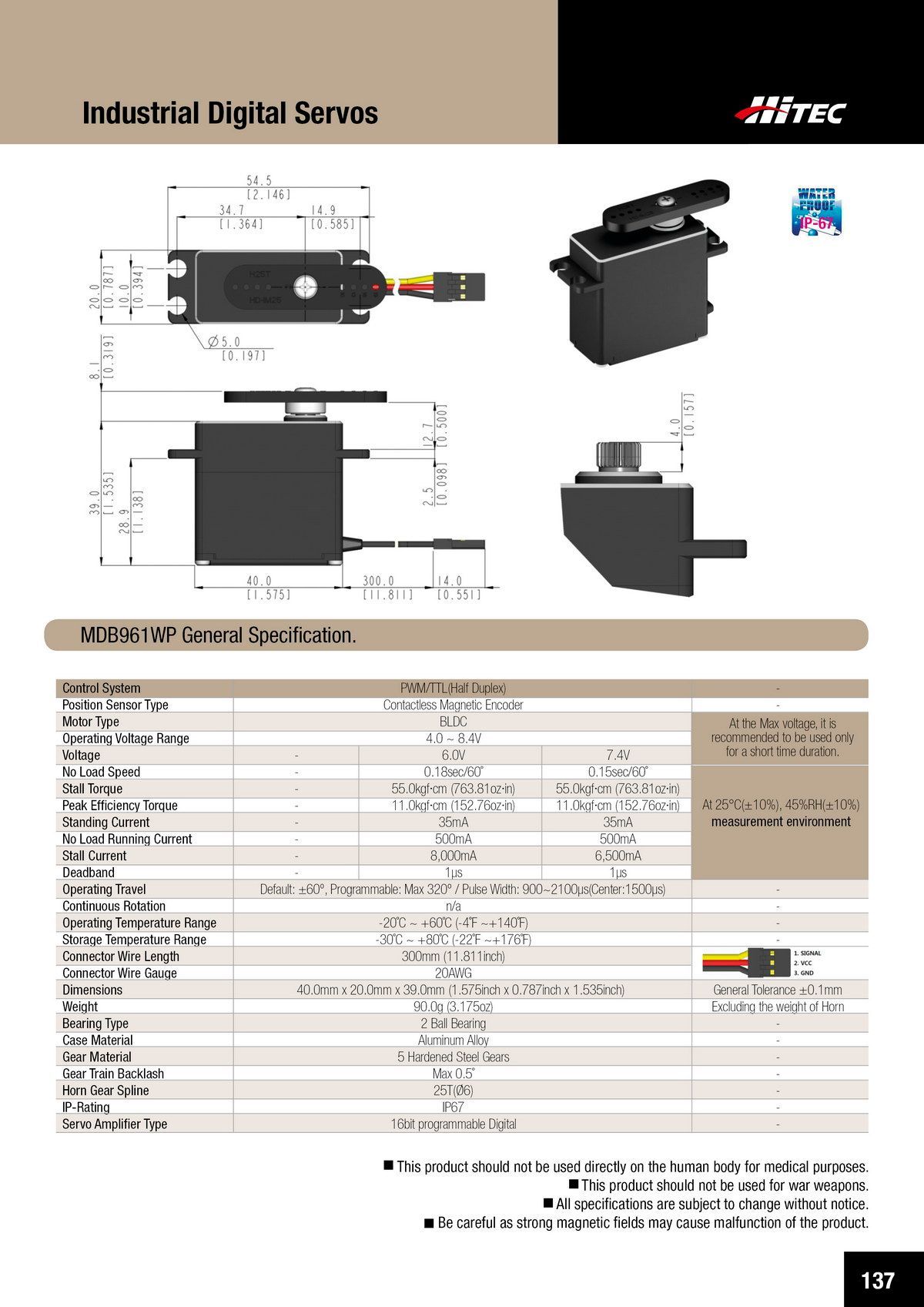

20mm, Ultra-Premium, Brushless, Hardened Steel Gear, Waterproof Actuator w/Magnetic Encoder (7.4V)

Our ultra-premium MDB961WP is engineered with an efficient brushless motor and magnetic encoder delivering uncompromised performance and reliability. Operating at a wide voltage range from 4V up to 8.4 volts, this powerful actuator produces 763.81oz·in at 7.4V of torque and 0.15 sec/60° at 7.4V of speed with 32-bit digital programmability and IP-67 waterproof rating. Perfect for CAN and DroneCAN command protocols, the MDB961WP is ideal for industrial applications requiring unbeatable precision, strength and durability.

Cad File Download

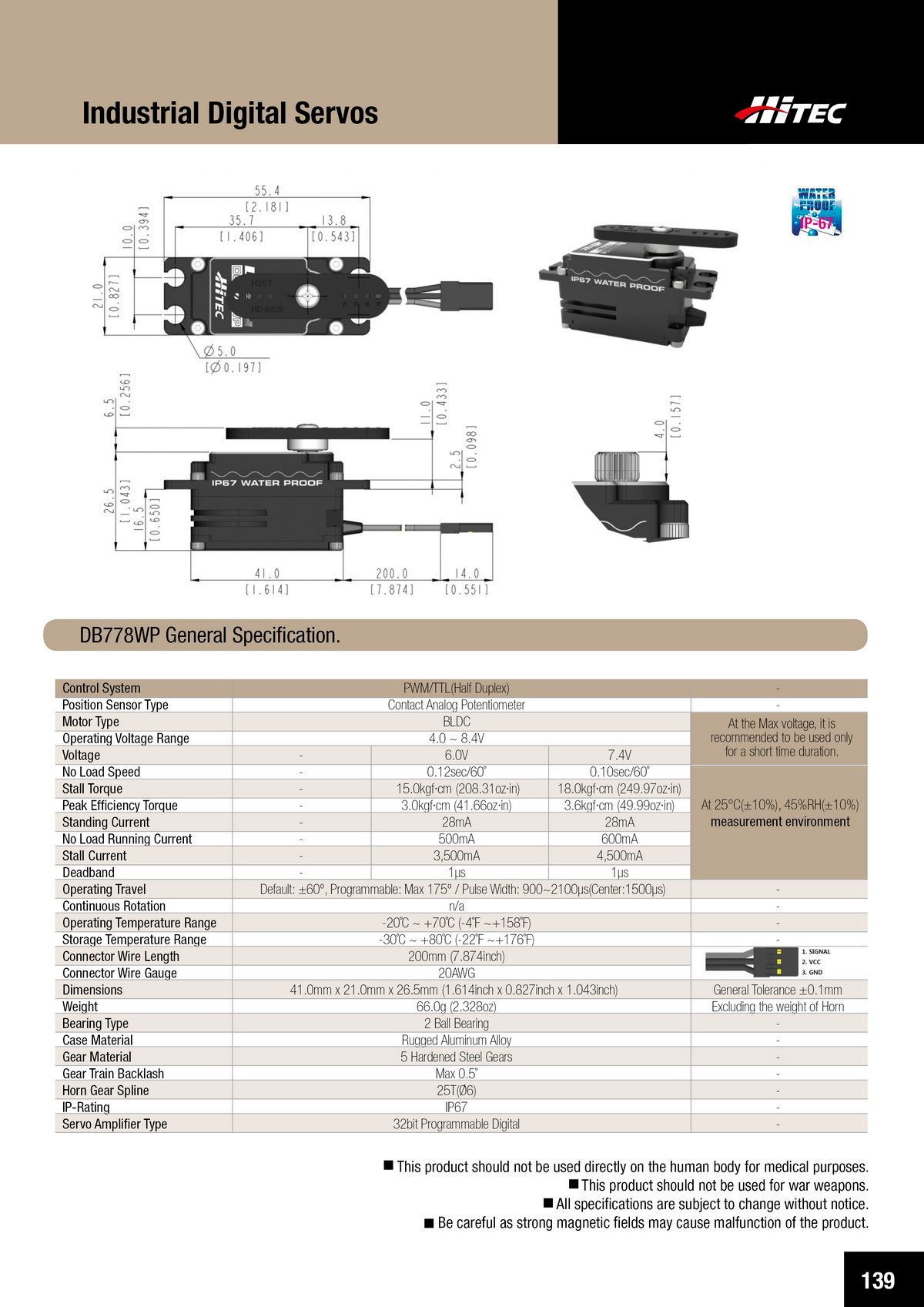

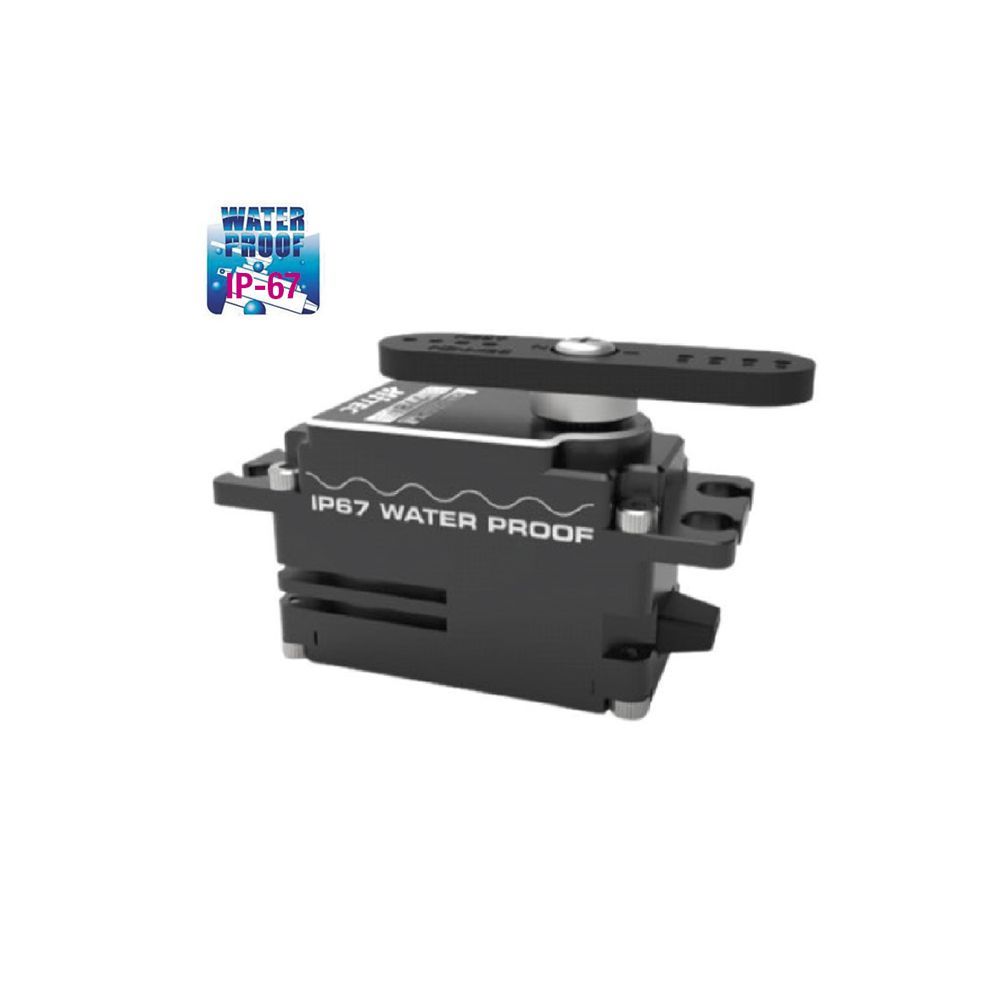

21mm, Brushless, Low Profile, High Voltage, High Torque, Steel Gear, Waterproof Actuator (7.4V)

Our low profile DB778WP is a 21mm, steel gear industrial actuator engineered with an ultra-efficient brushless motor, high-resolution digital circuit and an all-aluminium, IP-67 rated waterproof case. Its superior torque and premium-quality construction make this servo the perfect choice for commercial applications needing high performance in compact spaces

Cad File Download

22.4mm, Coreless, Wide Voltage, Titanium Gear Actuator (7.4V)

Cad File Download

22.4mm, Coreless, Wide Voltage, Metal Case, Titanium Gear Actuator (7.4V)

Cad File Download

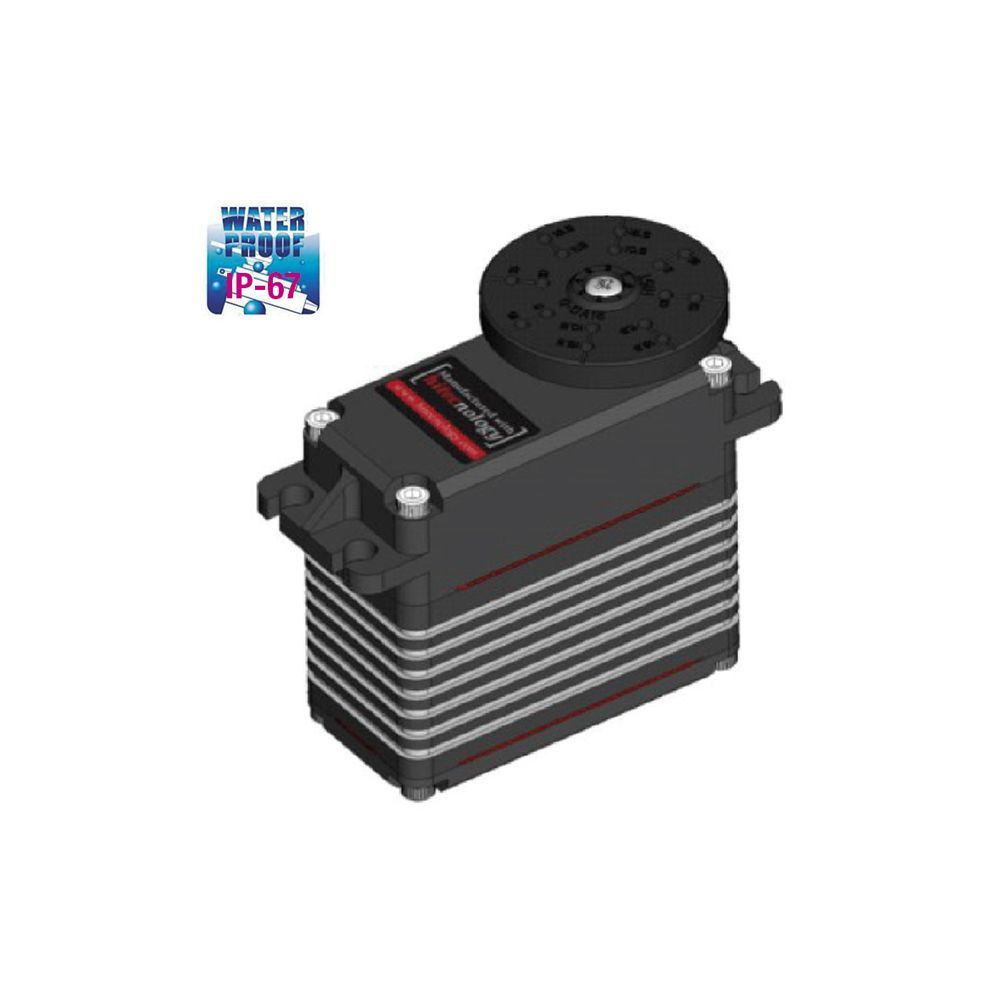

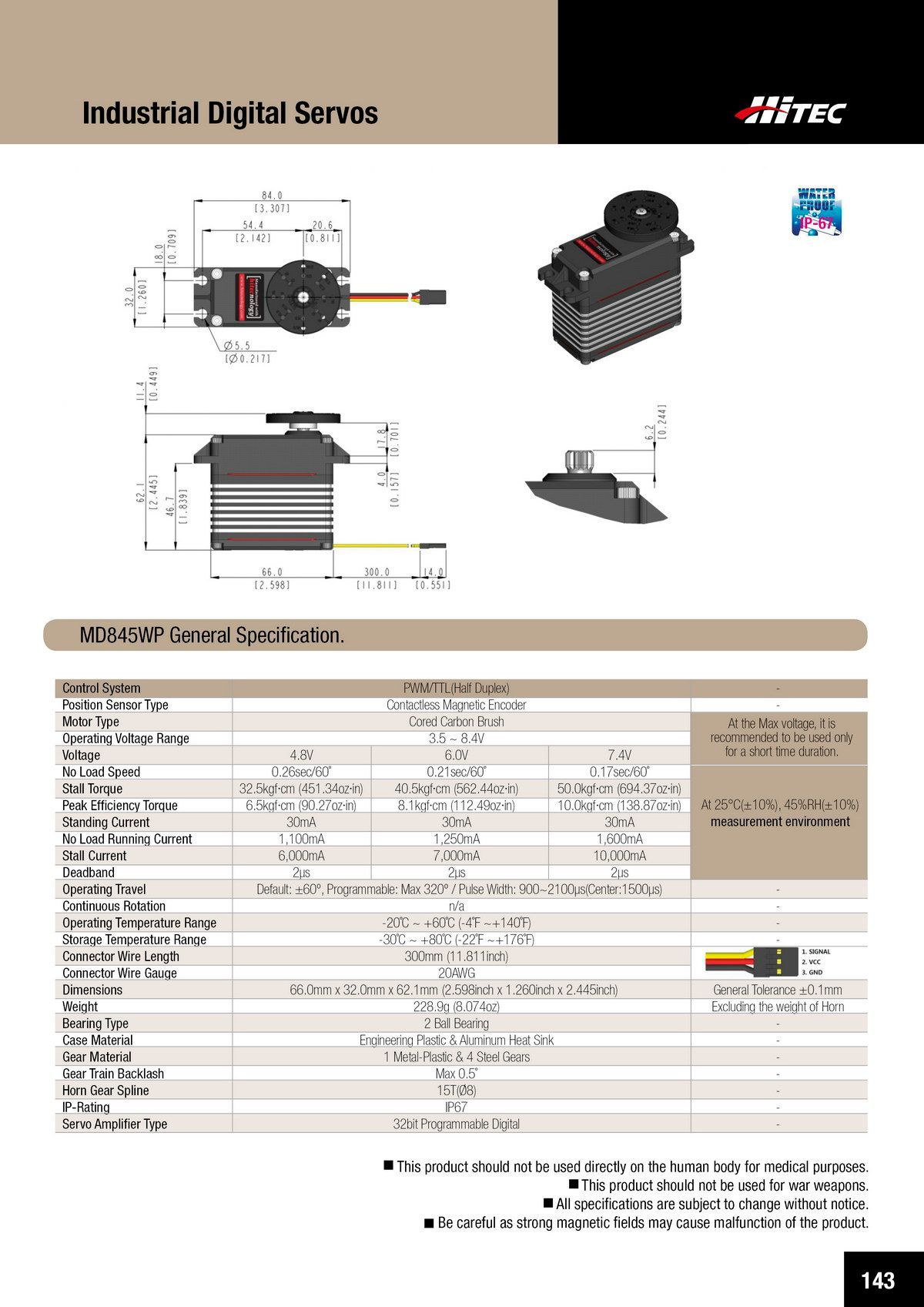

32mm, Waterproof, Cored, Wide Voltage, High Speed Actuator (7.4V)

Our MD845WP industrial actuator offers a wide voltage range, as well as IP67-certified water & dust-proof protection, making it suitable for many industrial applications. Featuring a machined aluminum-composite case to dissipate heat, two ball bearings and four steel gears, digital amp with MOSFET drive, and both PWM & PWM/TTL control protocols, this powerhouse delivers nearly 700 oz-inches of torque. Program parameters such as End Point Adjustments, Direction, Speed and Fail-Safe position to optimize the installation and performance when your industrial applications demand that extra level of performance and capability.

Cad File Download

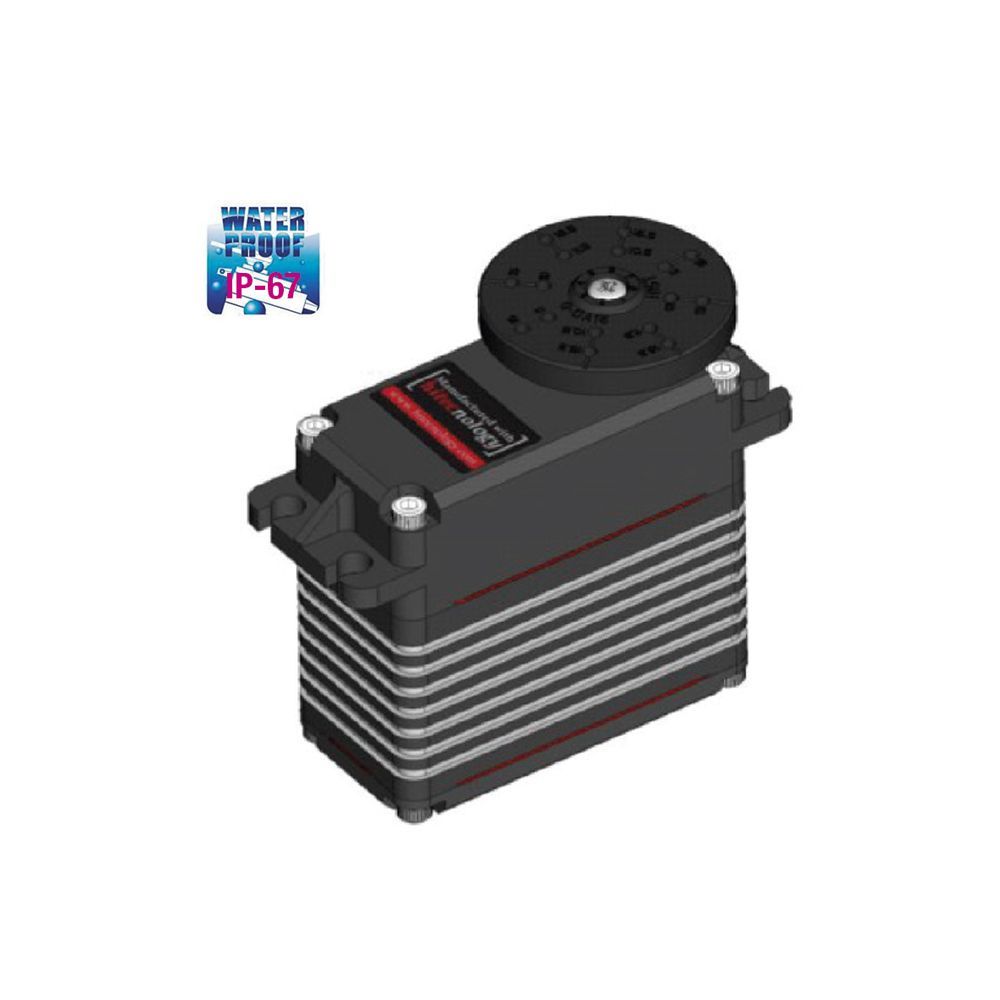

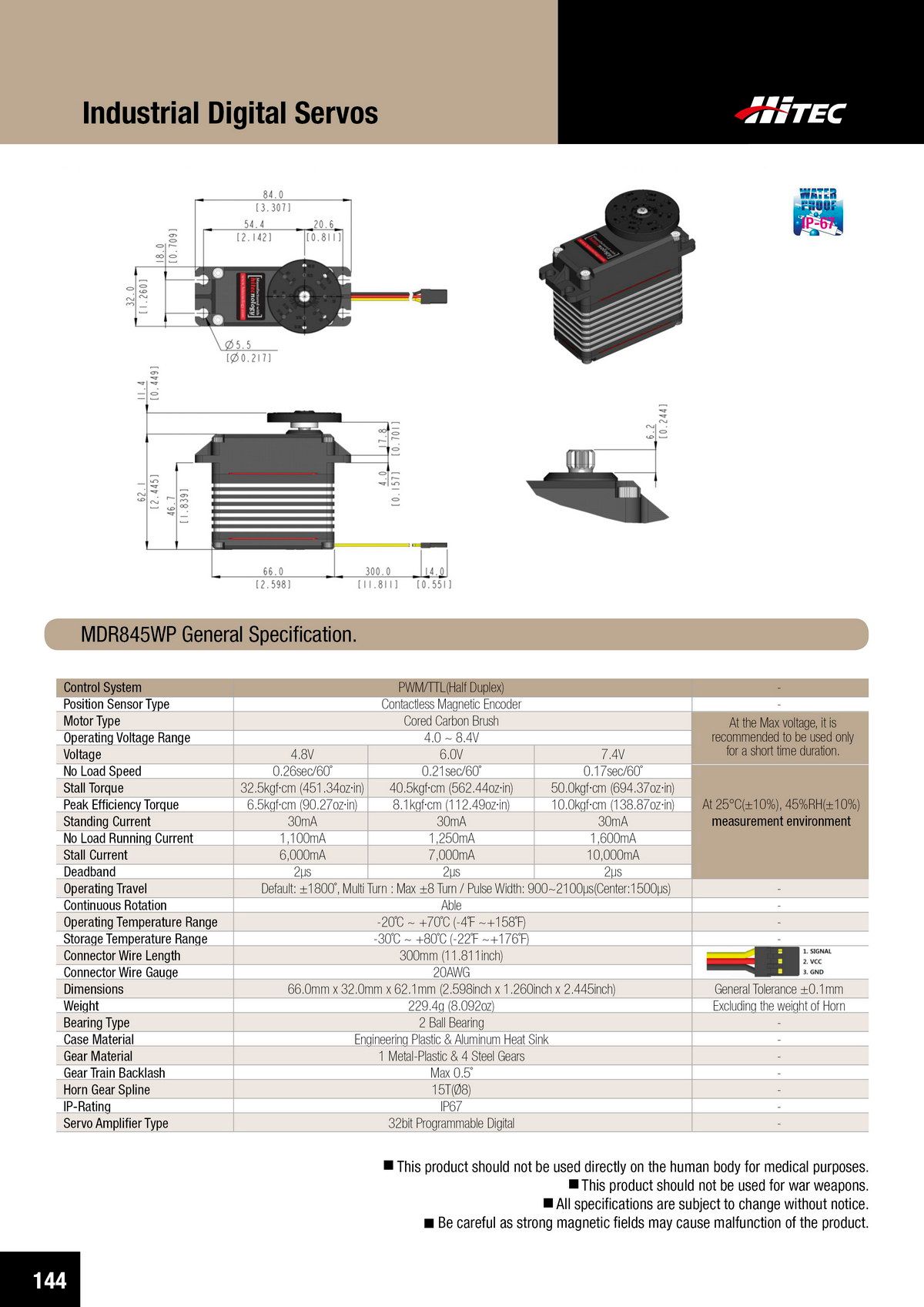

32mm, Waterproof, 360º, Cored, Wide Voltage, High Torque Actuator (7.4V)

Our MDR845WP multi-rotation industrial actuator offers a wide voltage range, as well as IP67-certified water & dust-proof protection, making it suitable for many industrial applications. Featuring a machined aluminum-composite case to dissipate heat, two ball bearings and four steel gears, digital amp with MOSFET drive, and both PWM & PWM/TTL control protocols, this powerhouse delivers nearly 700 oz-inches of torque. Program parameters such as End Point Adjustments, Direction, Speed and Fail-Safe position to optimize the installation and performance when your industrial applications demand that extra level of performance and capability.

Cad File Download

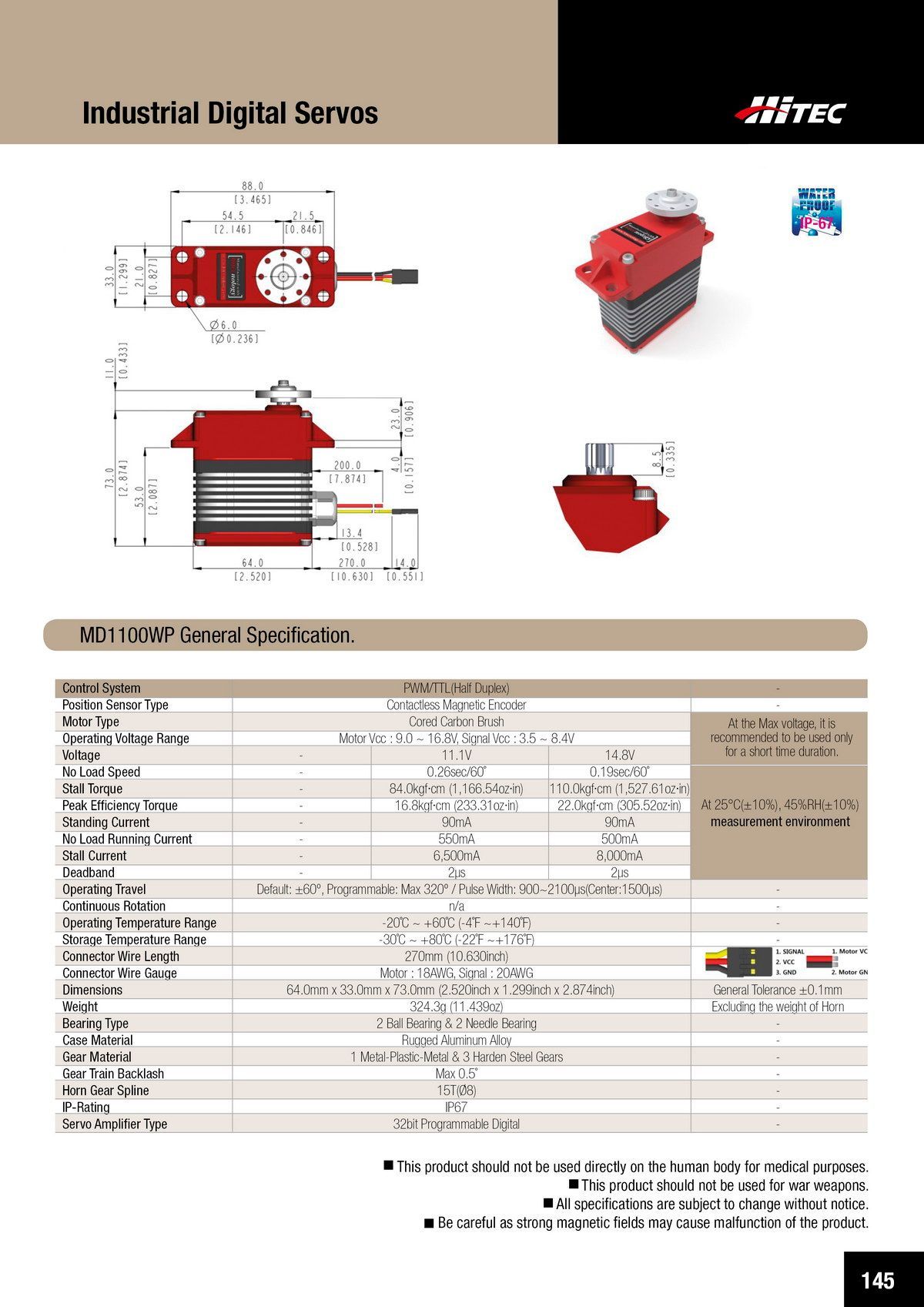

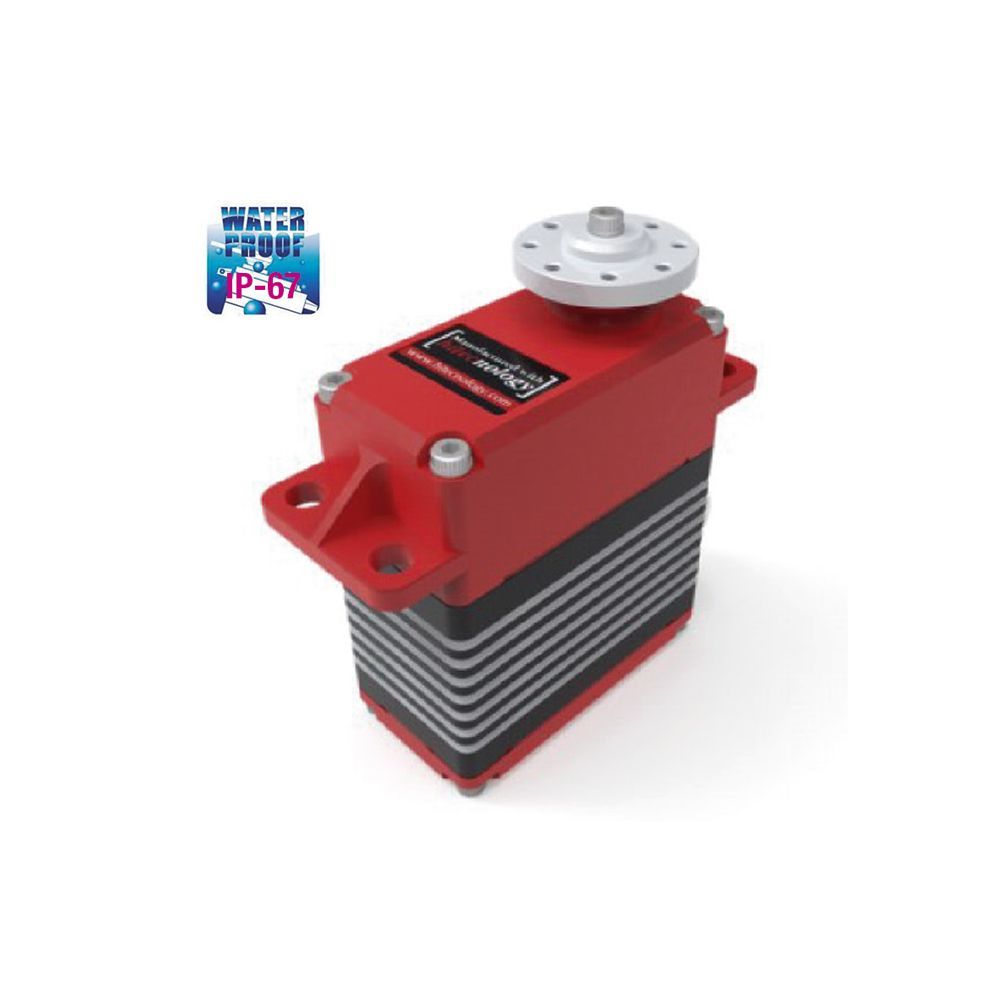

33mm, Waterproof, DC Cored, Metal Case, Titanium Gear Actuator (14.8V)

Cad File Download

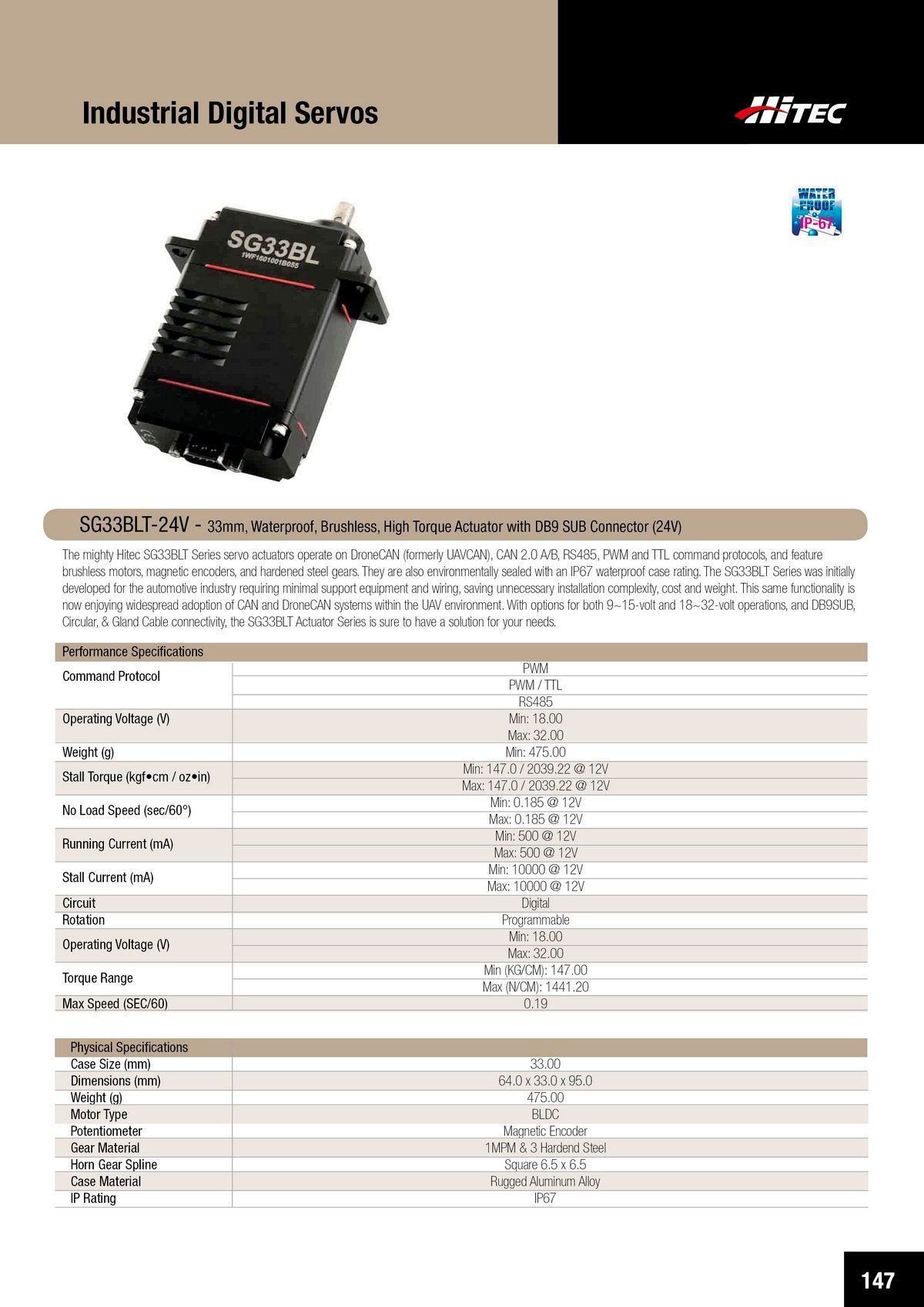

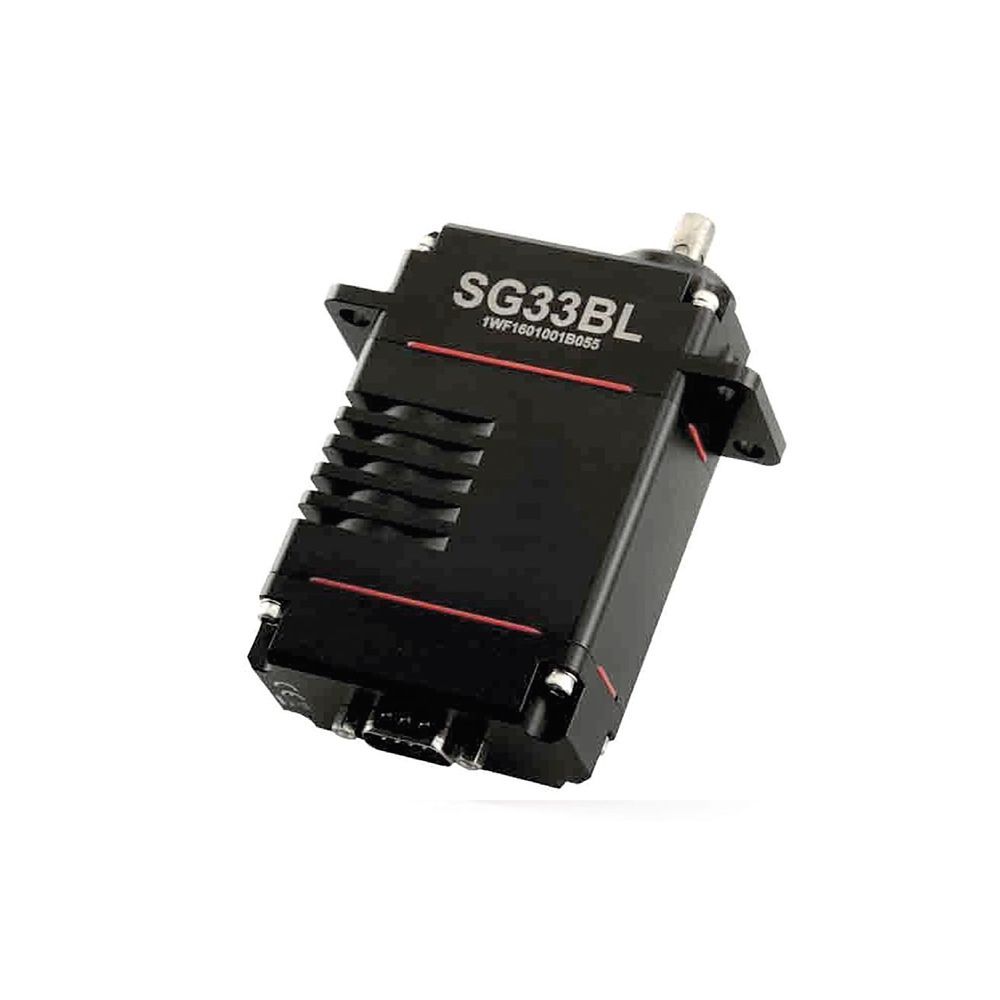

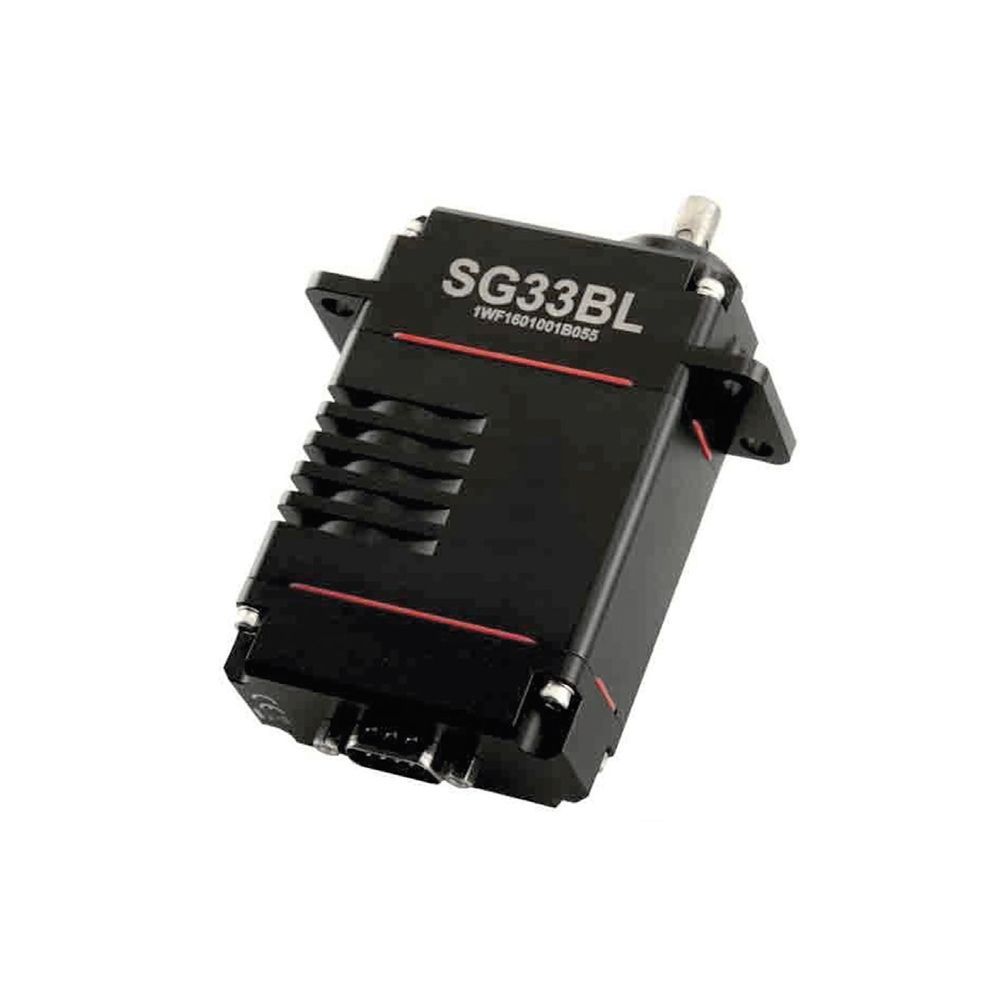

33mm, Waterproof, Brushless, High Torque Actuator with DB9 SUB Connector (24V)

The mighty Hitec SG33BLT Series servo actuators operate on DroneCAN (formerly UAVCAN), CAN 2.0 A/B, RS485, PWM and TTL command protocols, and feature brushless motors, magnetic encoders, and hardened steel gears. They are also environmentally sealed with an IP67 waterproof case rating. The SG33BLT Series was initially developed for the automotive industry requiring minimal support equipment and wiring, saving unnecessary installation complexity, cost and weight. This same functionality is now enjoying widespread adoption of CAN and DroneCAN systems within the UAV environment. With options for both 9~15-volt and 18~32-volt operations, and DB9SUB, Circular, & Gland Cable connectivity, the SG33BLT Actuator Series is sure to have a solution for your needs.

Cad File Download
