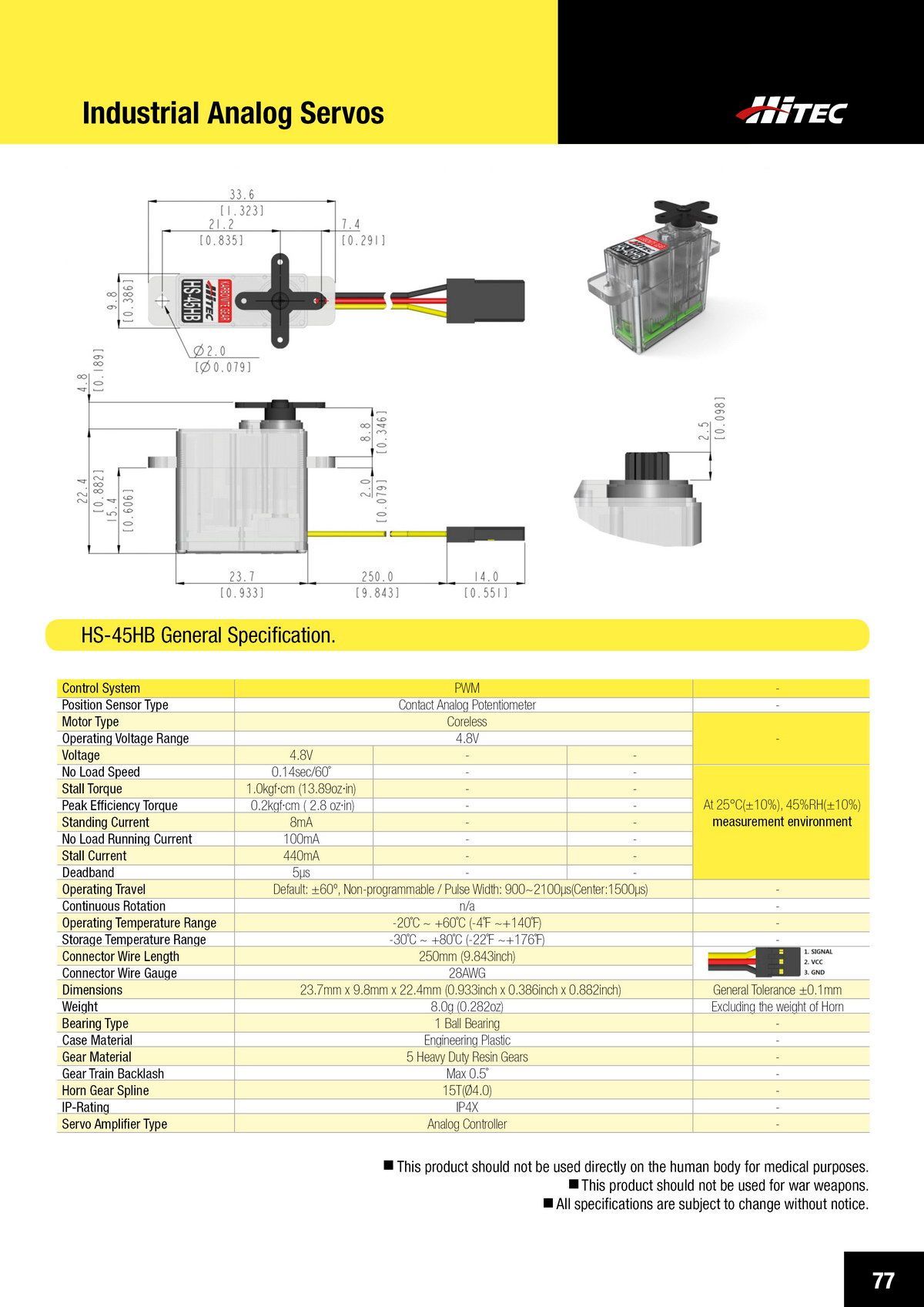

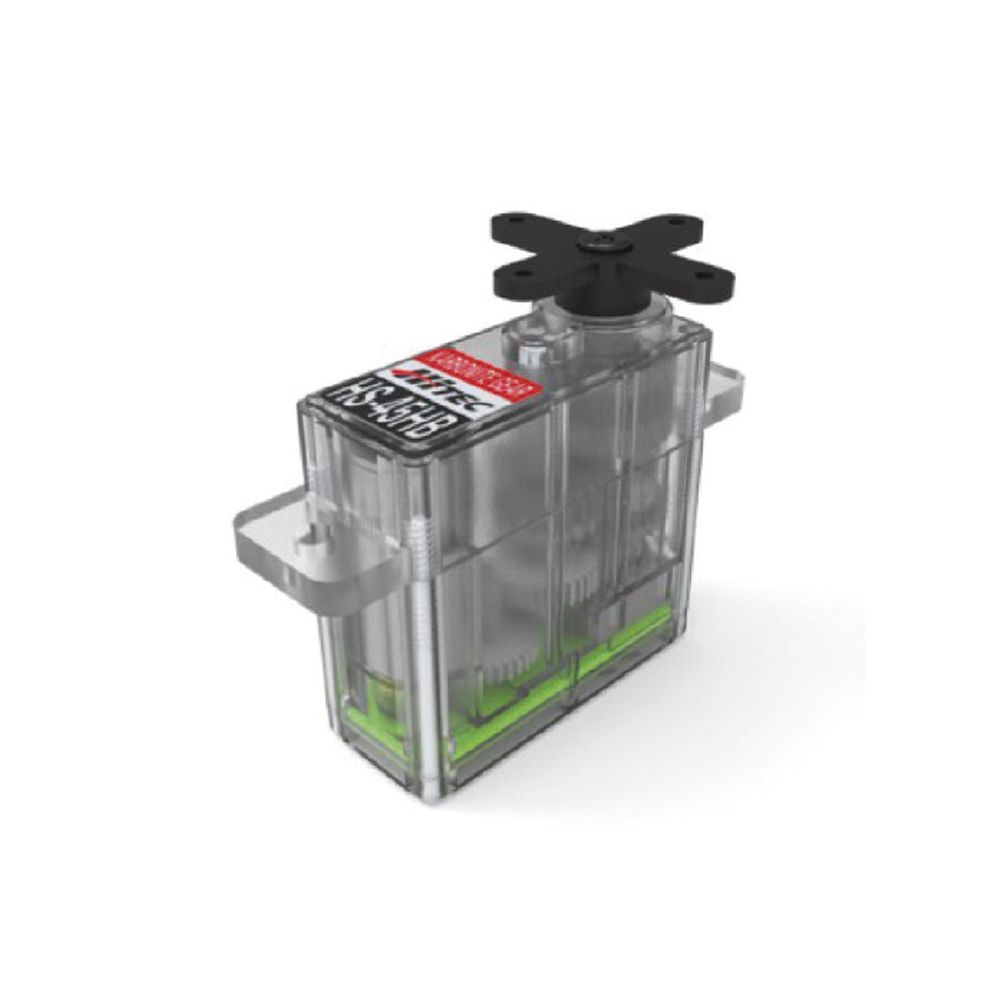

9.8mm, Cored, Low Voltage, Karbonite Gear Actuator (4.8V)

Hitec’s HS-45HB offers an economical and durable option in a popular micro servo. Designed with a top ball bearing supported output shaft, rugged Karbonite gears and a cored metal brush motor, our HS-45HB provides a high-quality solution for applications requiring general-use, precision-control actuation.

Cad File Download

10mm, Cored, Standard Voltage, High Torque, Metal Gear Actuator (6V)

Cad File Download

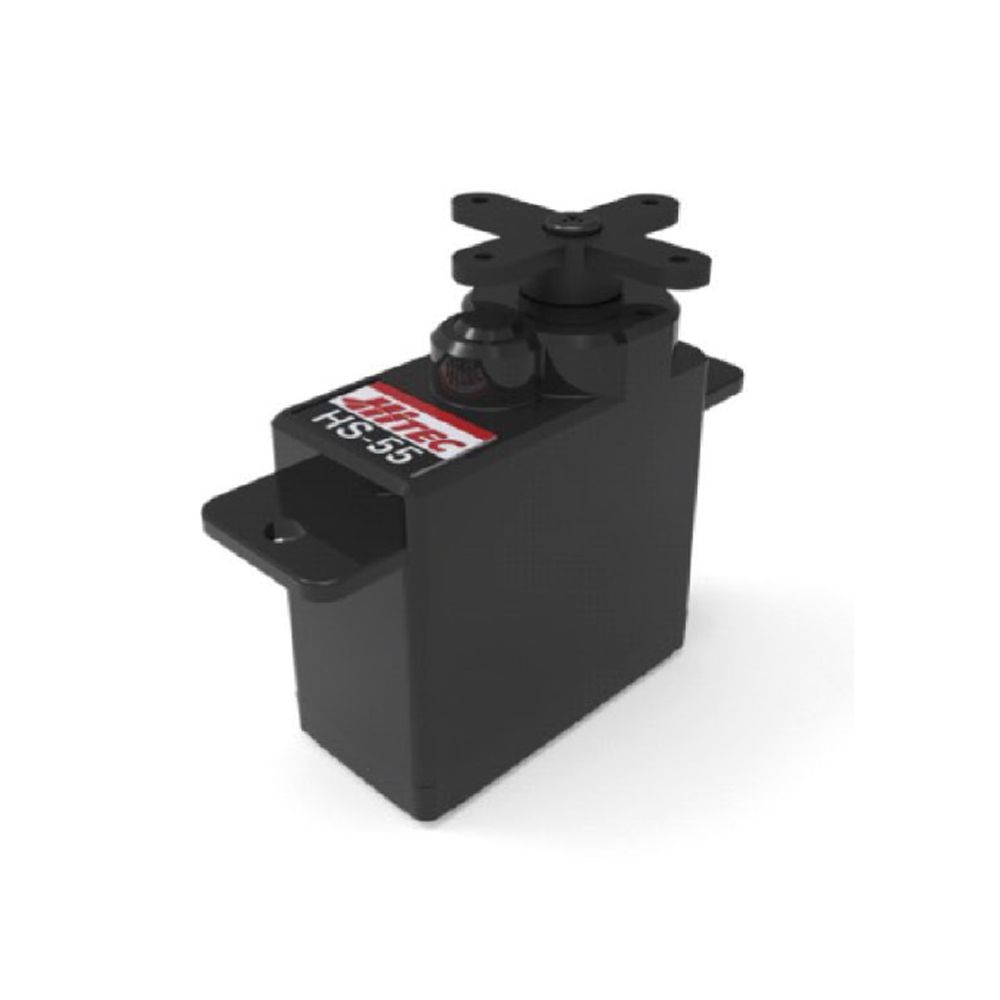

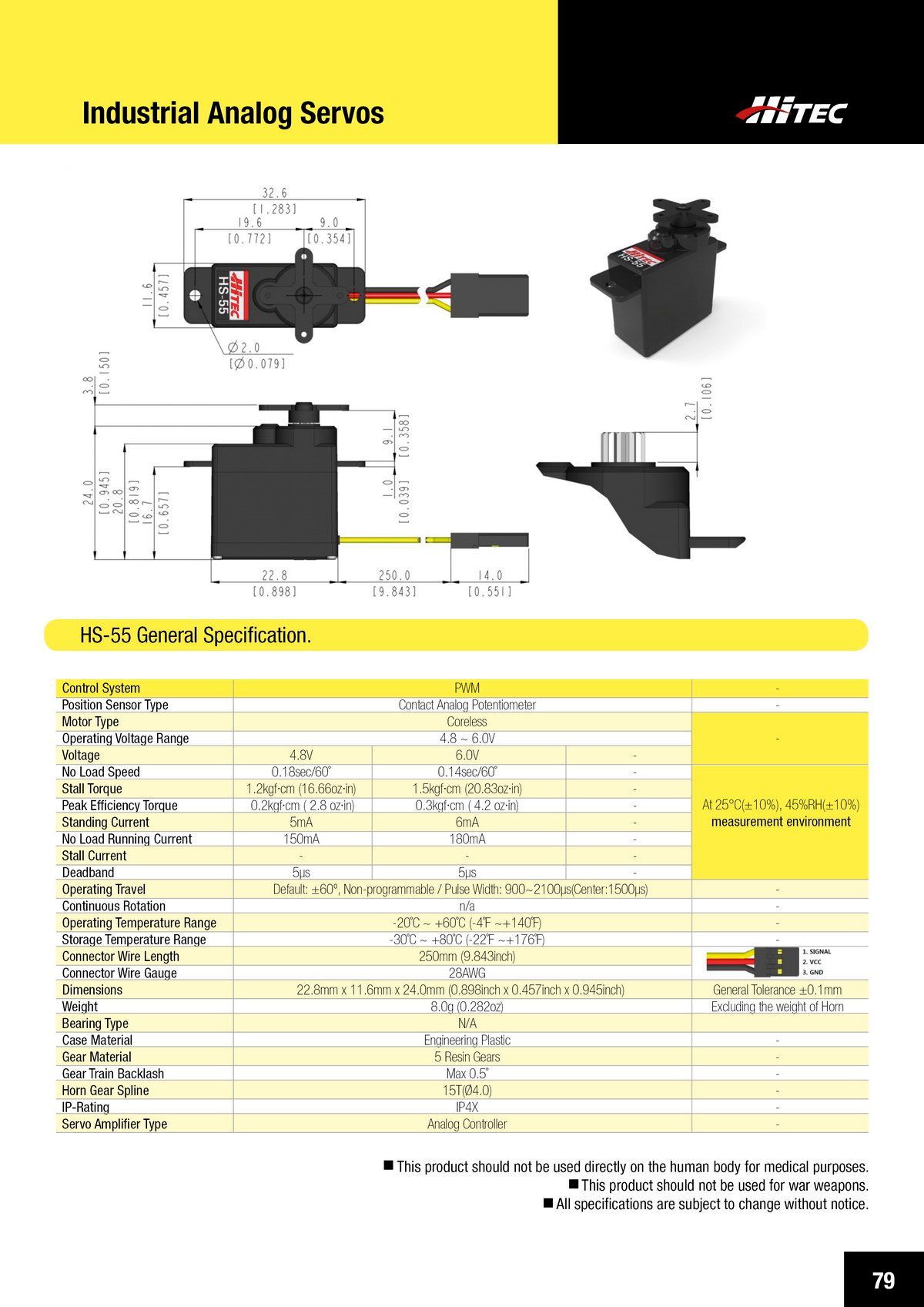

11.6mm, 3-Pole Coreless, Standard Voltage, Nylon Gear Actuator (6V)

Hitec’s popular HS-55 servo sets the standard for affordable performance, offering precision components that have been engineered to provide long-lasting, trouble-free operation. Featuring durable nylon gears, 3-pole ferrite motor, this is one of the top performing, most reliable micro actuators on the market.

Cad File Download

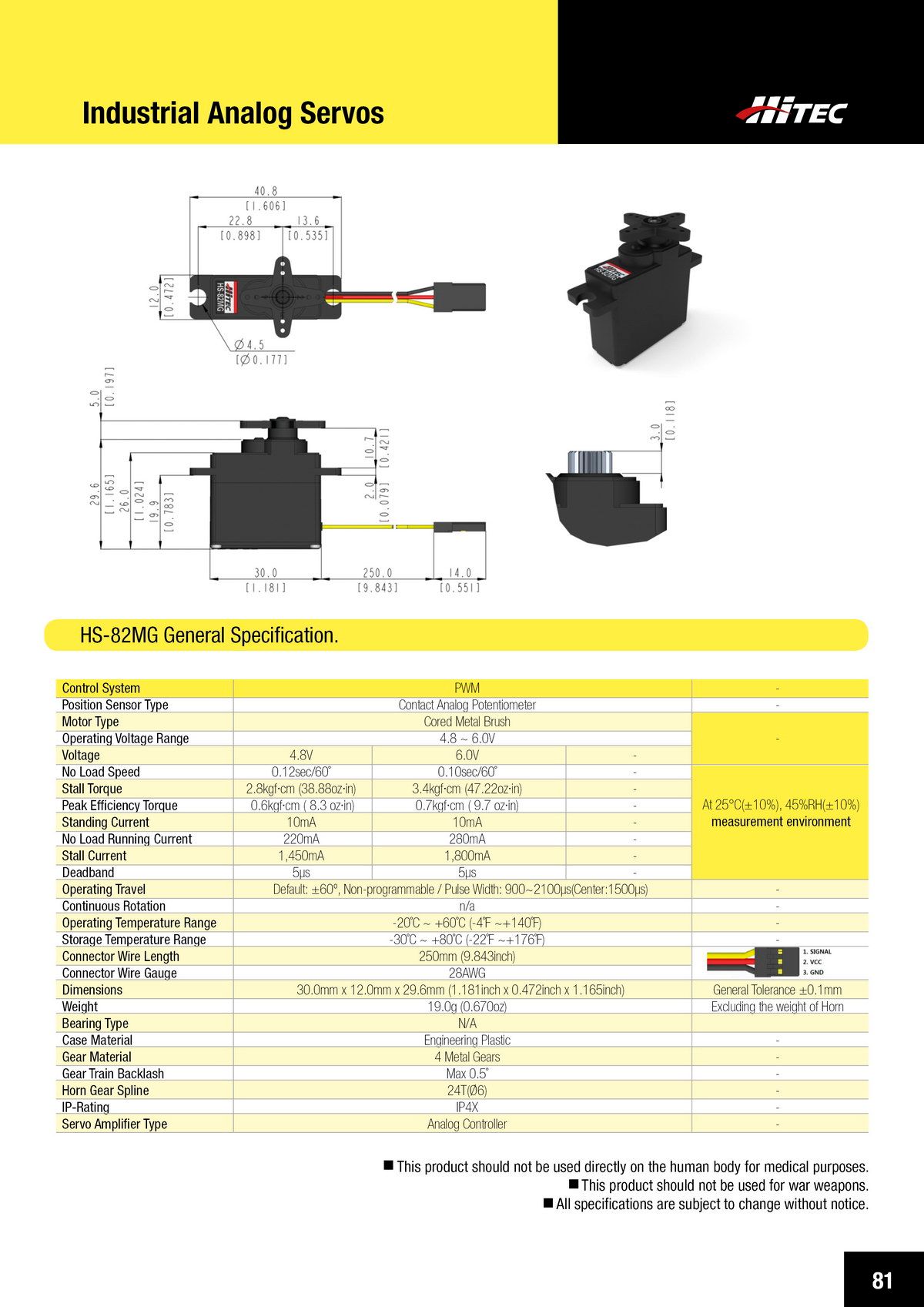

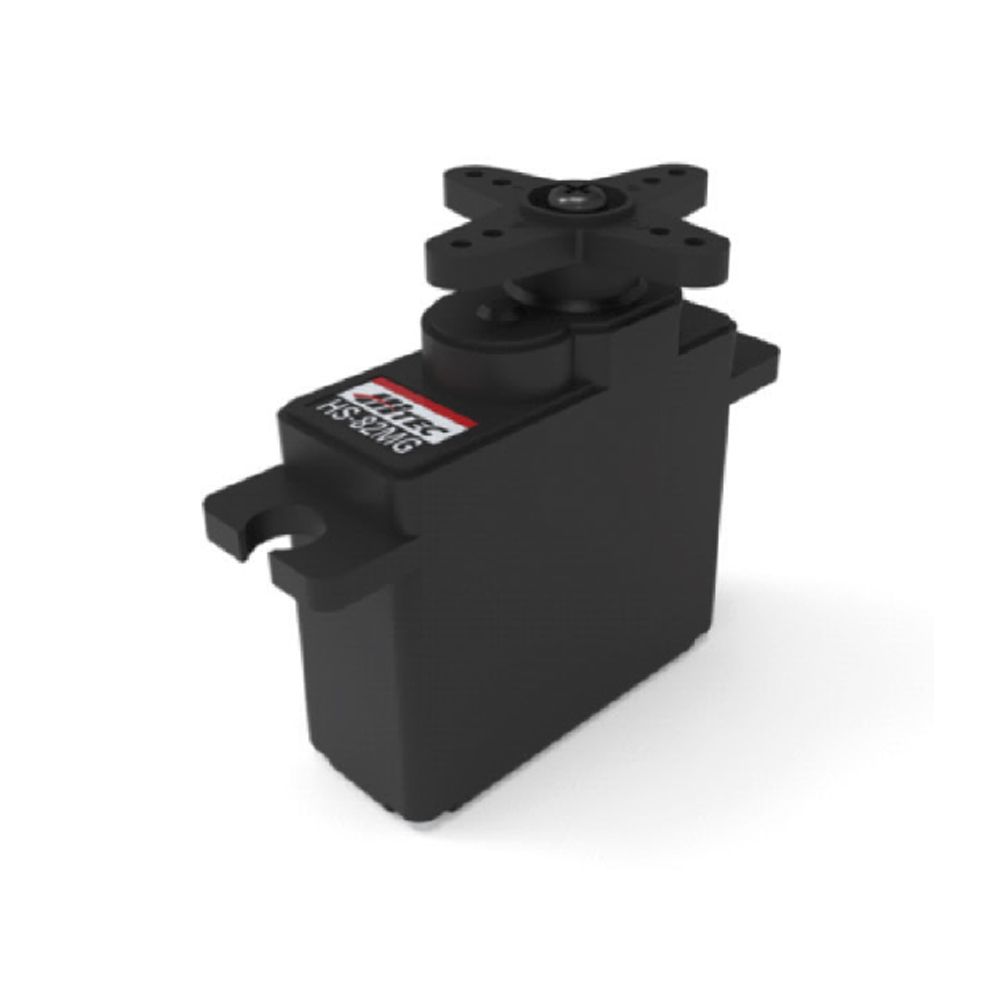

12mm, Cored, Standard Voltage, Metal Gear Actuator (6V)

The economically priced HS-82MG servo combines a powerful 3-pole ferrite motor, rugged metal gears, and advanced electronics to deliver exceptional durability and precision. Designed for general-use actuation and robotic applications, it's the perfect choice for applications that demand a strong and reliable gear train. Its high-performance components ensure accurate centering, smooth operation, and consistent results, making it an ideal solution for those seeking affordability without compromising on quality or functionality.

Cad File Download

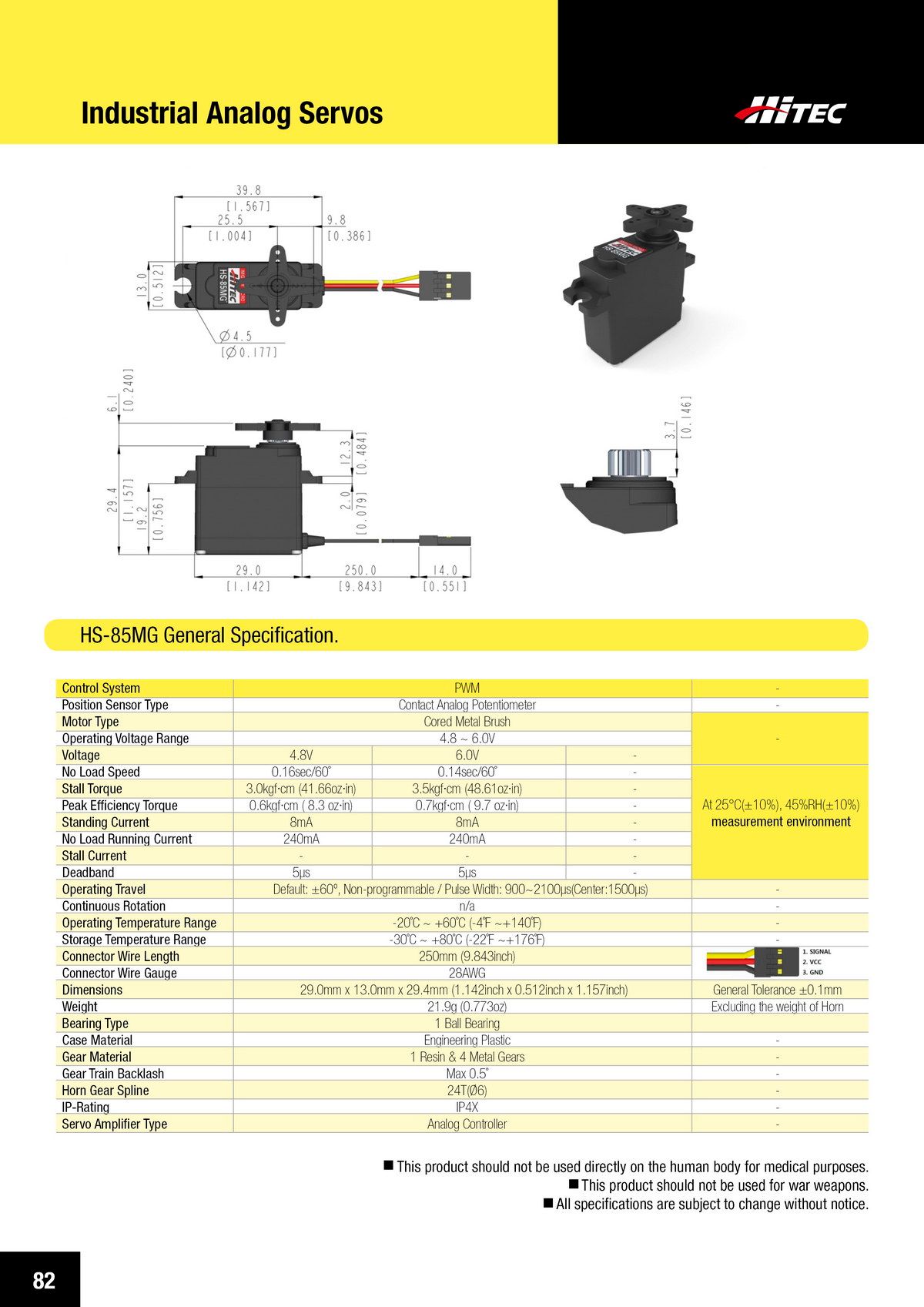

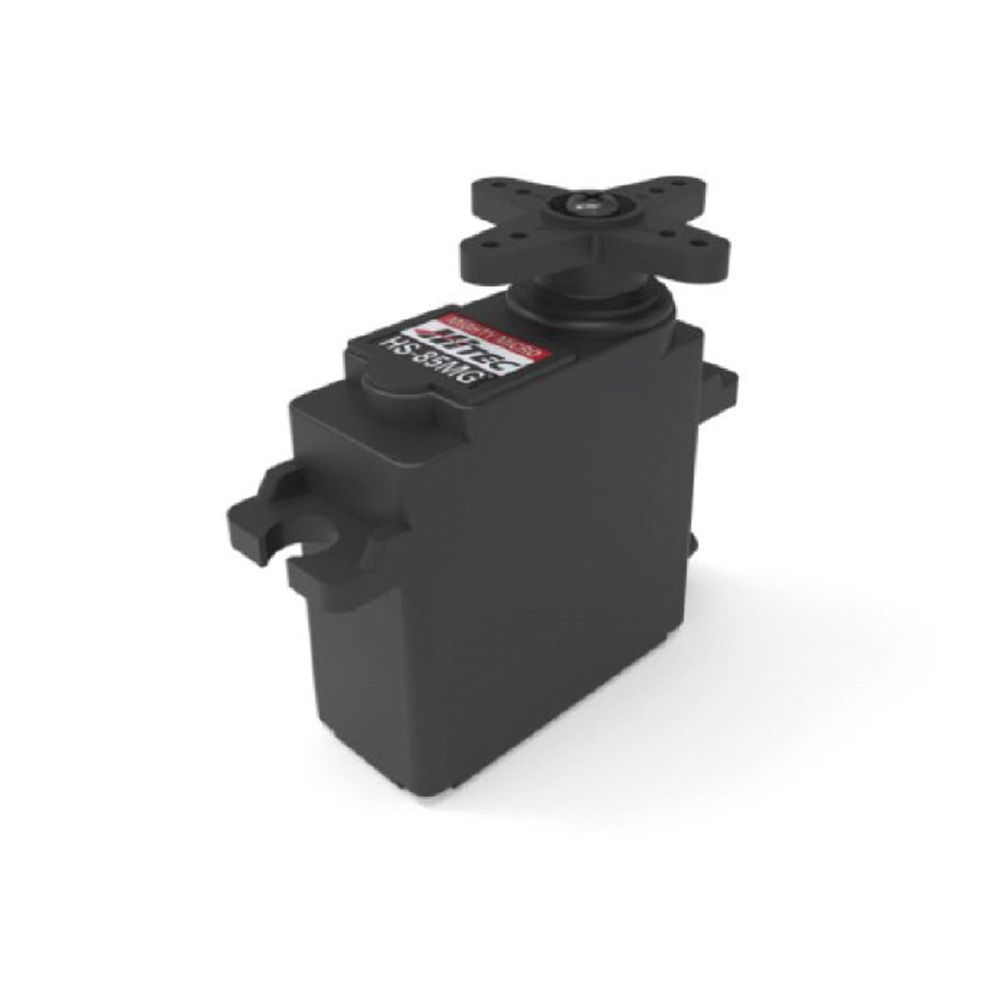

13mm, 3-Pole, Standard Voltage, Metal Gear Actuator (6V)

The HS-85MG features an efficient 3-pole metal brush ferrite motor for greater speed and torque. Its top ball bearing output shaft and sturdy metal gears make it a perfect actuator for applications where a standard voltage servo is too heavy or large, but standard torque is required.

Cad File Download

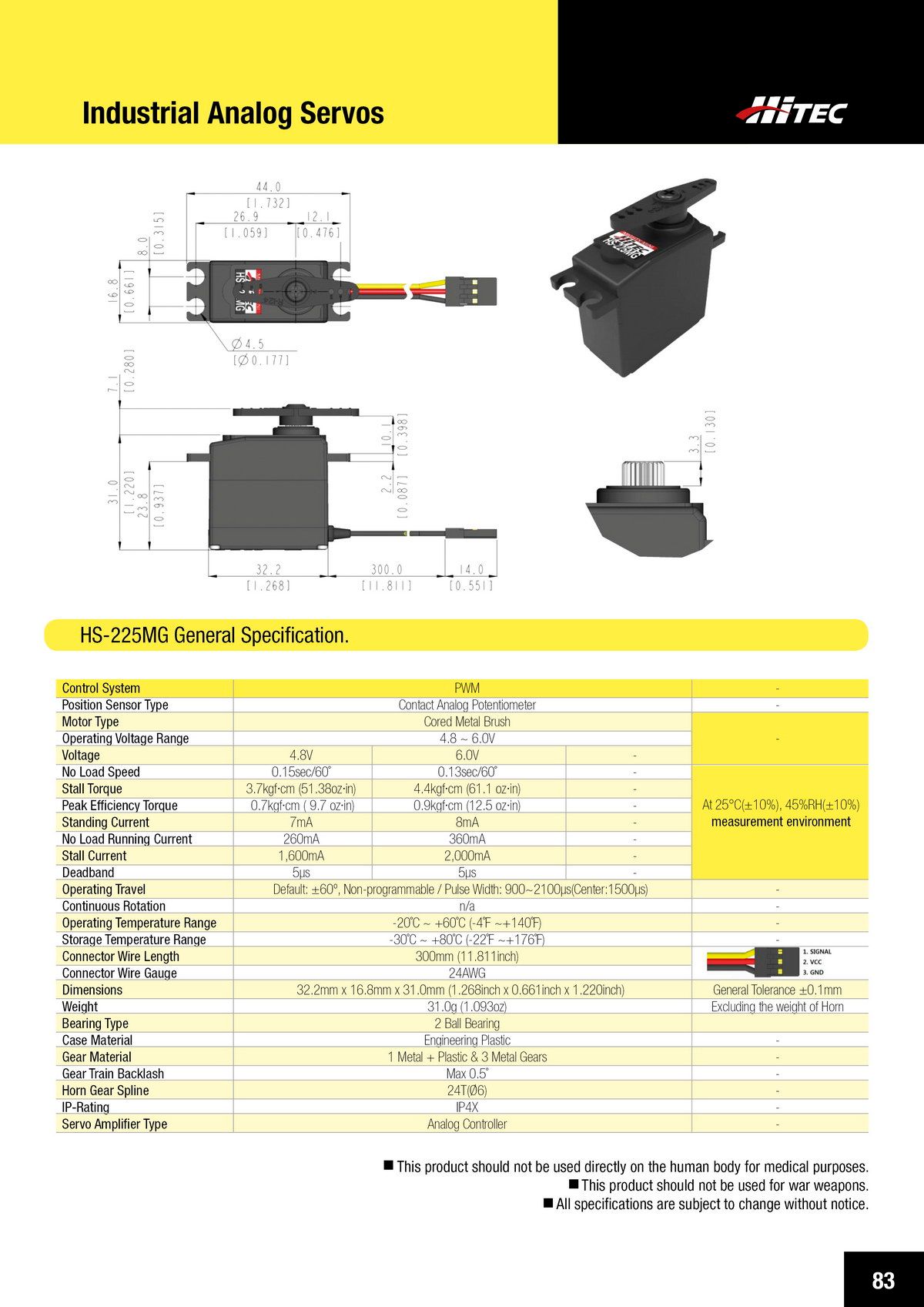

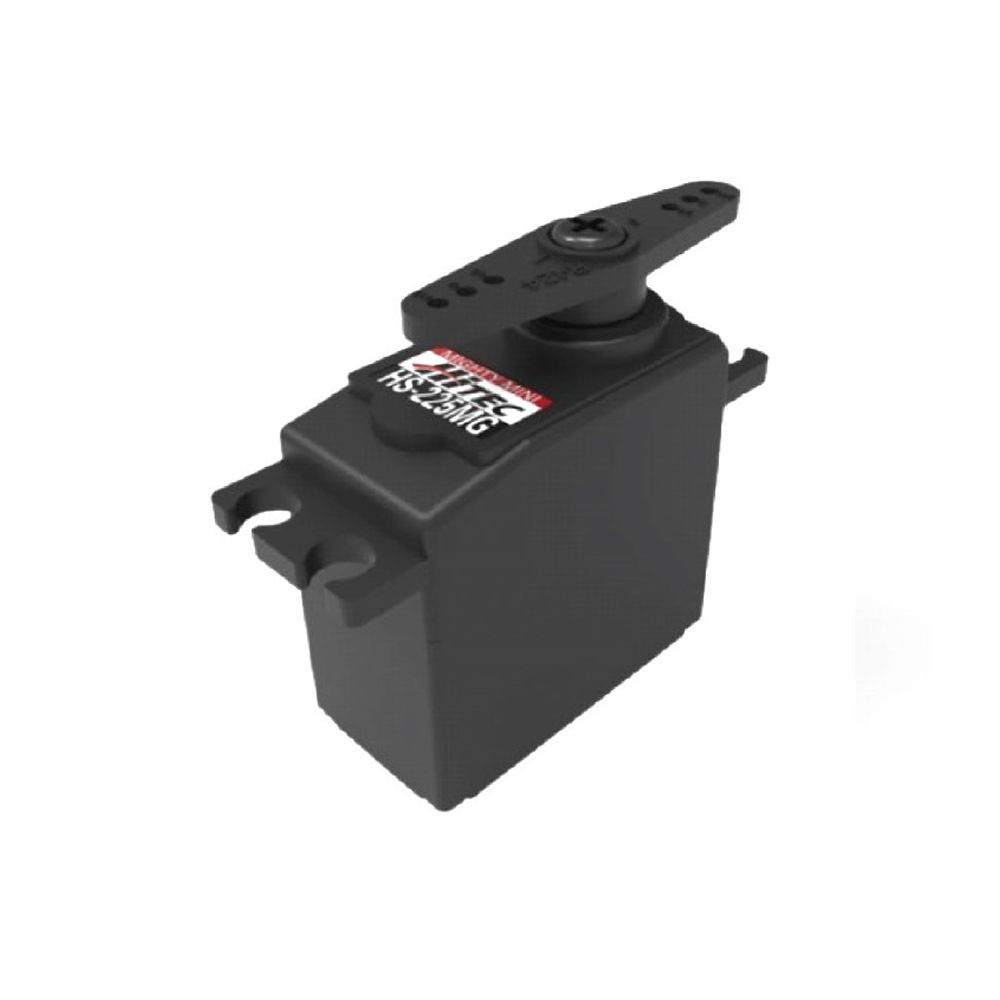

16.8mm, Cored, Standard Voltage, Metal Gear Actuator (6V)

Engineered with a cored metal brush motor, durable metal gears and a top ball bearing, our analog HS-225MG represents a good value with performance that rivals other larger and more expensive actuators. Ideal for applications that call for a small, lightweight, high-speed, high-torque servo, the HS-225MG delivers.

Cad File Download

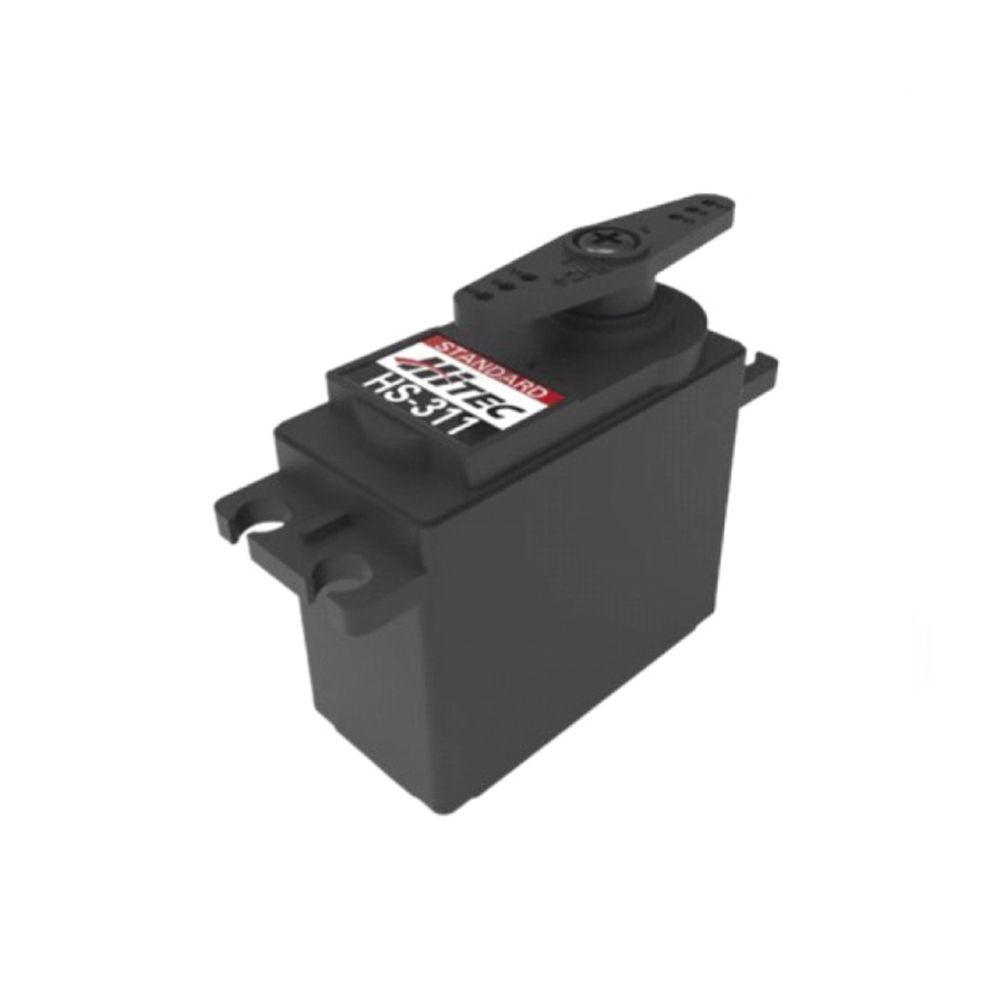

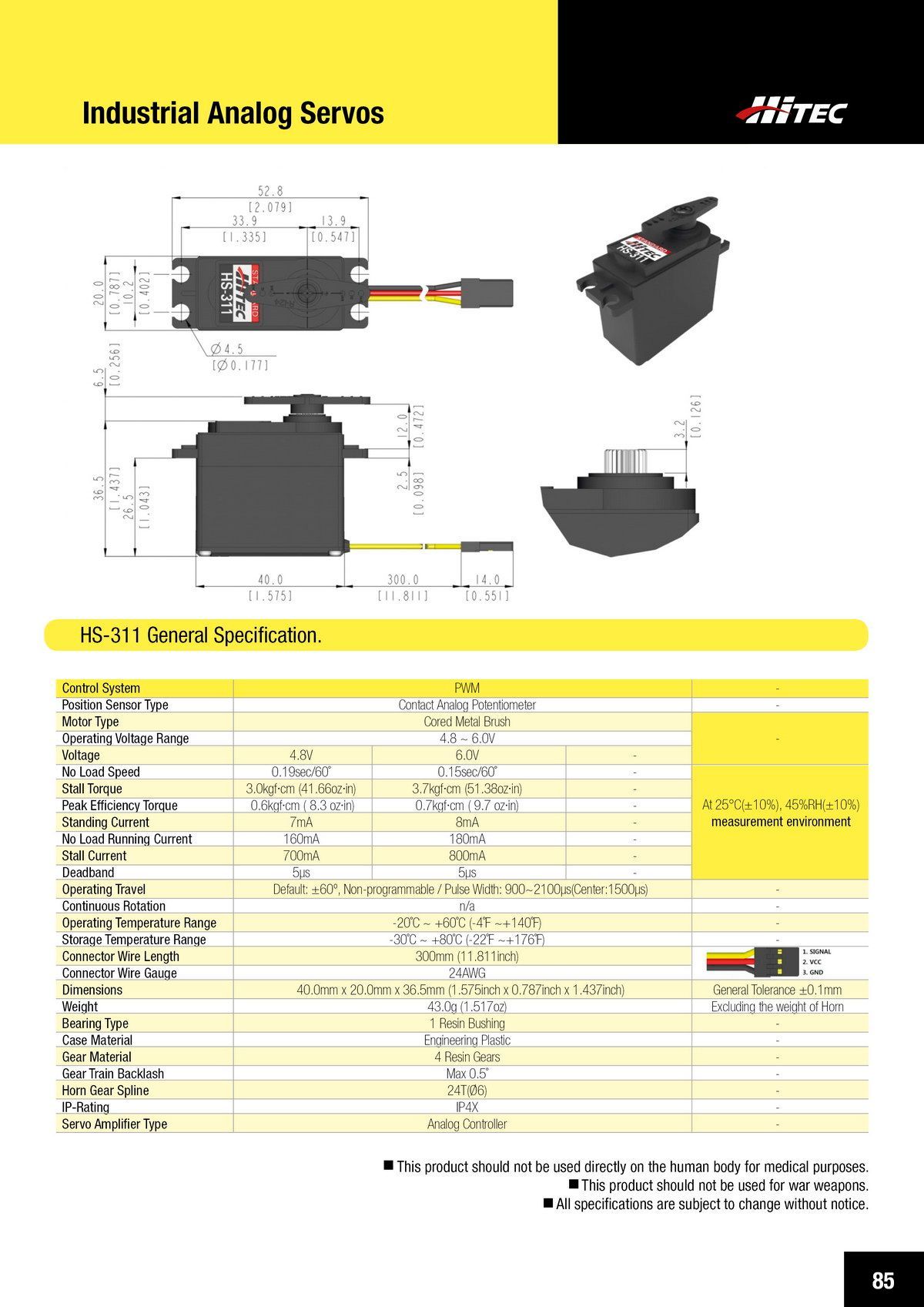

20mm, Cored, Standard Voltage, Nylon Gear Actuator (6V)

Featuring a reliable, cored metal brush motor, durable resin gears and a standard 4.8-6 volt operating range, the HS-311 is a great choice for general-use actuation applications needing an economically-priced servo with PWM protocol control.

Cad File Download

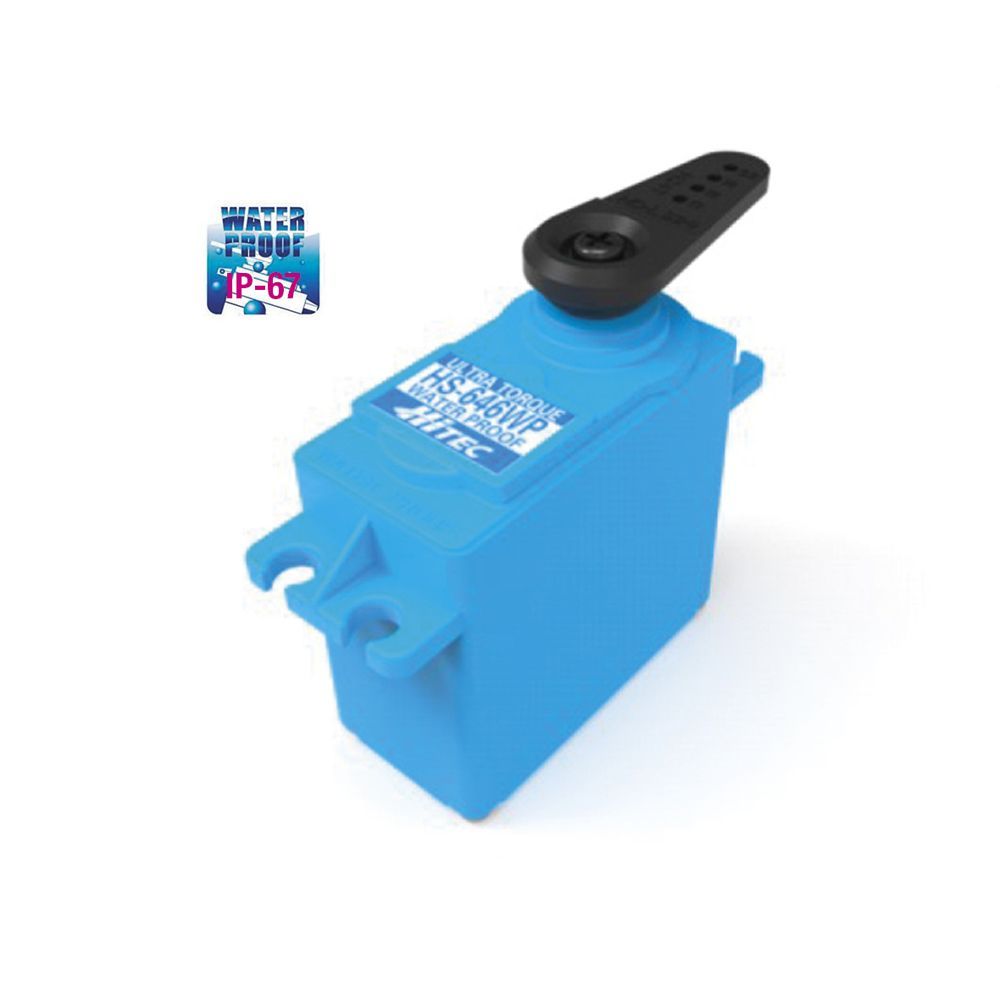

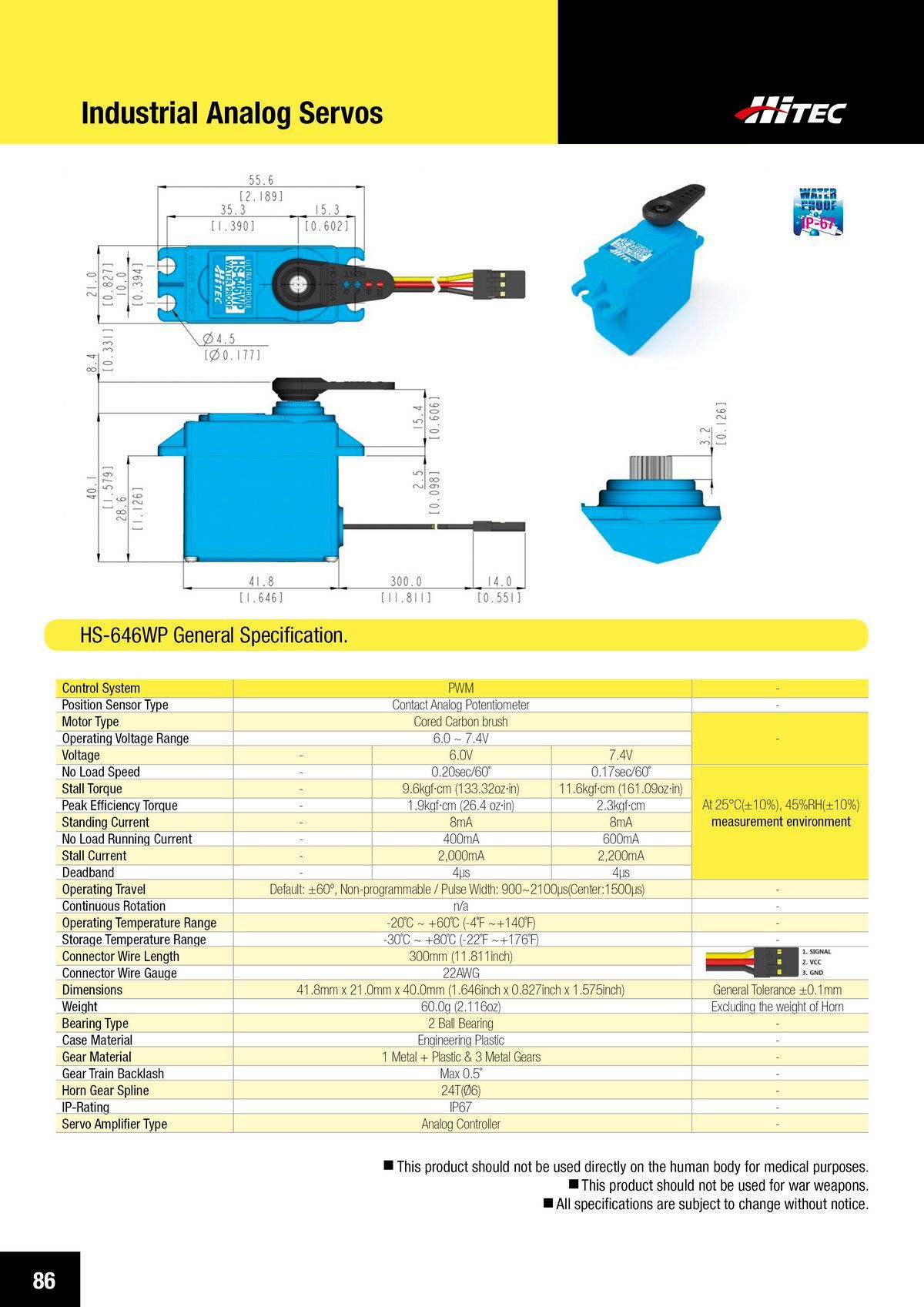

21mm, Waterproof, Cored, High Voltage, Metal Gear Actuator (7.4V)

With high torque, dual ball bearings and metal gears, our analog waterproof HS-646WP actuator has an IP67 rating, ranking it among the most durable and reliable servo for wet conditions. Its engineered plastic case, cored carbon brush motor, PWM control protocol and 11.6 kgf·cm torque at 7.4V make it an economical and powerful choice for general-use actuation and robotic applications.

Cad File Download

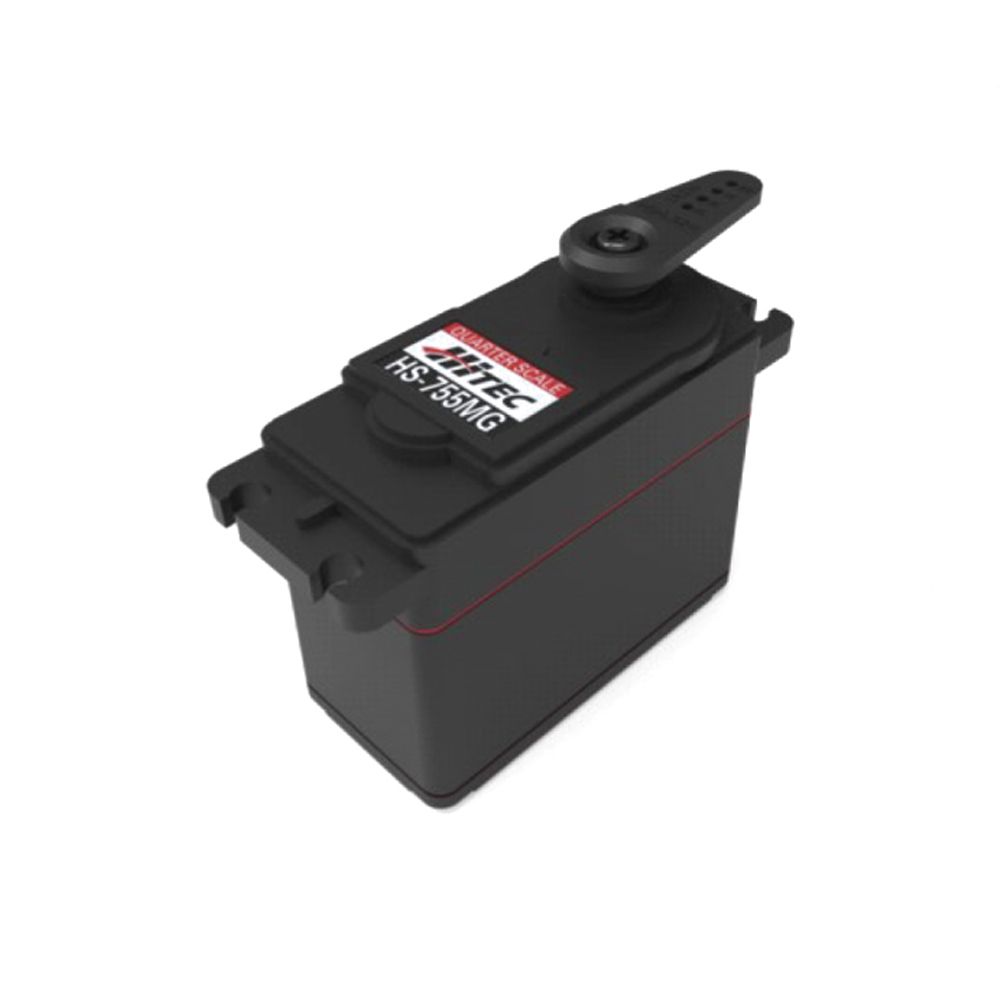

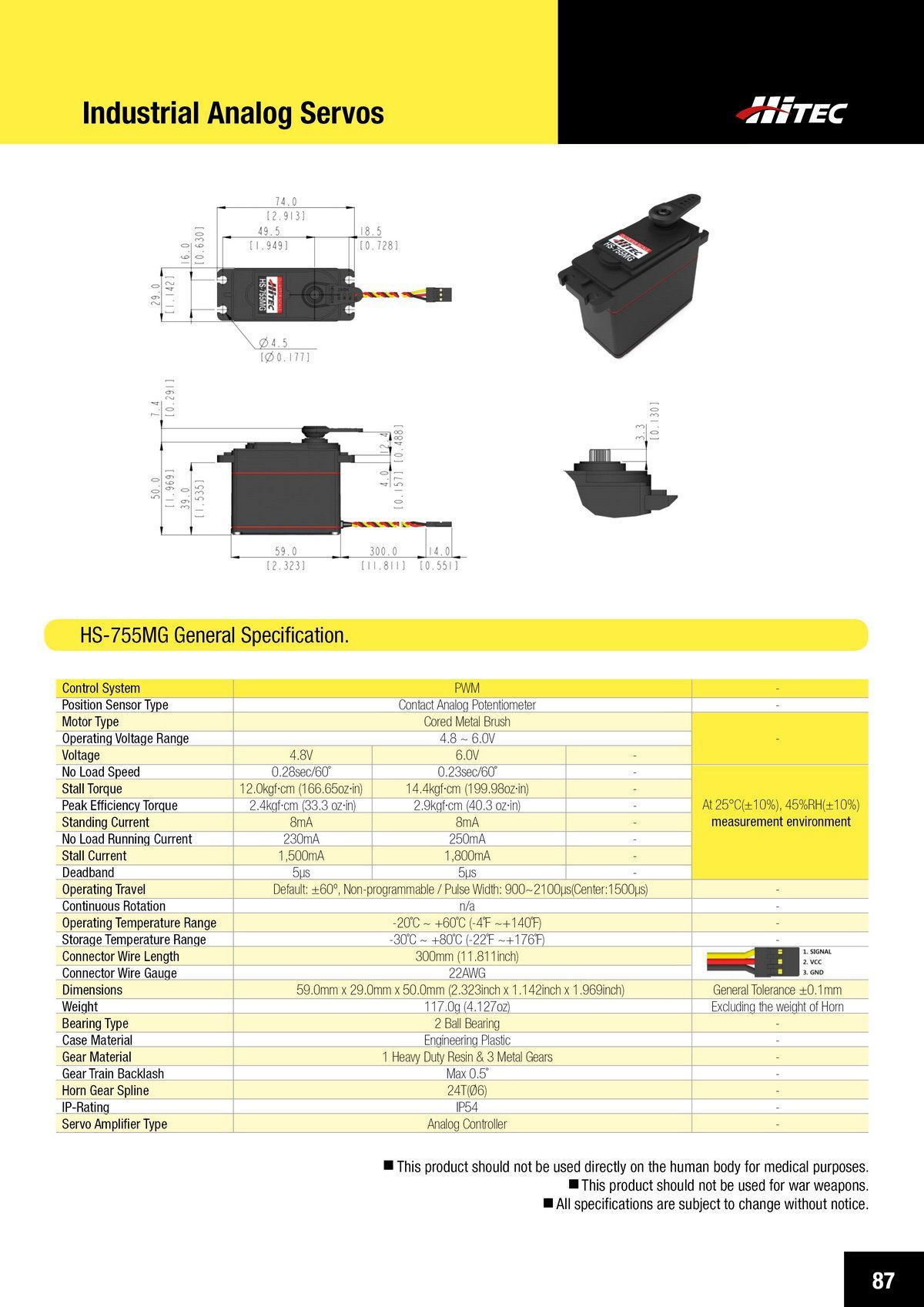

29mm, Cored, Standard Voltage, Metal Gear Actuator (6V)

Our HS-755MG industrial actuator delivers up to 200 ounce-inches of torque. It features dual ball bearings and three metal gears, and is a reliable and easy-to-use cost effective option for moderate duty industrial applications

Cad File Download

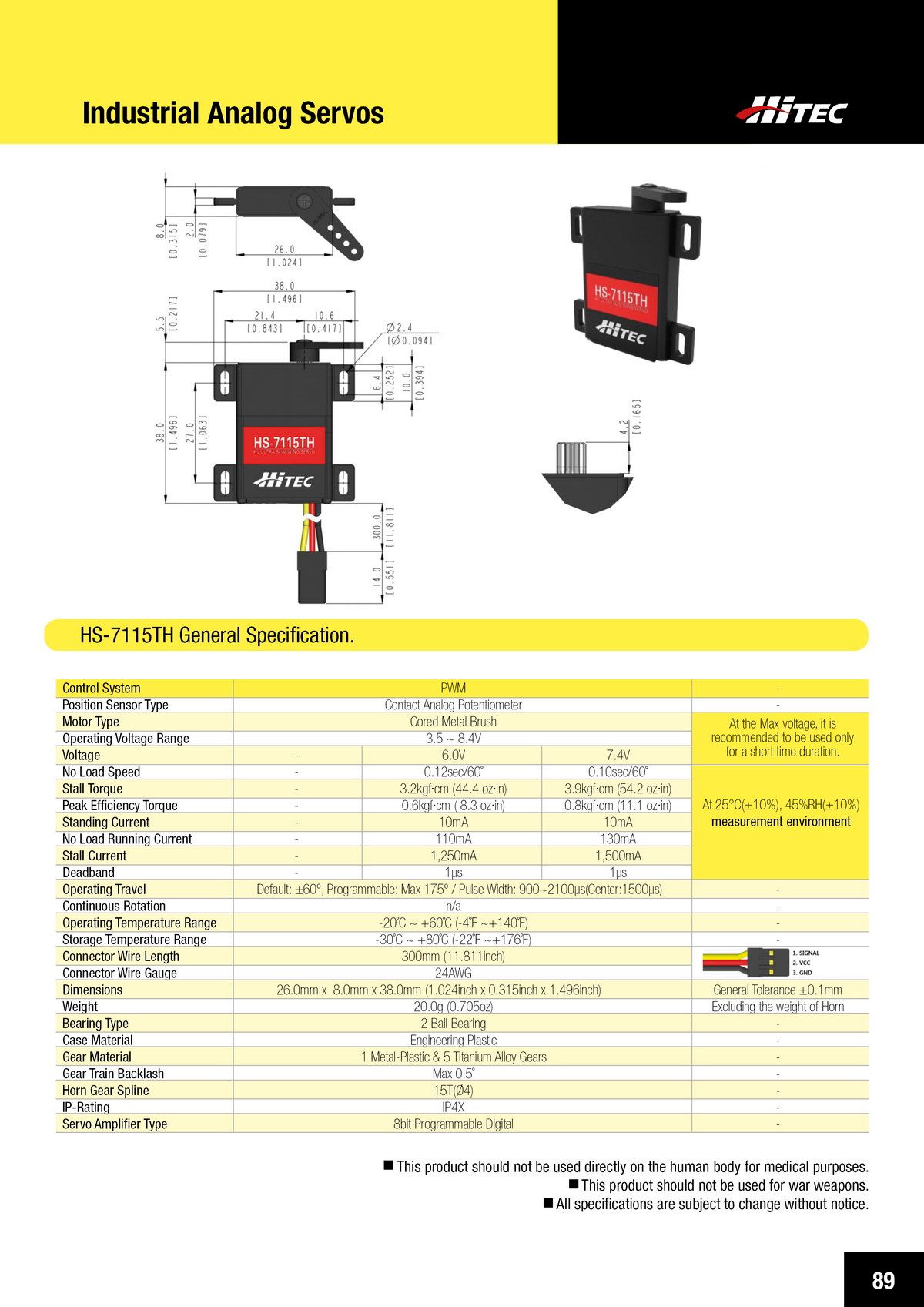

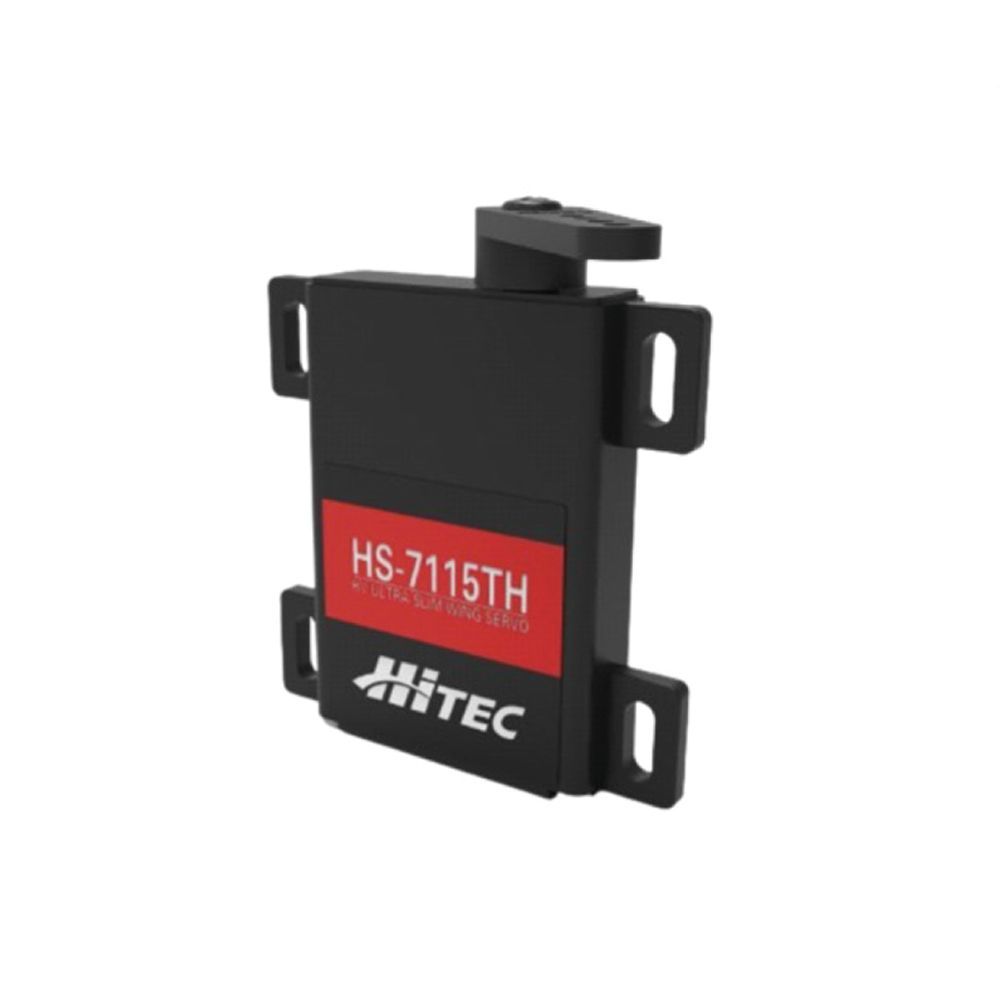

8mm, 3-Pole Cored, High Voltage, Titanium Gear Actuator (7.4V)

With its efficient, powerful 3-pole, metal-brushed motor and mighty titanium gear train, the wafer-thin, 8mm case HS-7115TH servo brings the ultimate in high performance to projects needing actuators to fit in compact spaces. Constructed with dual ball bearings, the high voltage HS-7115TH provides an impressive 3.9 kg-cm (54 oz-in) of torque at 7.4 volts.

Cad File Download

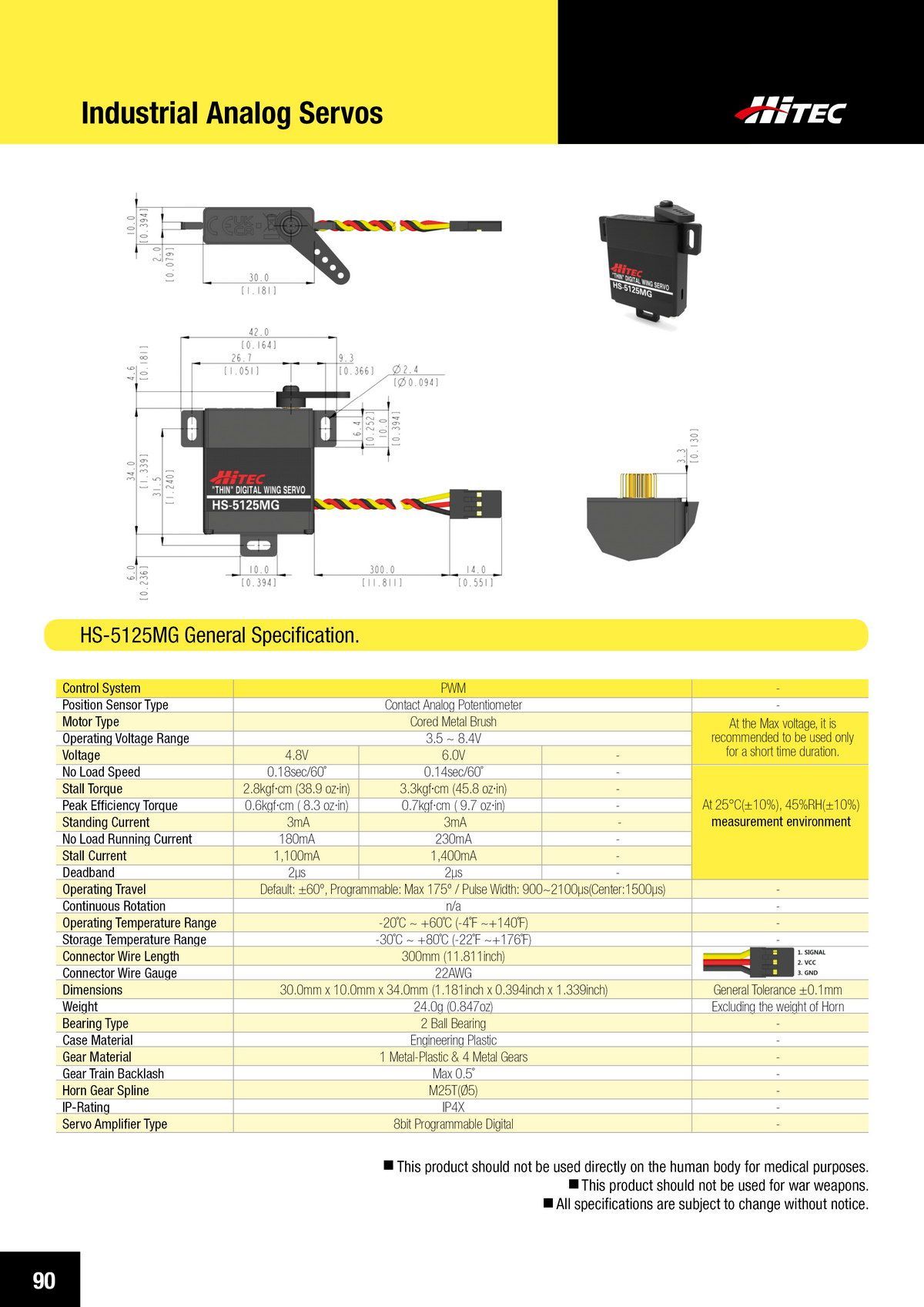

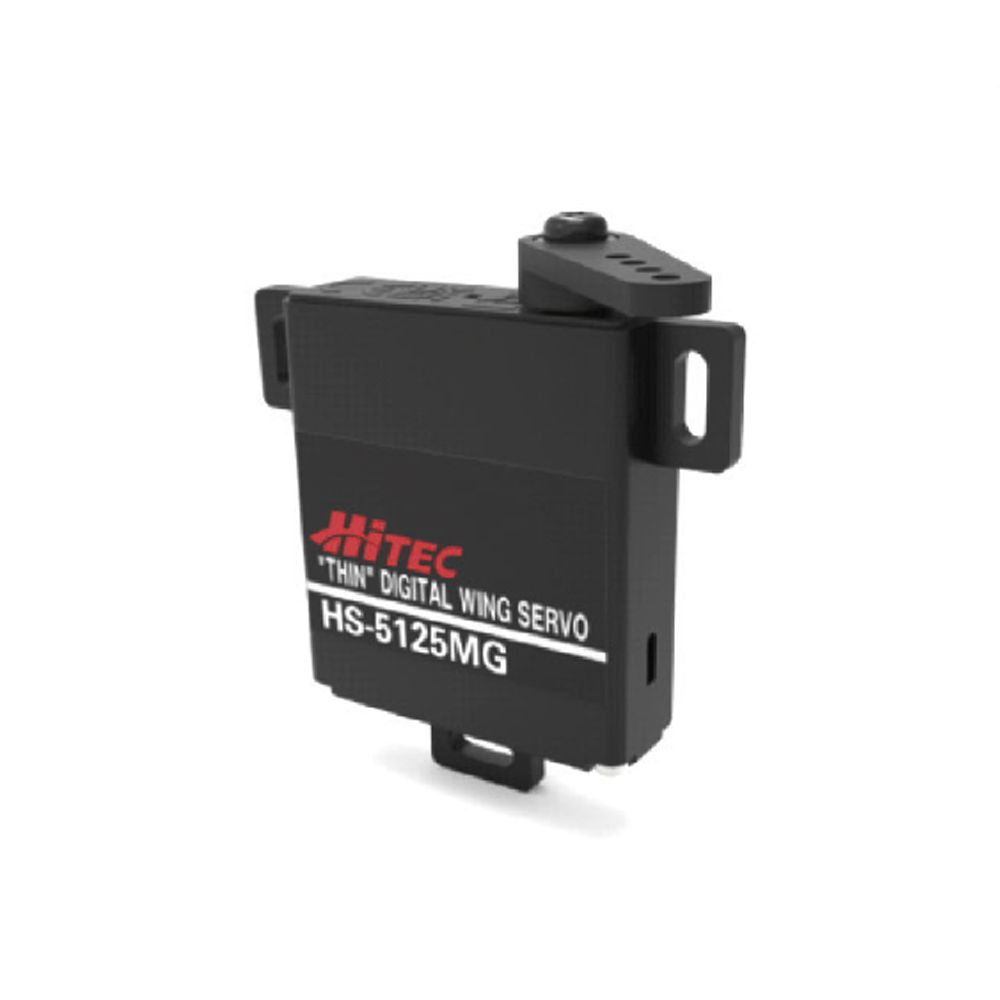

10mm, 3-Pole Cored, Standard Voltage, Metal Gear Actuator (6V)

Engineered with a 3-pole ferrite motor and dual ball bearings, our 10mm thick, HS-5125MG servo is a great choice for a super thin, programmable digital wing servo actuator. Featuring a digital programmable circuit providing instant torque and holding power, Hitec’s HS-5125MG also uses our reliable M/P gear and metal gear train technology for super durability. Ideal for general-use actuation and a variety of robotic projects.

Cad File Download

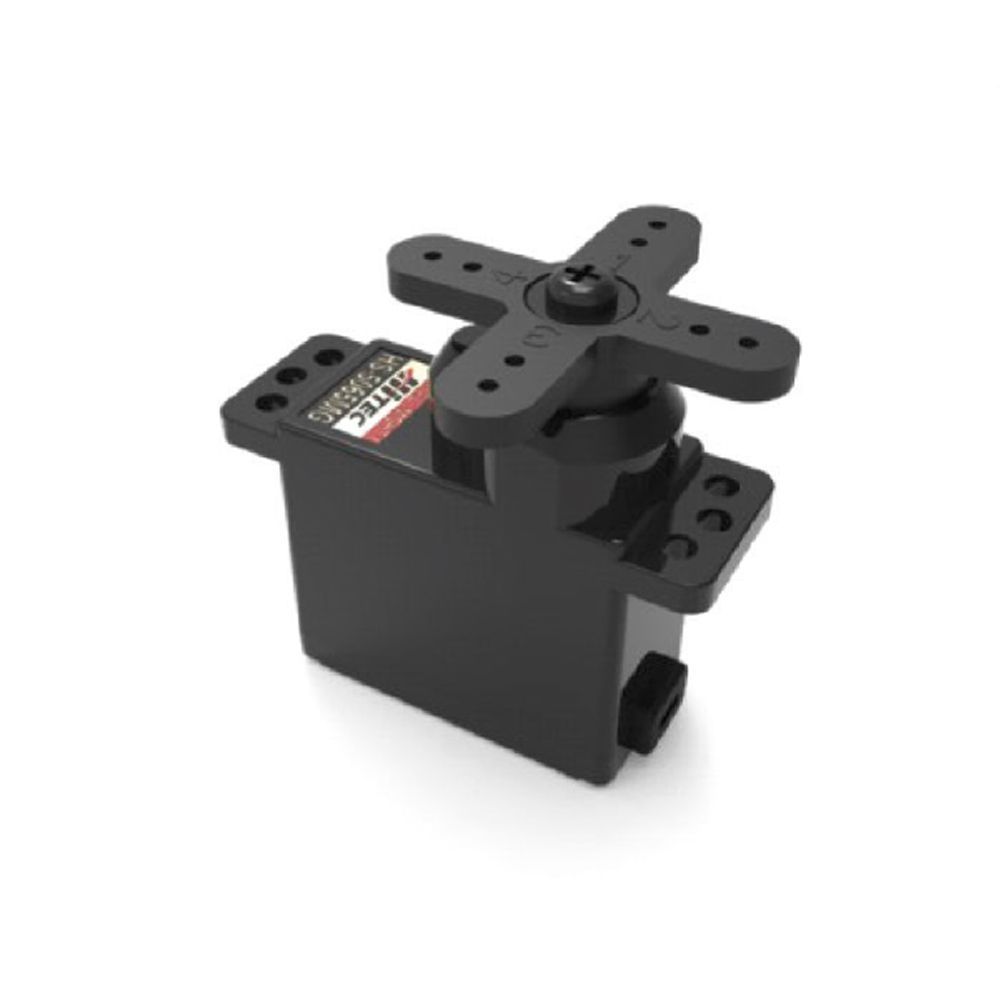

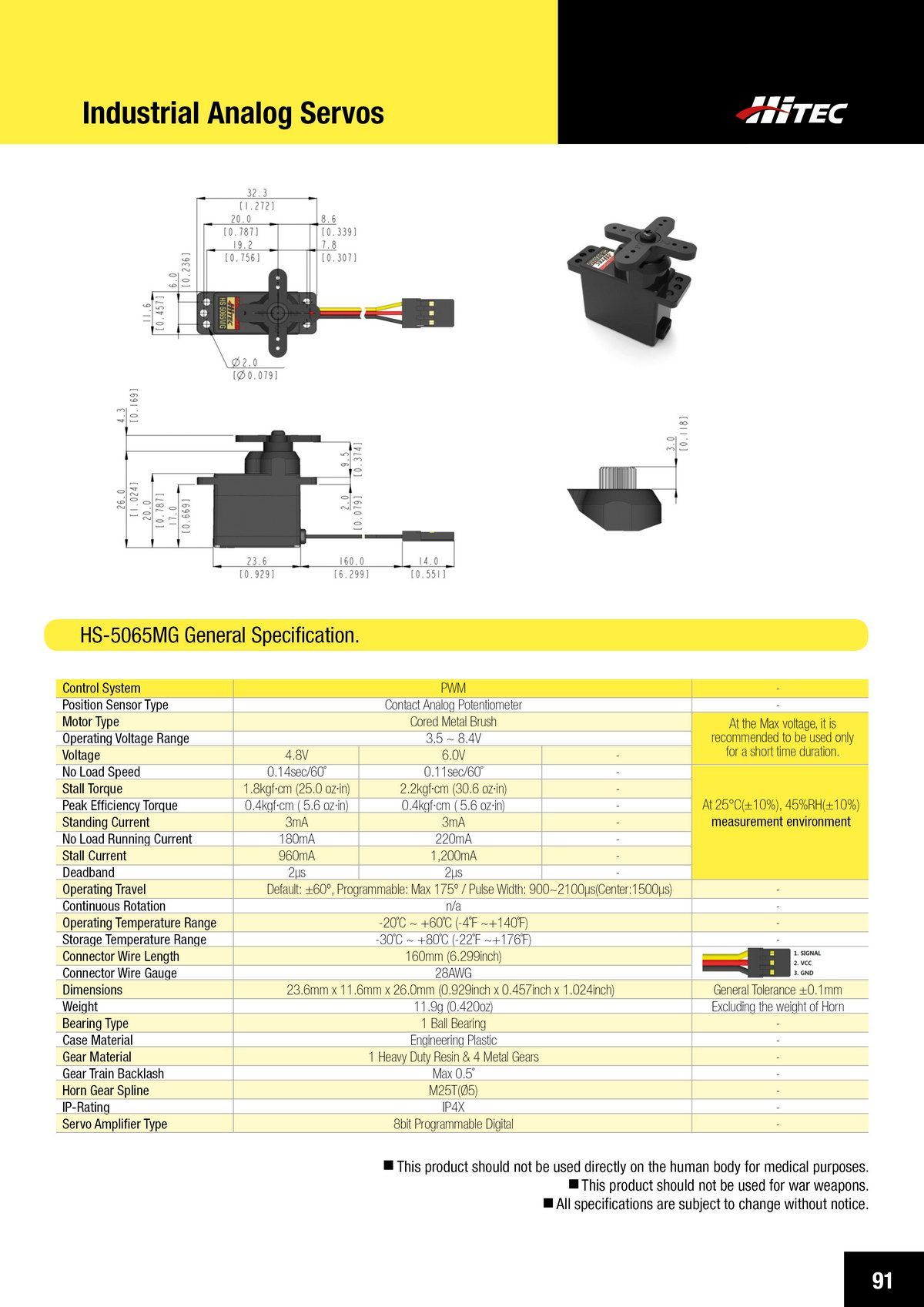

11.6mm, Cored, Standard Voltage, High Torque, Metal Gear Actuator (6V)

The HS-5065MG high-performance, micro actuator features Hitec's digital, programmable circuit for incredible resolution, centering and holding torque. This feather-weight servo is engineered with metal gears, a cored metal brush motor, and a top-ball bearing, providing 31 oz.-in. of torque with a quick transit time of 0.11 sec at 6 volts.

Cad File Download

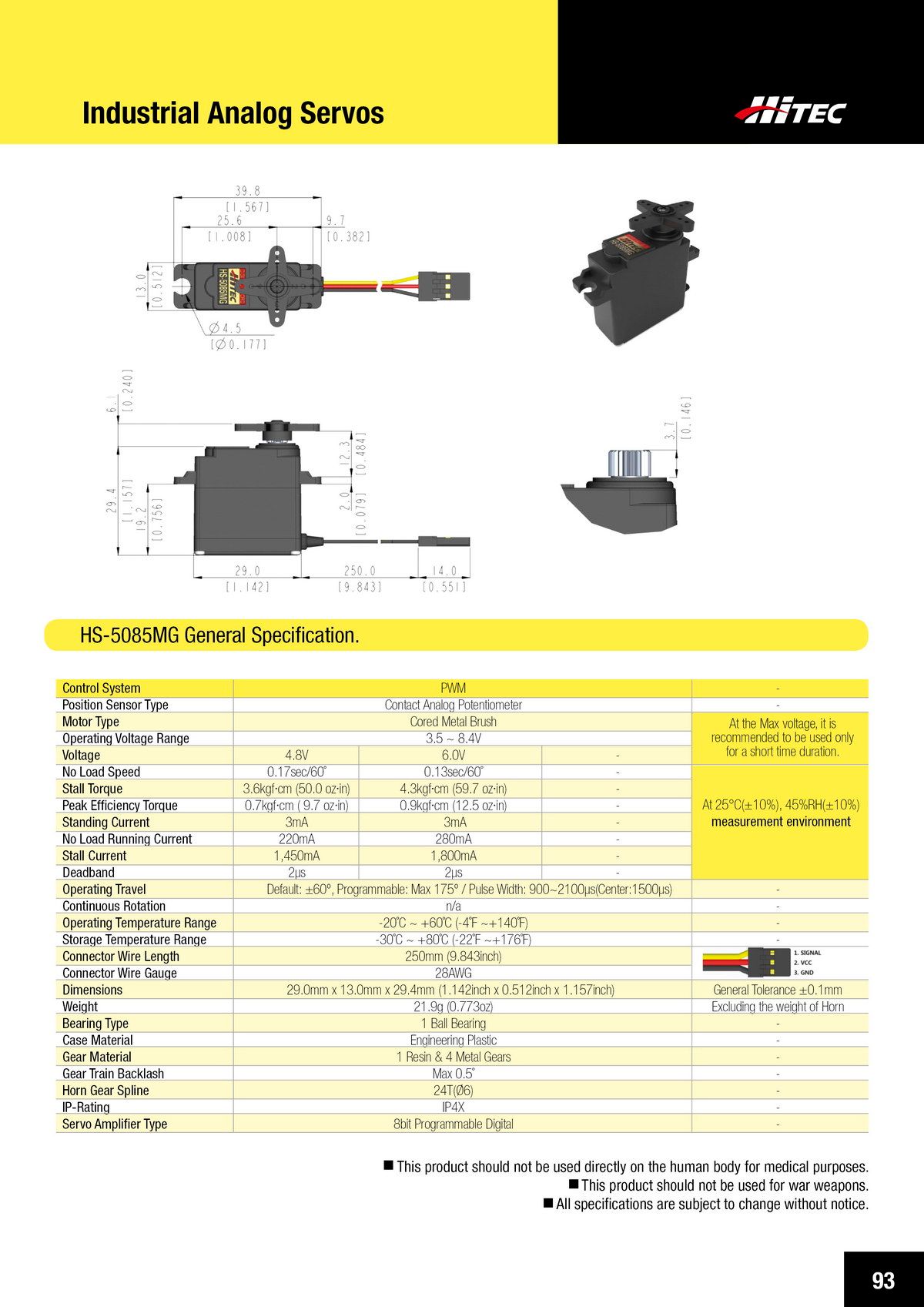

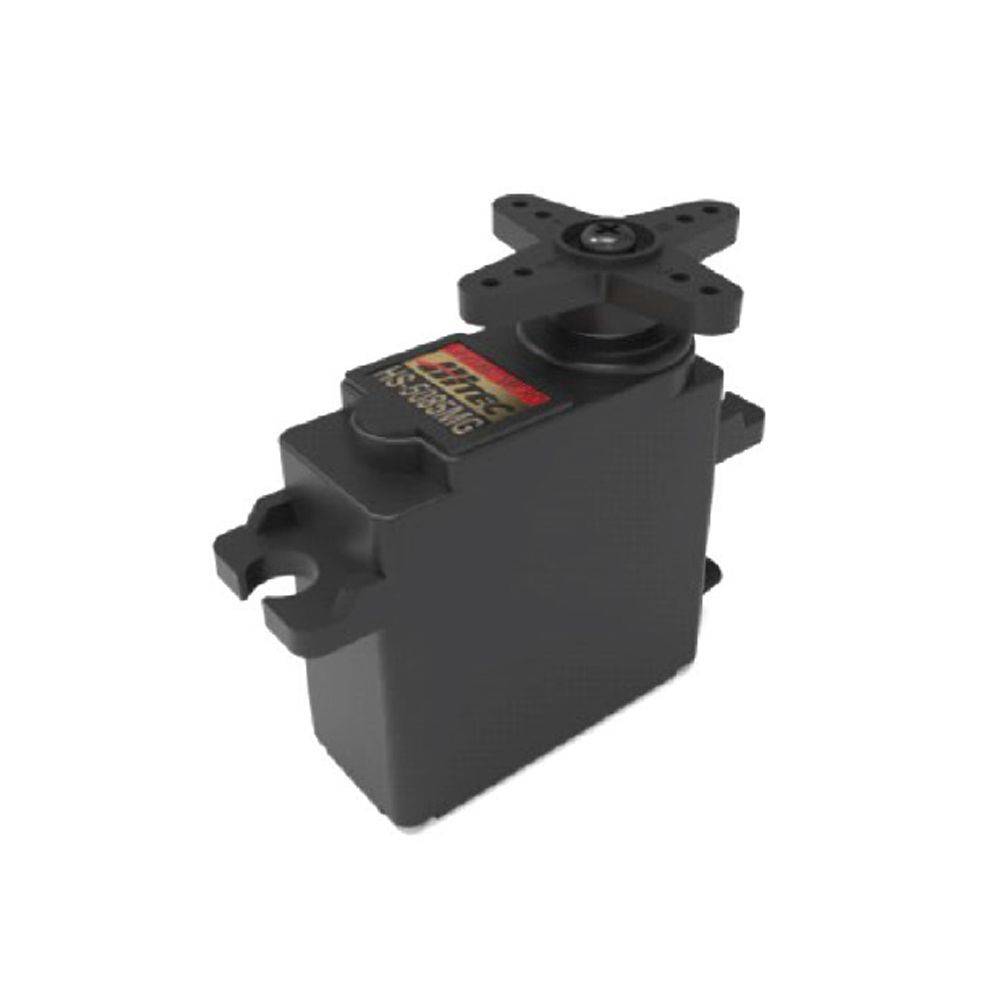

13mm, Cored, Standard Voltage, Metal Gear Actuator (6V)

Engineered with a cored metal brush motor, digital programmable amplifier with MOSFET drive, PWM control protocol and durable metal gears, the micro-size HS-5085MG offers excellent centering, resolution and durability for those looking to save weight without sacrificing performance. Its strong holding power is ideal for general-use actuation and a variety of robotic projects.

Cad File Download

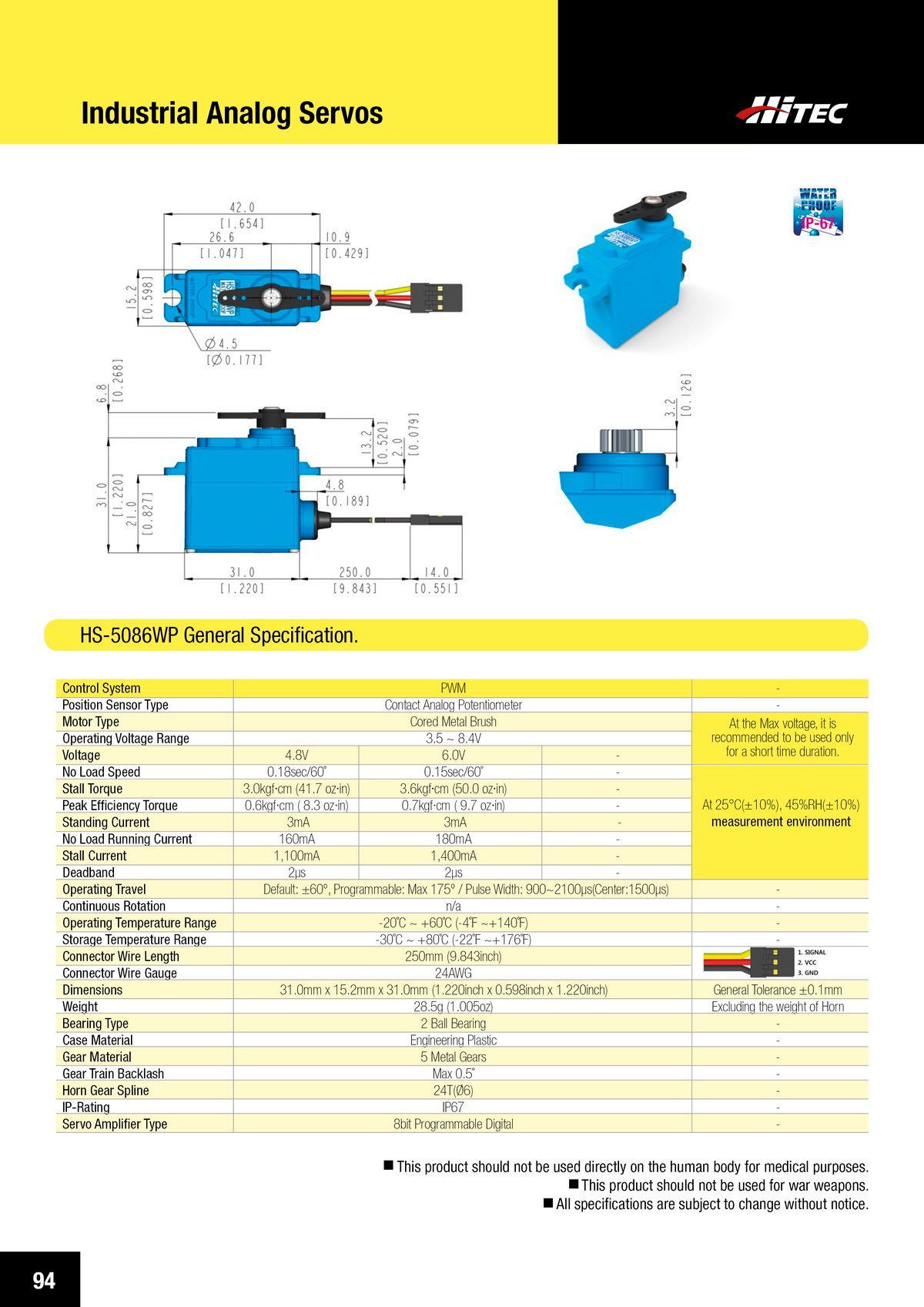

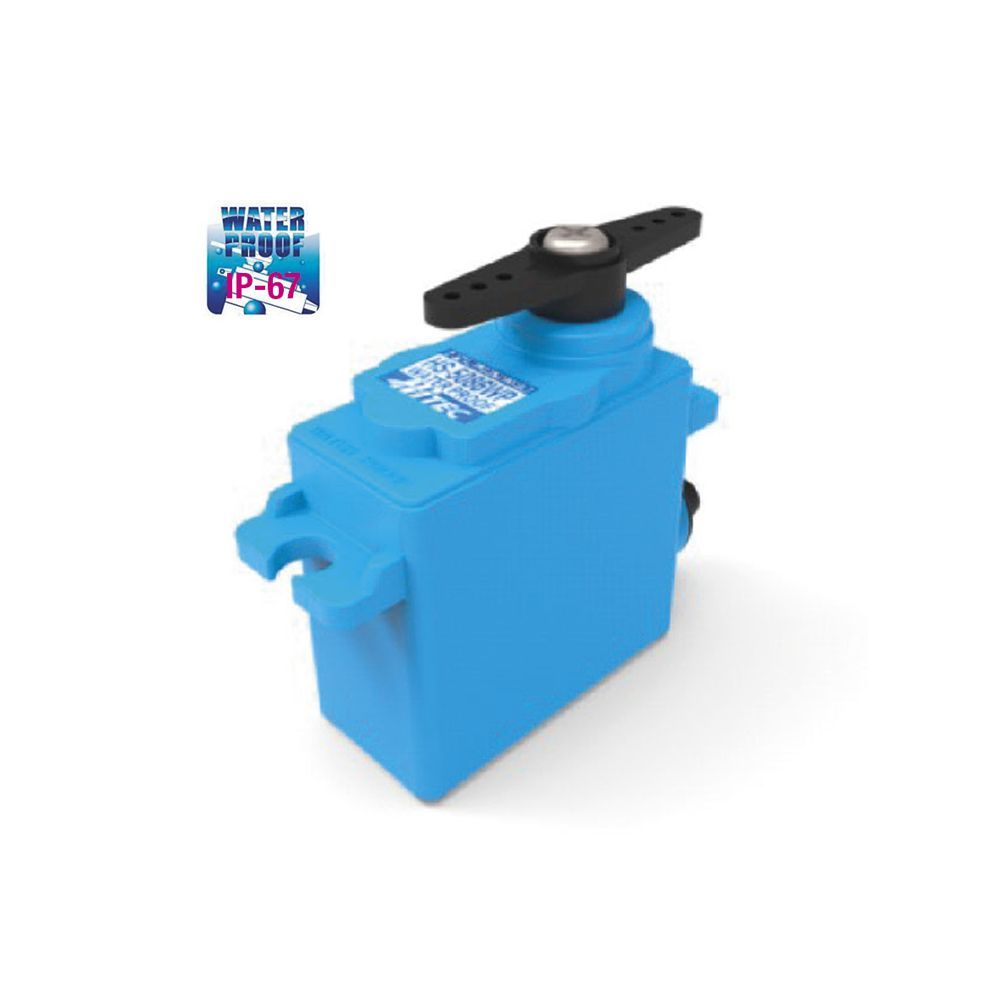

13mm, Waterproof, Cored, Standard Voltage, Metal Gear Actuator (6V)

With an efficient 3-pole cored, ferrite motor, heavy-duty metal gears and a dual ball bearing supported output shaft, the HS-5086WP is among the most durable and reliable micro servo for wet conditions. Its IP-67 waterproof rating and PWM control protocol make it a perfect digital actuator choice for a myriad of precision control and automation applications.

Cad File Download

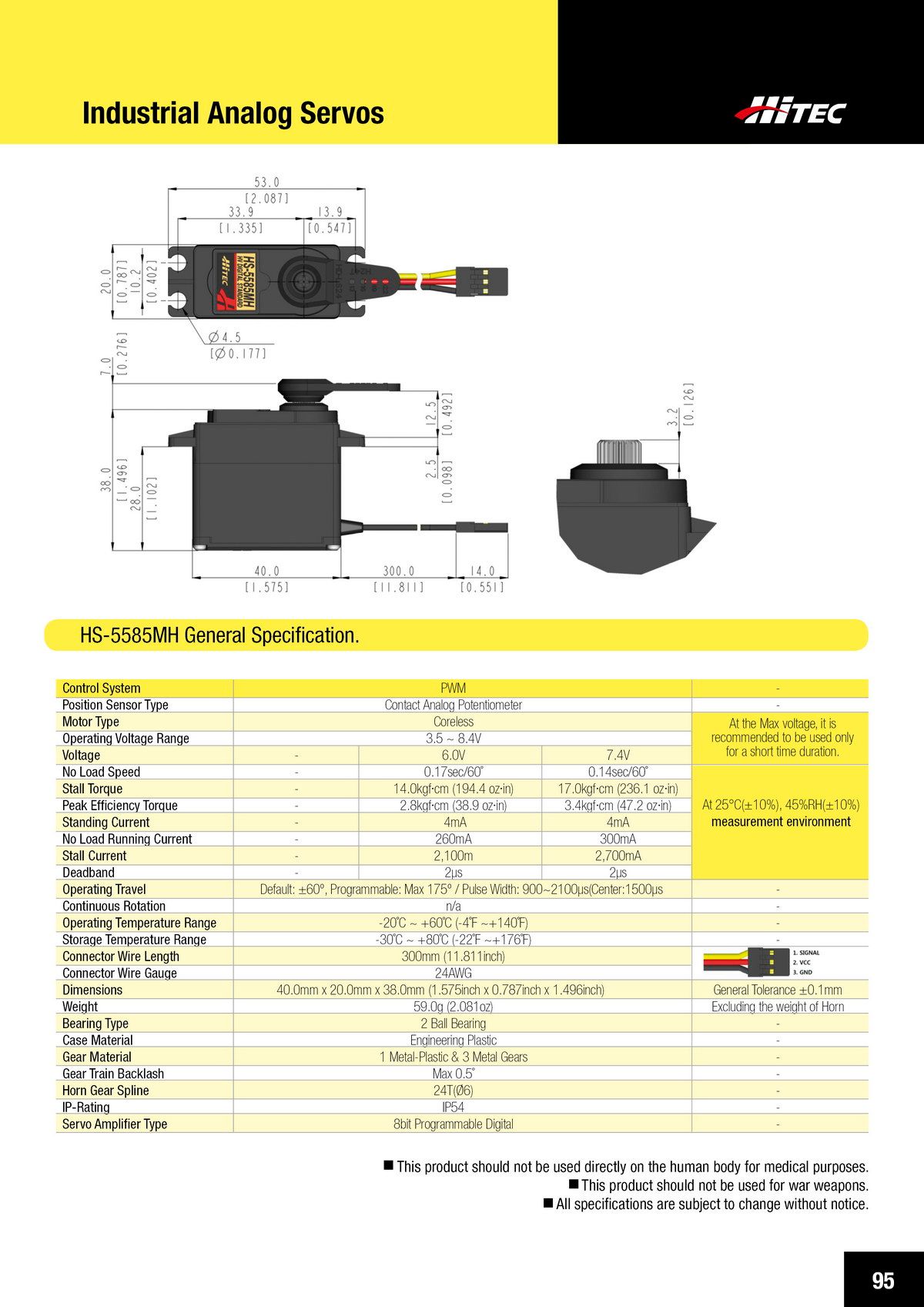

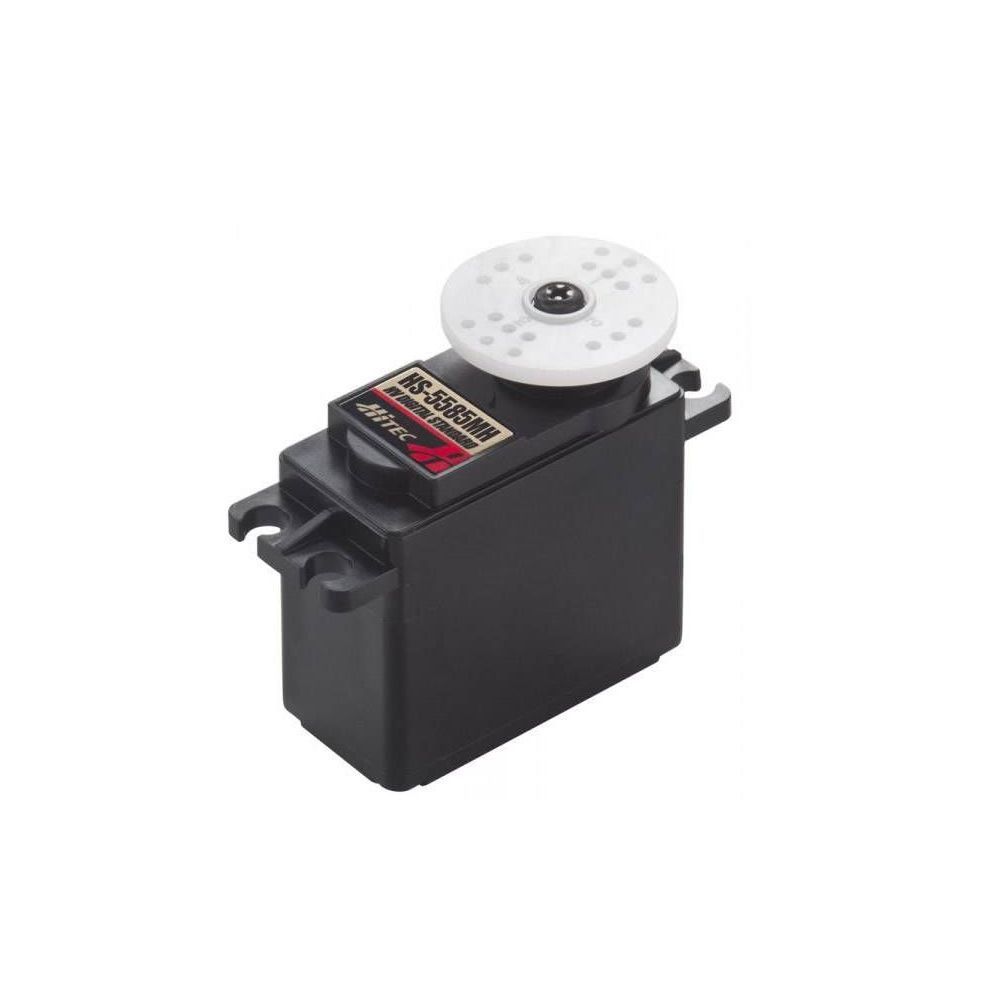

19.8mm, Coreless, High Voltage, Metal Gear Actuator (7.4V)

The affordable HS-5585MH actuator offers coreless performance and the programmable digital convenience you demand. Featuring high speed, dual ball bearings and three metal gears, the HS-5585MH allows you to program parameters such as End Point Adjustments, Direction, Speed and Fail-Safe position. Its standard form factor, PWM protocol, and coreless DC motor make this a reliable and easy to use option for light to moderate duty industrial applications.

Cad File Download

Cad File Download

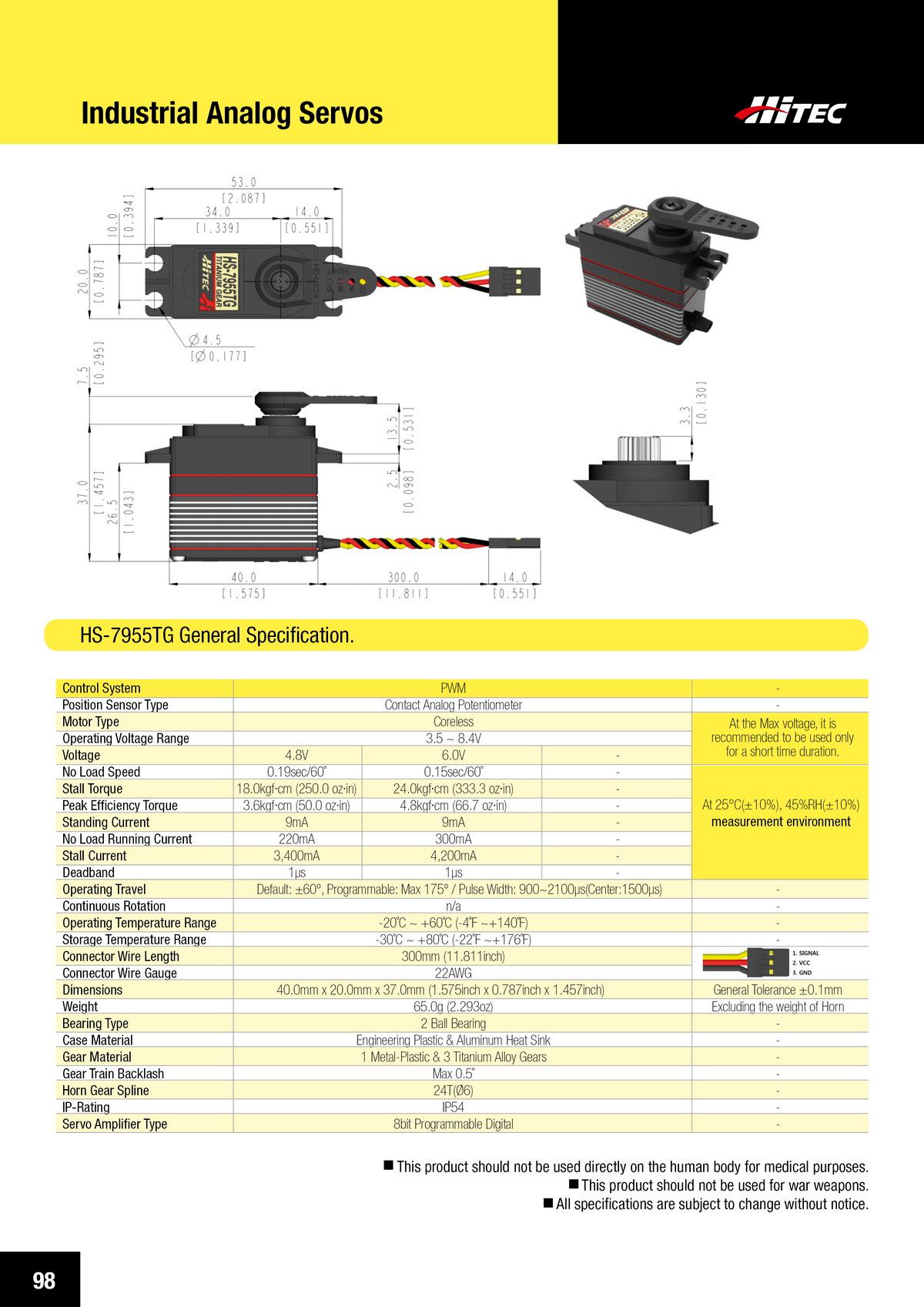

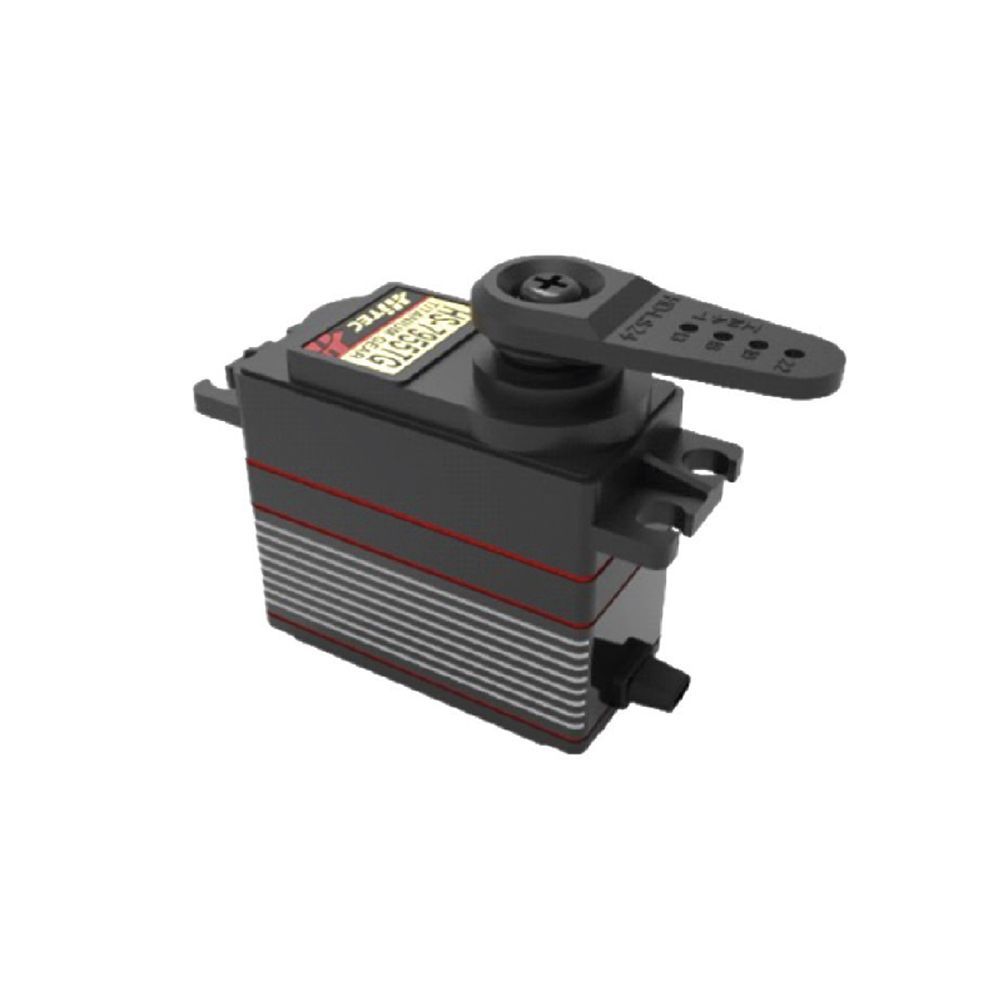

20mm, Coreless, Standard Voltage, High Torque, Titanium Gear Actuator (6V)

Our titanium-geared HS-7955TG industrial actuator is well known as a leader in its class for its high torque, and convenient programming. With dual ball bearings, coreless motor, Digital amp & MOSFET drive and PWM protocol. The HS-7955TG is a reliable and easy to use option for your moderate duty industrial applications.

Cad File Download

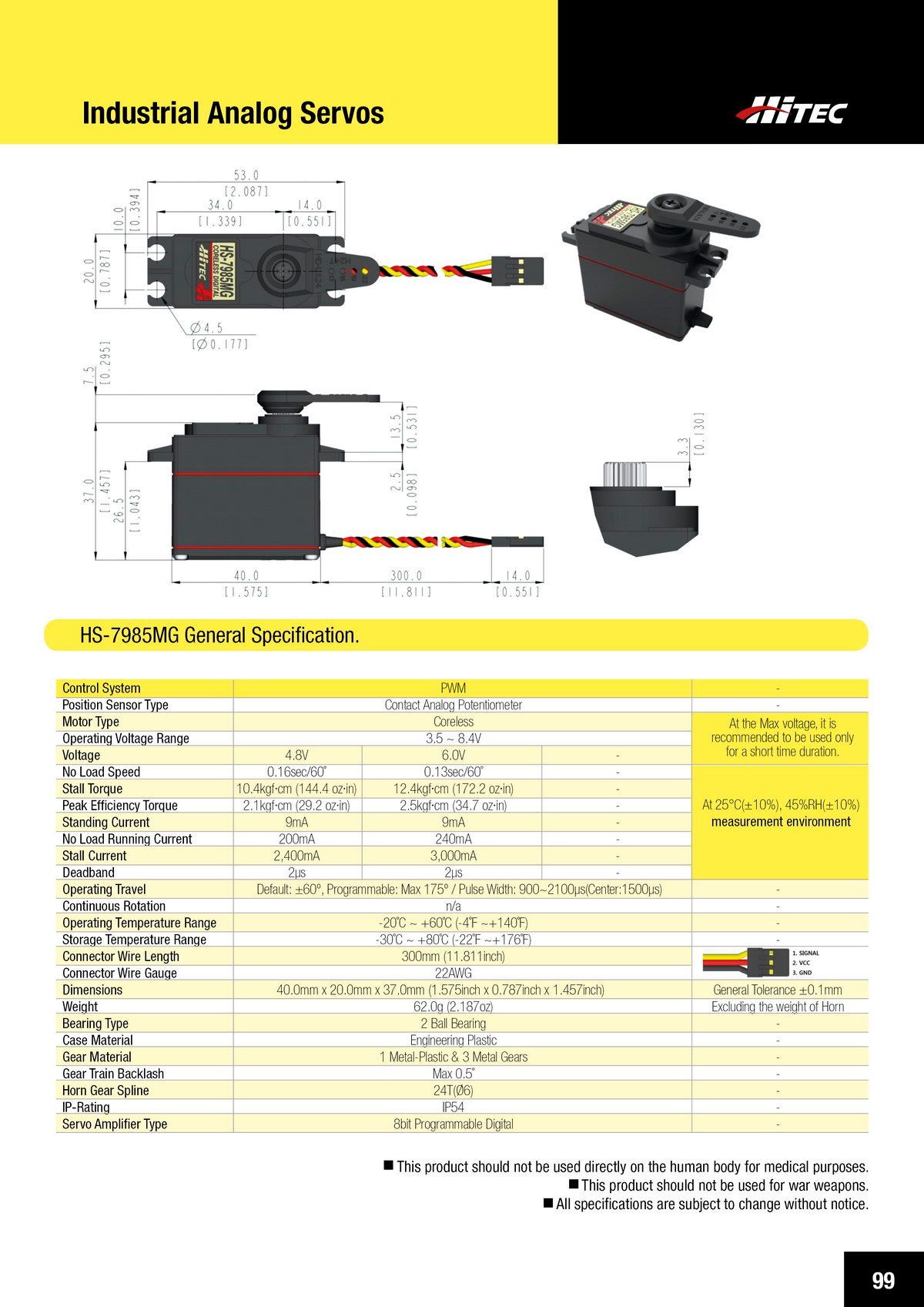

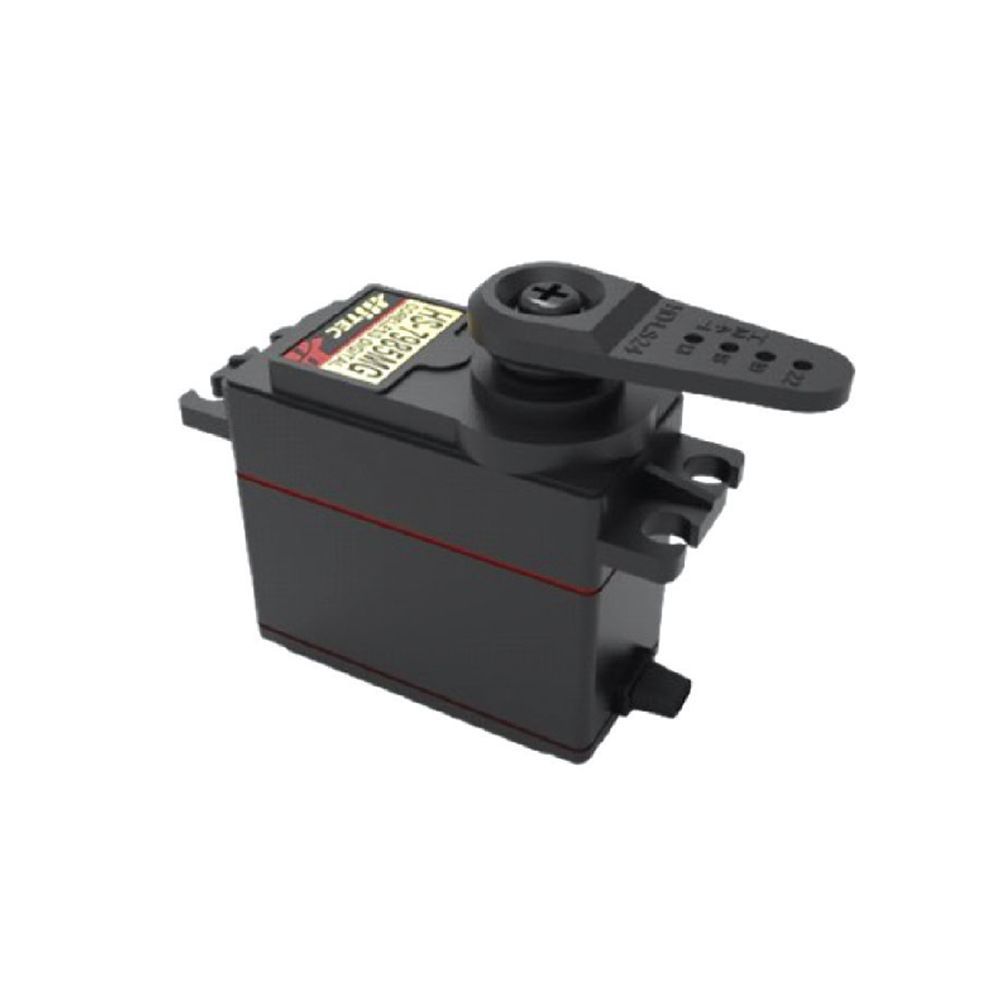

20mm, Coreless, Standard Voltage, High Torque, Metal Gear Actuator (6V)

Our durable metal-geared HS-7985MG industrial actuator is engineered with an efficient coreless motor and programmable digital amplifier with MOSFET drive.  Its high torque and premium-quality construction make it a popular choice for commercial applications requiring solid strength in a standard size servo.

Cad File Download

Cad File Download

Cad File Download

Cad File Download

Cad File Download

Cad File Download

Cad File Download
