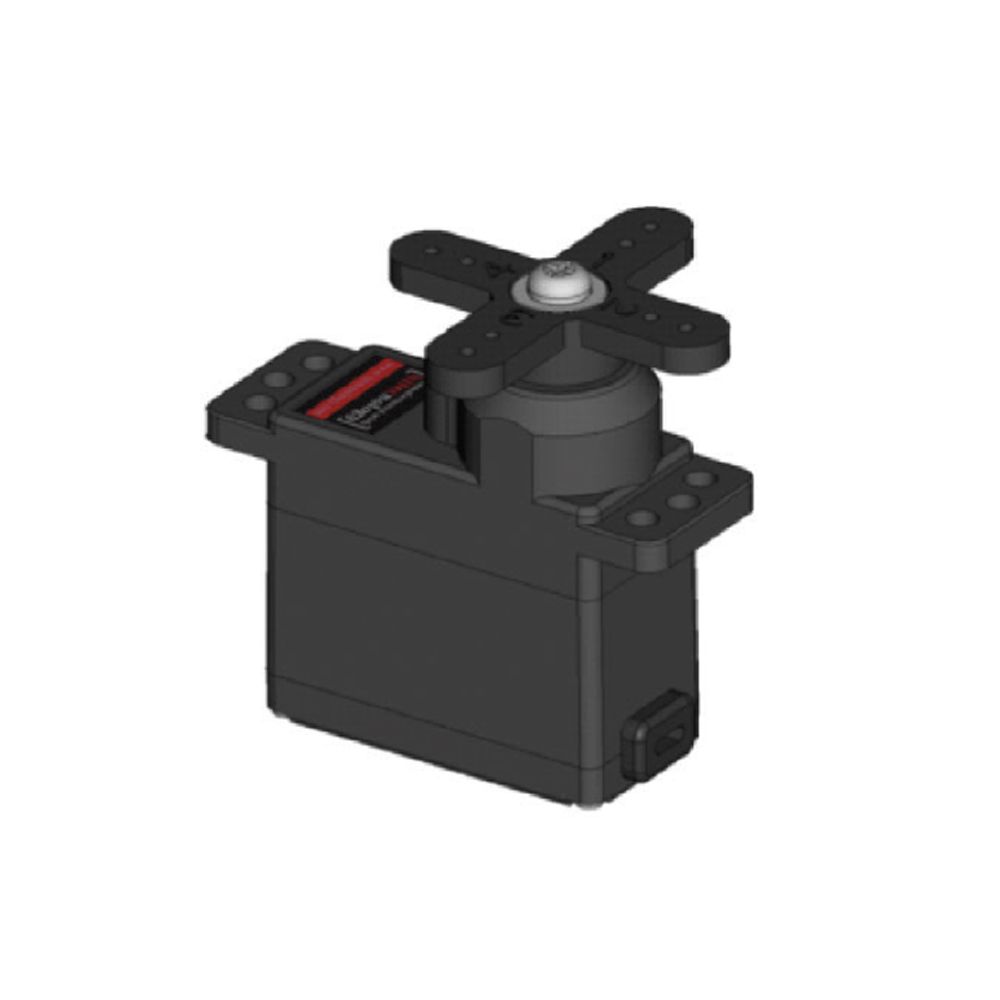

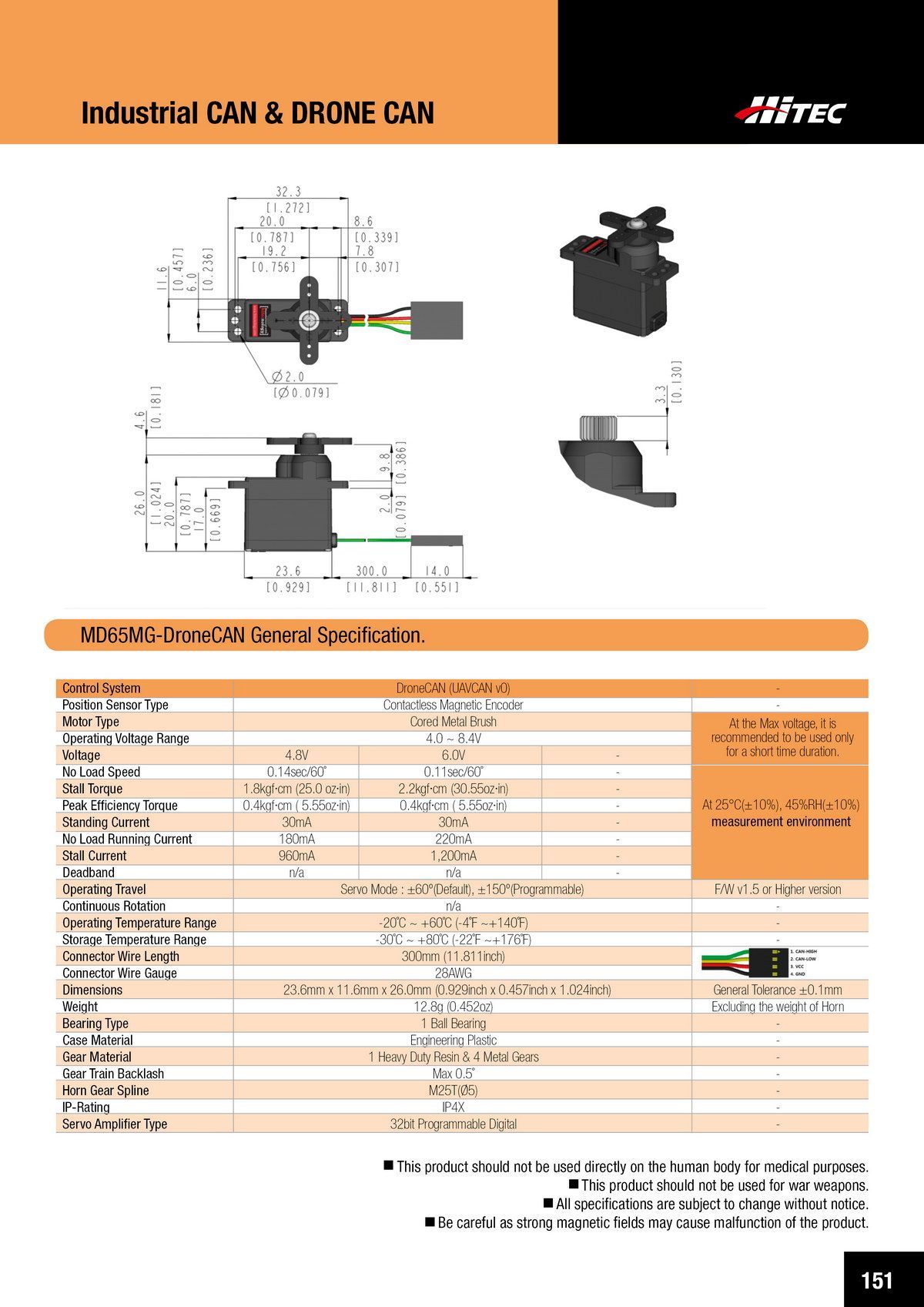

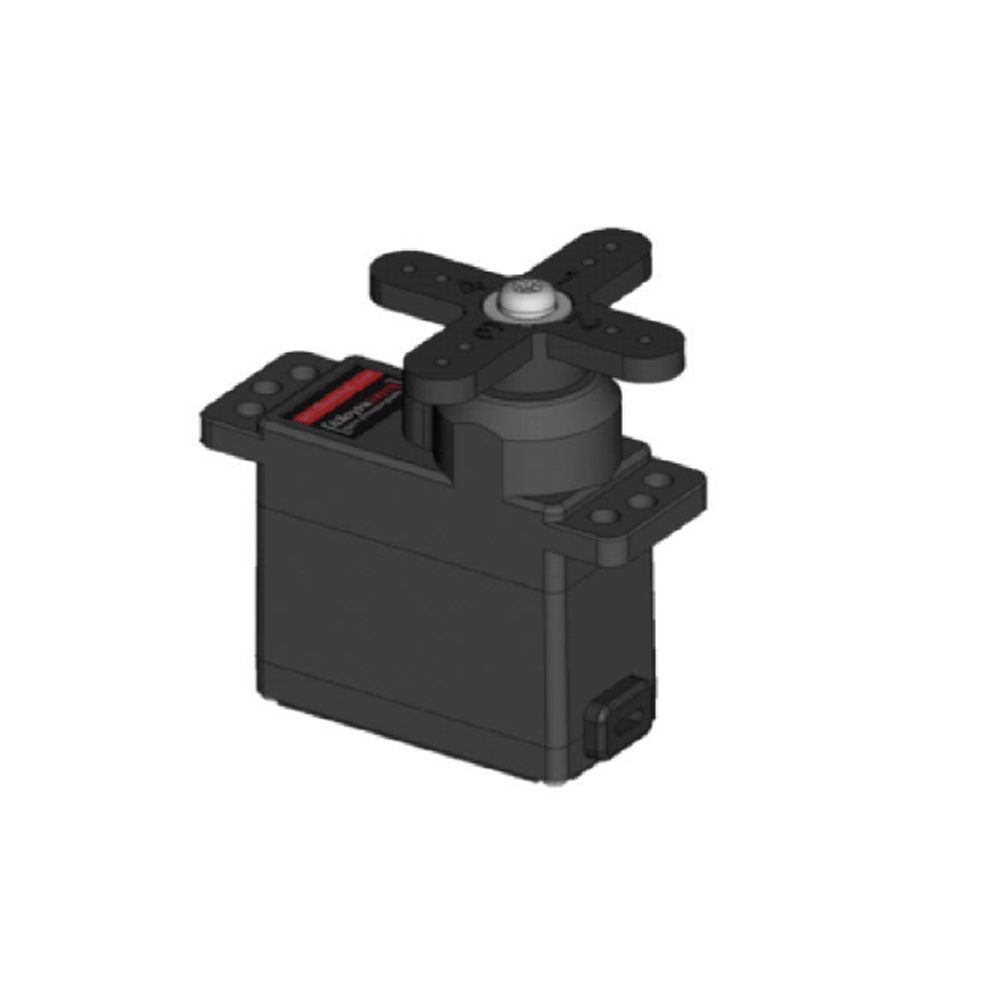

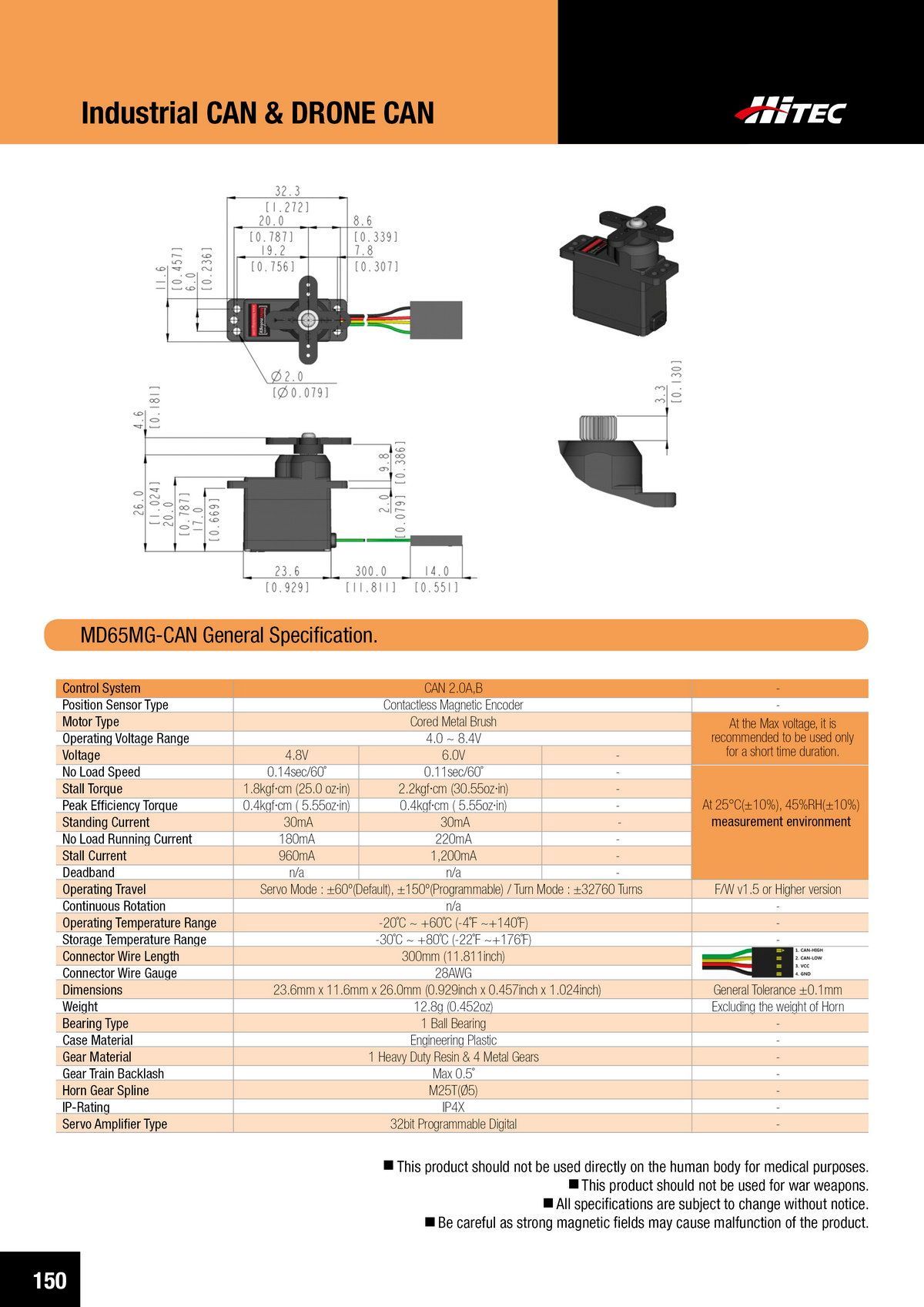

11.6mm, Cored, Standard Voltage, High Speed, Metal Gear Actuator (6V)

The MD65MG-DroneCAN is an 11.6mm, metal gear, 12-gram micro actuator featuring single output ball bearing, cored brushed motor, and contactless encoder. The MD65MG-DroneCAN is often used in micro-sized fixed wing UAV and drone applications where space and weight are of the utmost importance. The MD65MG-DroneCAN utilizes DroneCAN (formerly UAVCAN) control within a standard voltage range from 4.8V to 6 volts.

Cad File Download

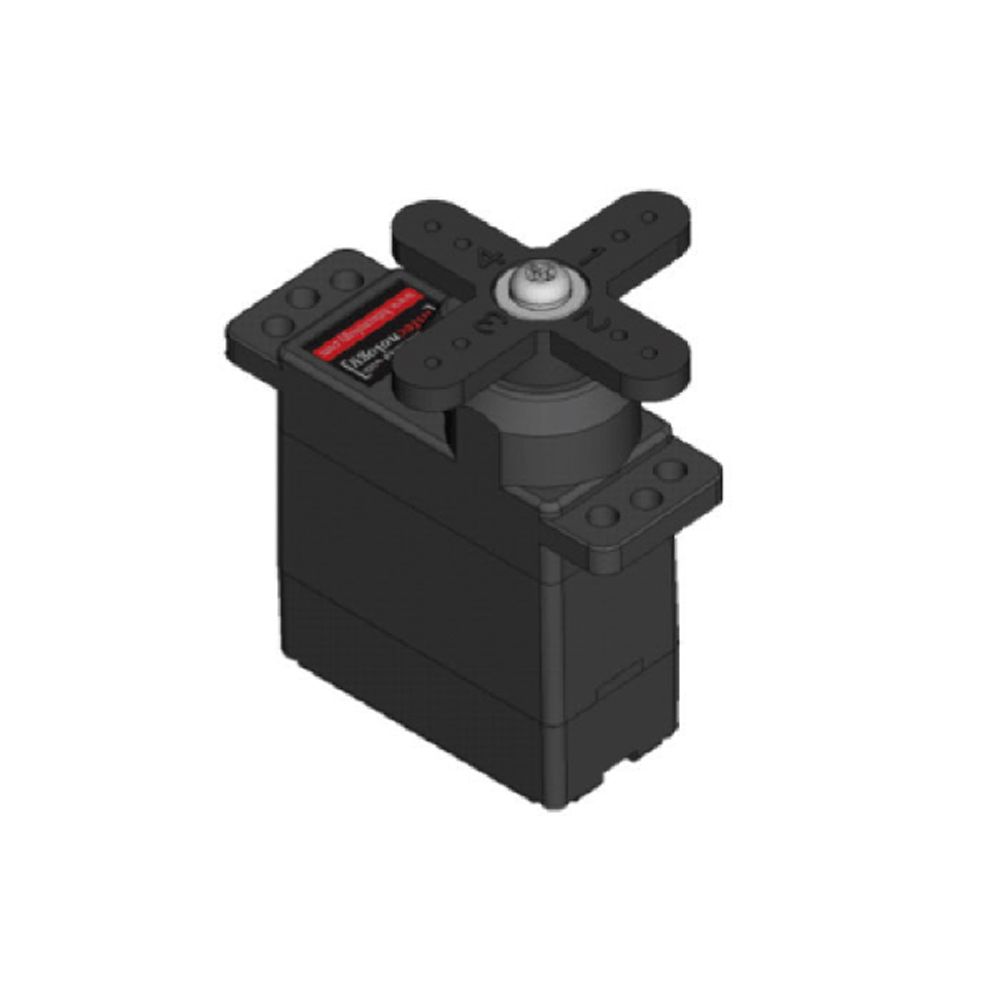

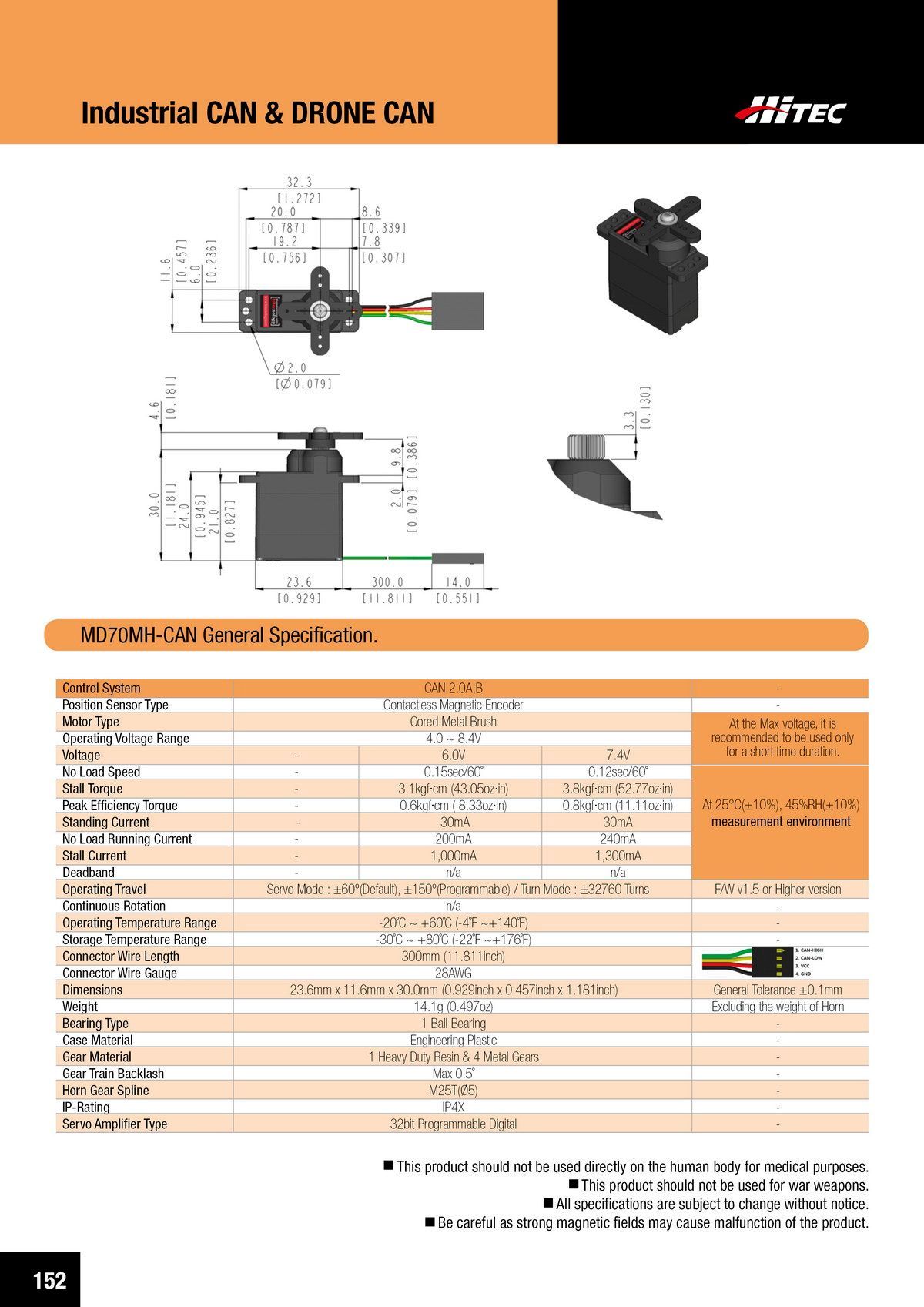

11.6mm, Cored, High Voltage, Metal Gear Actuator (7.4V)

The MD70MH-CAN is an 11.6mm, metal gear, 13-gram micro servo for higher voltage applications. Featuring a single output ball bearing, cored brush motor, and magnetic rotary encoder, the MD70MH-CAN is often used in compact fixed wing UAV and drone applications where space and weight are mission critical concerns. The MD70MH utilizes CAN control protocol at a voltage range from 4.8~7.4 volts.

Cad File Download

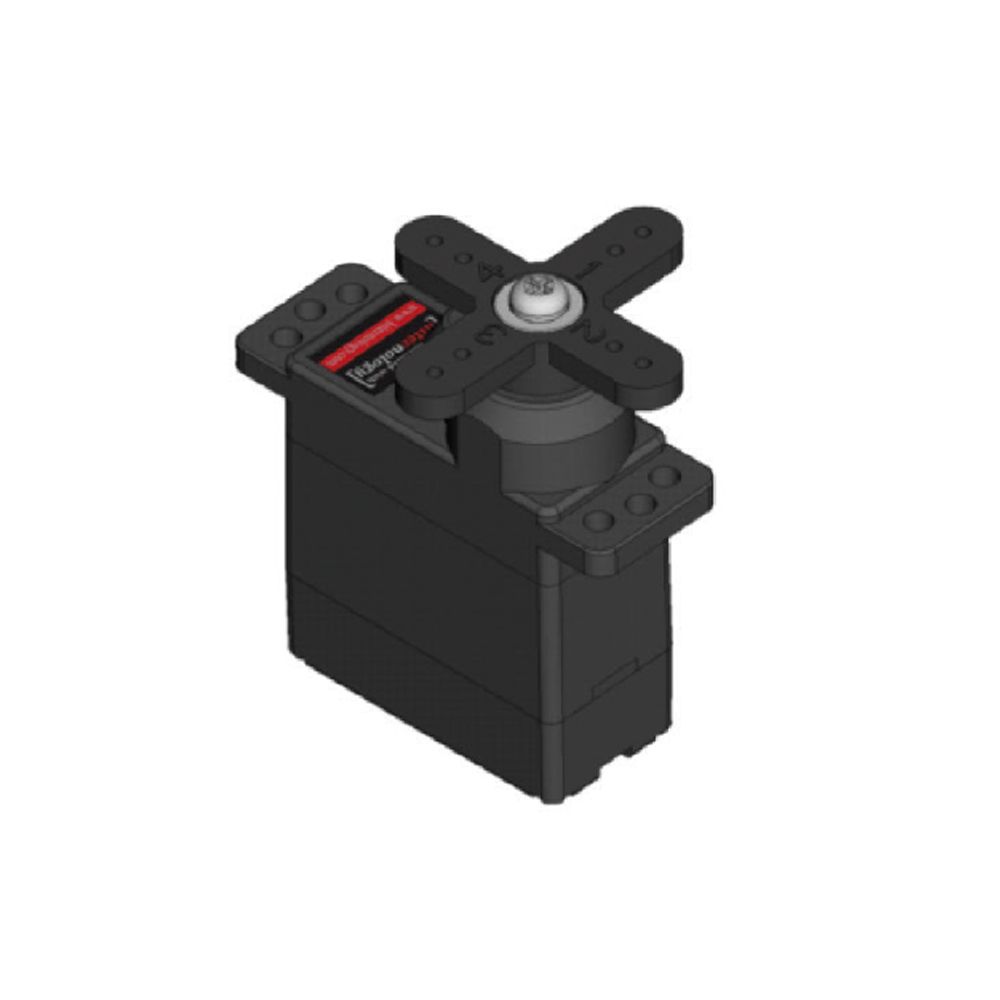

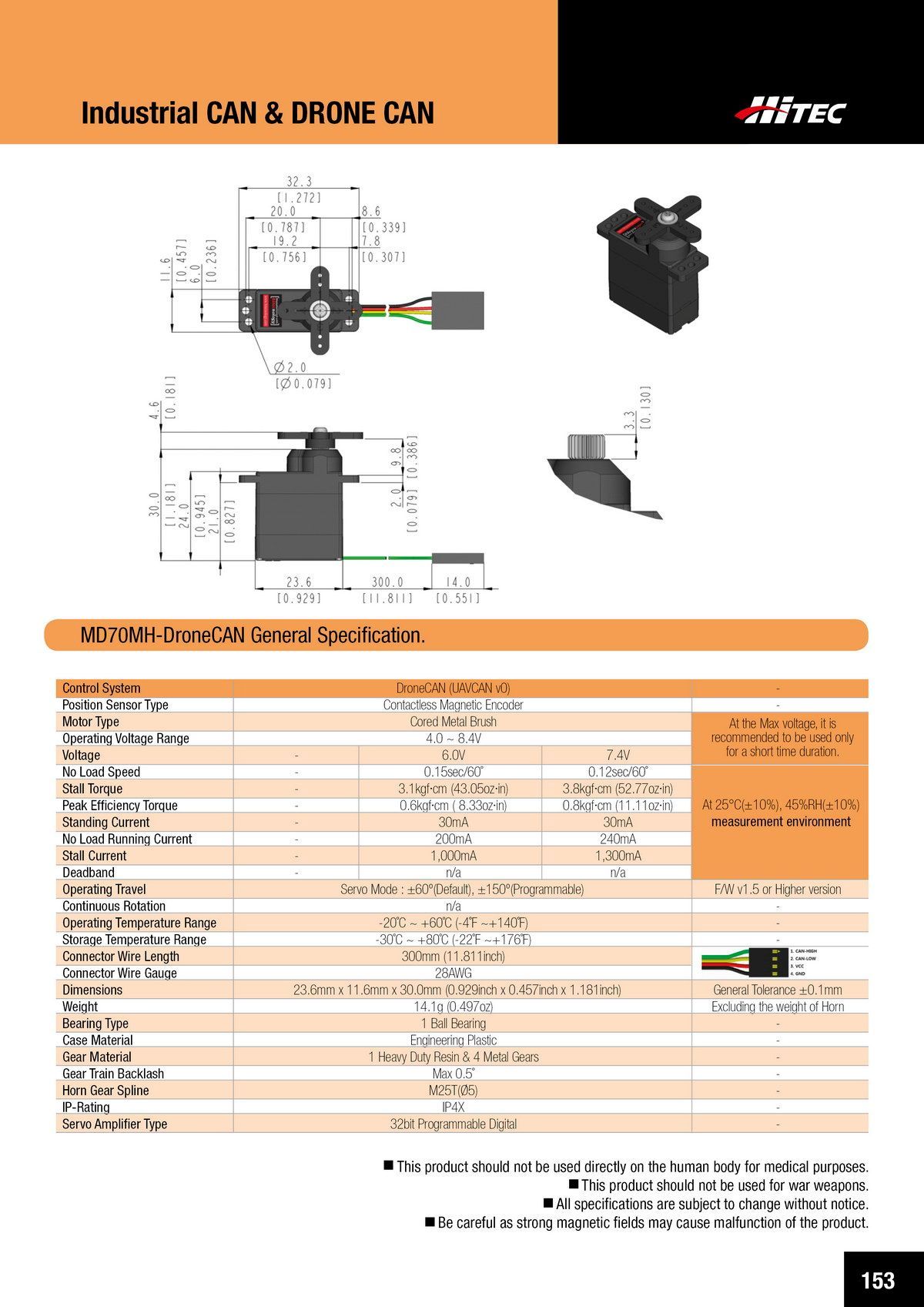

11.6mm, Cored, High Voltage, Metal Gear Actuator (7.4V)

The MD70MH-DroneCAN is an 11.6mm, metal gear, 13-gram micro servo for higher voltage applications. Featuring a single output ball bearing, cored brush motor, and magnetic rotary encoder, the MD70MH-DroneCAN is often used in compact fixed wing UAV and drone applications where space and weight are mission critical concerns. The MD70MH utilizes DroneCAN (formerly UAVCAN) control at a voltage range from 4.8~7.4 volts.

Cad File Download

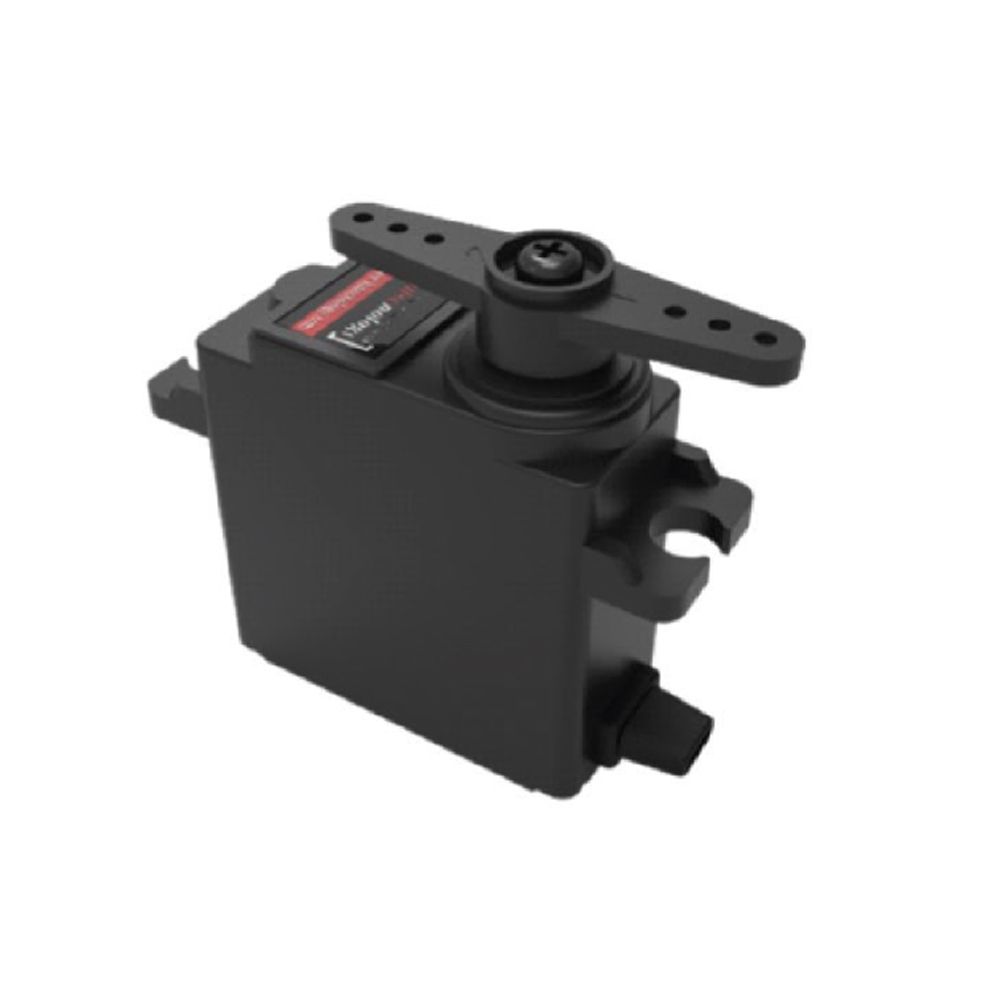

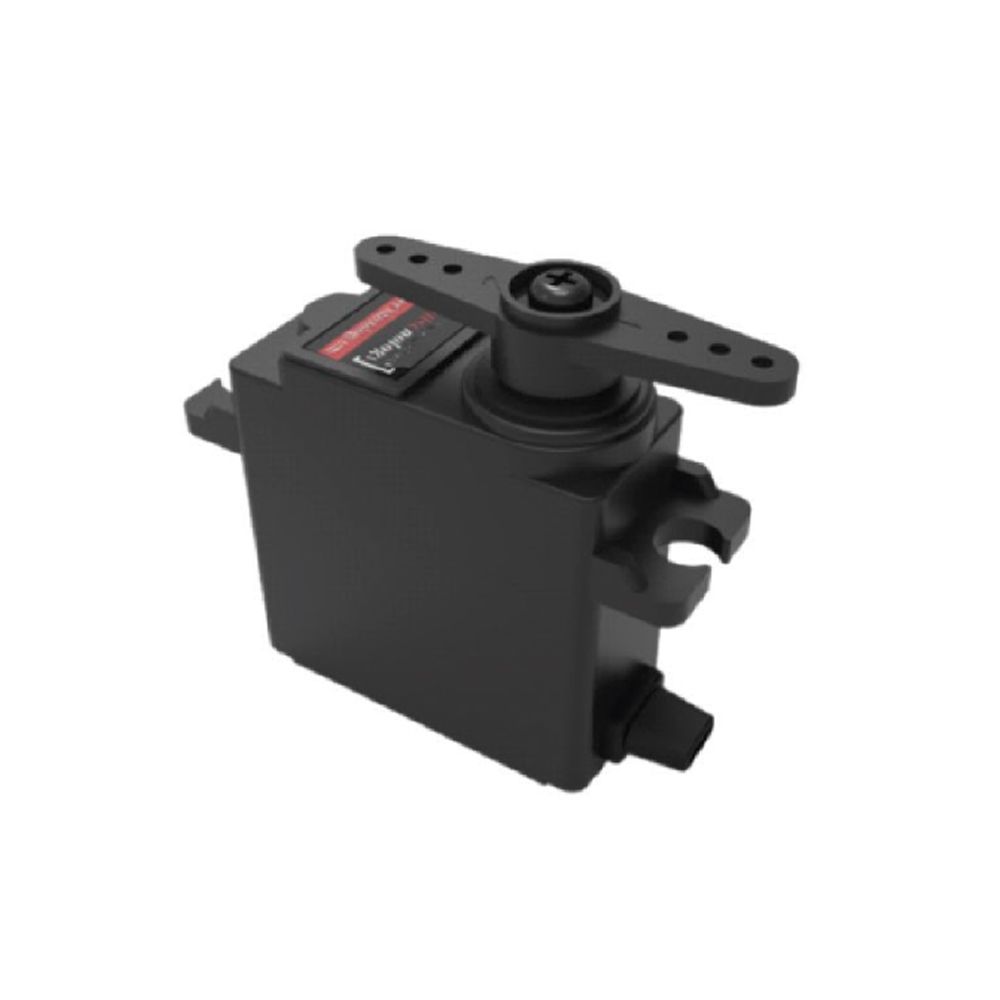

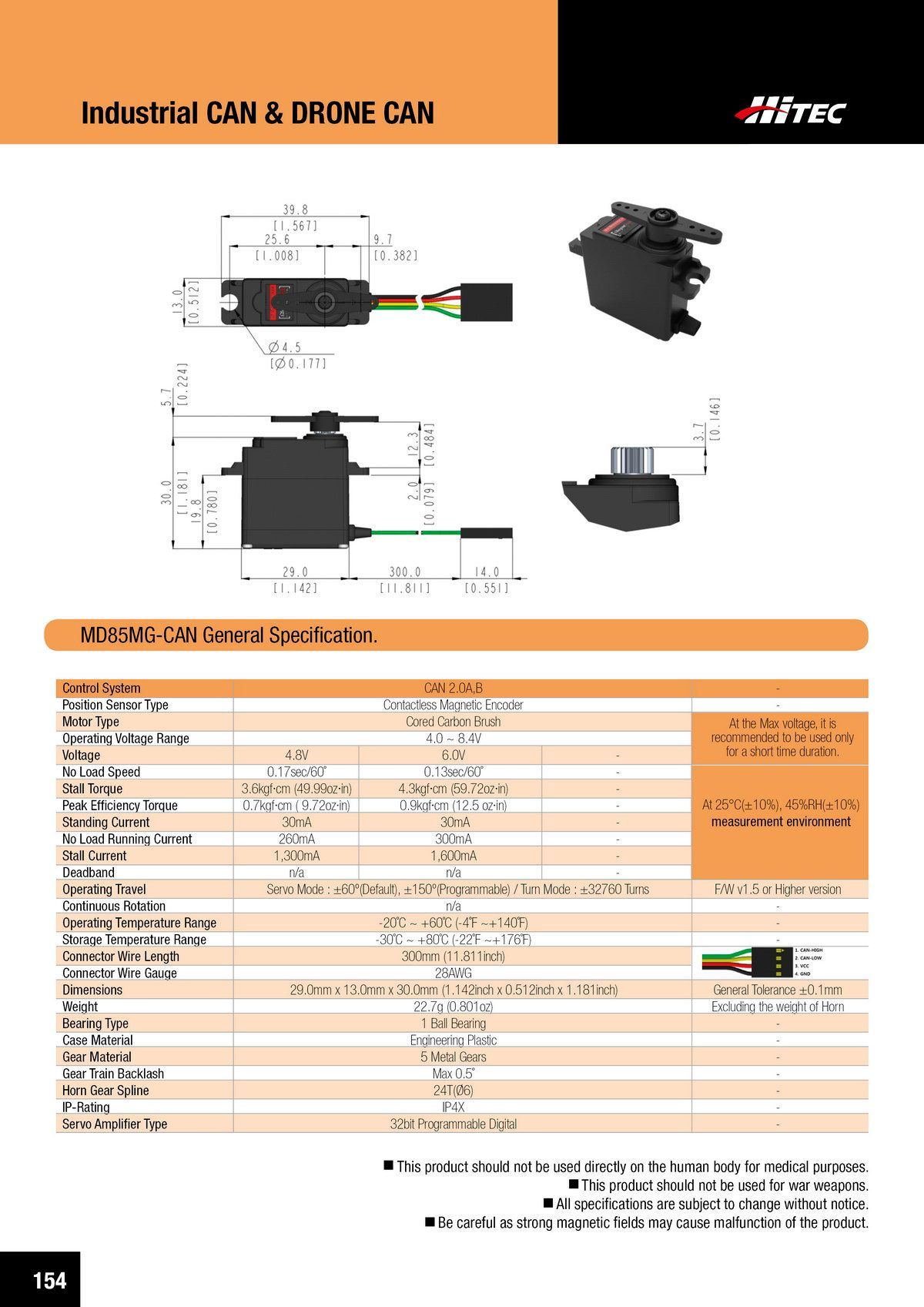

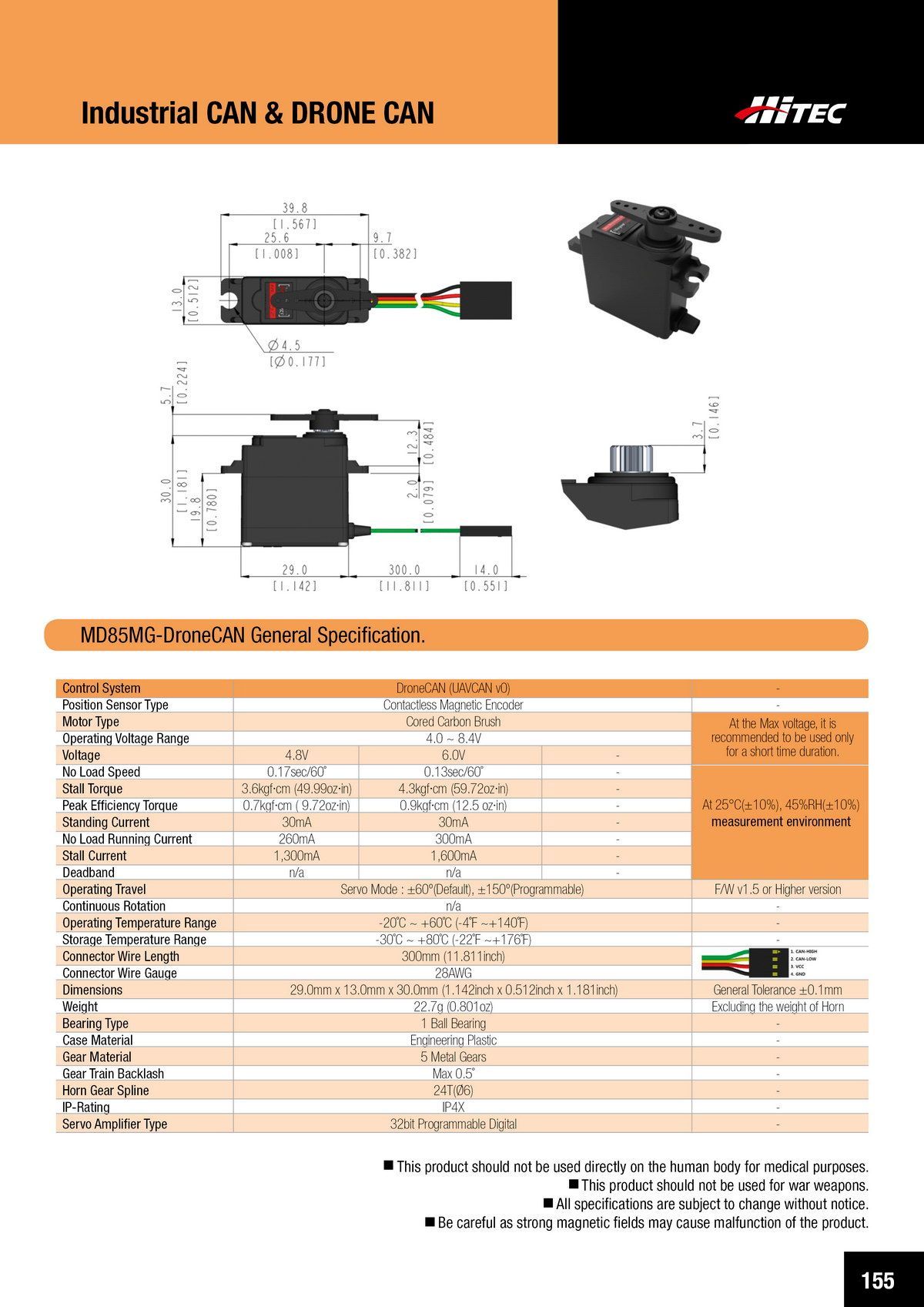

13mm, Cored, Standard Voltage, Metal Gear Actuator (6V)

The MD85MW is a 13mm, metal gear, sub 1 oz micro servo with a single output ball bearing, brushed motor, and magnetic rotary encoder. Generally used in compact unmanned aerial vehicles where space and weight are at a premium, the MD85MW is also right at home in smaller robotic applications. The MD85MW utilizes DroneCAN (formerly UAVCAN) control at a voltage range from 4.8~6 volts.

Cad File Download

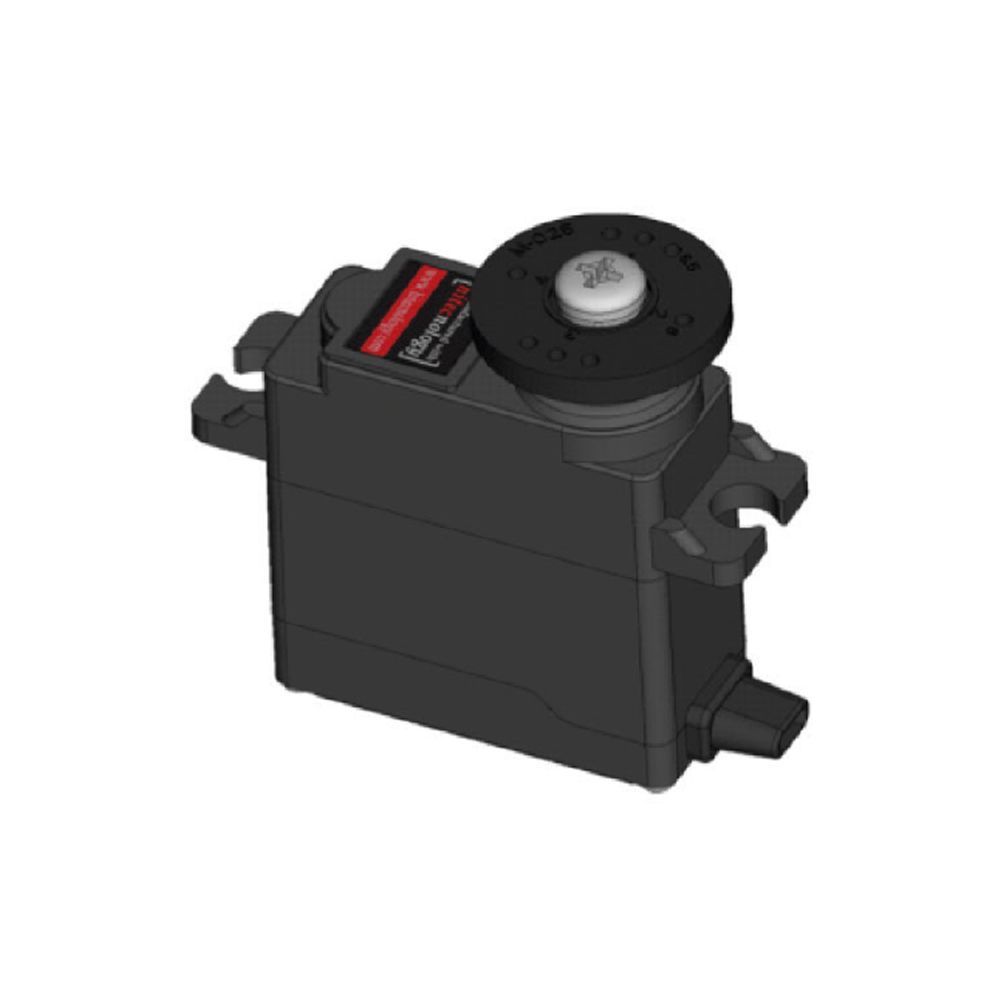

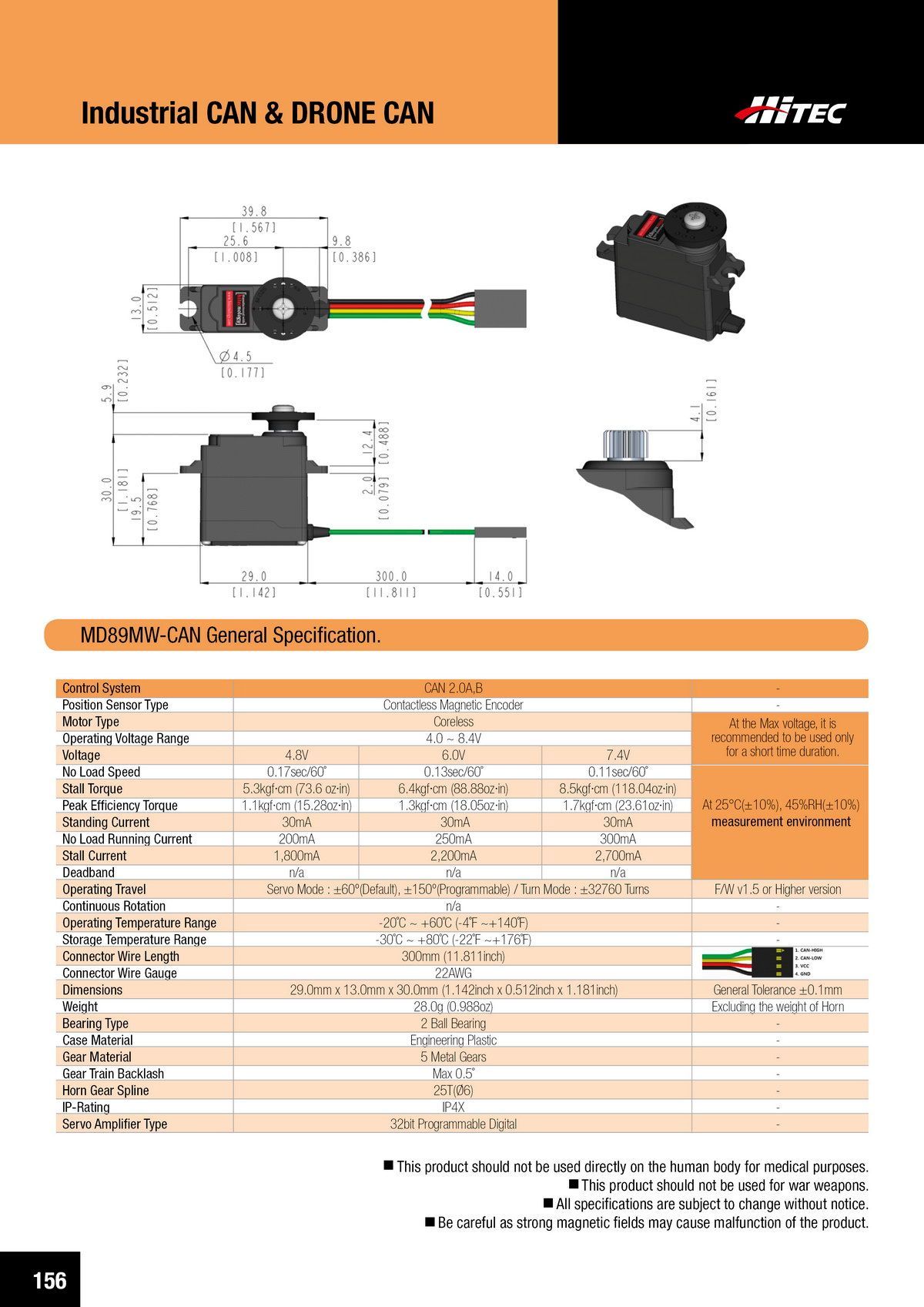

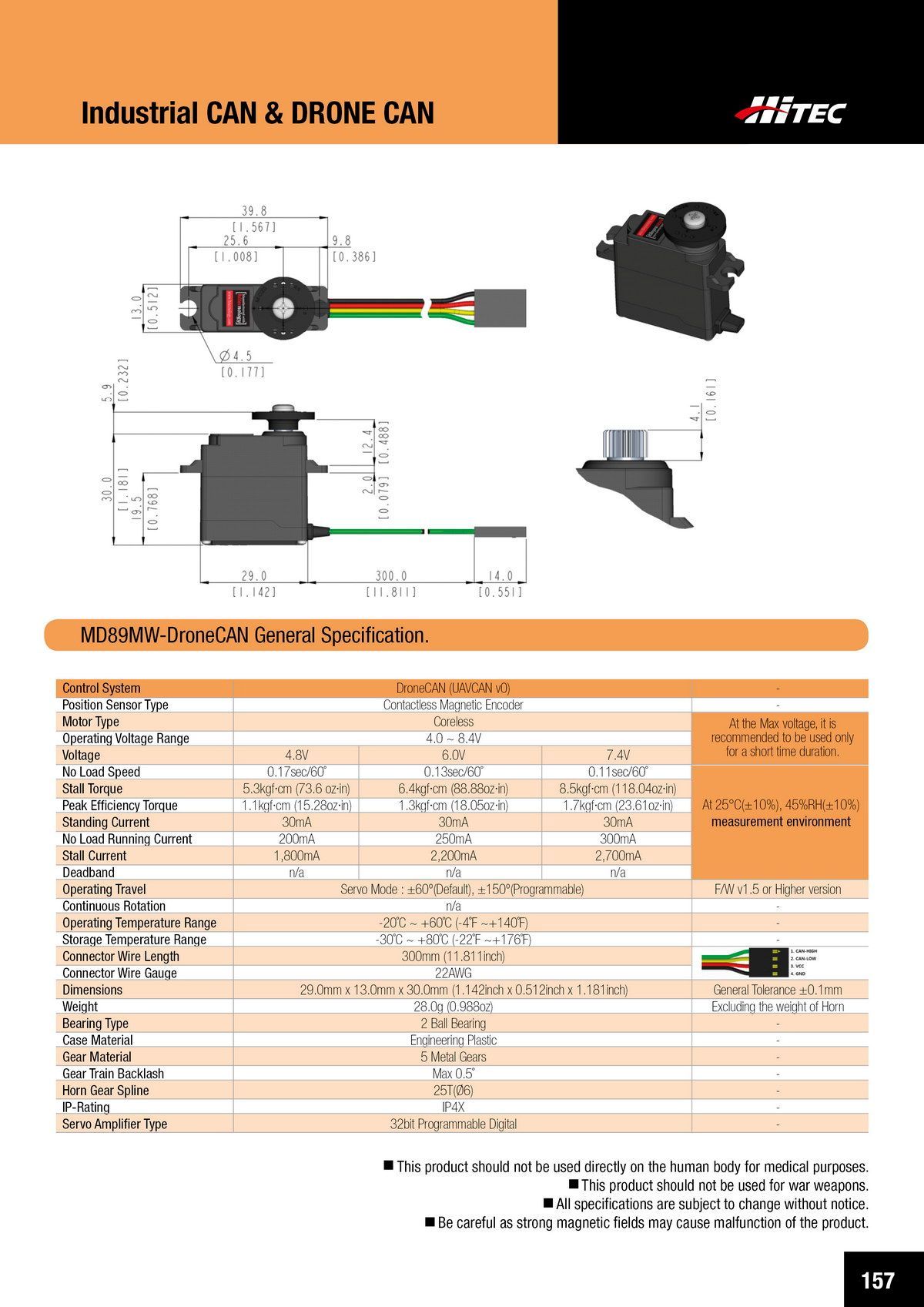

13mm, Coreless, Wide Voltage, High Torque, Metal Gear Actuator (7.4V)

The compact MD89MW-DroneCAN is a 13mm, metal gear, sub 1 oz micro servo with dual ball bearings, coreless metal brushed motor, and contactless magnetic encoder. This discrete package offers high performance and reliability for robotic and remote, unmanned aerial applications where space and weight is at a premium. Operating via CAN command protocol at a wide voltage range from 4.8~7.4 volts, the unique MD89MW actuator produces impressive performance, with ultra torque and speed numbers equal to servos weighing twice as much from just a few years ago.

Cad File Download

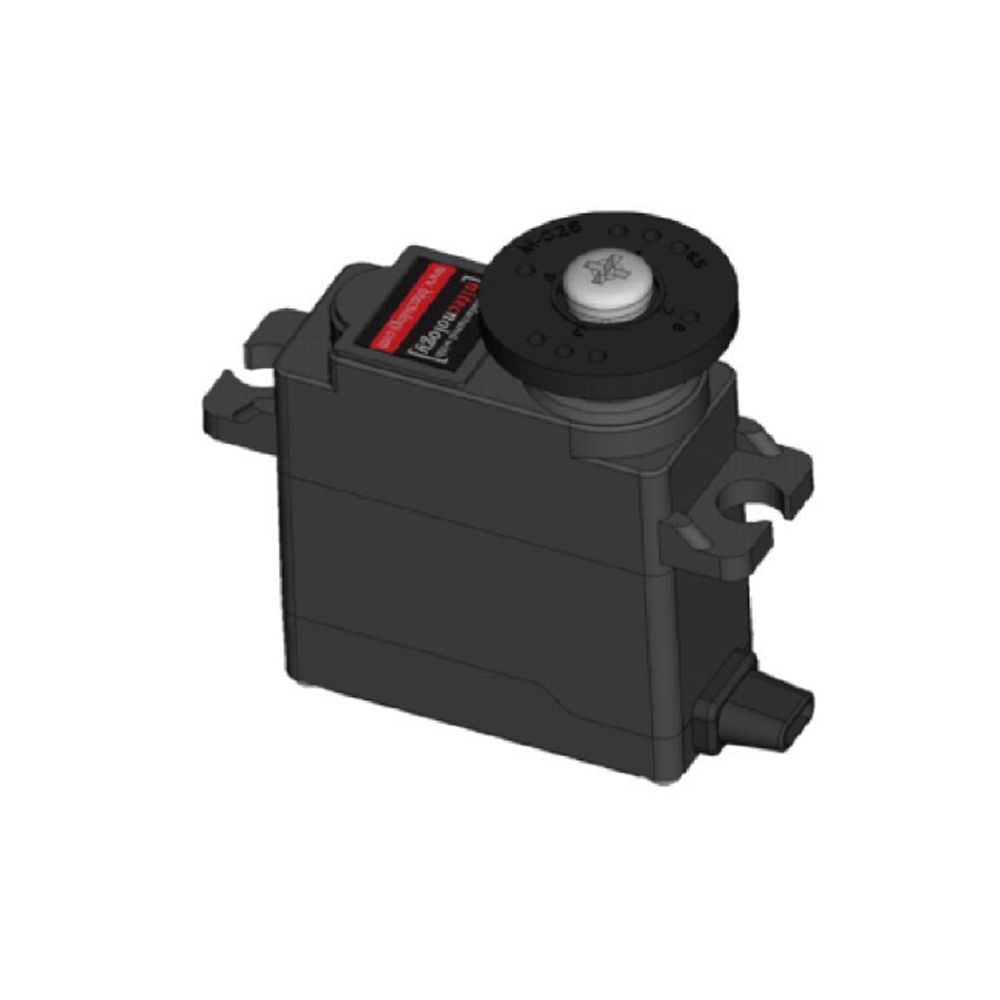

13mm, Coreless, Wide Voltage, Metal Gear Actuator (7.4V)

The compact MD89MW-DroneCAN is a 13mm, metal gear, sub 1 oz micro servo with dual ball bearings, coreless metal brushed motor, and contactless magnetic encoder. This discrete package offers high performance and reliability for robotic and remote, unmanned aerial applications where space and weight are at a premium. Operating via DroneCAN (formerly UAVCAN) control at a wide voltage range from 4.8~7.4 volts, the unique MD89MW actuator produces impressive performance, with torque and speed numbers equal to servos weighing twice as much from just a few years ago.

Cad File Download

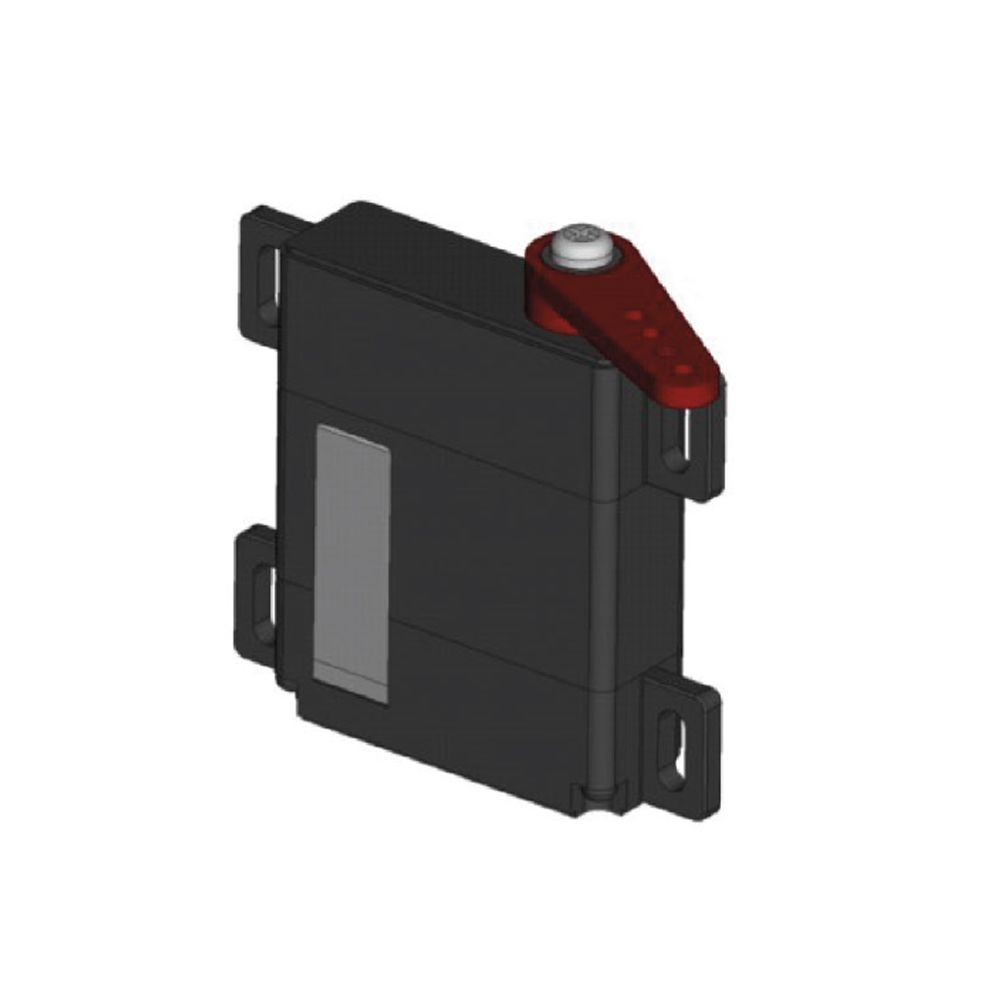

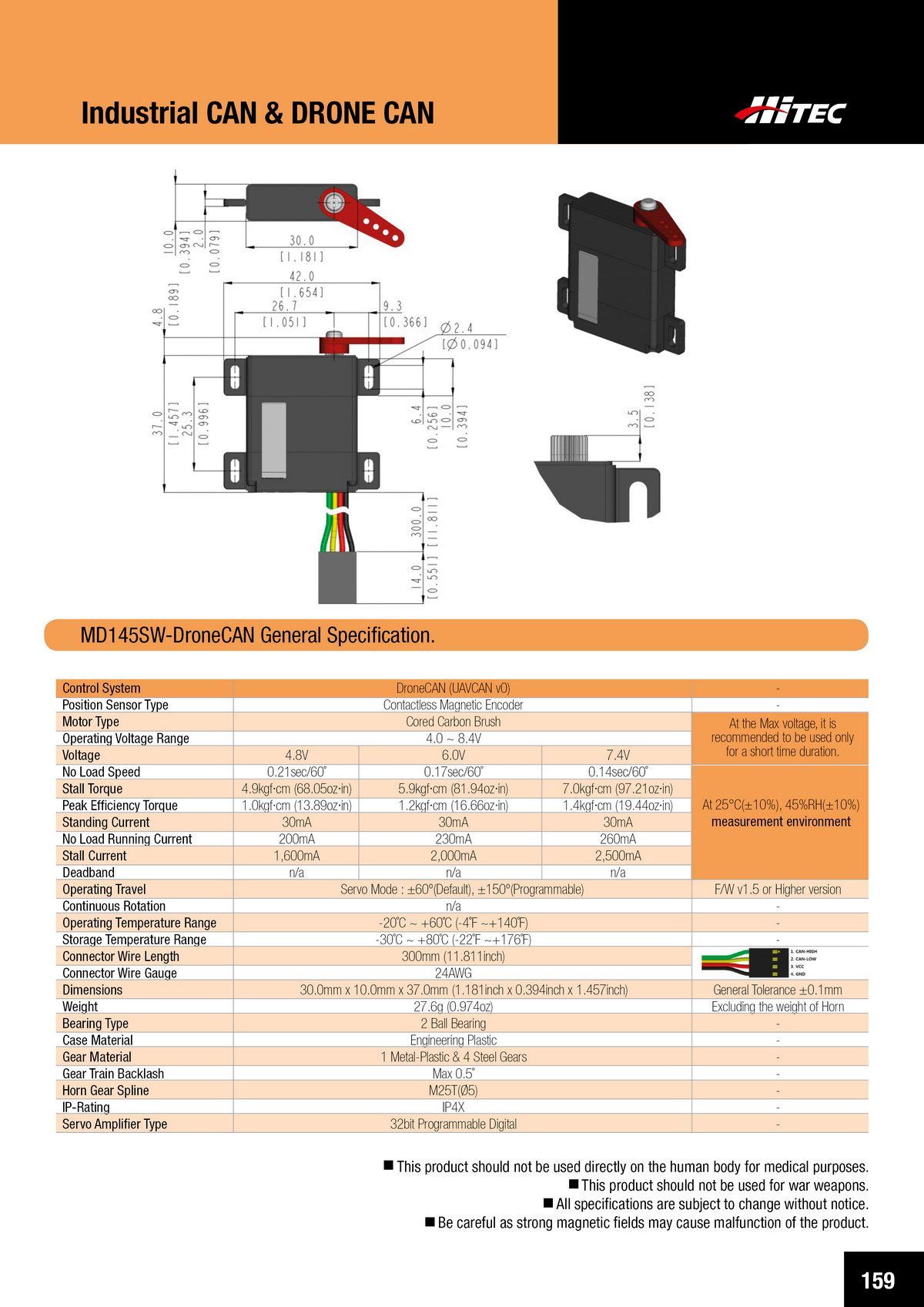

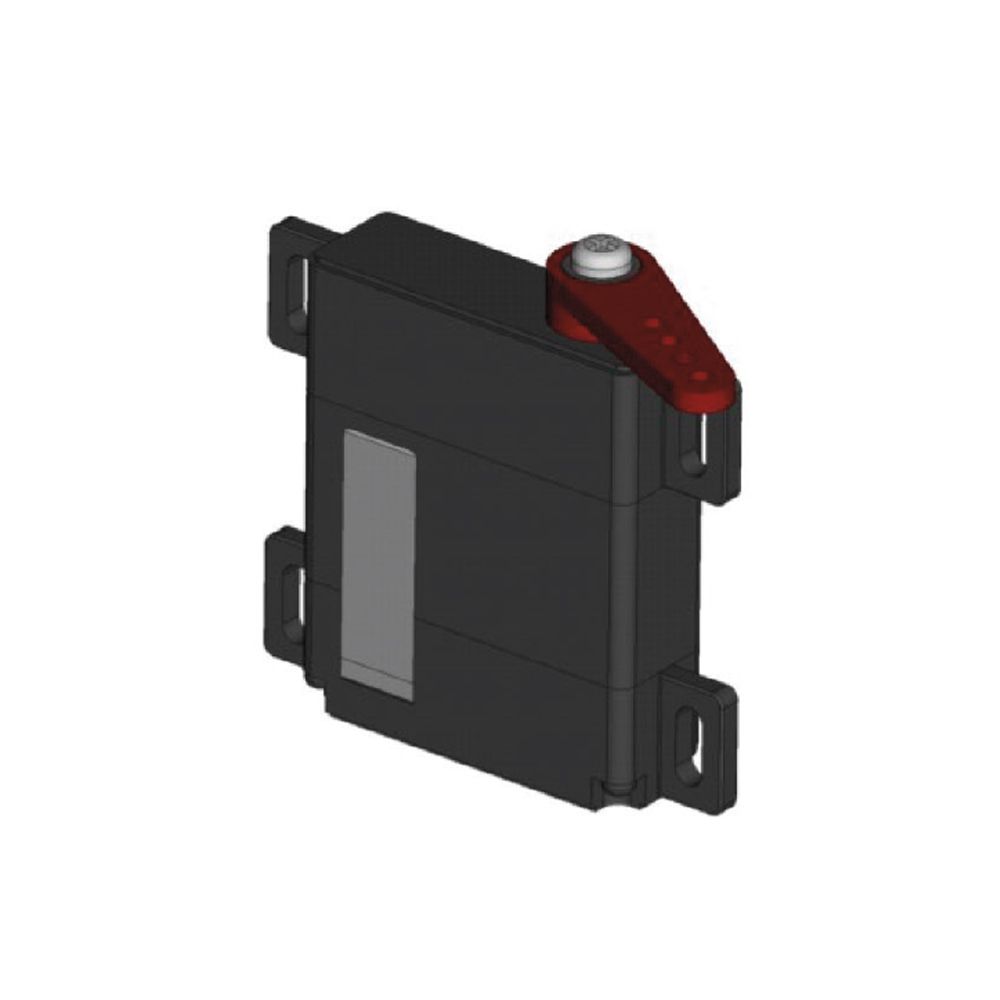

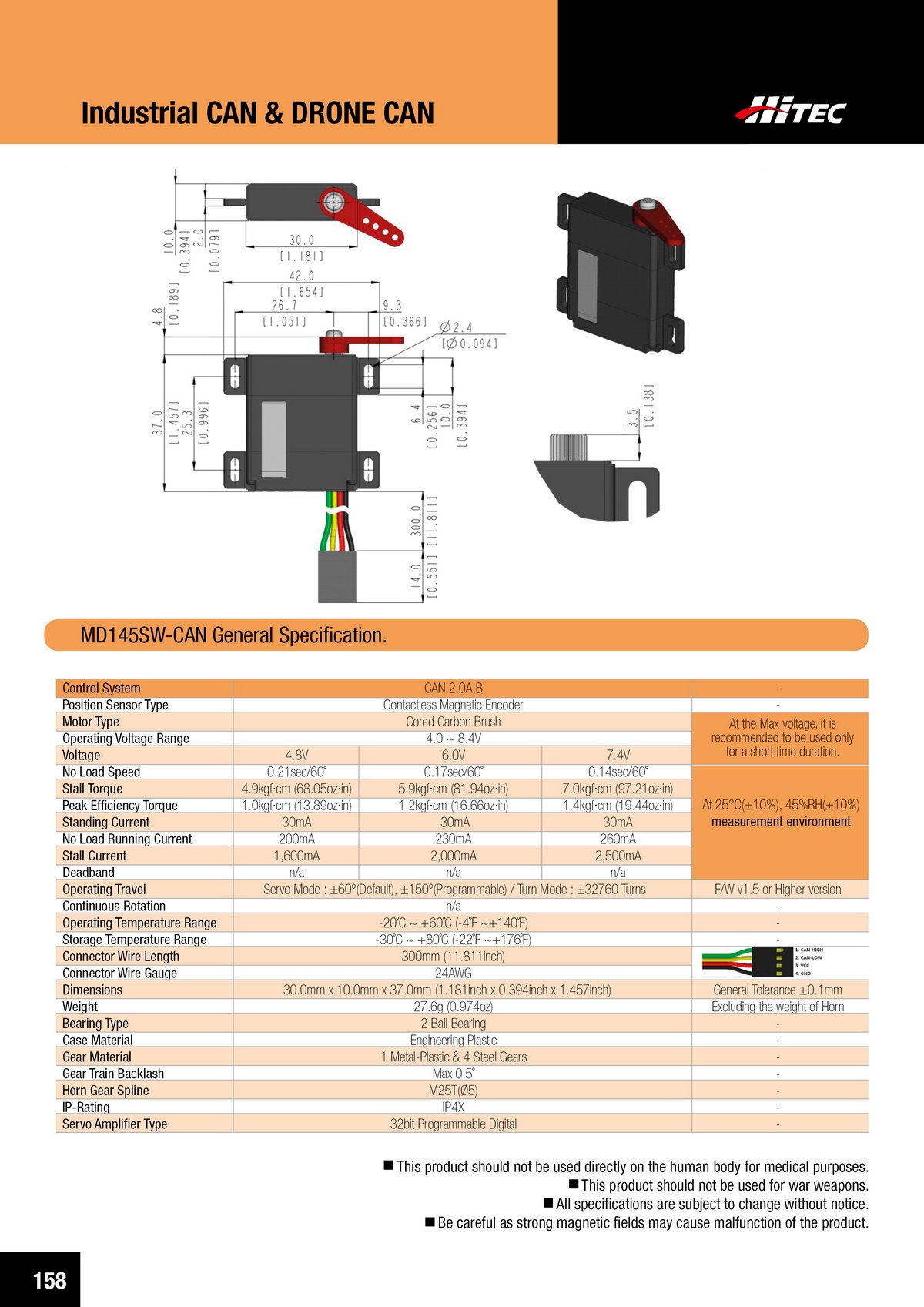

10mm, Cored, Wide Voltage, High Torque, Metal Gear Actuator (7.4V)

The low profile MD145MW-DroneCAN is a 10mm, metal gear, sub 1 oz servo with dual ball bearings, cored motor, and contactless magnetic encoder. This discrete package offers high performance and reliability for robotic and remote, unmanned aerial applications where space is at a premium. Operating via DroneCAN (formerly UAVCAN) control at a wide voltage range from 4.8~7.4 volts, the unique MD145MW-DroneCAN servo produces impressive torque and speeds in its class.

Cad File Download

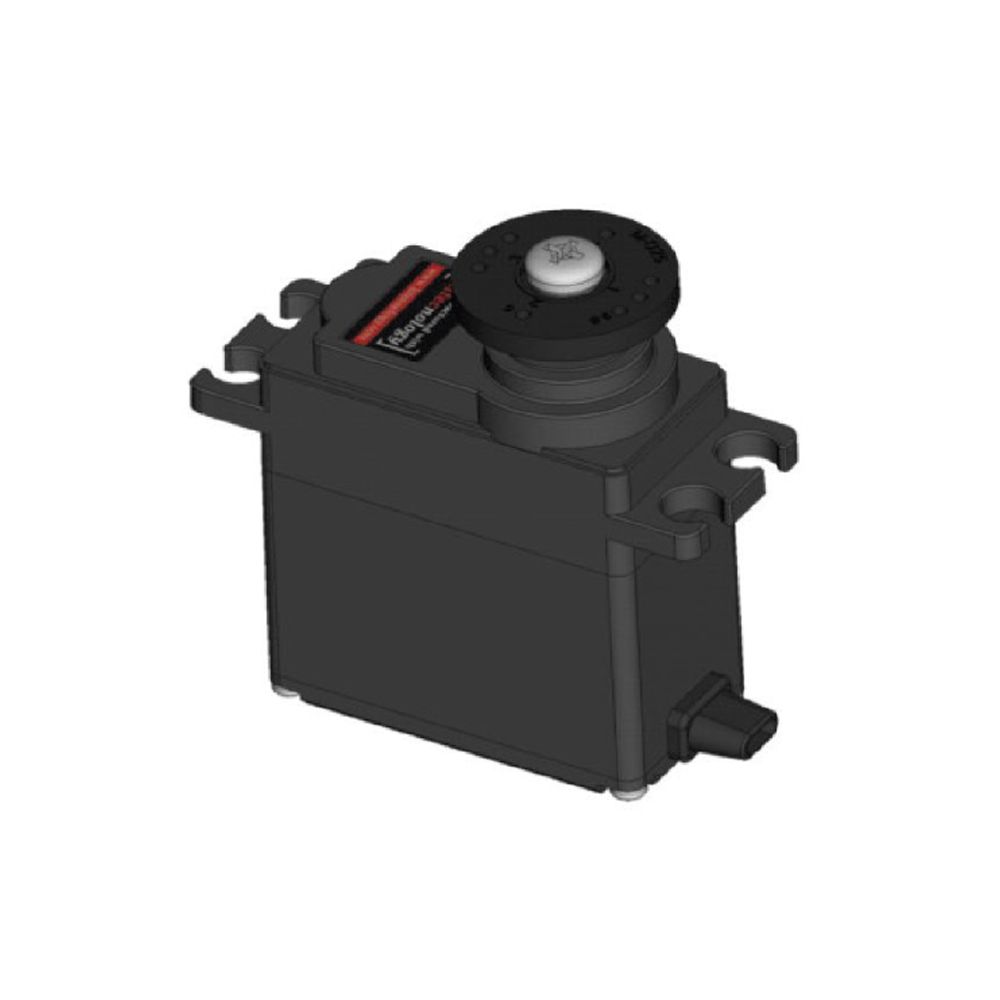

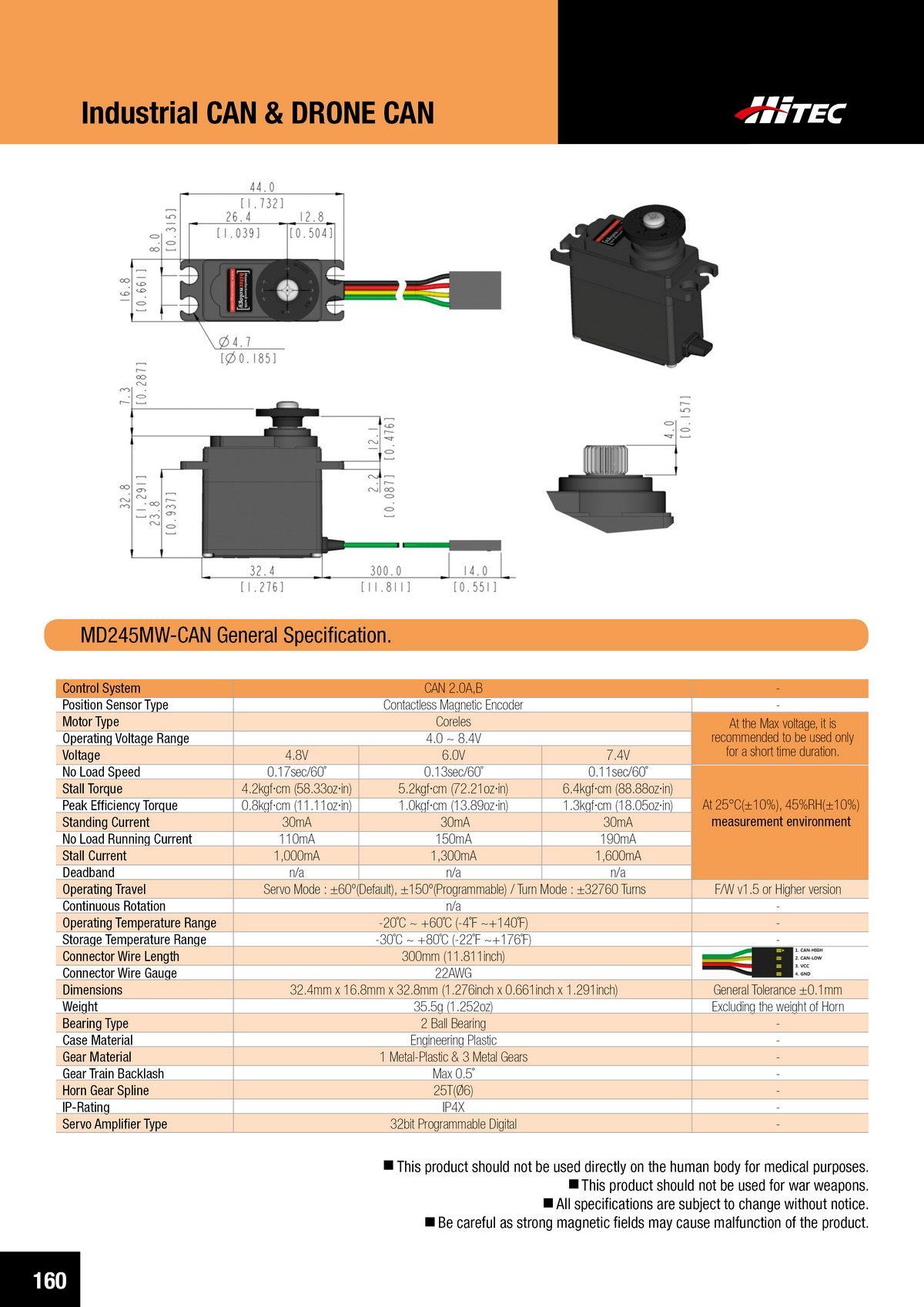

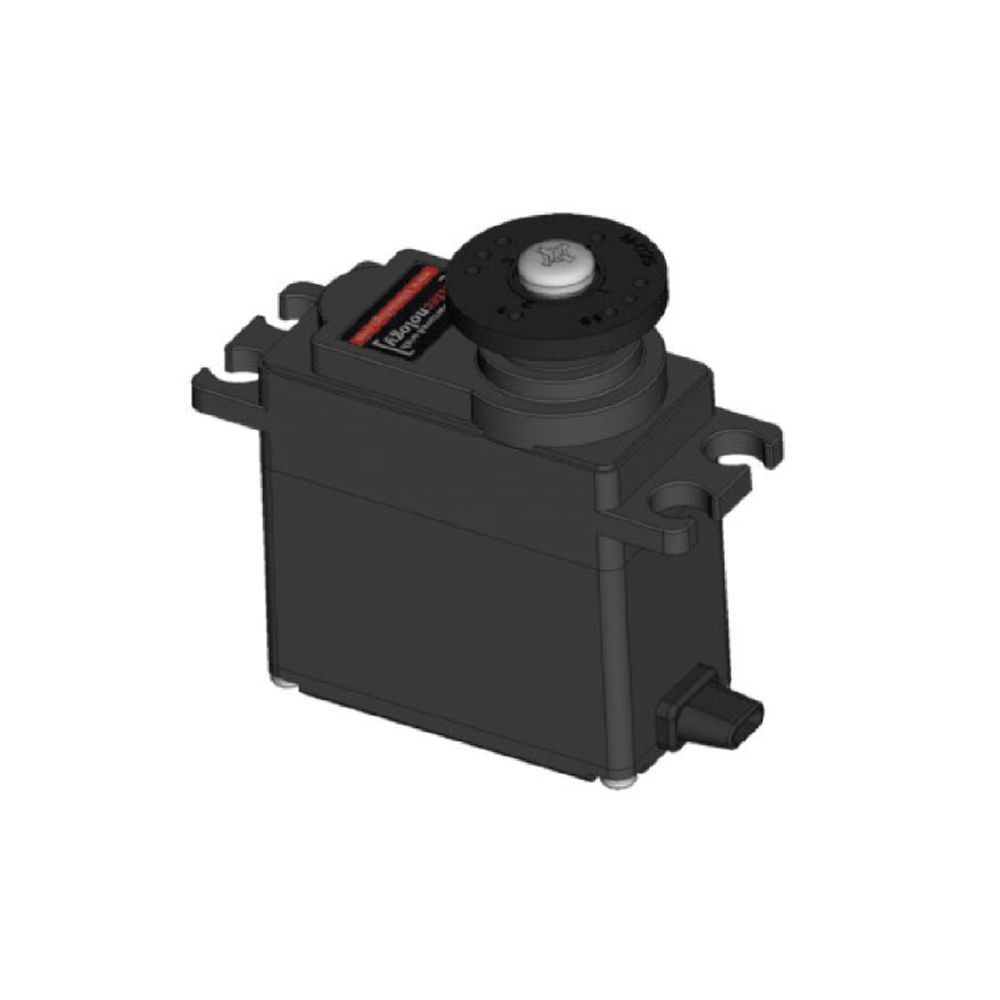

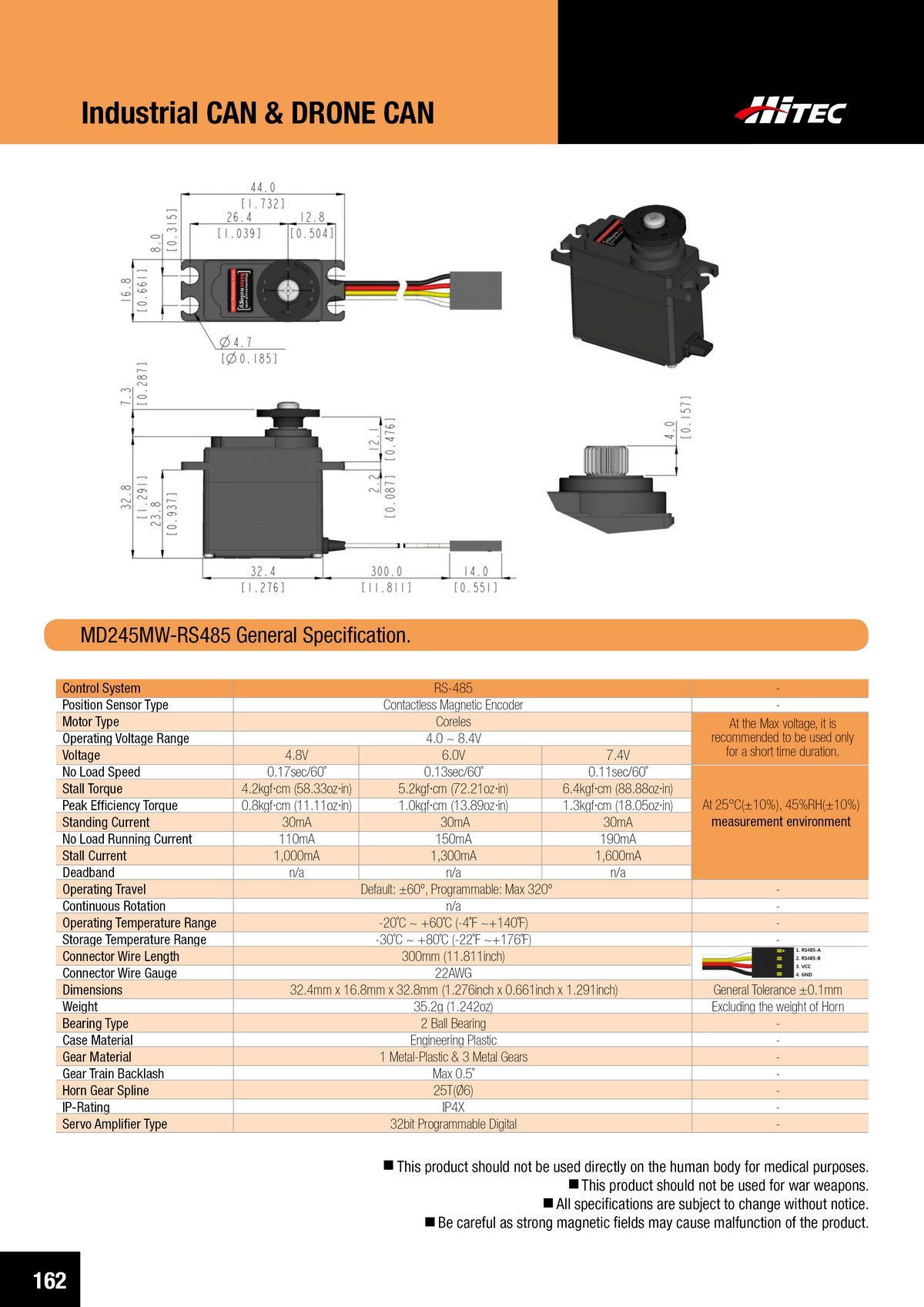

16.8mm, Coreless, Wide Voltage, Metal Gear, Mini Actuator

The MD245MW is a 16.8mm, metal gear, mini servo with dual ball bearings and efficient coreless motor. Engineered with a programmable digital amplifier and contactless magnetic encoder to deliver high performance and reliability in a wide variety of robotic and remote, unmanned aerial applications. Operating via CAN command protocol at a wide voltage range from 4.8~7.4 volts, this mighty mini actuator produces impressive torque and speeds in its class. The MD245MW servo is ideal for a variety of applications requiring an efficient balance of performance and cost.

Cad File Download

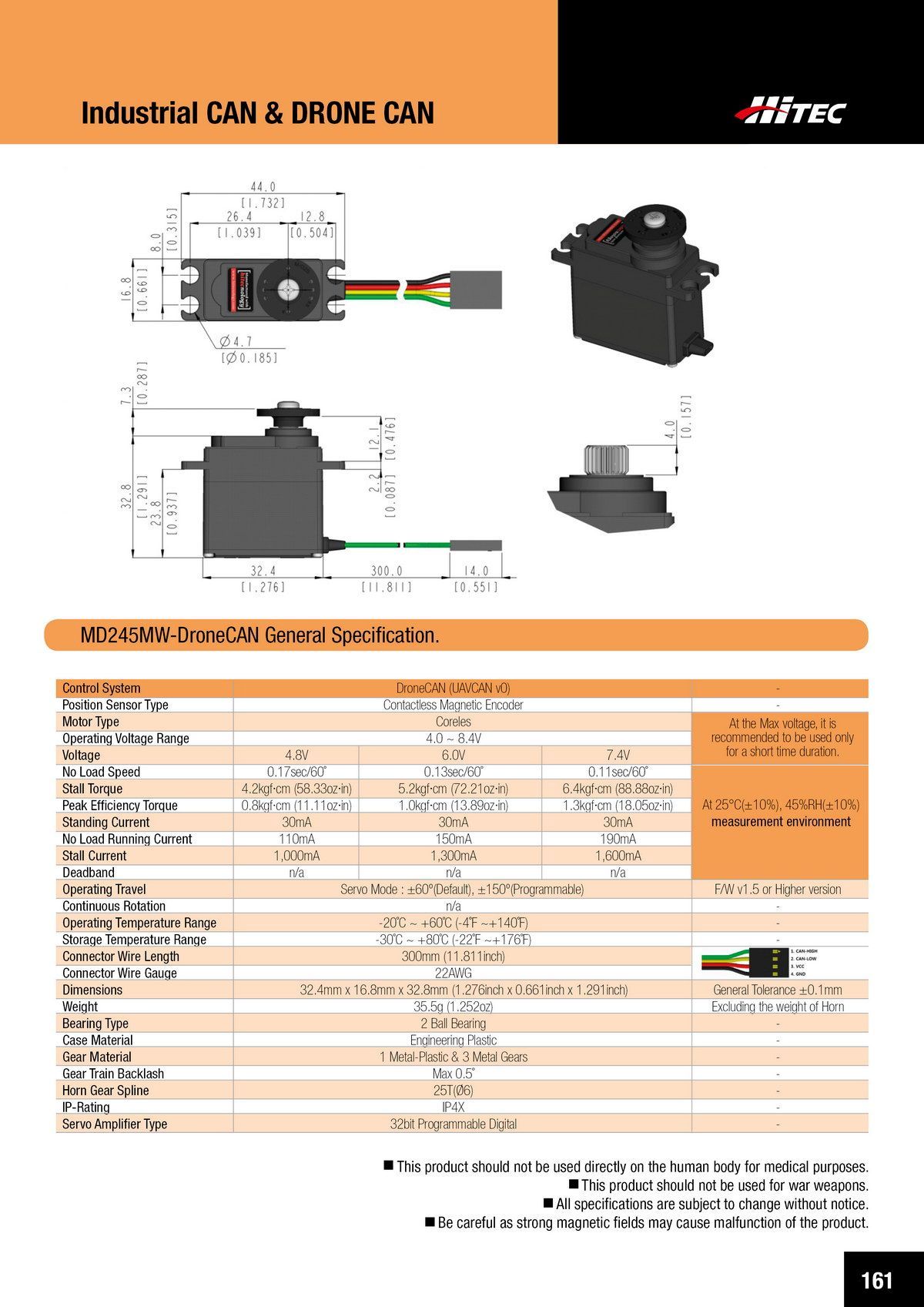

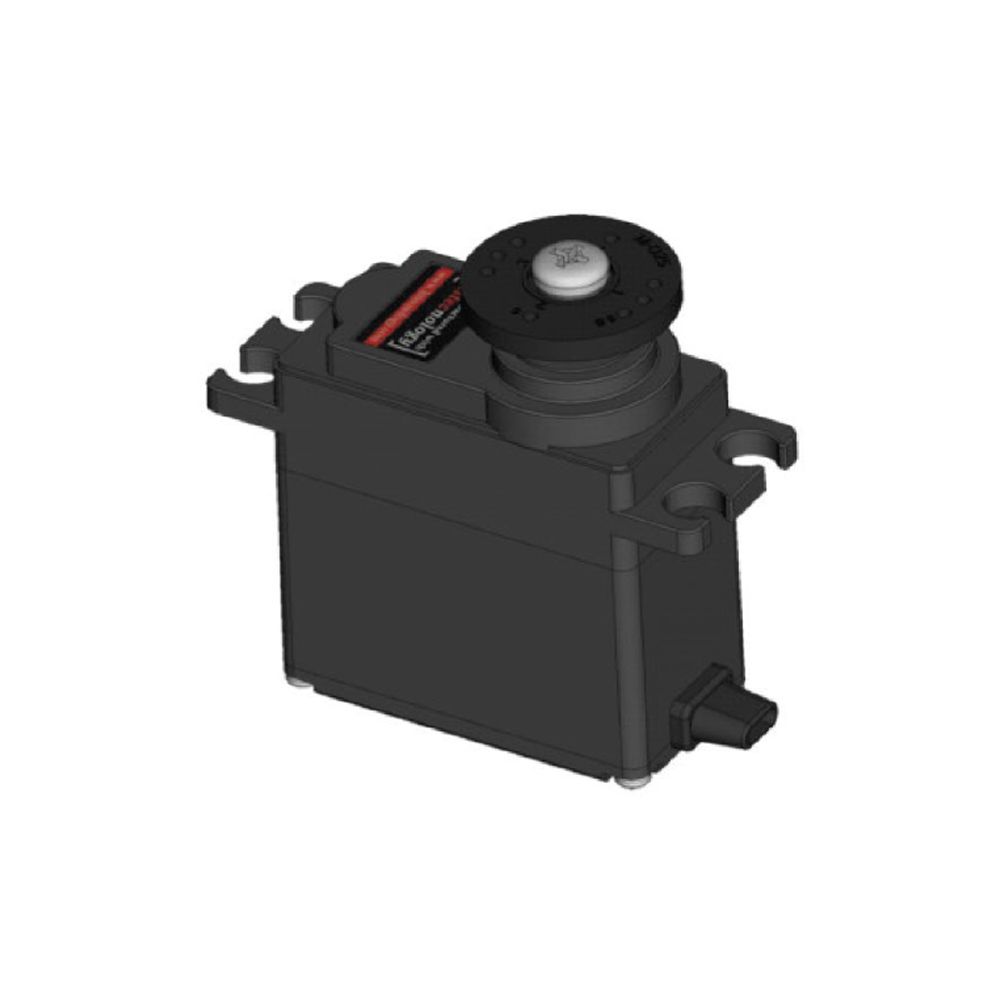

16.8mm, Coreless, Wide Voltage, Metal Gear, Mini Actuator

The MD245MW is a 16.8mm, metal gear, mini servo with dual ball bearings and an efficient coreless motor. Engineered with a programmable digital amplifier and contactless magnetic encoder to deliver high performance and reliability in a wide variety of robotic and remote, unmanned aerial applications. Operating via DroneCAN (formerly UAVCAN) control at a wide voltage range from 4.8~7.4 volts, this mighty mini actuator produces impressive torque and speeds in its class. The MD245MW servo is ideal for a variety of applications requiring an efficient balance of performance and cost.

Cad File Download

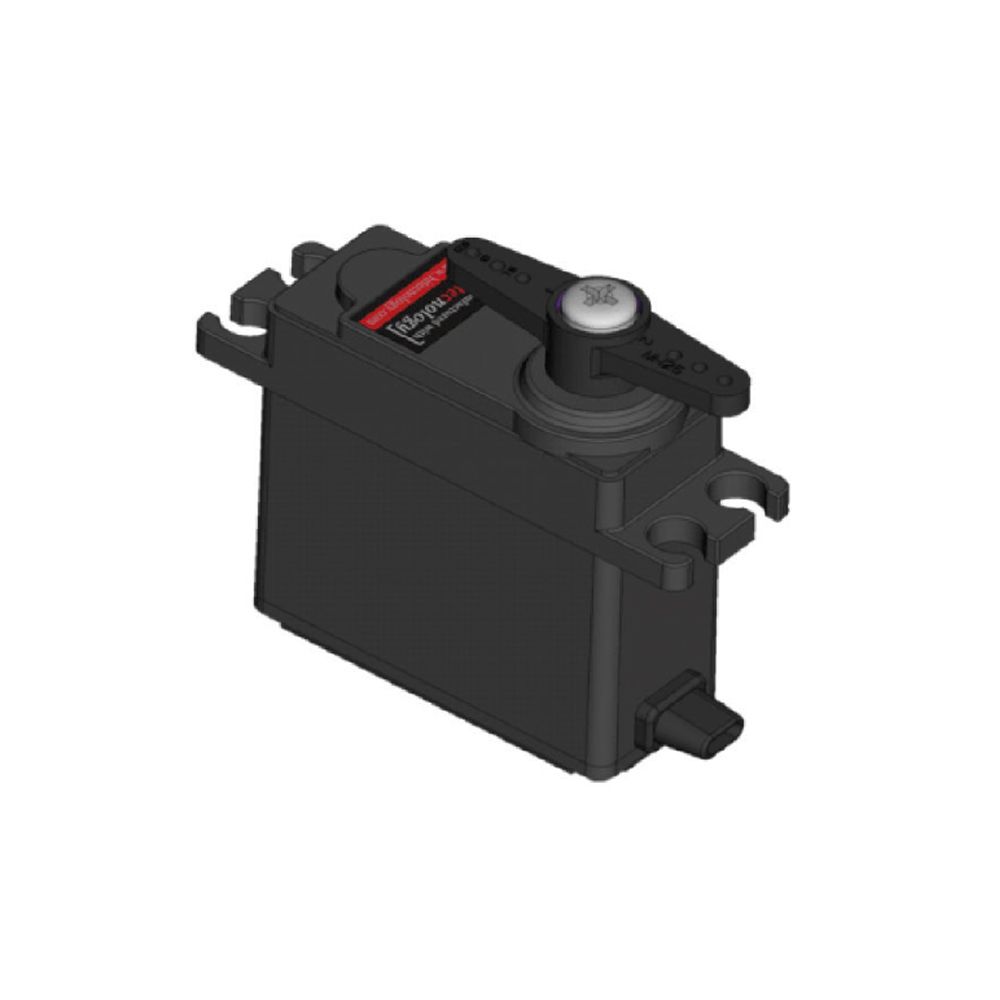

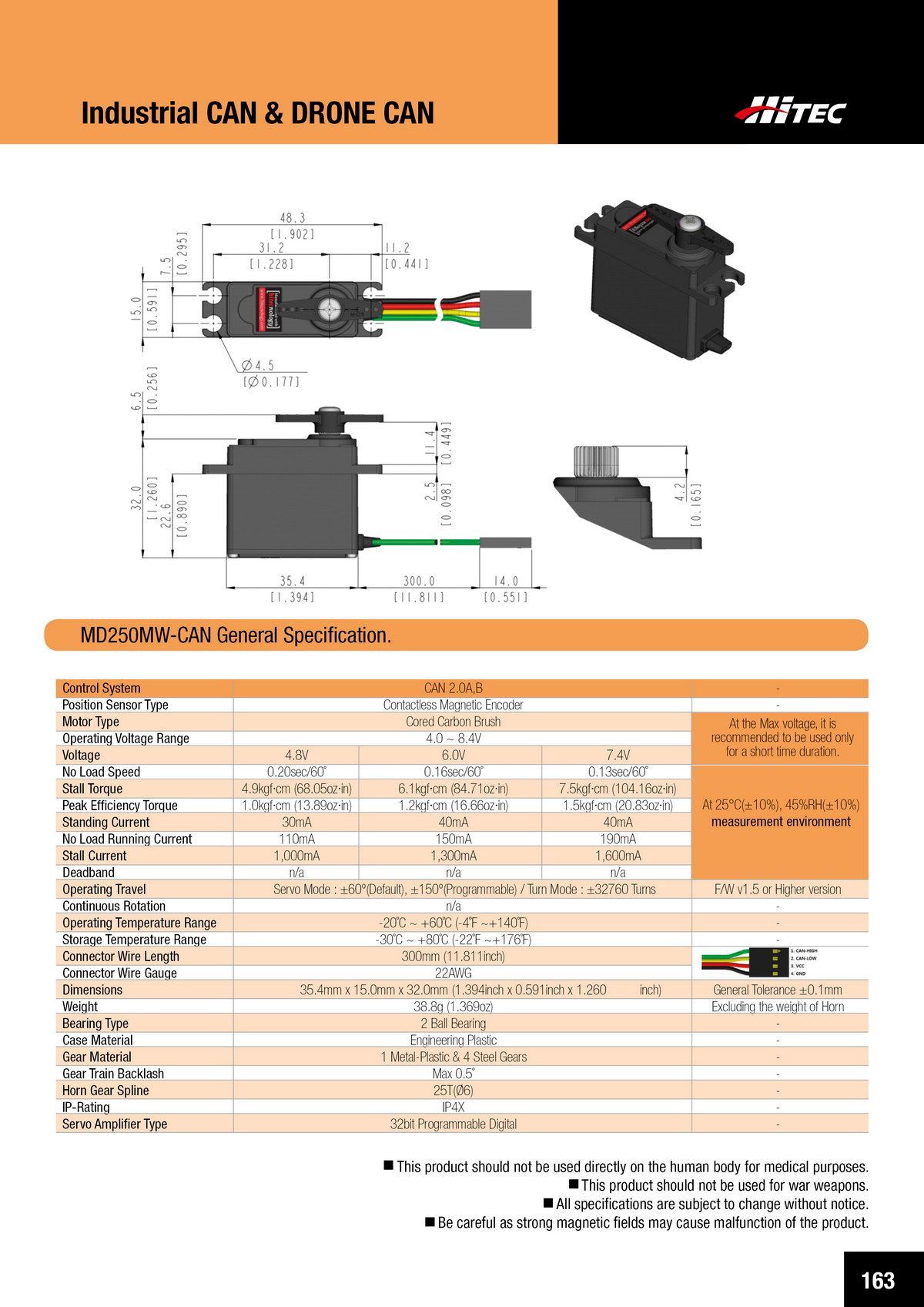

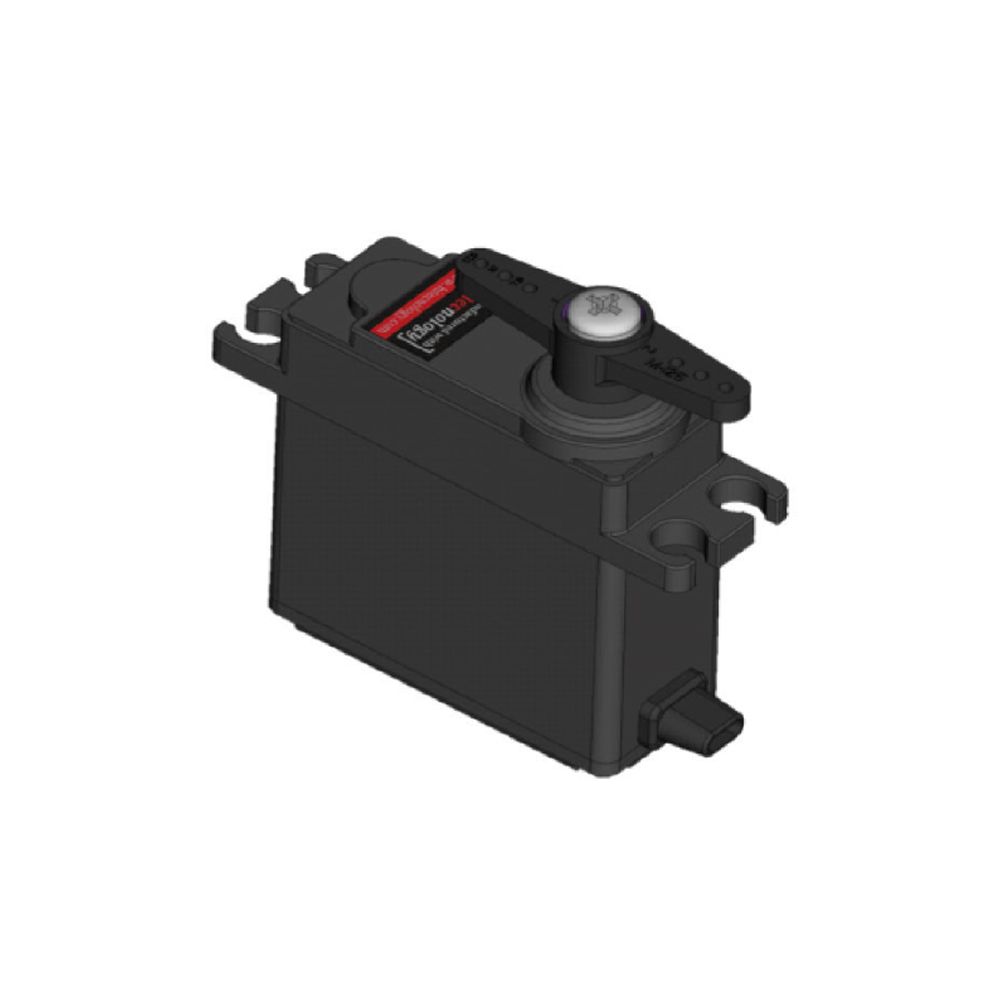

15mm, Cored with Carbon Brushes, Wide Voltage, Metal Gear, Mini Servo

The MD250MW is a 15mm, metal gear, mini servo with dual ball bearings and a cored motor with carbon brushes. Engineered with a programmable digital amplifier and magnetic encoder to deliver high performance and reliability for remote, unmanned aerial vehicles and ground-based automation applications. Operating via CAN command protocol at a wide voltage range from 4.8~7.4 volts, this compact actuator produces impressive torque and high speeds in its mini class. The MD250MW servo is ideal for a variety of applications requiring an efficient balance of performance and cost.

Cad File Download

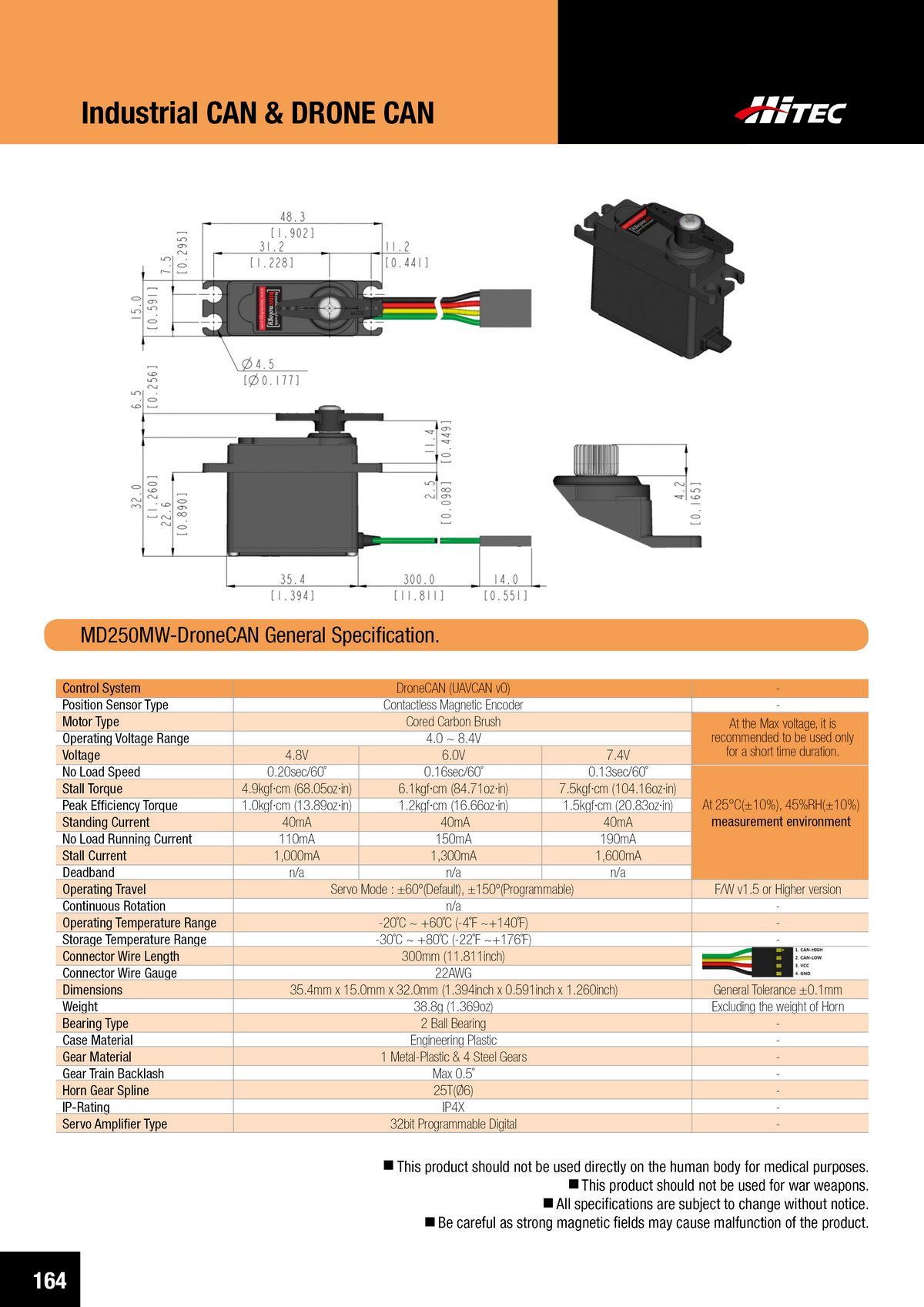

15mm, Cored with Carbon Brushes, Wide Voltage, Metal Gear, Mini Servo

The MD250MW is a 15mm, metal gear, mini servo with dual ball bearings and a cored motor with carbon brushes. Engineered with a programmable digital amplifier and magnetic encoder to deliver high performance and reliability for remote, unmanned aerial vehicles and ground-based automation applications. Operating via DroneCAN (formerly UAVCAN) command protocol at a wide voltage range from 4.8~7.4 volts, this compact actuator produces impressive torque and high speeds in its mini class. The MD250MW servo is ideal for a variety of applications requiring an efficient balance of performance and cost.

Cad File Download

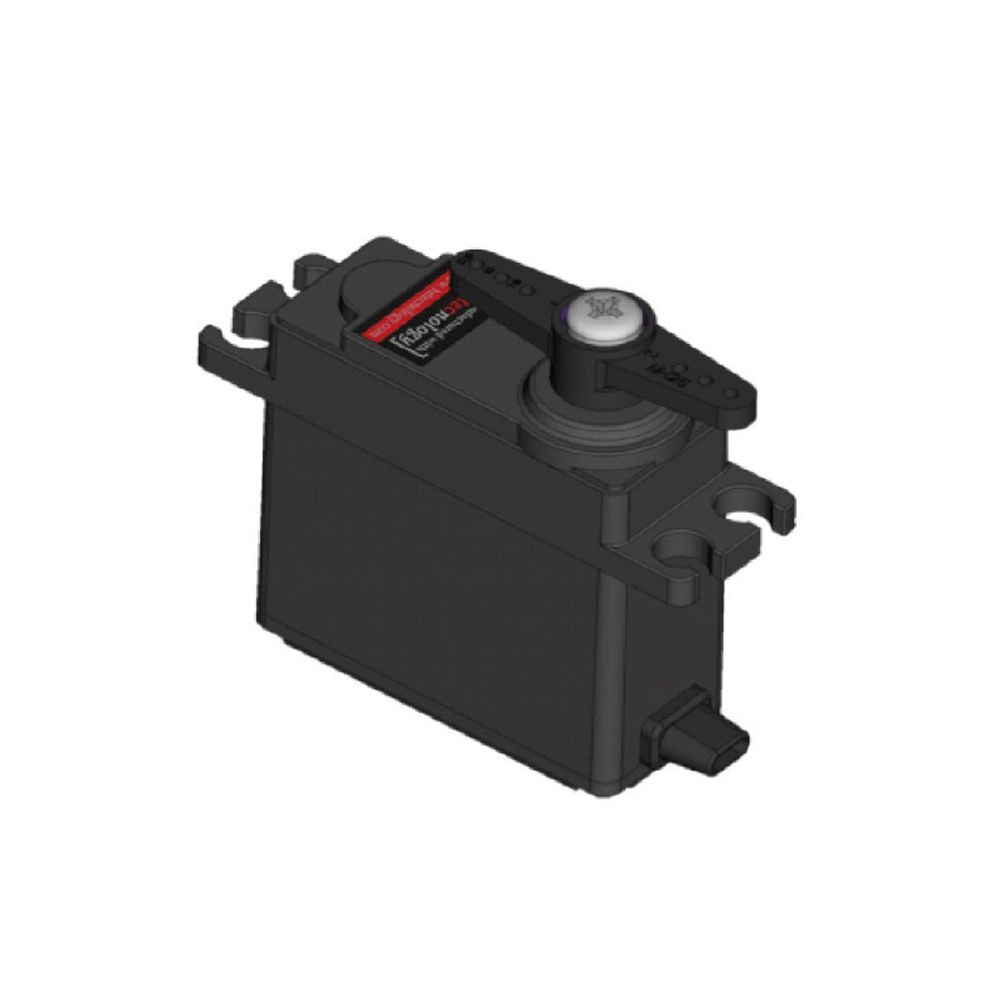

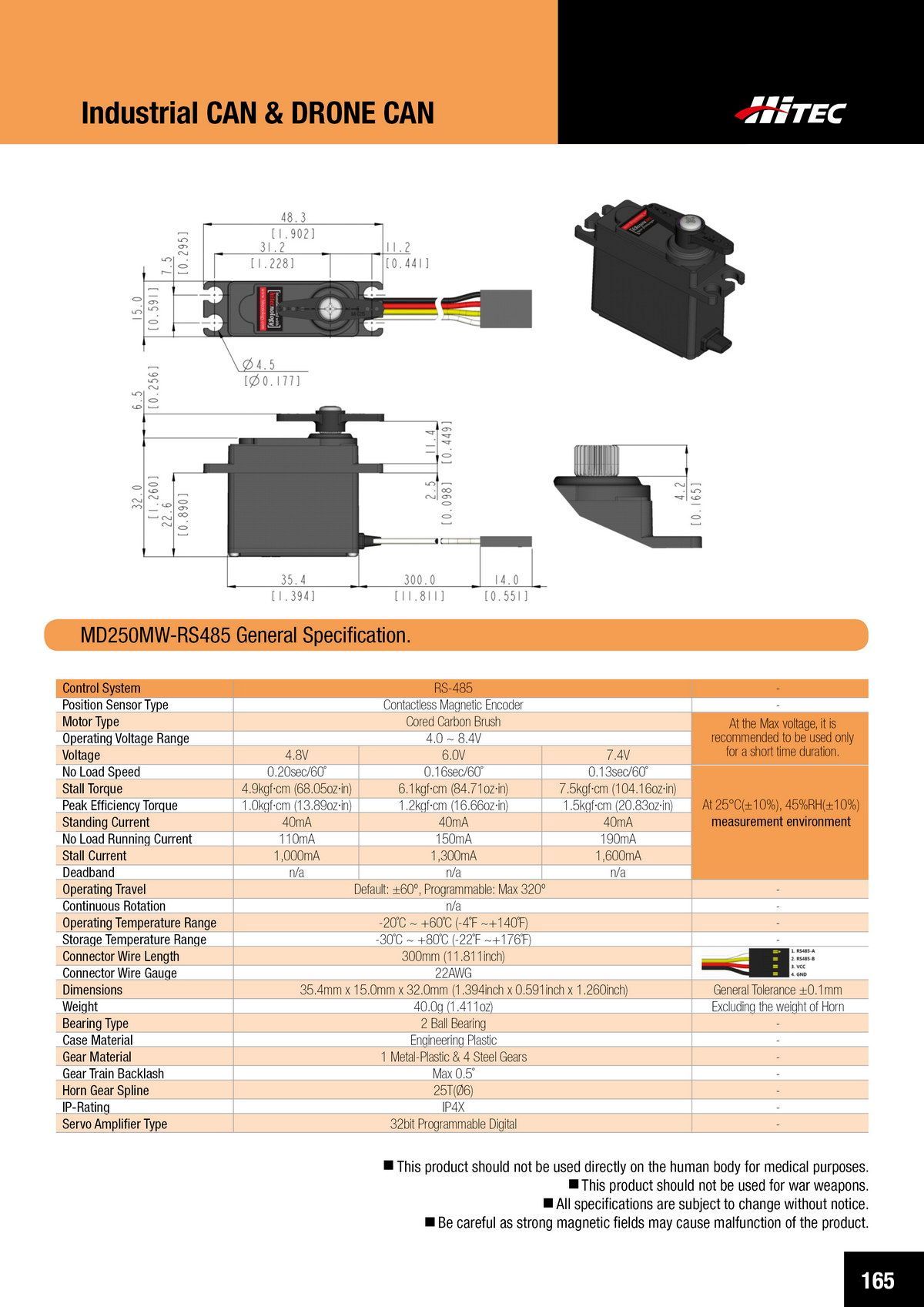

15mm, Cored with Carbon Brushes, Wide Voltage, Metal Gear, Mini Servo

The MD250MW is a 15mm, metal gear, mini servo with dual ball bearings and a cored motor with carbon brushes. Engineered with a programmable digital amplifier and magnetic encoder to deliver high performance and reliability for remote, unmanned aerial vehicles and ground-based automation applications. Operating via RS485 command protocol at a wide voltage range from 4.8~7.4 volts, this mighty mini actuator produces impressive torque and high speeds in its class. The MD250MW servo is ideal for a variety of applications requiring an efficient balance of performance and cost.

Cad File Download

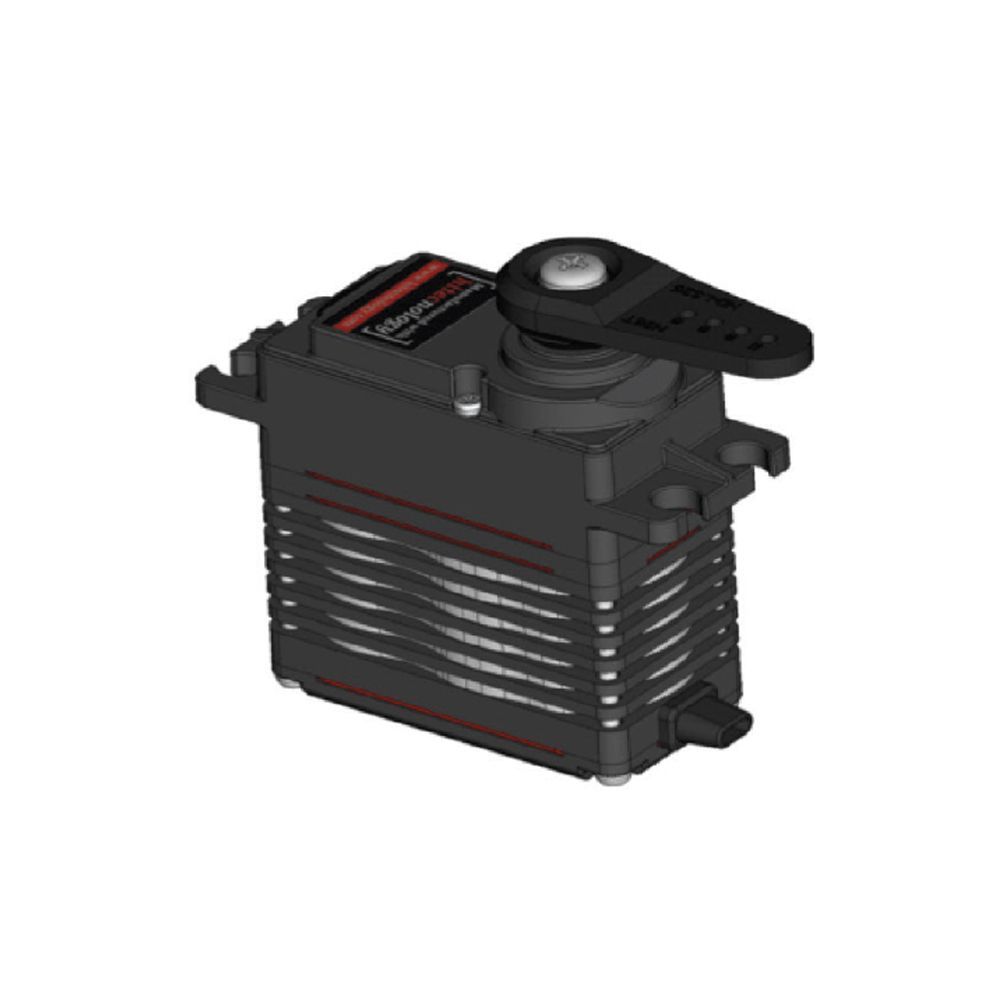

20mm, Ultra-Premium, Coreless, Titanium Gear Actuator w/Magnetic Encoder (7.4V)

Cad File Download

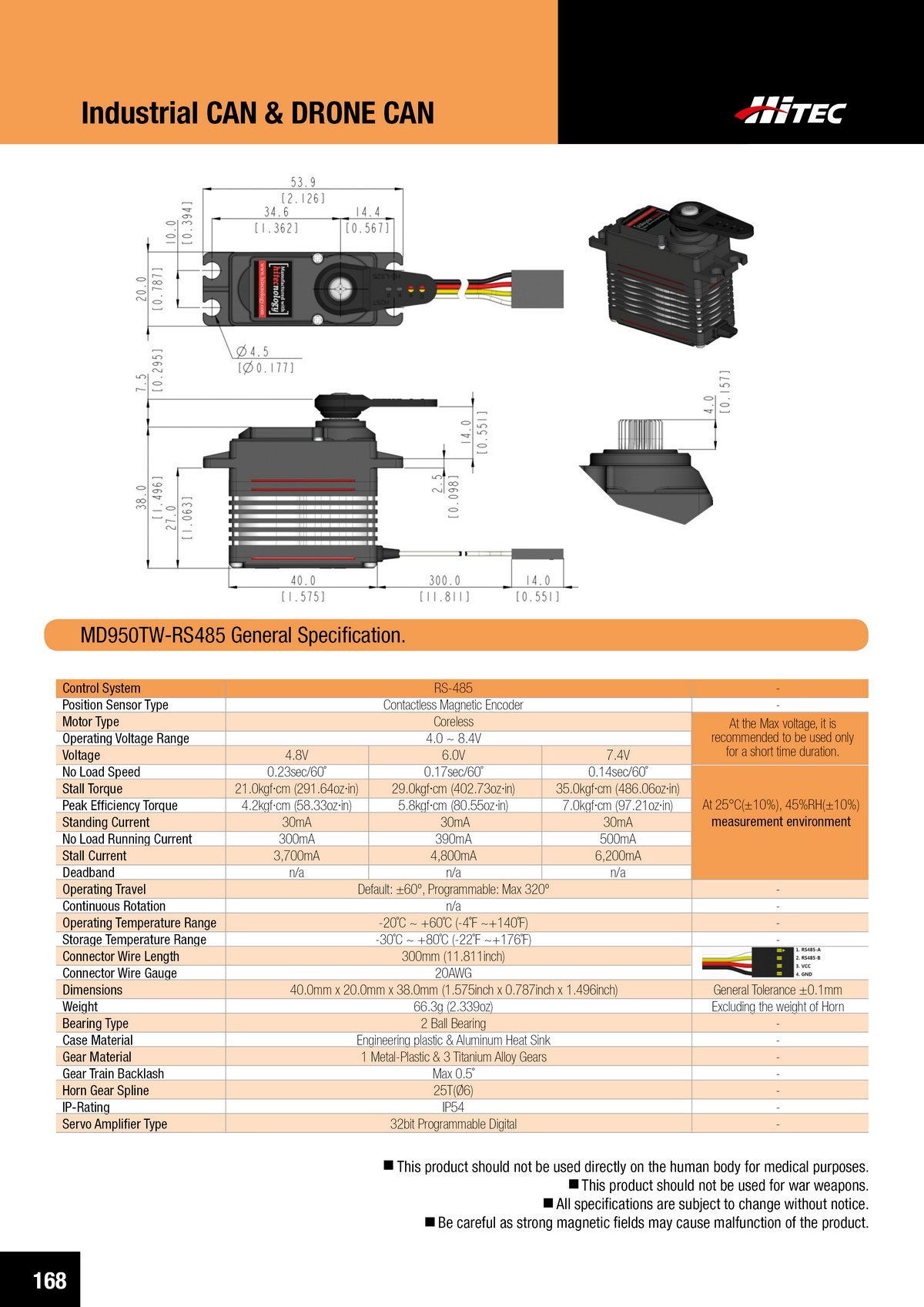

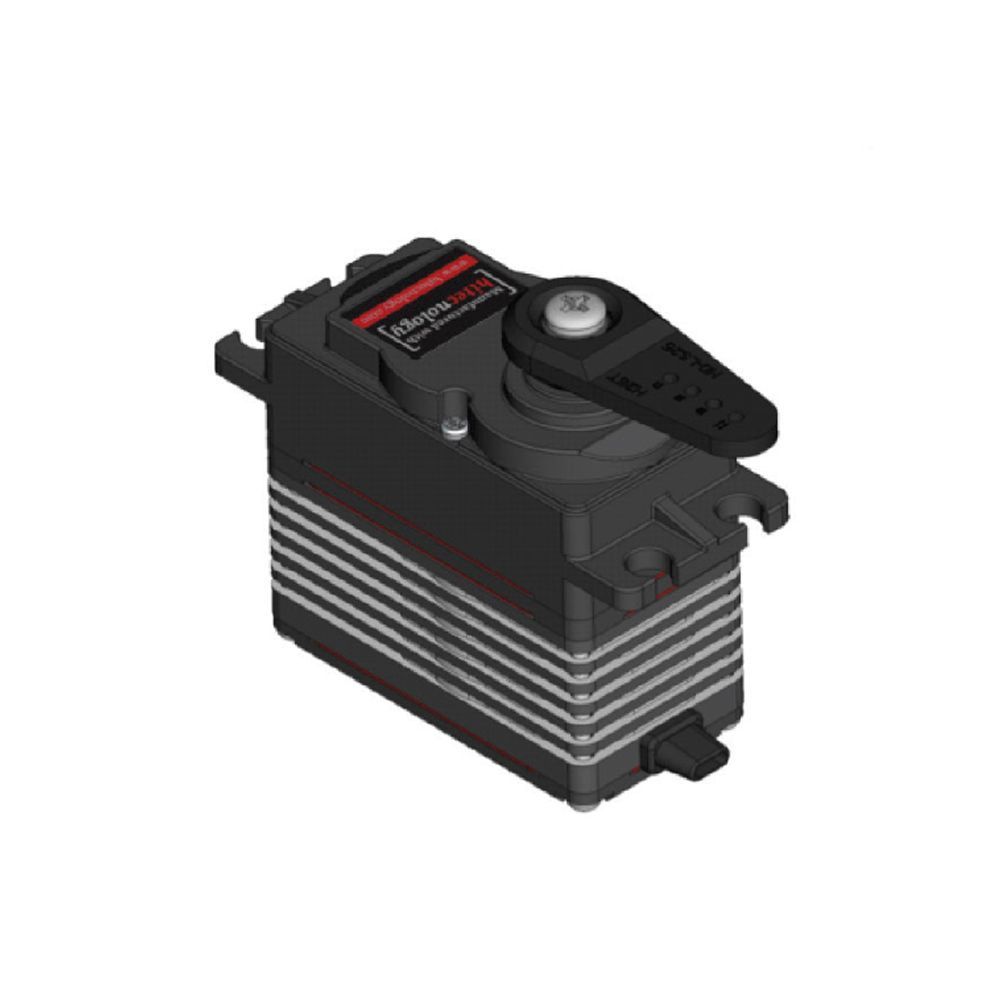

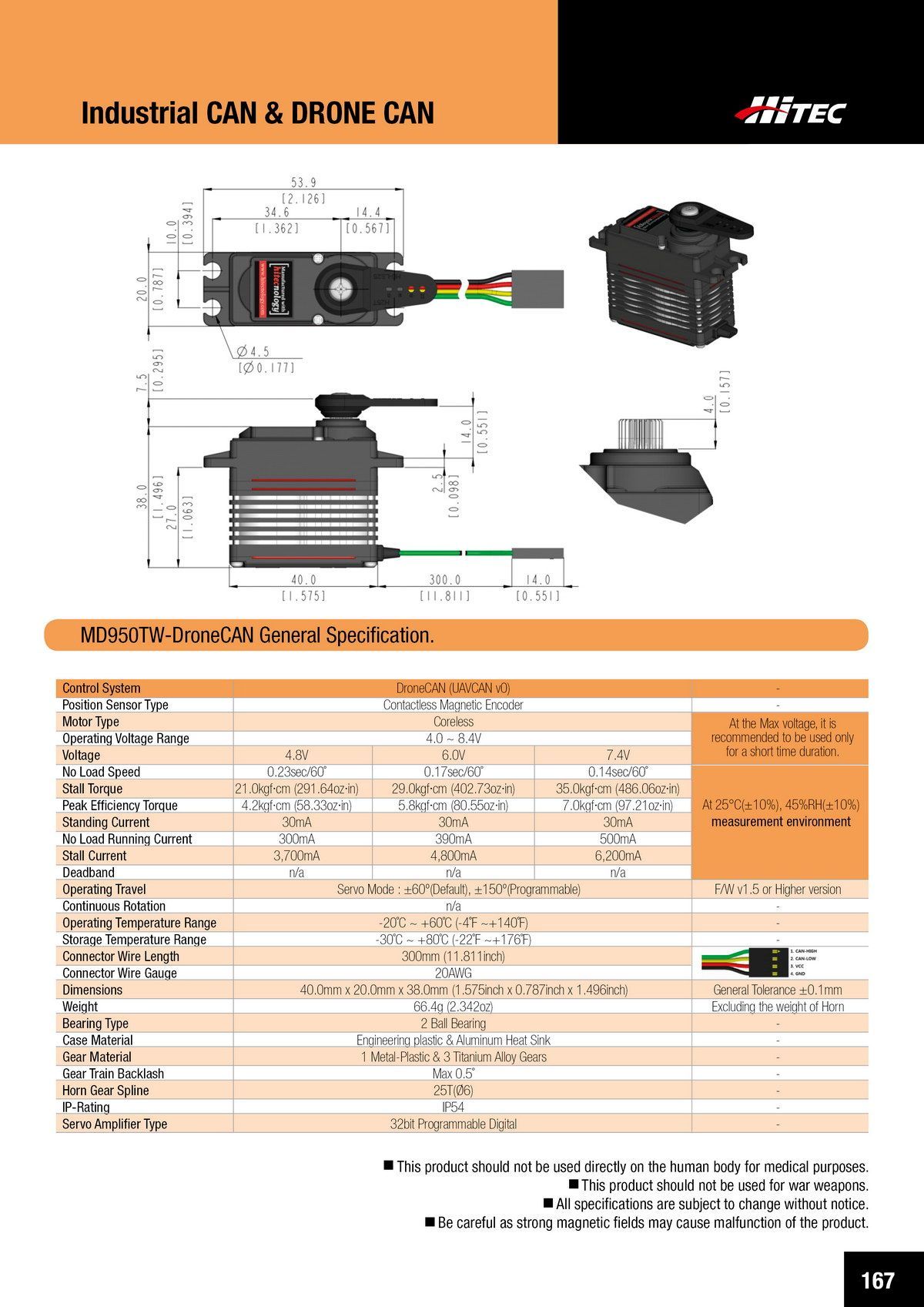

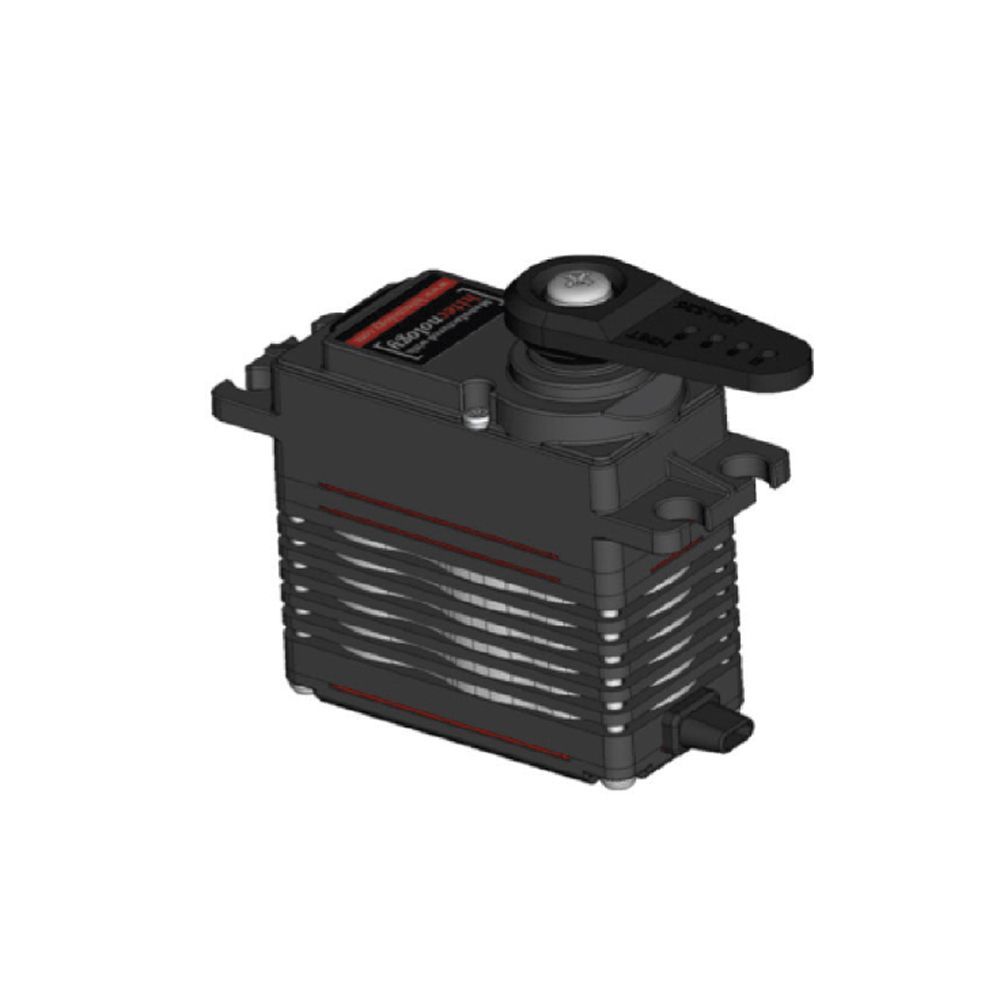

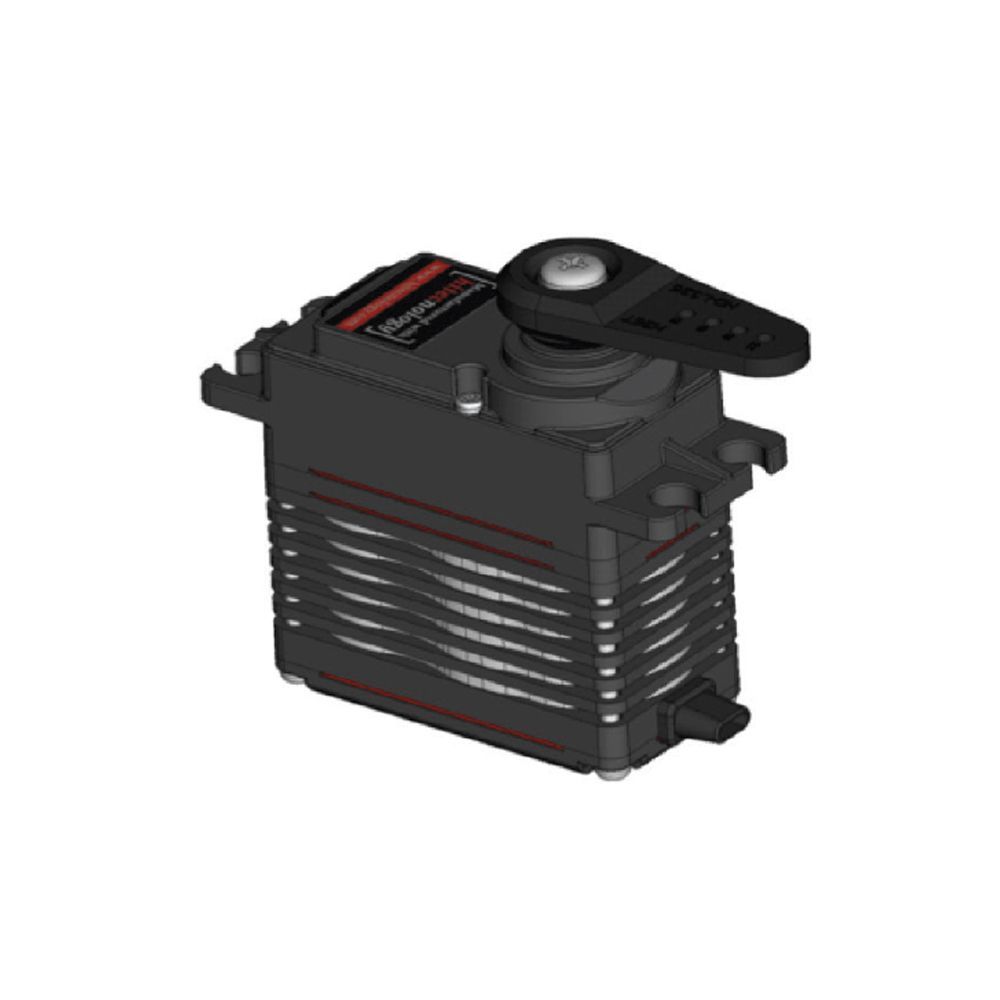

20mm, Ultra-Premium, Coreless, Wide Voltage, Titanium Gear Servo w/Magnetic Encoder

Our ultra-premium MD950TW-RS485 is engineered with an efficient coreless motor and magnetic encoder delivering uncompromised performance and reliability. Operating at a voltage range from 4~8.4 volts, this powerful, titanium gear actuator produces impressive torque and high speeds with 32-bit digital programmability and IP-55 dustproof rating. Utilizing the well-proven RS485 command protocol, the MD950TW-RS485 servo is ideal for industrial applications requiring unbeatable precision, strength, and durability.

Cad File Download

Cad File Download

20mm, High Speed, Brushless, Hardened Steel Gear, Waterproof Actuator w/Magnetic Encoder (7.4V)

Our high speed MDB961WP is engineered with an efficient brushless motor and magnetic encoder delivering uncompromised performance and reliability. Operating at a wide voltage range from 4V up to 8.4 volts, this powerful actuator produces 352.74 oz·in at 7.4V of torque and 0.07 sec/60° at 7.4V of speed with 32-bit digital programmability and IP-67 waterproof rating. Perfect for CAN and DroneCAN command protocols, the MDB941WP is ideal for industrial applications requiring unbeatable precision, speed and durability.

Cad File Download

Cad File Download

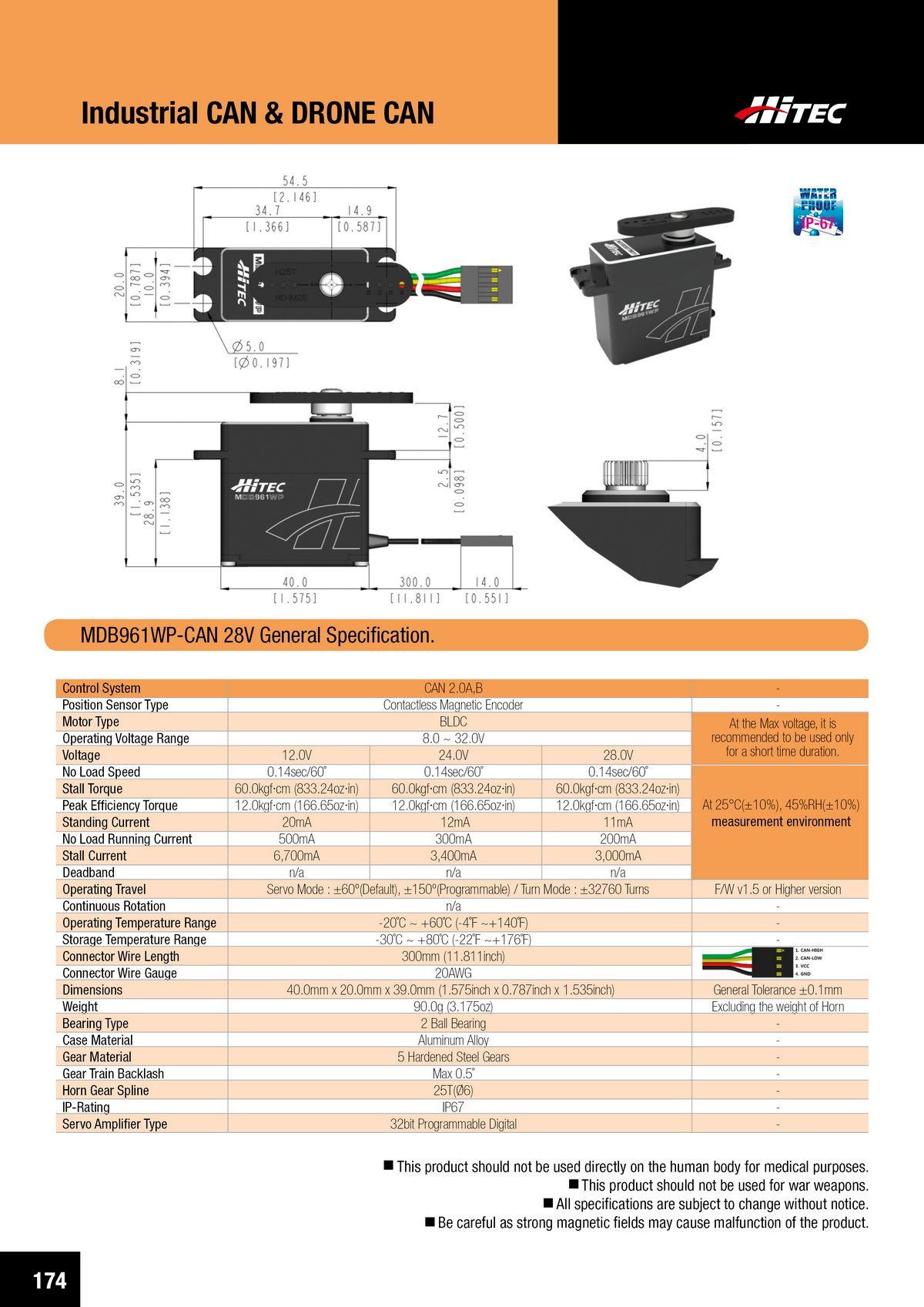

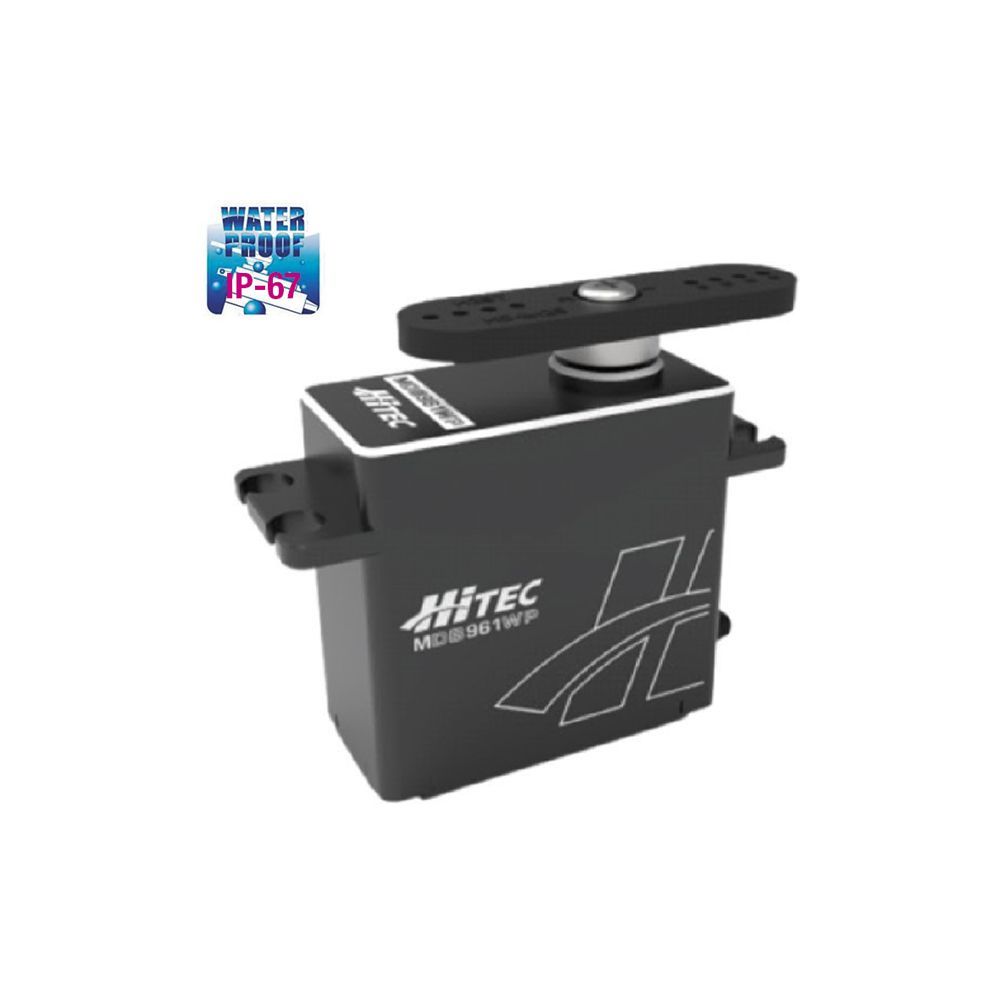

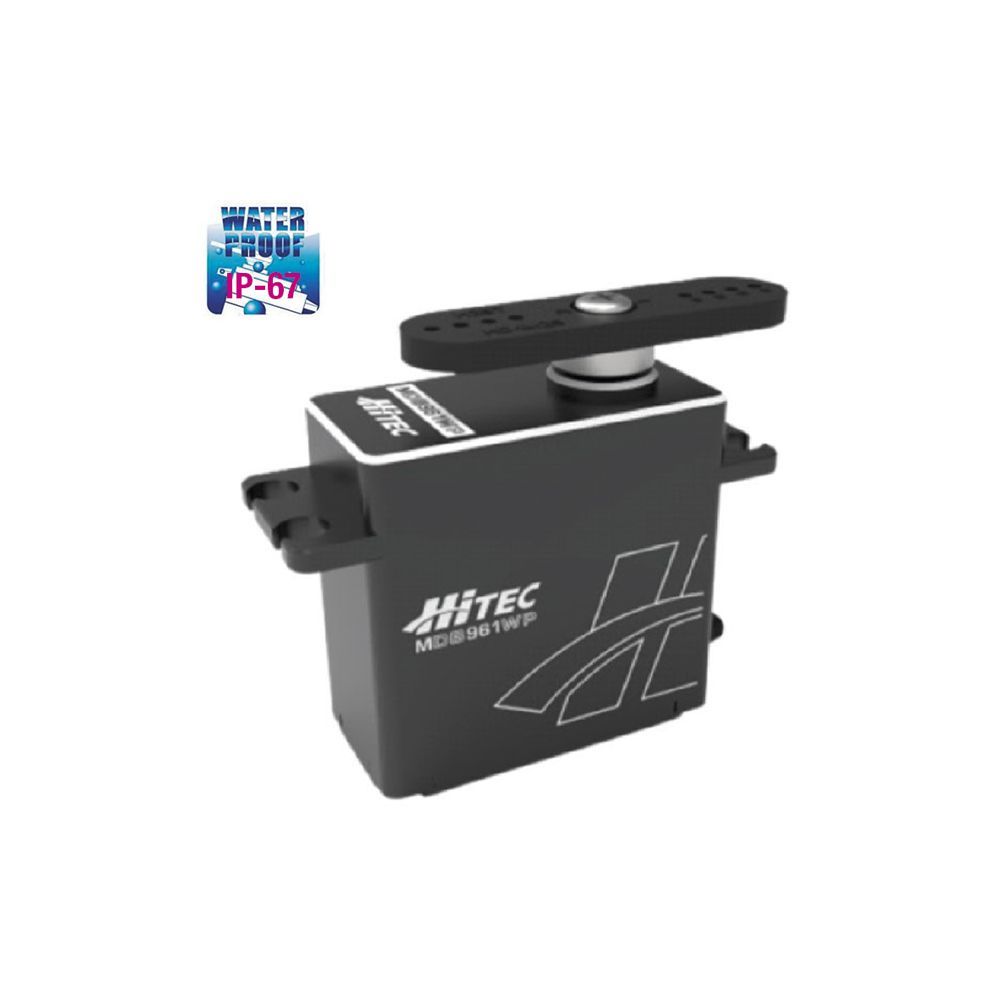

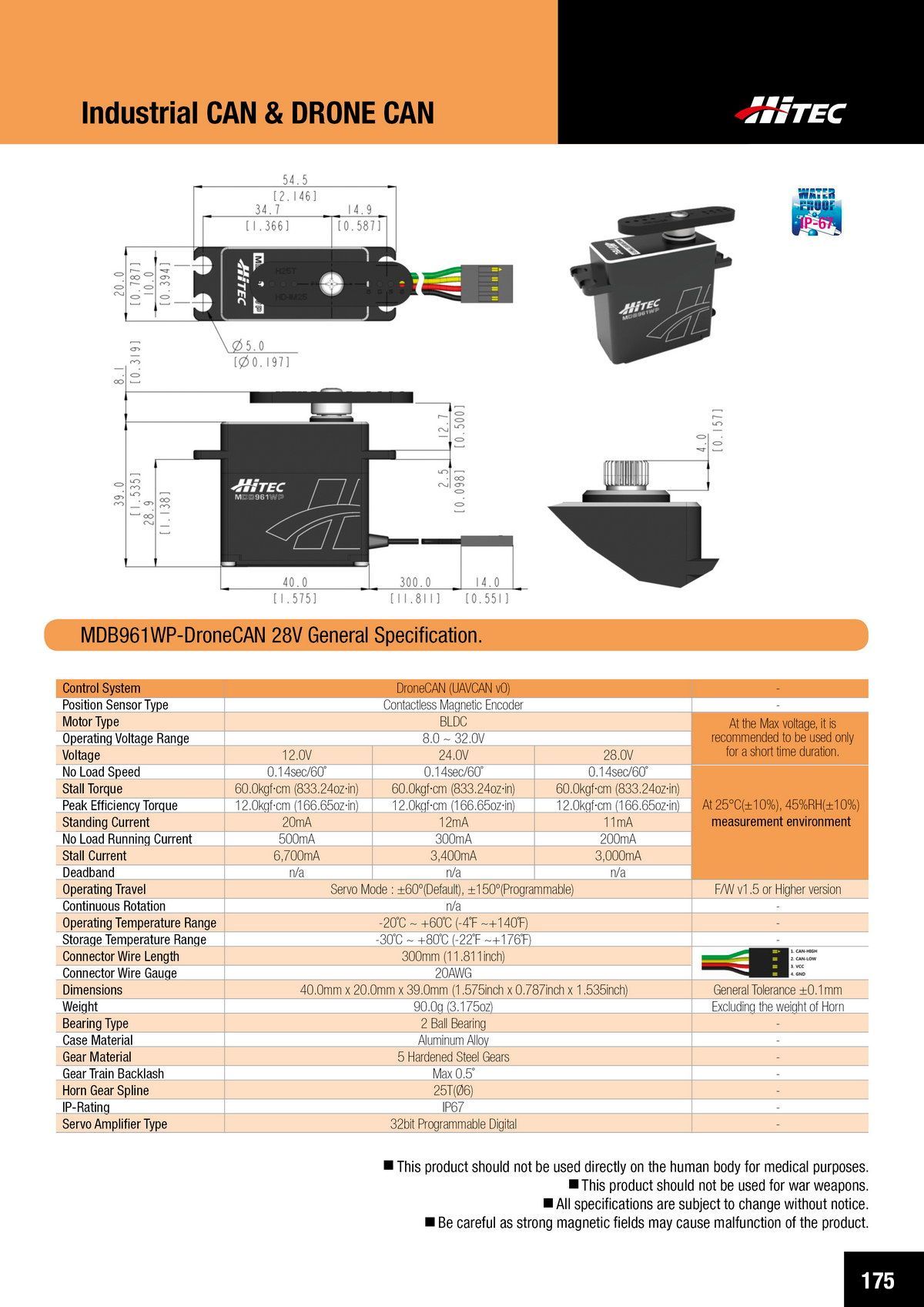

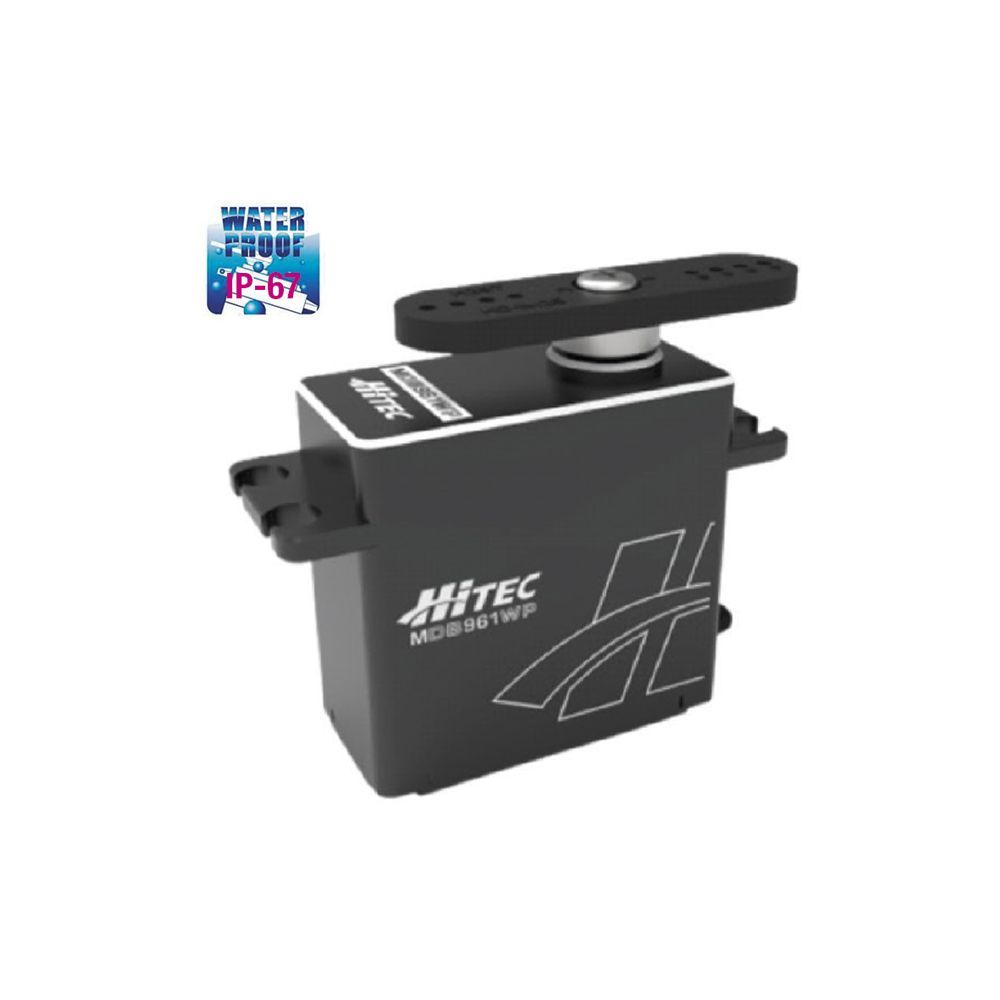

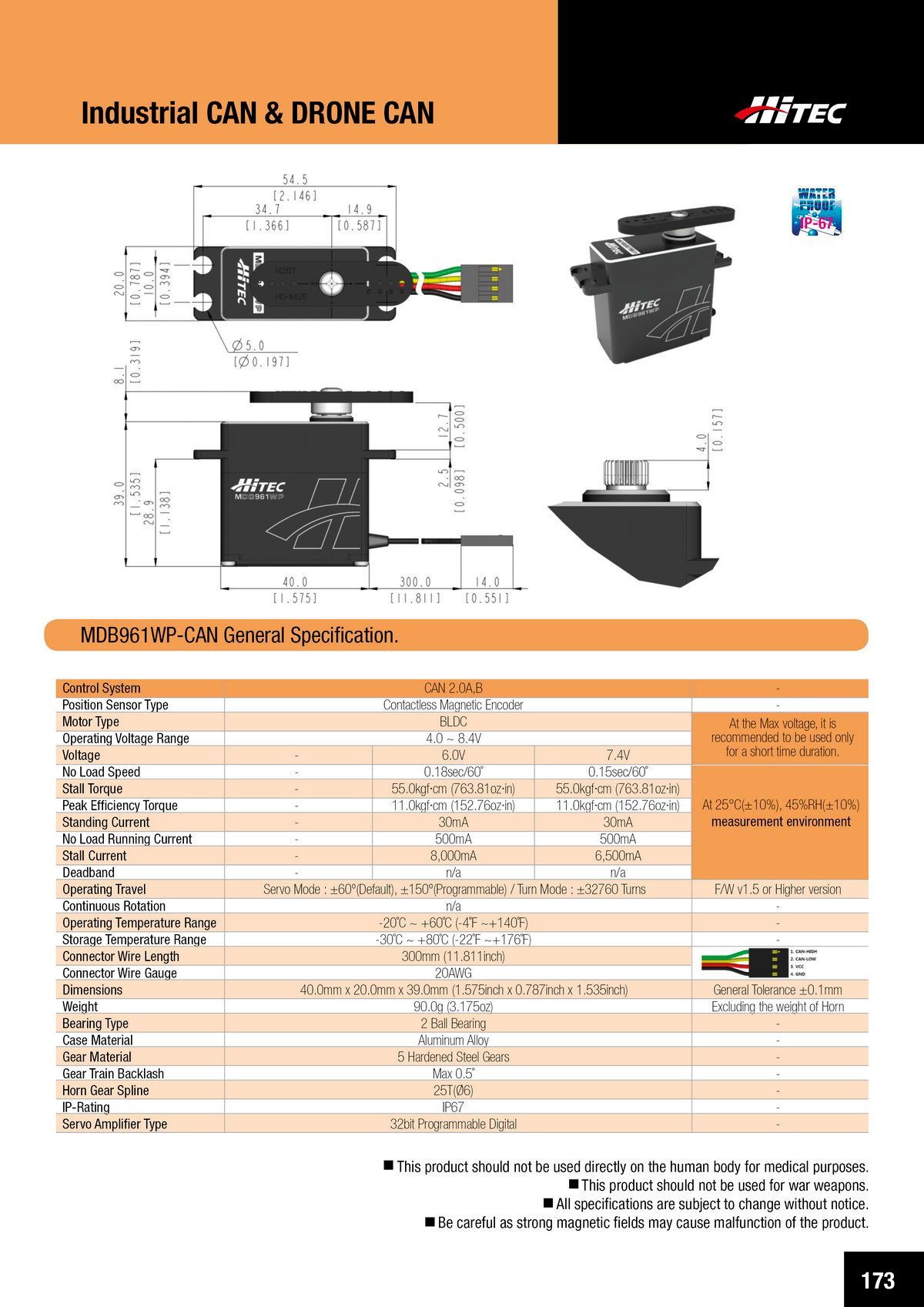

20mm, Ultra-Premium, Brushless, Hardened Steel Gear, Waterproof Actuator w/Magnetic Encoder (7.4V)

Our ultra-premium MDB961WP is engineered with an efficient brushless motor and magnetic encoder delivering uncompromised performance and reliability. Operating at a wide voltage range from 4V up to 8.4 volts, this powerful actuator produces 763.81oz·in at 7.4V of torque and 0.15 sec/60° at 7.4V of speed with 32-bit digital programmability and IP-67 waterproof rating. Perfect for CAN and DroneCAN command protocols, the MDB961WP is ideal for industrial applications requiring unbeatable precision, strength and durability.

Cad File Download

Cad File Download

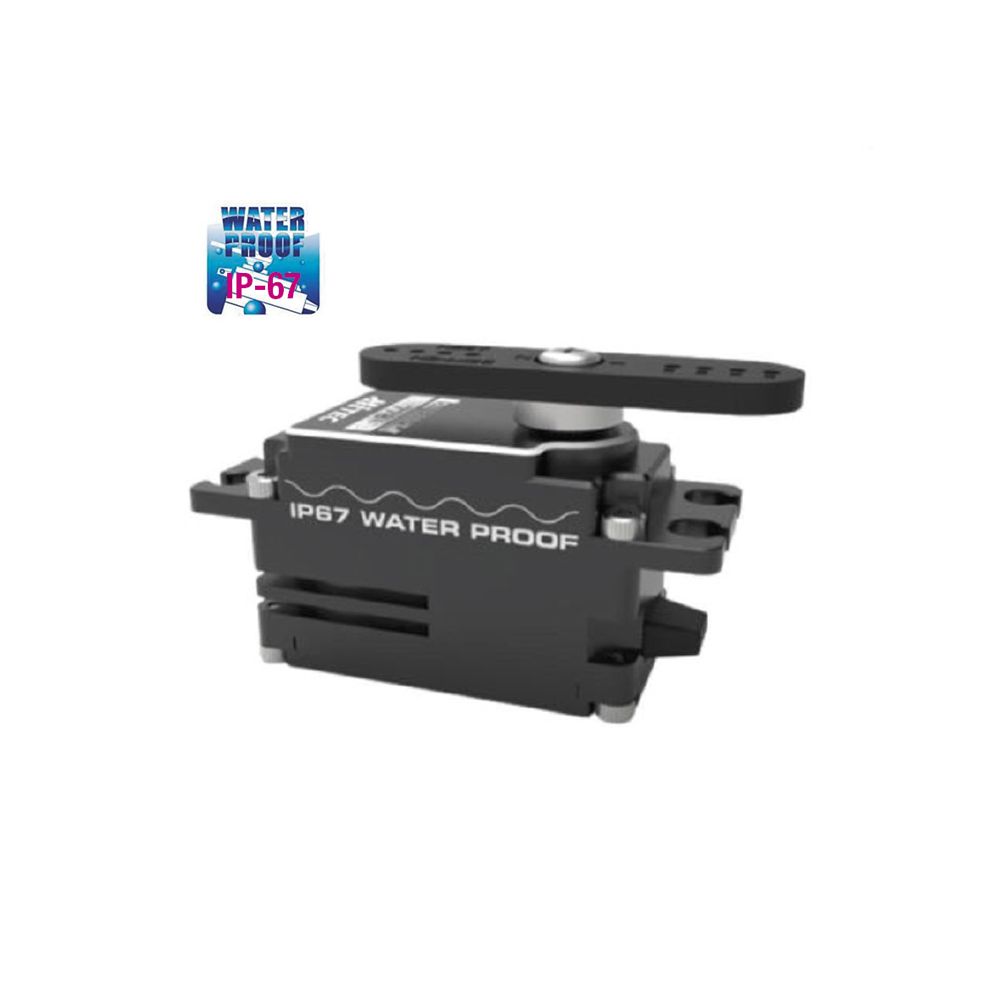

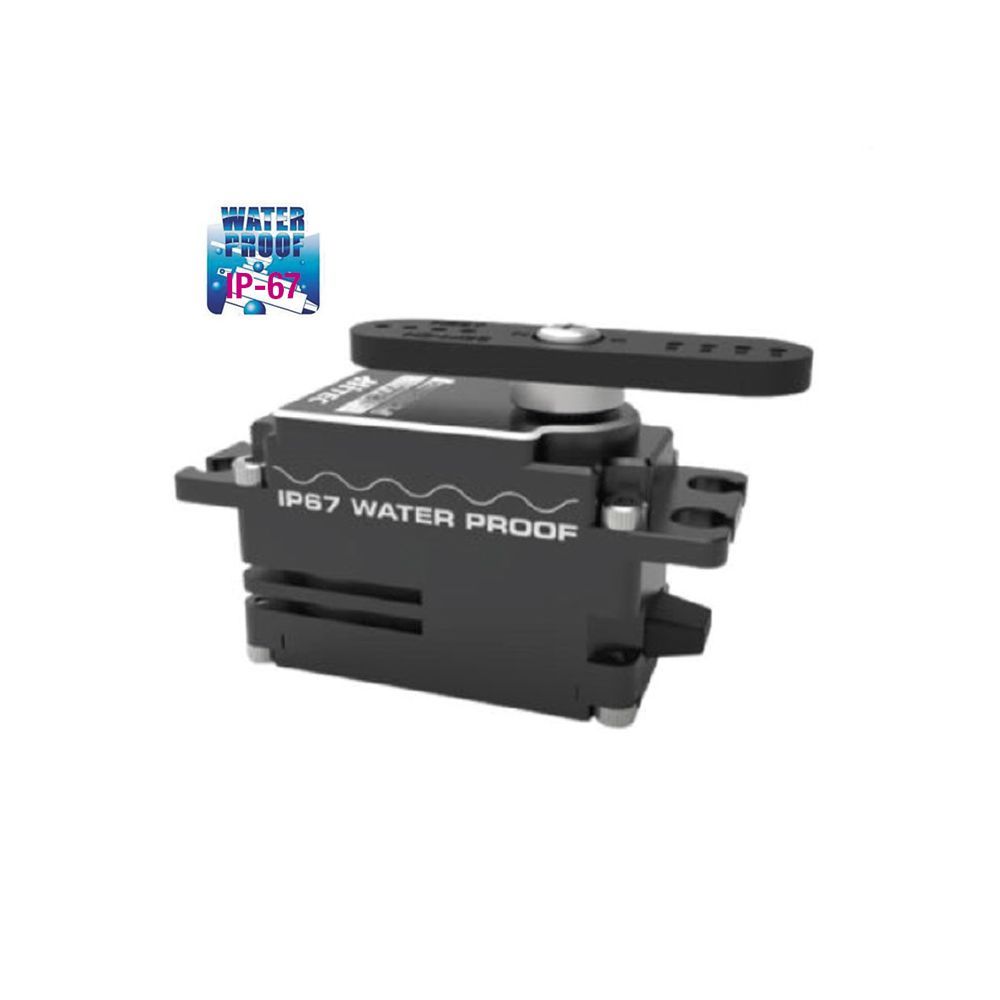

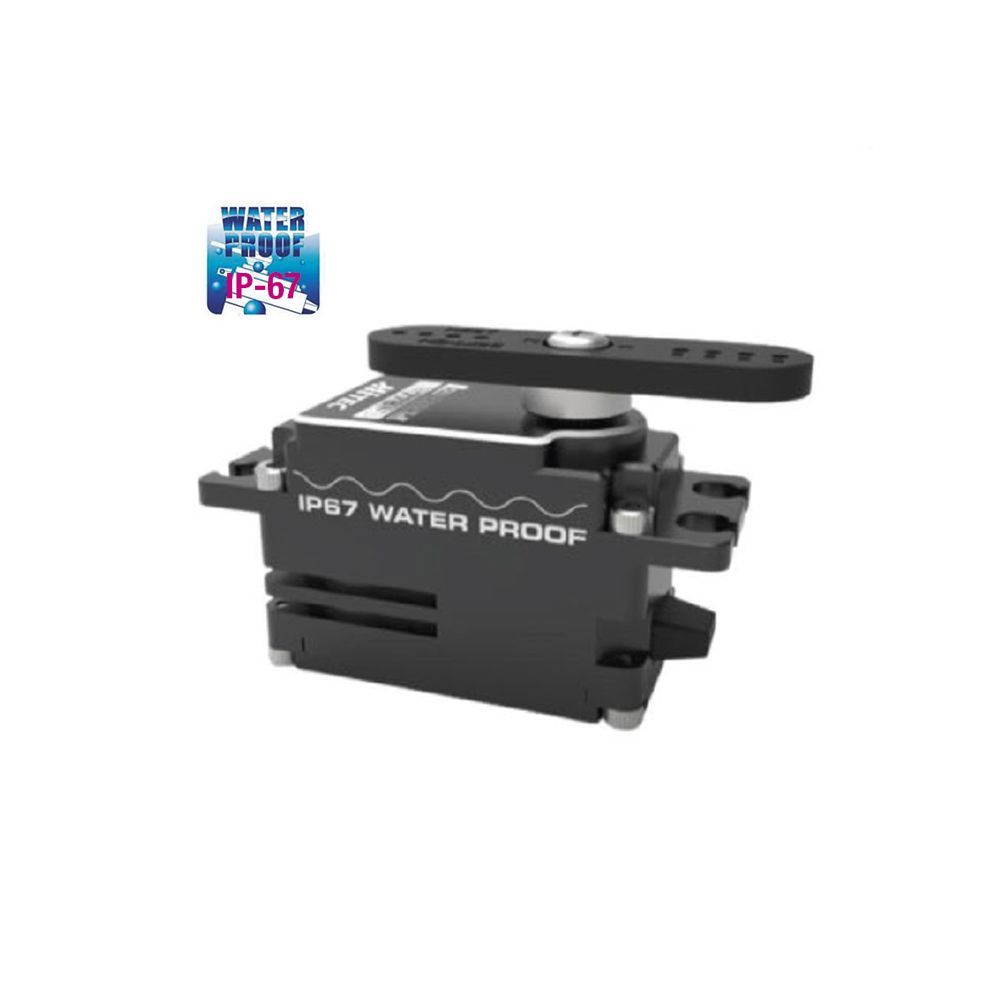

21mm, Brushless, Low Profile, High Voltage, Ultra-Speed, Steel Gear Actuator (7.4V)

Our MDB777WP industrial actuator features wide 4.0 – 8.4V operation, dual ball bearings, hardened steel gears, an efficient brushless motor, magnetic encoder and DroneCAN protocol. With an IP-67 waterproof rating and solid 2.2 kgf-cm torque @ 7.4V, this speedy servo offers ultimate performance for commercial applications requiring reliability in compact spaces.

Cad File Download

Cad File Download

Cad File Download

Cad File Download

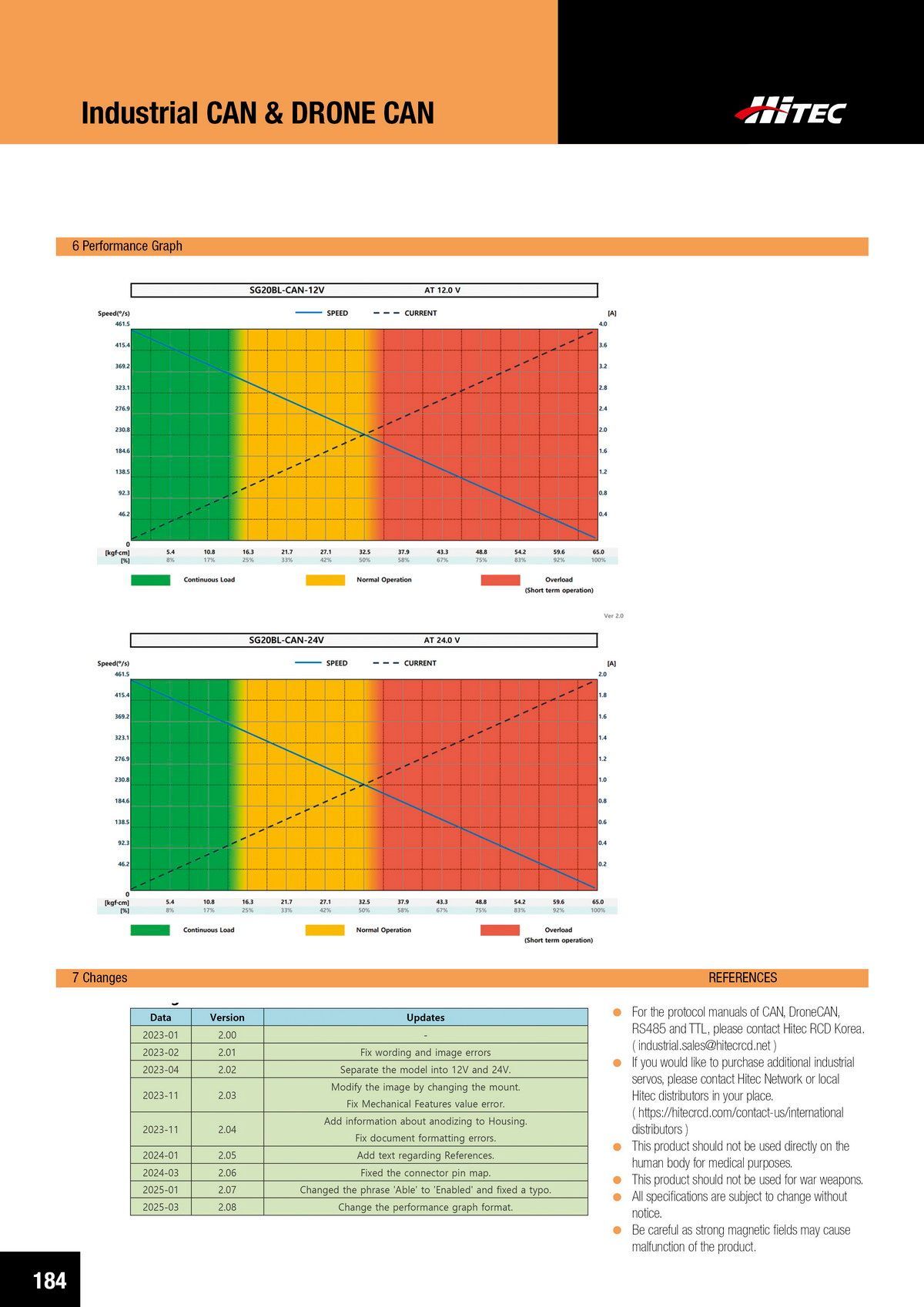

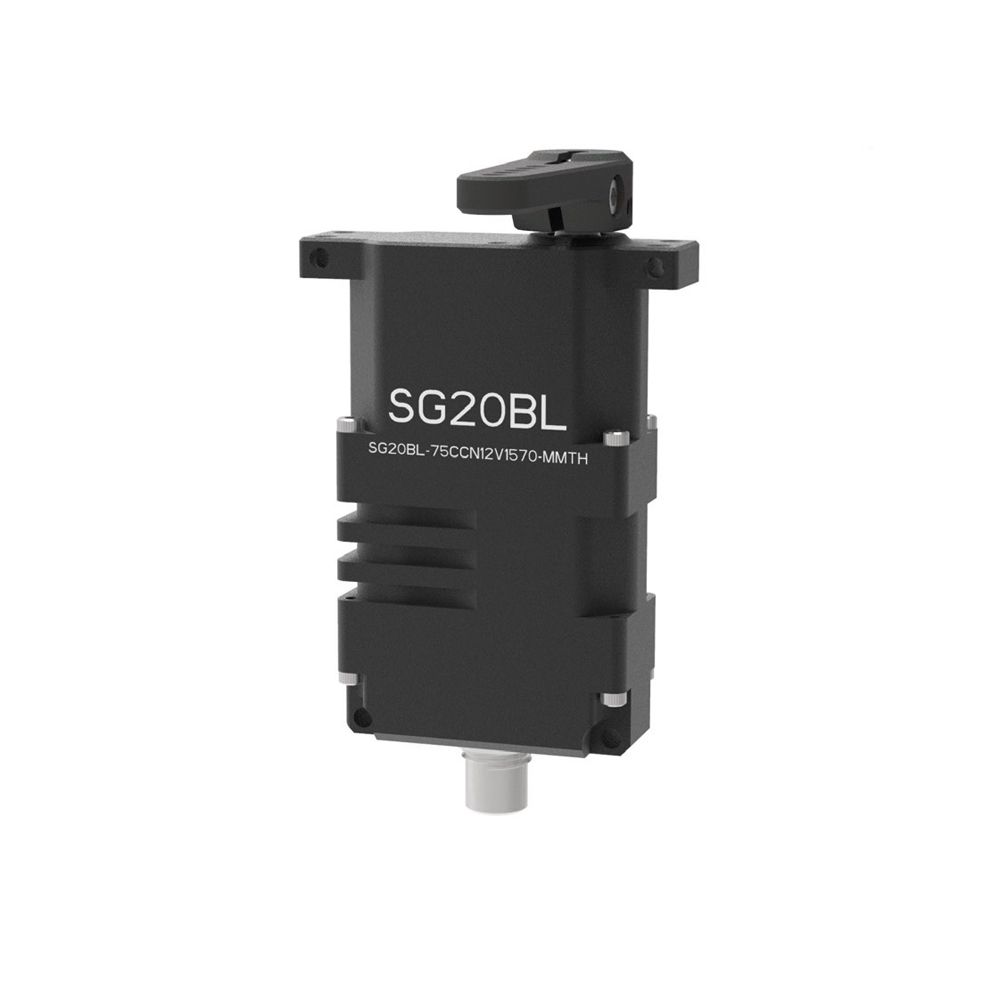

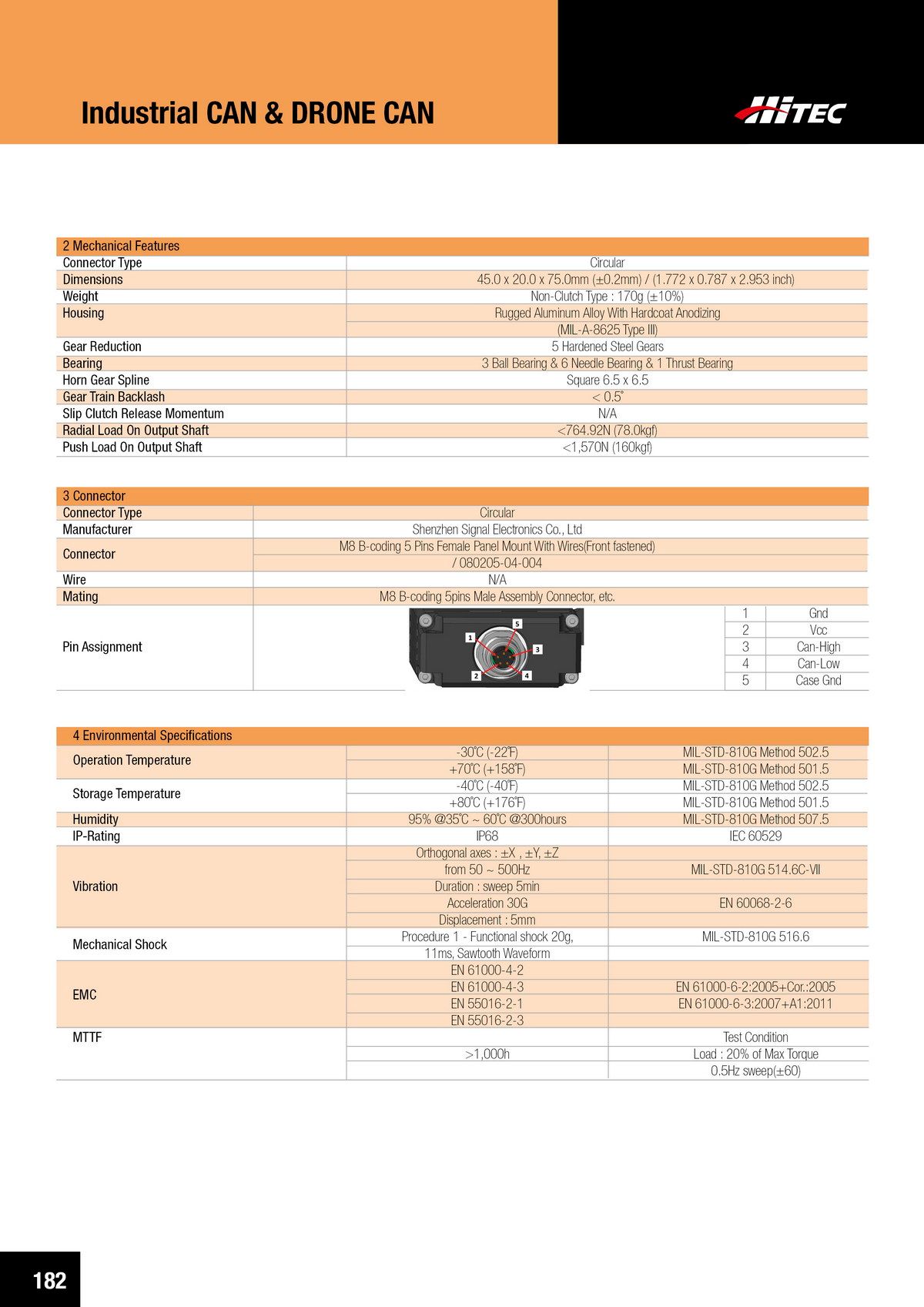

20mm, Waterproof, Brushless, High Torque Actuator with M8 Circular Connector (12V)

Designed with durability in mind, the SG20BL is equipped with a robust M8 circular connector, hardened steel gears and an impressive IP-68 rating, ensuring it can withstand harsh environmental conditions while maintaining optimal performance. With a Mean To Time Failure (MTTF) of greater than 1,000 hours, users can trust our servo to deliver consistent functionality throughout its operational lifespan. Available in both a 12V and 24V model with wide operating voltages of 9-15V and 18-32V, respectively, the SG20BL also features an ultra-efficient brushless motor delivering exceptional power-to-weight ratio and a contactless magnetic encoder offering enhanced responsiveness. The implementation of CAN 2.0A,B / DroneCAN command protocols further streamlines communication and integration with advanced unmanned systems.

Looking for the SG20BL-CAN-24V-CIRCULAR-CONN with an operating voltage of 18-32V? Click here to contact our sales team for availability and order placement.

Cad File Download

Cad File Download

Cad File Download

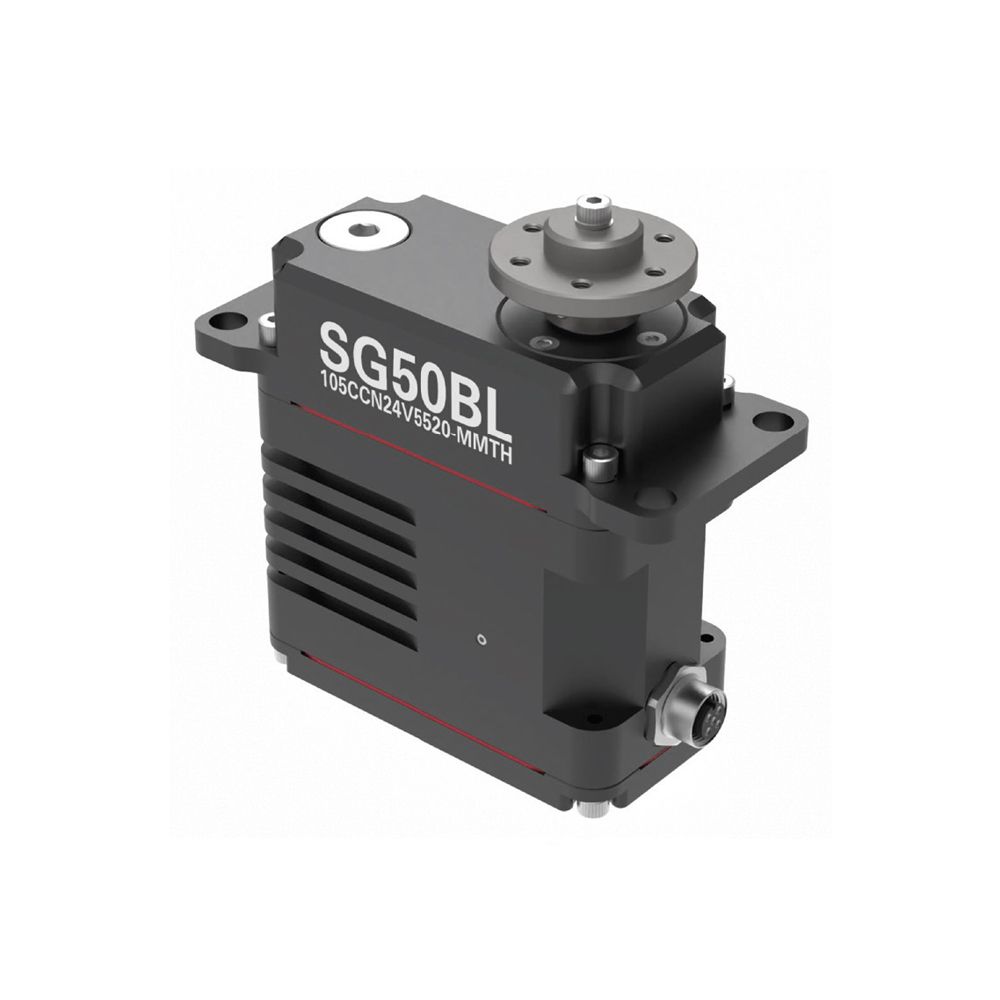

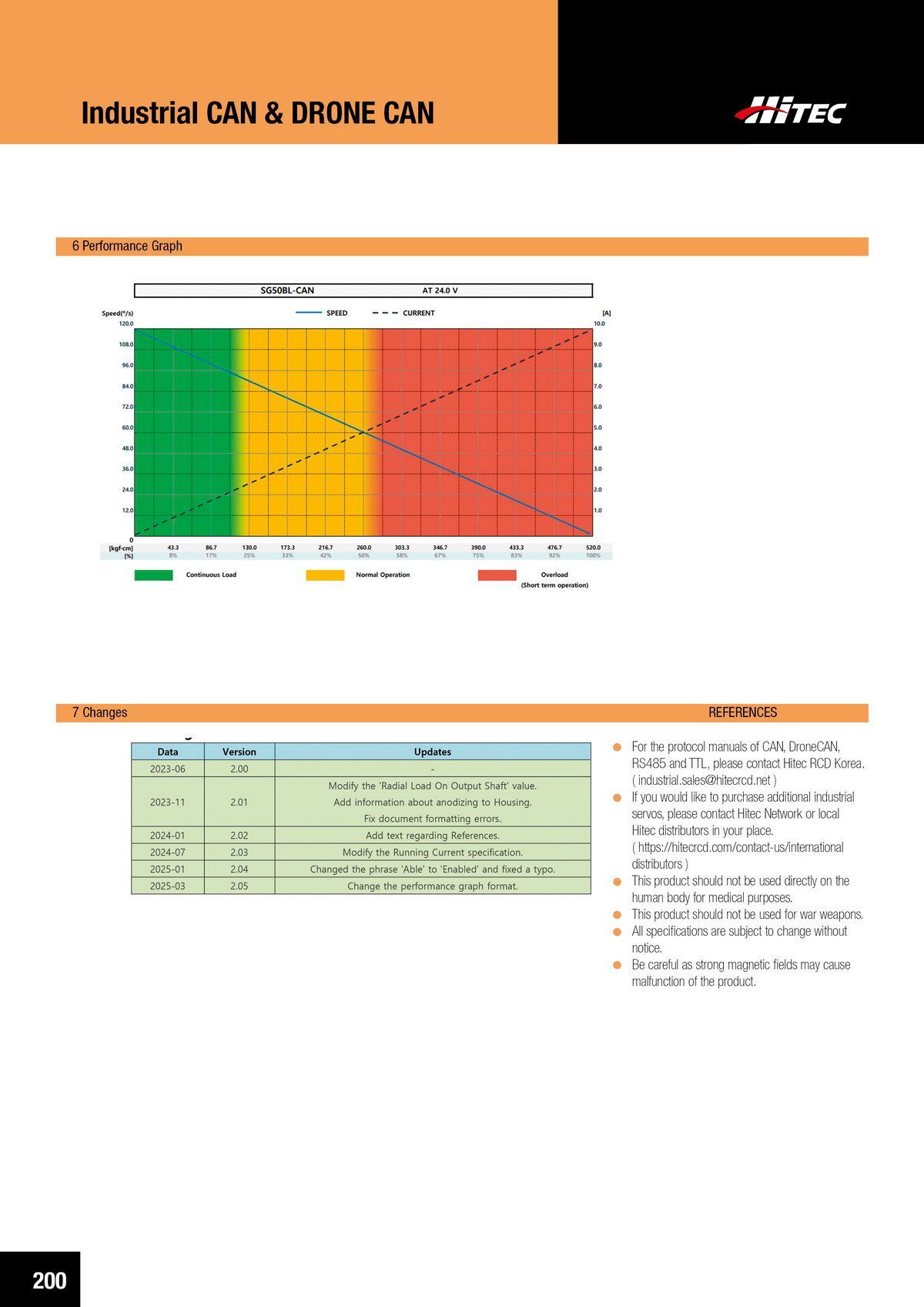

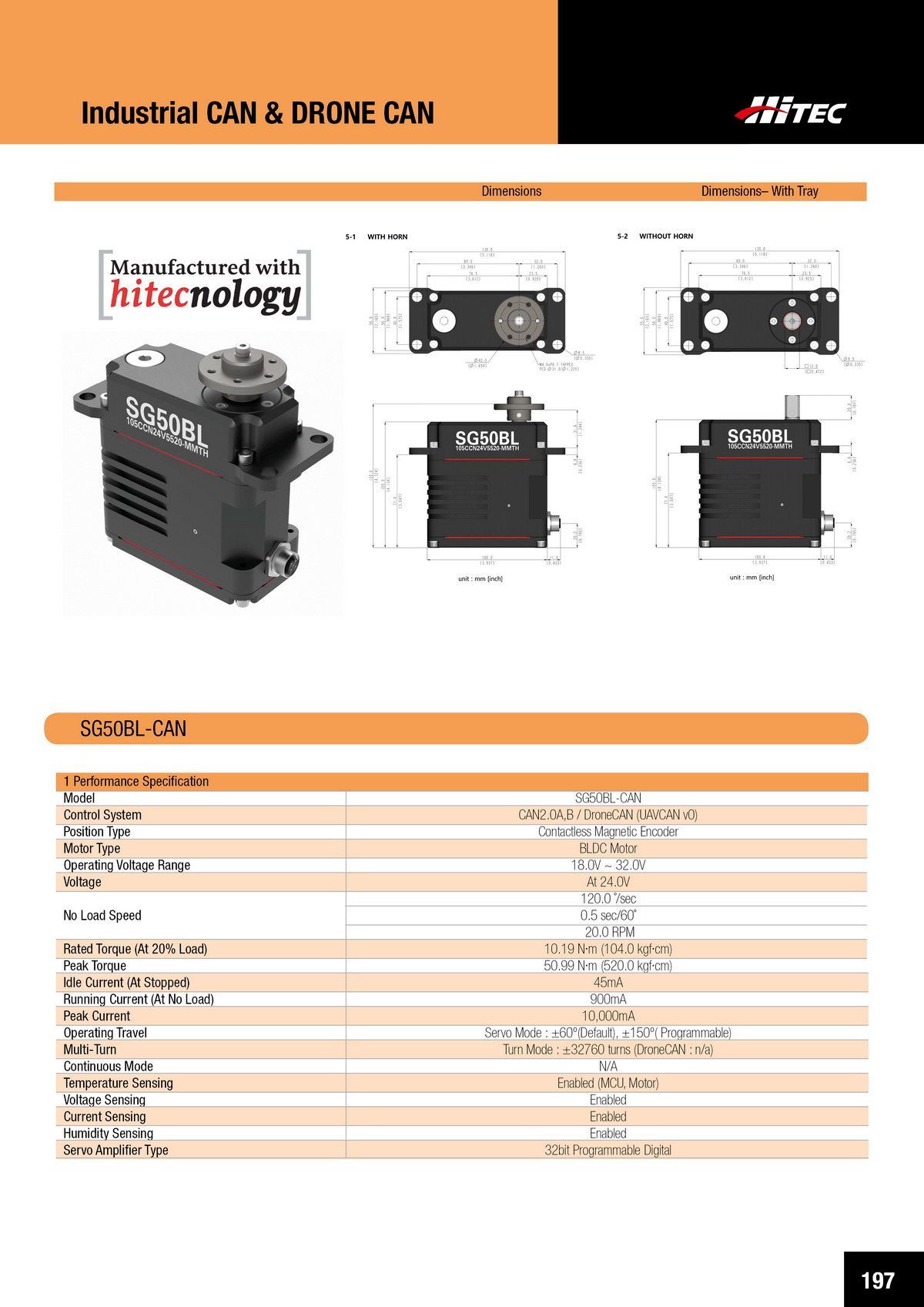

50mm, Waterproof, Brushless, Steel Gear Actuator (24V)

Capable of a wide 18~32-volt operating range, the robust SG50BL is designed with a high-performance brushless motor, magnetic encoder, and durable, hardened steel gears. It includes CAN 2.0 A/B or DroneCAN (formerly UAVCAN) control options with 360 degrees and multi-turn proportional rotation. Its waterproof 50mm case and monster torque range bring the power and durability required for robotic, automation and commercial applications requiring robust force, precision and installed durability.

Cad File Download
